Toyota Lexus UX250H/200

2018-10 → 2022-07 · chassis MZAA10,MZAH1# · catalogue 537110 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

13 part groups · 2 illustrations

Illustrations

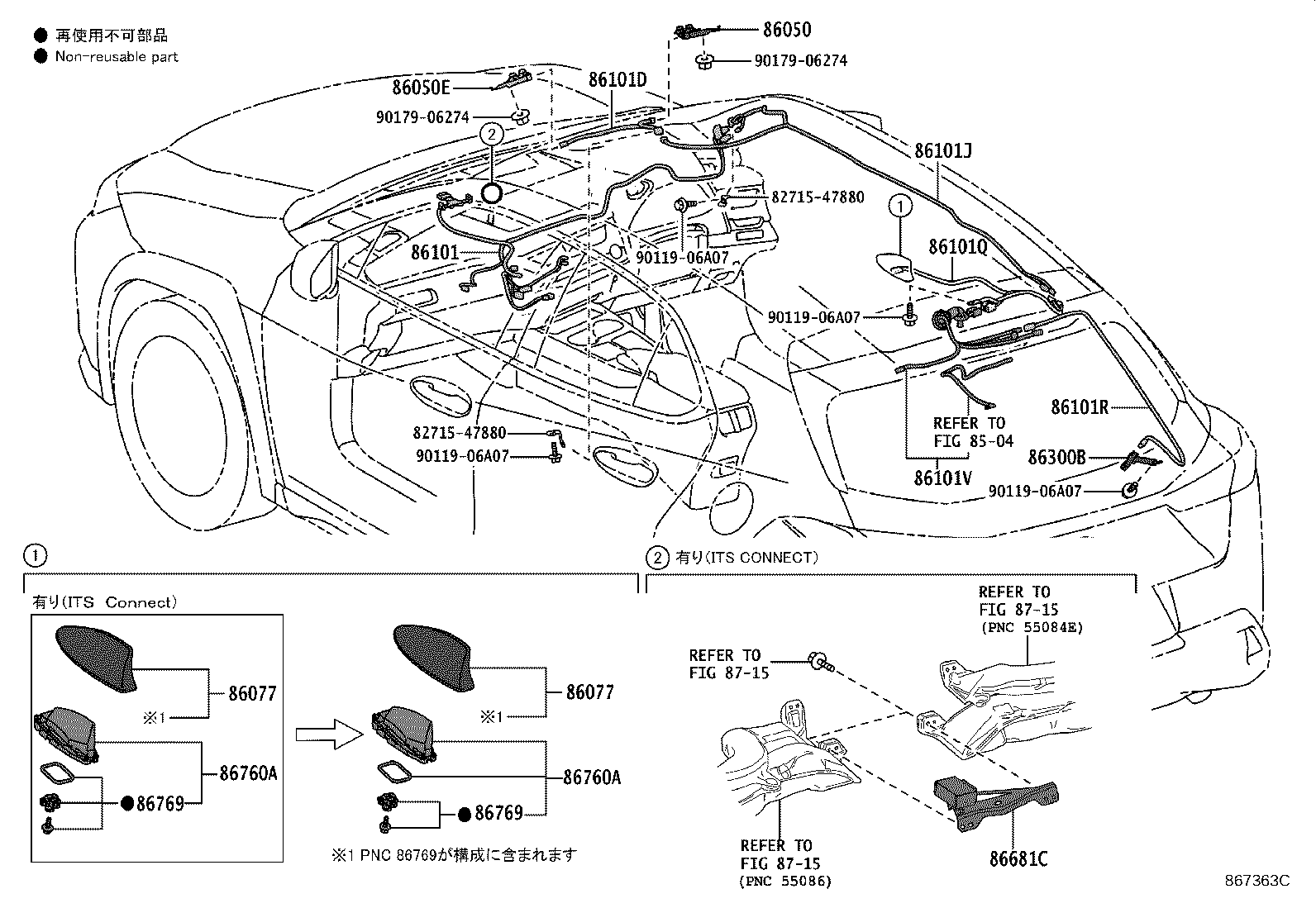

Figure 868496A 868496A 2018-10 → 2020-10 Figure 867363C 867363C 2020-10 → —

Part groups

PNCDescription
86050 Antenna Assy, Television
86050E Antenna Assy, Television
86077 Cover Kit, Antenna
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101Q Cord Sub-assy, Antenna, NO.4
86101R Cord Sub-assy, Antenna, NO.5
86101V Cord Sub-assy, Antenna, NO.6
86300B Antenna Assy, Amplifier, NO.1
86681C Divider, Antenna
86760A Antenna Assy, Telephone
86769 Housing, Roof Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
