Heating & Air Conditioning - Water Piping

10 part groups · 4 illustrations

Illustrations

Figure 87H405A

87H405A 2018-10 → —

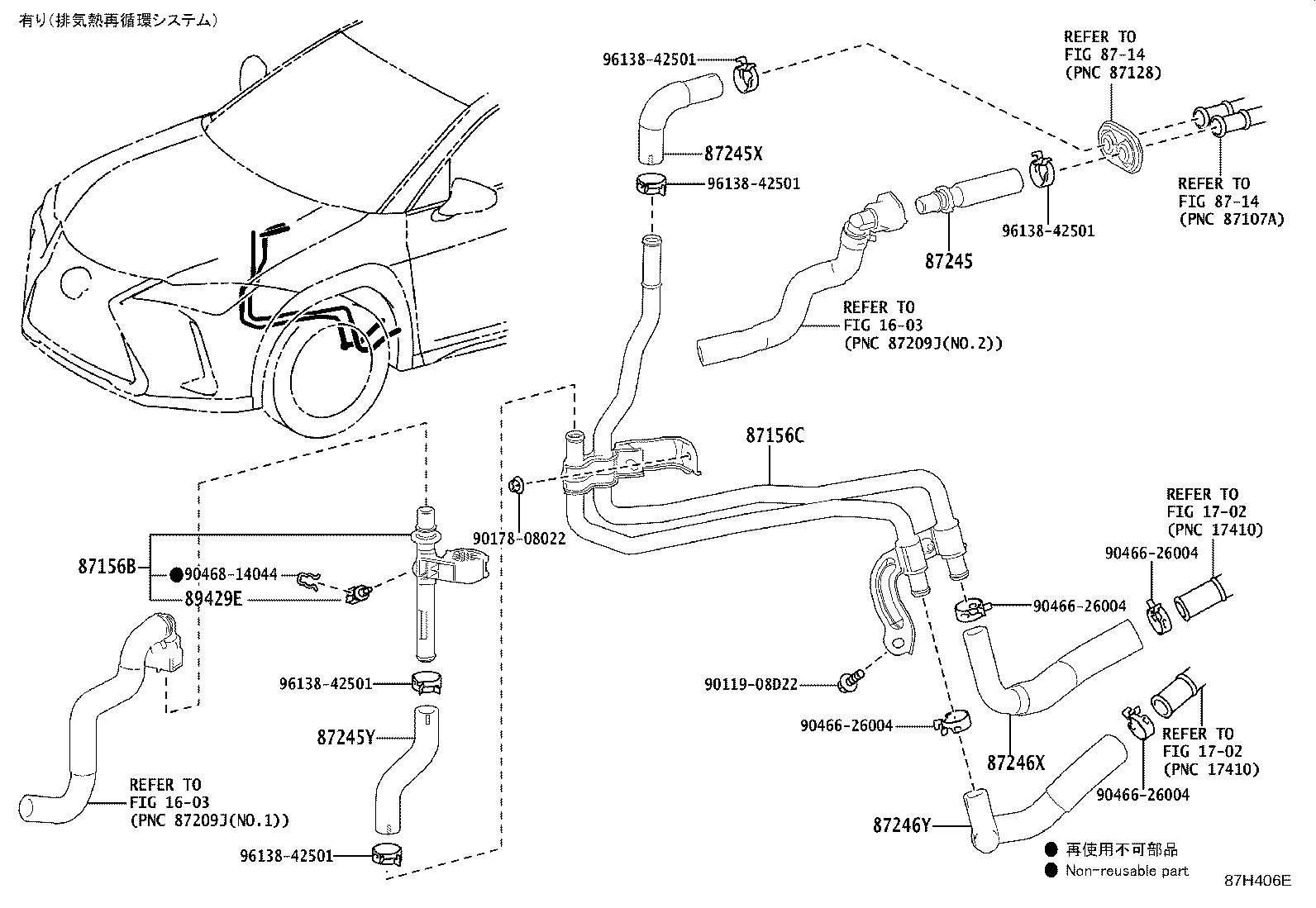

Figure 87H406E

87H406E 2018-11 → 2021-08

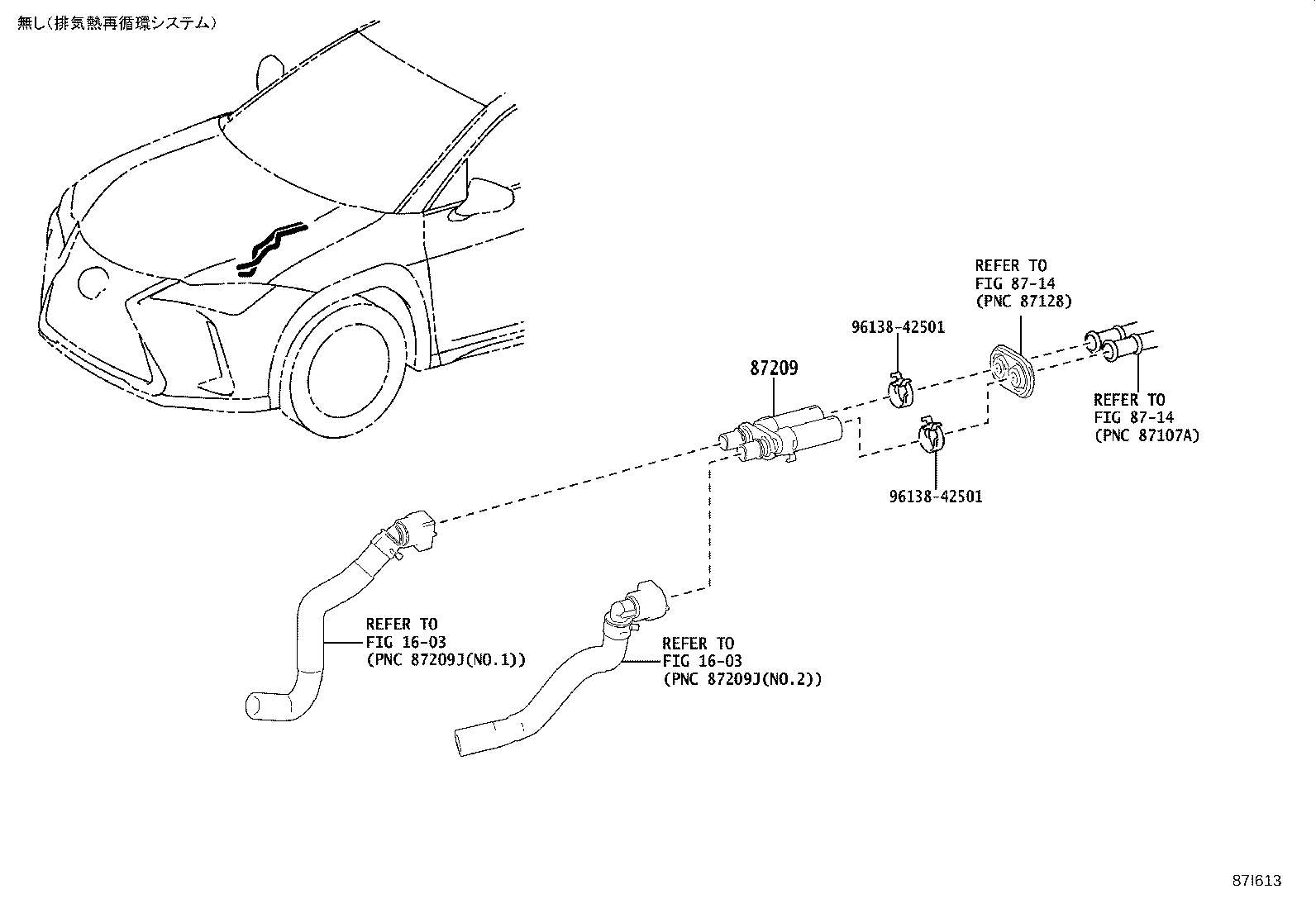

Figure 87I613

87I613 2020-10 → 2021-08

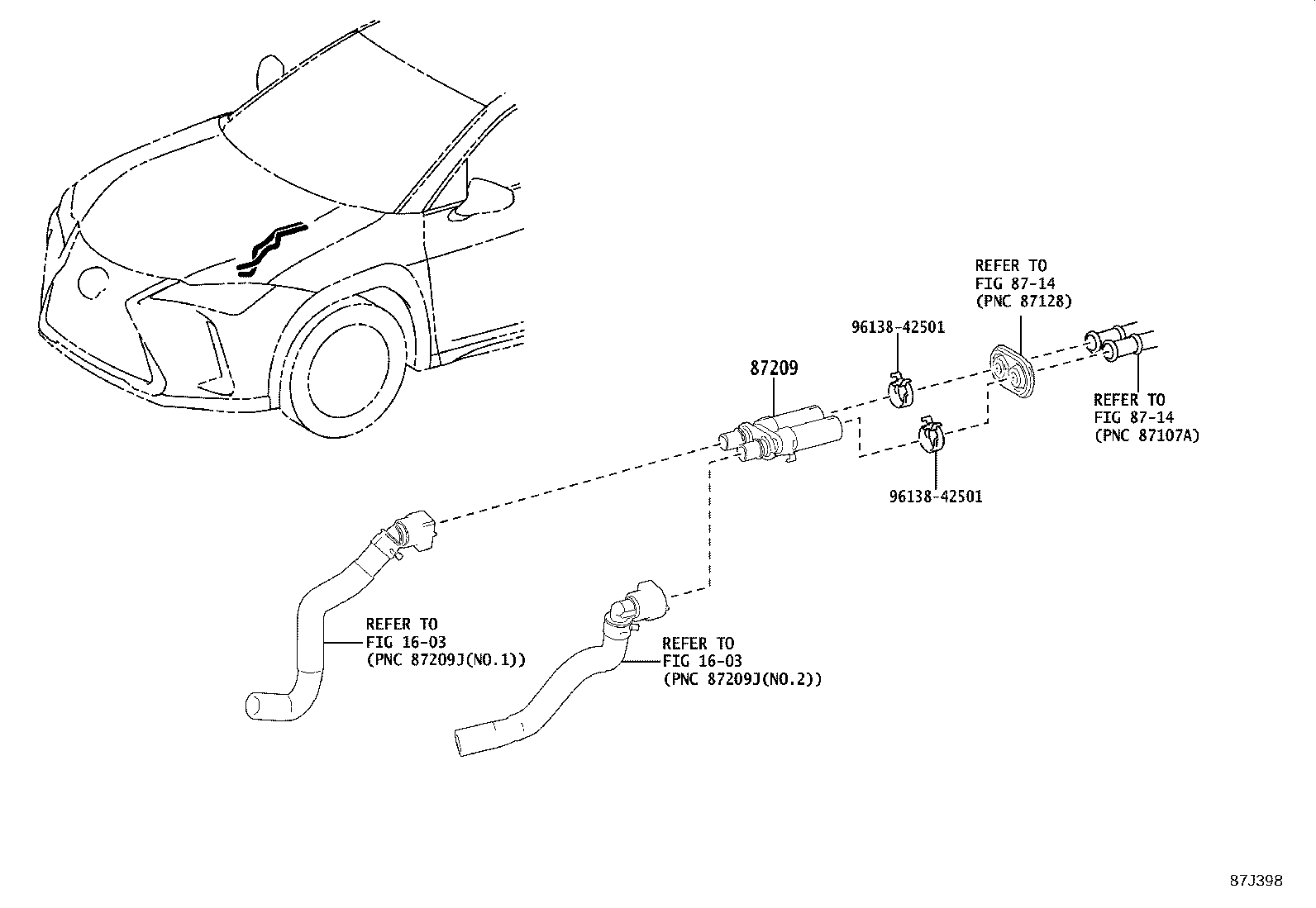

Figure 87J398

87J398 2021-08 → —

Part groups

PNC	Description
87156B	Pipe, Heater Water, NO.2
87156C	Pipe, Heater Water, NO.1
87209	Hose Sub-assy, Water
87245	Hose, Heater Water, Inlet
87245X	Hose, Heater Water
87245Y	Hose, Heater Water
87246	Hose, Heater Water, Outlet
87246X	Hose, Heater Water
87246Y	Hose, Heater Water
89429E	Sensor, Water Temperature

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
