Toyota Lexus UX Series

2022-07 → present · chassis MZAA10,MZAH1#,KMA10 · catalogue 537120 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

13 part groups · 3 illustrations

Illustrations

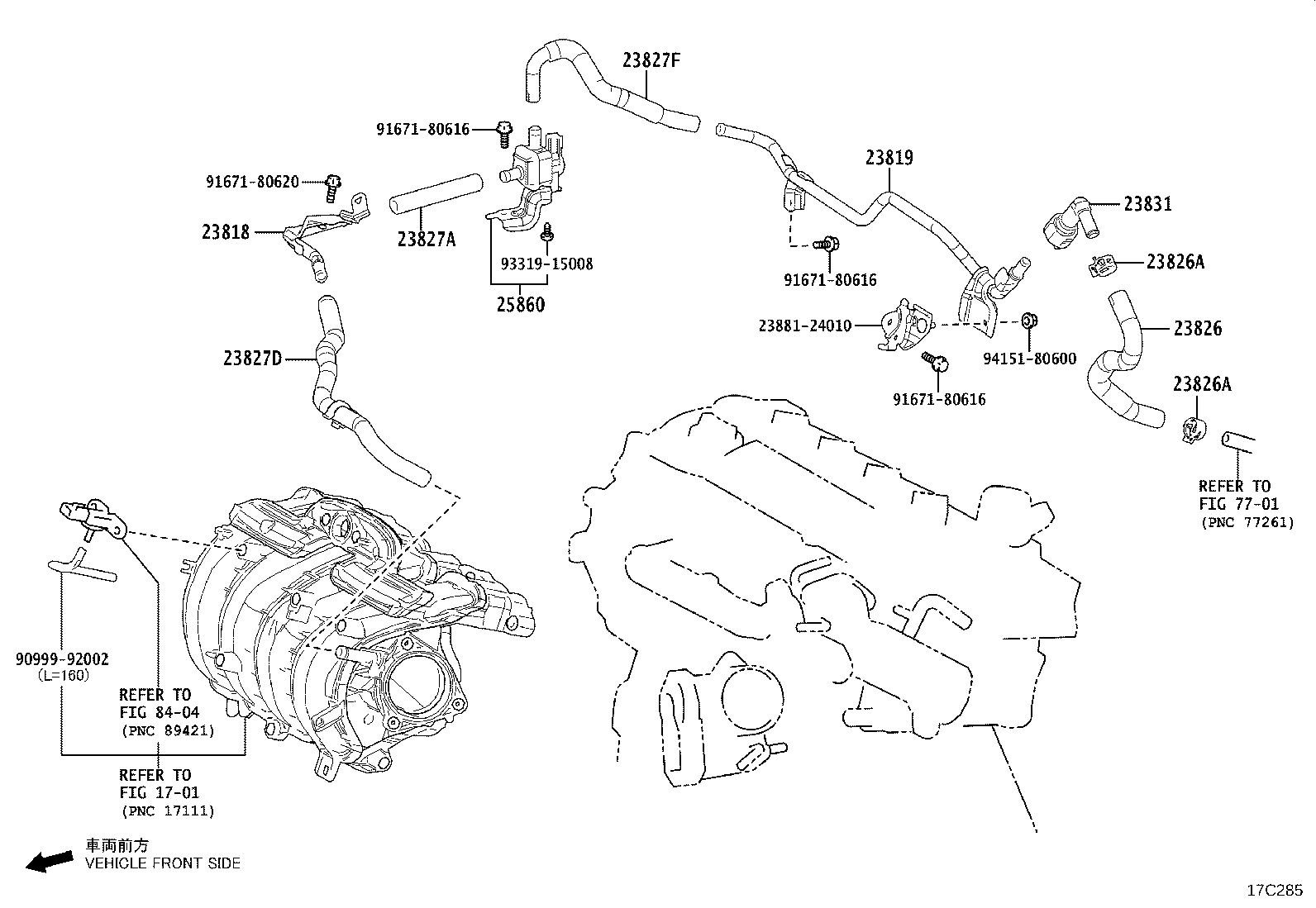

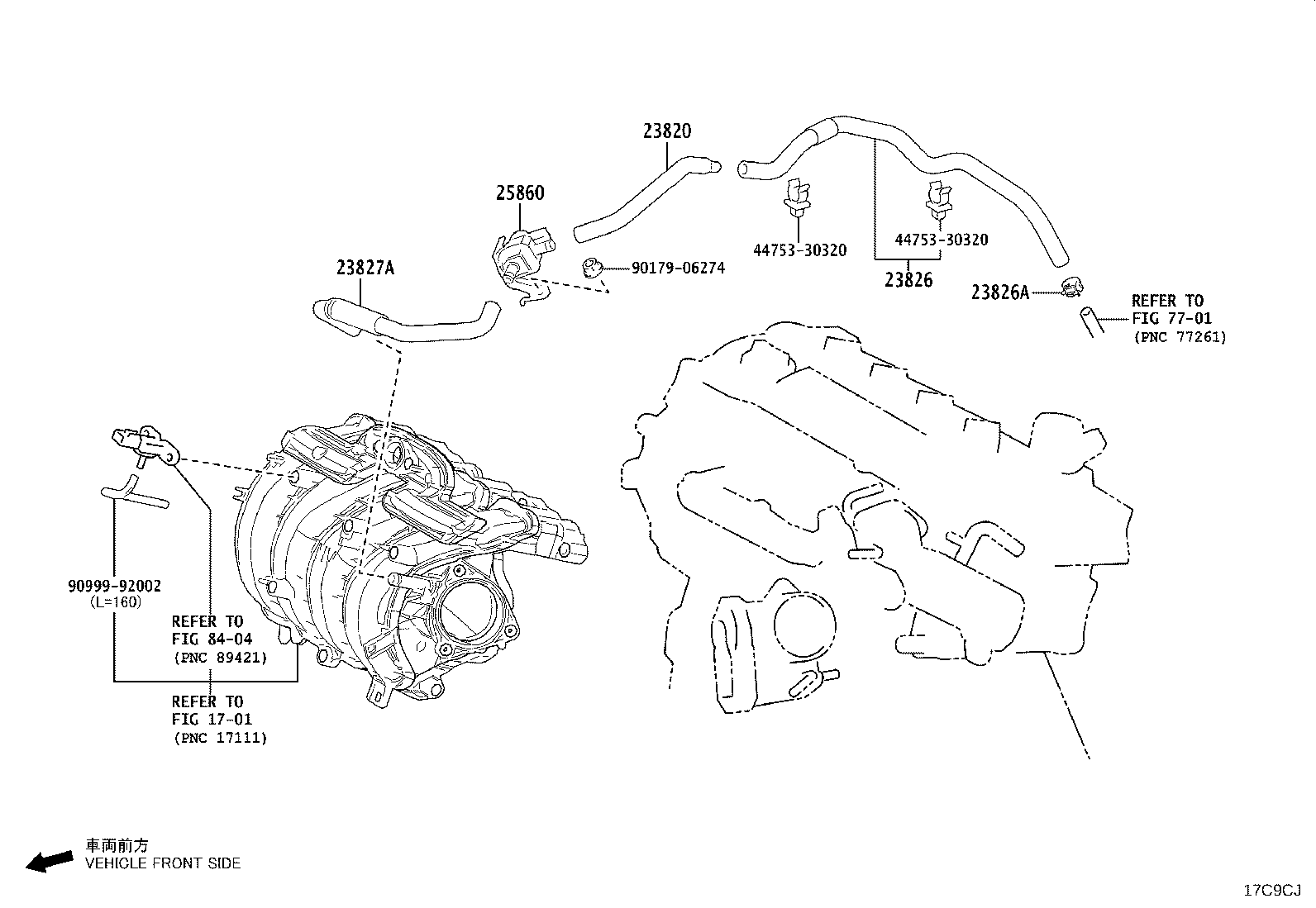

Figure 17C284 17C284 2022-07 → — Figure 17C285 17C285 2022-07 → — Figure 17C9CJ 17C9CJ 2024-01 → —

Part groups

PNCDescription
23818 Pipe, Fuel Vapor Feed
23819 Pipe, Fuel Vapor Feed, NO.2
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23827D Hose, Fuel Vapor Feed, NO.2
23827F Hose, Fuel Vapor Feed, NO.3
23827G Clip(FOR FUEL VAPOR FEED HOSE, NO.3)
23831 Connector, Fuel Vapor Feed, NO.1
25719 Tank, Vacuum Surge
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
