Toyota Lexus UX Series
2022-07 → present · chassis MZAA10,MZAH1#,KMA10 · catalogue 537120 · Japan
Supported model
Data version 2024-01

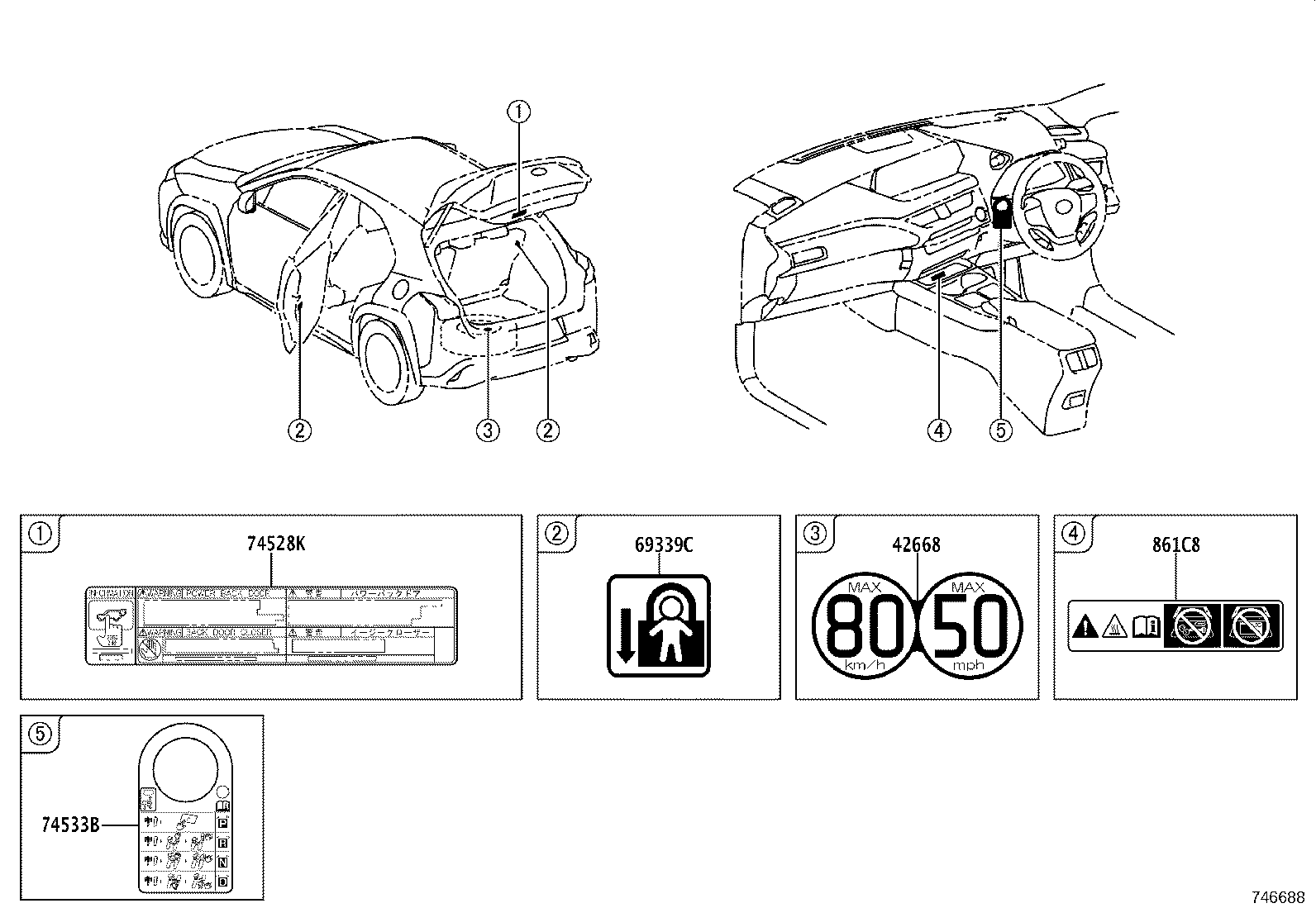

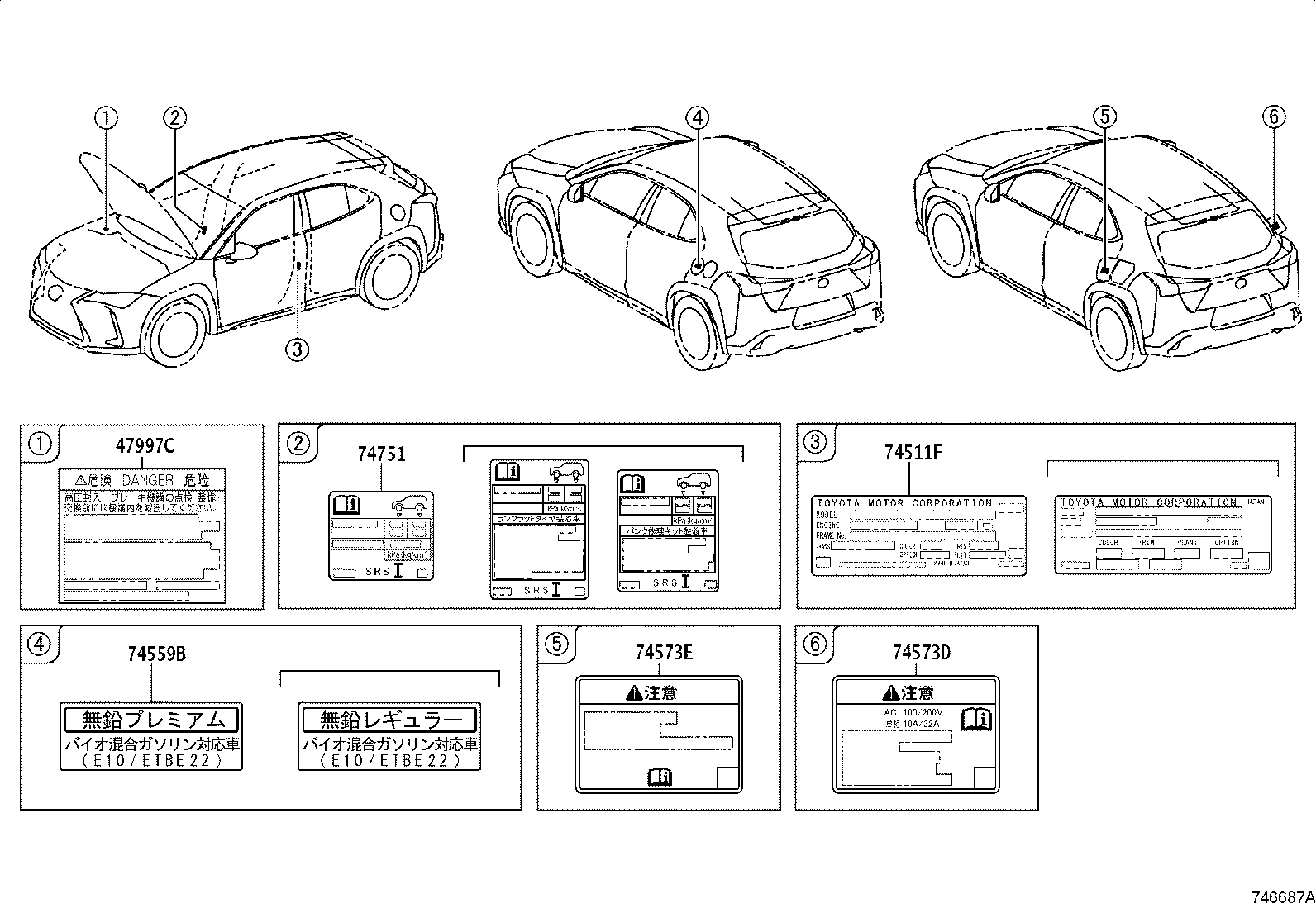

Caution Plate (EXTERIOR & INTERIOR)
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11296C | Label, Engine Service Information |
| 16793B | Label, Cooling Fan Information |
| 288A2 | Label, Battery Location |
| 288A2A | Label, Battery Location, NO.2 |
| 42668 | Label, Compact Spare Tire Caution |
| 47997C | Label, Accumulator Caution, NO.1 |
| 69339C | Label, Child Protector Information |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74528K | Label, Door Closer Caution |
| 74533B | Plate, Shifting Instruction |
| 74559B | Label, Fuel Information |
| 74573D | Label, Electric Vehicle Battery Caution |
| 74573E | Label, Electric Vehicle Battery Caution, NO.2 |
| 74751 | Label, Tire Pressure Information |
| 861C8 | Label, Mobile Wireless Charger Caution |
| 88723H | Label, Cooler Service Caution |
| G9275 | Label, Battery Caution, NO.1 |
| G92A1 | Label, Hybrid Coolant System Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
