Toyota Lexus UX Series
2022-07 → present · chassis MZAA10,MZAH1#,KMA10 · catalogue 537120 · Japan
Supported model
Data version 2024-01
Heating & Air Conditioning - Water Piping

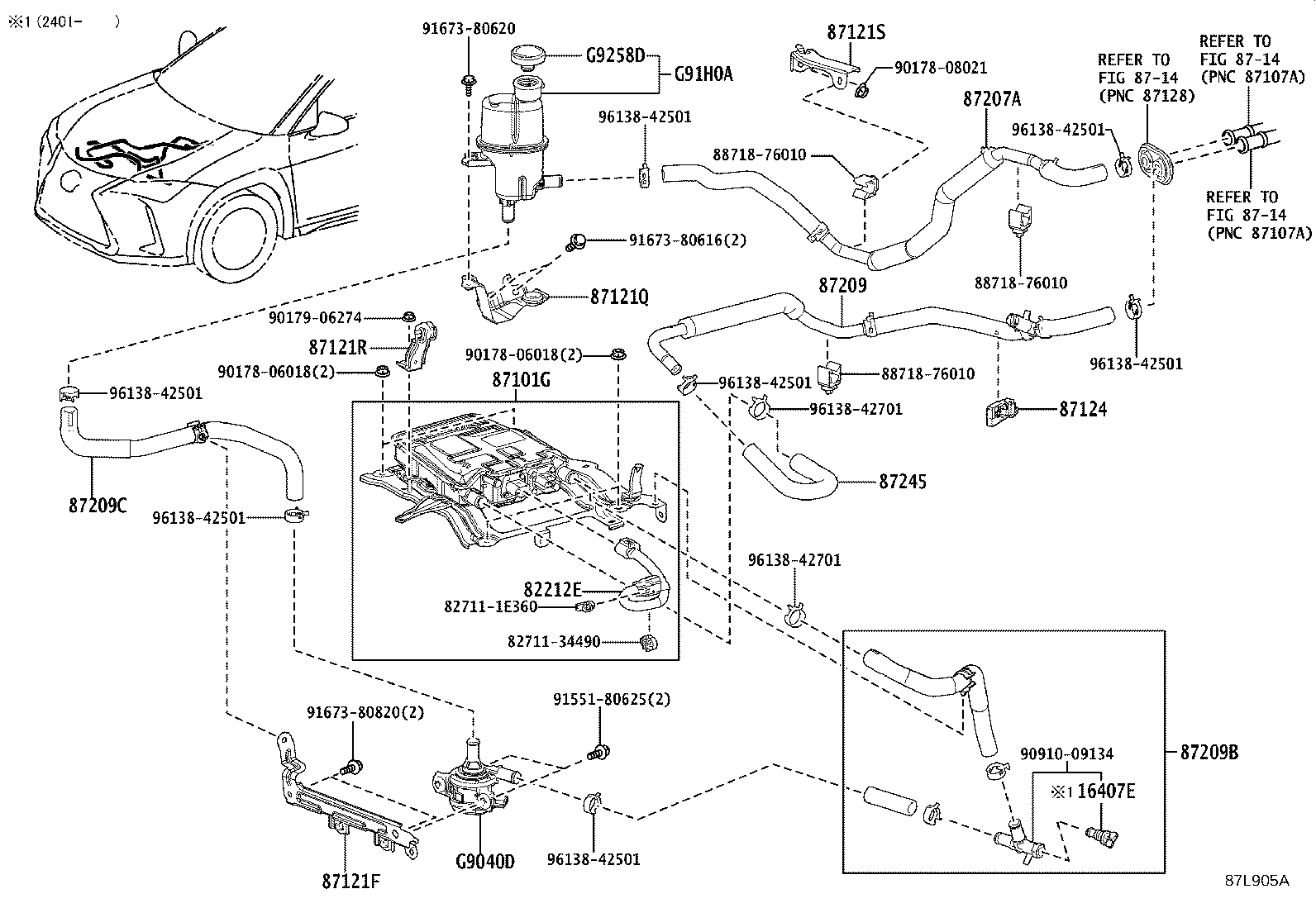

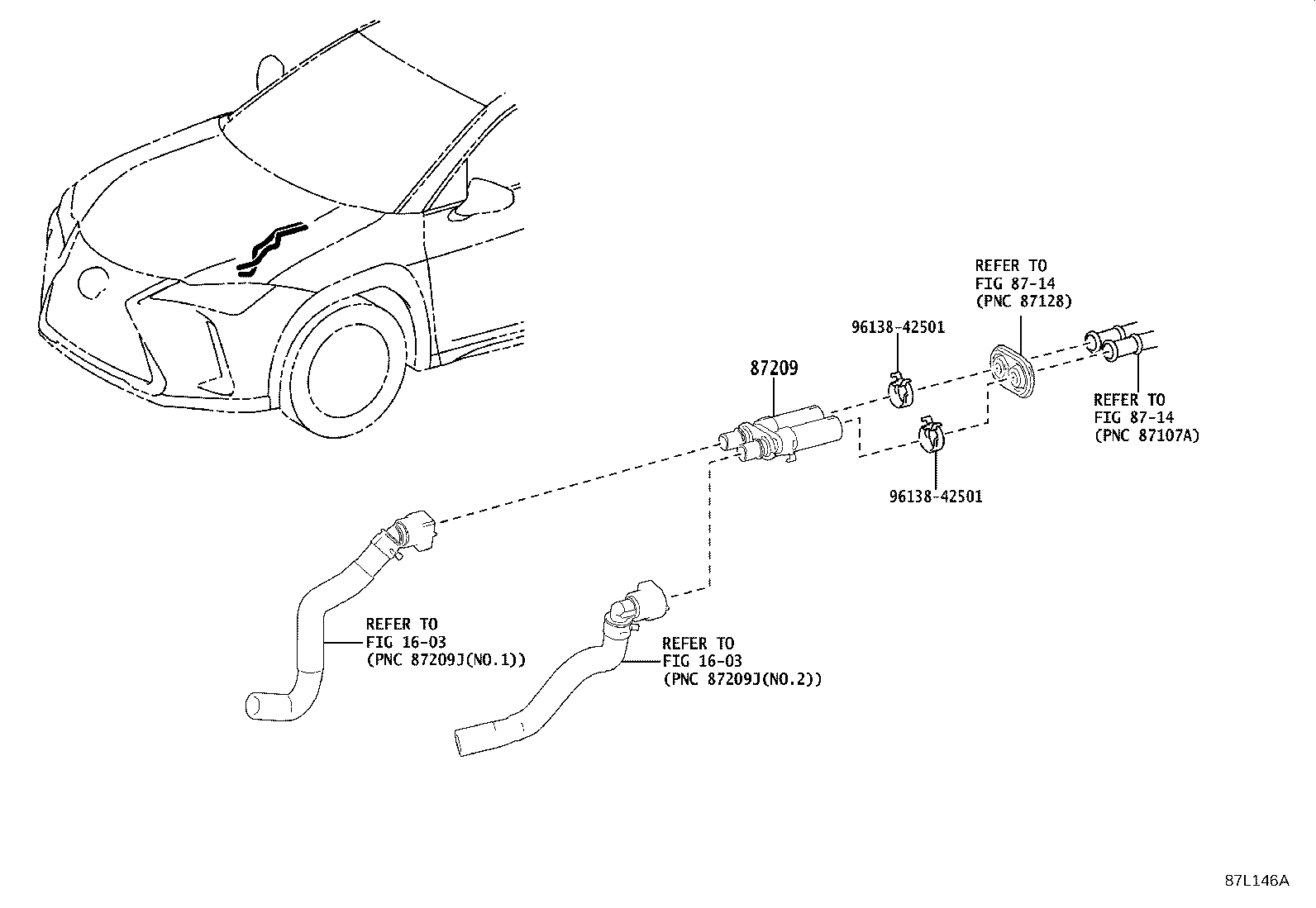

17 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16407E | Cock Sub-assy, Radiator Drain |
| 82212E | Harness, Air Conditioner NO.1 |
| 87101G | Heater Sub-assy, Electric |
| 87121F | Bracket, Heater |
| 87121Q | Bracket, Heater NO.2 |
| 87121R | Bracket, Heater NO.3 |
| 87121S | Bracket, Heater NO.4 |
| 87124 | Clamp, Heater |
| 87207A | Pipe & Hose Sub-assy, Water A |
| 87209 | Hose Sub-assy, Water |
| 87209B | Hose Sub-assy, Water, B |
| 87209C | Hose Sub-assy, Water, C |
| 87245 | Hose, Heater Water, Inlet |
| 87246 | Hose, Heater Water, Outlet |
| G9040D | Pump Assy, Water W/Motor |
| G91H0A | Tank Assy, Heater Reserve |
| G9258D | Cap, Heater Reserve Tank |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
