Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

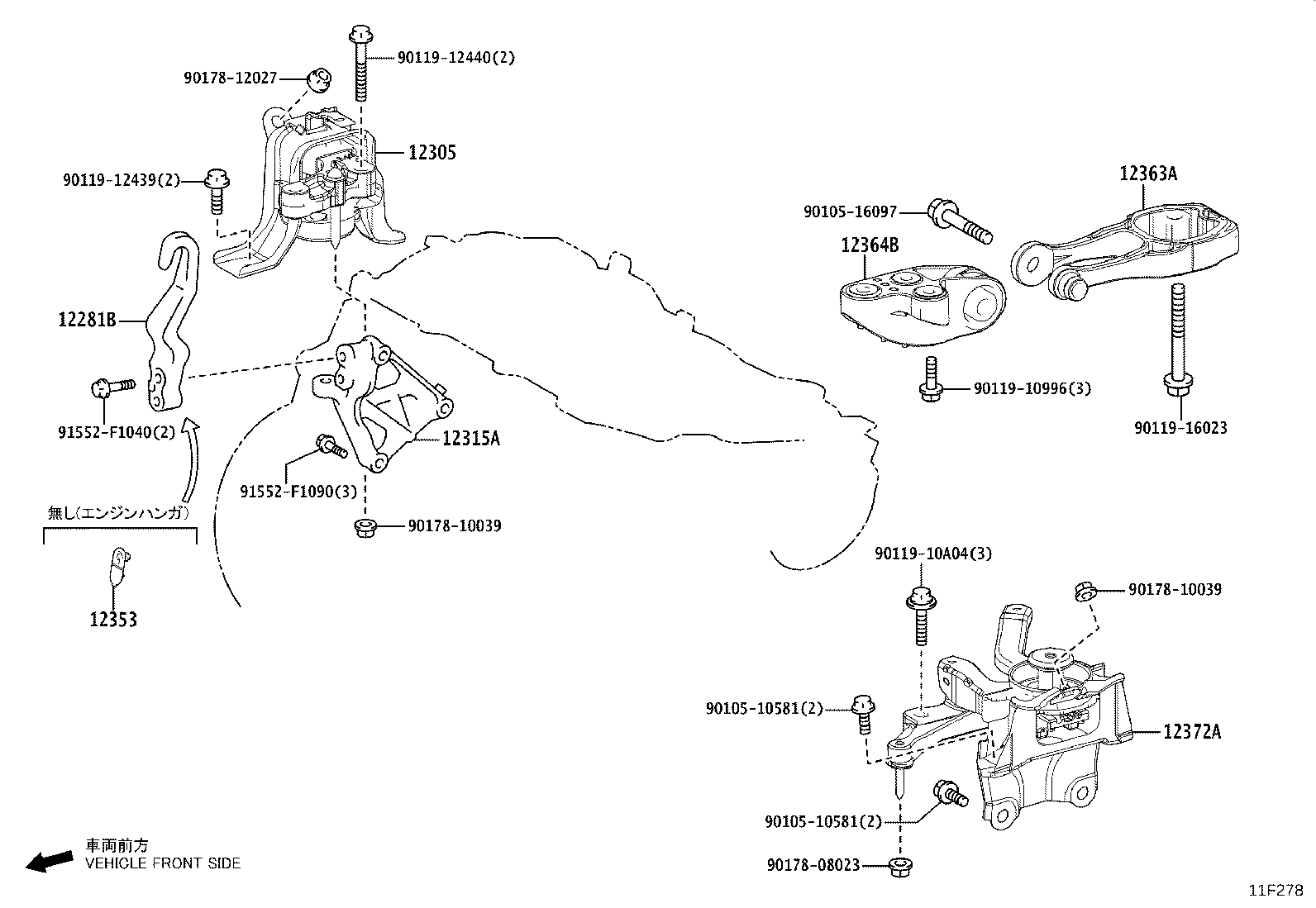

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12281B — Hanger, Engine, NO.1 | ||||
| 12281-25030 |
Hanger, Engine, NO.1
2020-08 → 2024-01
ended
|
M15# MXPB1#,MXPJ1# | ¥4,100 | |
| 12281-25030 |
Hanger, Engine, NO.1
2024-01 → —
|
M15# MXPB1#,MXPJ1# | ¥4,100 | |
| 12305 — Insulator Sub-assy, Engine Mounting, RH | ||||
| 12305-15090 |
Insulator Sub-assy, Engine Mounting, RH
2020-08 → 2024-01
ended
|
M15AFXE MXPJ1# | ¥8,400 | |
| 12305-15100 |
Insulator Sub-assy, Engine Mounting, RH
2020-08 → 2024-01
ended
|
M15AFKS MXPB10 | ¥8,400 | |
| 12305-15110 |
Insulator Sub-assy, Engine Mounting, RH
2020-08 → 2024-01
ended
|
M15AFKS MXPB15 | ¥8,400 | |
| 12305-15090 |
Insulator Sub-assy, Engine Mounting, RH
2024-01 → —
|
M15AFXE MXPJ1# | ¥8,400 | |
| 12305-15100 |
Insulator Sub-assy, Engine Mounting, RH
2024-01 → —
|
M15AFKS MXPB10 | ¥8,400 | |
| 12305-15110 |
Insulator Sub-assy, Engine Mounting, RH
2024-01 → —
|
M15AFKS MXPB15 | ¥8,400 | |
| 12315A — Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-15090 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2020-08 → 2024-01
ended
|
M15AFKS MXPB1# | ¥3,160 | |
| 12315-15100 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2020-08 → 2024-01
ended
|
M15AFXE MXPJ1# | ¥2,870 | |
| 12315-15090 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2024-01 → —
|
M15AFKS MXPB1# | ¥3,160 | |
| 12315-15100 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2024-01 → —
|
M15AFXE MXPJ1# | ¥2,870 | |
| 12353 — Cap, Engine Mounting Bracket | ||||
| 12353-15010 |
Cap, Engine Mounting Bracket
2020-08 → 2024-01
ended
|
M15# MXPB1#,MXPJ1# | ¥190 | |
| 12353-15010 |
Cap, Engine Mounting Bracket
2024-01 → —
|
M15# MXPB1#,MXPJ1# | ¥190 | |
| 12363A — Rod, Engine Moving Control | ||||
| 12363-15030 |
Rod, Engine Moving Control
2020-08 → 2021-09
ended
|
M15AFKS MXPB15 | ¥3,750 | |
| 12363-15050 |
Rod, Engine Moving Control
2020-08 → 2024-01
ended
|
M15# MXPB10,MXPJ1# | ¥4,420 | |
| 12363-15060 |
Rod, Engine Moving Control
2021-10 → 2024-01
ended
|
M15AFKS MXPB15 | ¥4,420 | |
| 12363-15050 |
Rod, Engine Moving Control
2024-01 → —
|
M15# MXPB10,MXPJ1# | ¥4,420 | |
| 12363-15060 |
Rod, Engine Moving Control
2024-01 → —
|
M15AFKS MXPB15 | ¥4,420 | |
| 12364B — Rod, Engine Moving Control, NO.2 | ||||
| 12364-15010 |
Rod, Engine Moving Control, NO.2
2020-08 → 2024-01
ended
|
M15AFXE MXPJ1# | ¥3,500 | |
| 12364-15060 |
Rod, Engine Moving Control, NO.2
2020-08 → 2024-01
ended
|
M15AFKS MXPB1# | ¥2,690 | |
| 12364-15010 |
Rod, Engine Moving Control, NO.2
2024-01 → —
|
M15AFXE MXPJ1# | ¥3,500 | |
| 12364-15060 |
Rod, Engine Moving Control, NO.2
2024-01 → —
|
M15AFKS MXPB1# | ¥2,690 | |
| 12372A — Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-15270 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2020-08 → 2024-01
ended
|
M15AFXE MXPJ1# | ¥6,000 | |
| 12372-15281 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2020-08 → 2024-01
ended
|
M15AFKS MXPB10 | ¥6,600 | |
| 12372-15291 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2020-08 → 2024-01
ended
|
M15AFKS MXPB15 | ¥6,600 | |
| 12372-15270 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2024-01 → —
|
M15AFXE MXPJ1# | ¥6,000 | |
| 12372-15281 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2024-01 → —
|
M15AFKS MXPB10 | ¥6,600 | |
| 12372-15291 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2024-01 → —
|
M15AFKS MXPB15 | ¥6,600 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
