Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

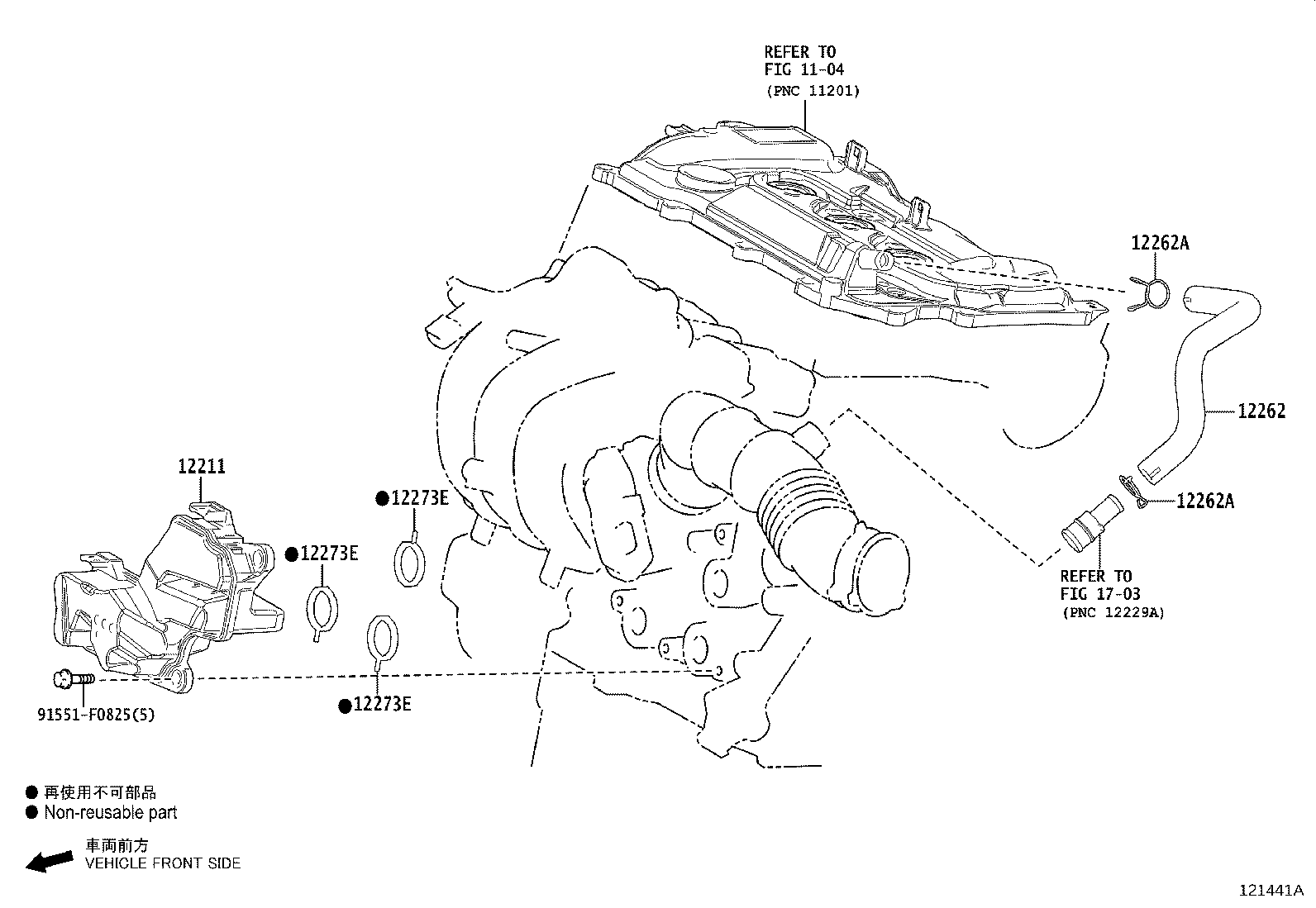

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12211 — Case, Ventilation, NO.1 | ||||
| 12211-15060 |
Case, Ventilation, NO.1
2020-08 → 2023-03
ended
|
M15# MXPB1#,MXPJ1# | ¥8,000 | |
| 12211-15061 |
Case, Ventilation, NO.1
2023-04 → 2024-01
ended
|
M15# MXPB1#,MXPJ1# | ¥7,300 | |
| 12211-15061 |
Case, Ventilation, NO.1
2024-01 → —
|
M15# MXPB1#,MXPJ1# | ¥7,300 | |
| 12262 — Hose, Ventilation, NO.2 | ||||
| 12262-15100 |
Hose, Ventilation, NO.2
2020-08 → 2024-01
ended
|
M15AFKS MXPB1# | ¥1,140 | |
| 12262-15110 |
Hose, Ventilation, NO.2
2020-08 → 2024-01
ended
|
M15AFXE MXPJ1# | ¥1,430 | |
| 12262-15100 |
Hose, Ventilation, NO.2
2024-01 → —
|
M15AFKS MXPB1# | ¥1,140 | |
| 12262-15110 |
Hose, Ventilation, NO.2
2024-01 → —
|
M15AFXE MXPJ1# | ¥1,430 | |
| 12262A — Clip(FOR VENTILATION HOSE NO.2) | ||||
| 90467-21004 |
Clip(FOR VENTILATION HOSE NO.2)
2020-08 → 2024-01
ended
|
M15# MXPB1#,MXPJ1# | ¥130 | |
| 90467-21004 |
Clip(FOR VENTILATION HOSE NO.2)
2024-01 → —
|
M15# MXPB1#,MXPJ1# | ¥130 | |
| 12273E — Gasket(FOR VENTILATION CASE) | ||||
| 12273-15010 |
Gasket(FOR VENTILATION CASE)
2020-08 → 2024-01
ended
|
M15# MXPB1#,MXPJ1# | ¥340 | |
| 12273-15010 |
Gasket(FOR VENTILATION CASE)
2024-01 → —
|
M15# MXPB1#,MXPJ1# | ¥340 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
