Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

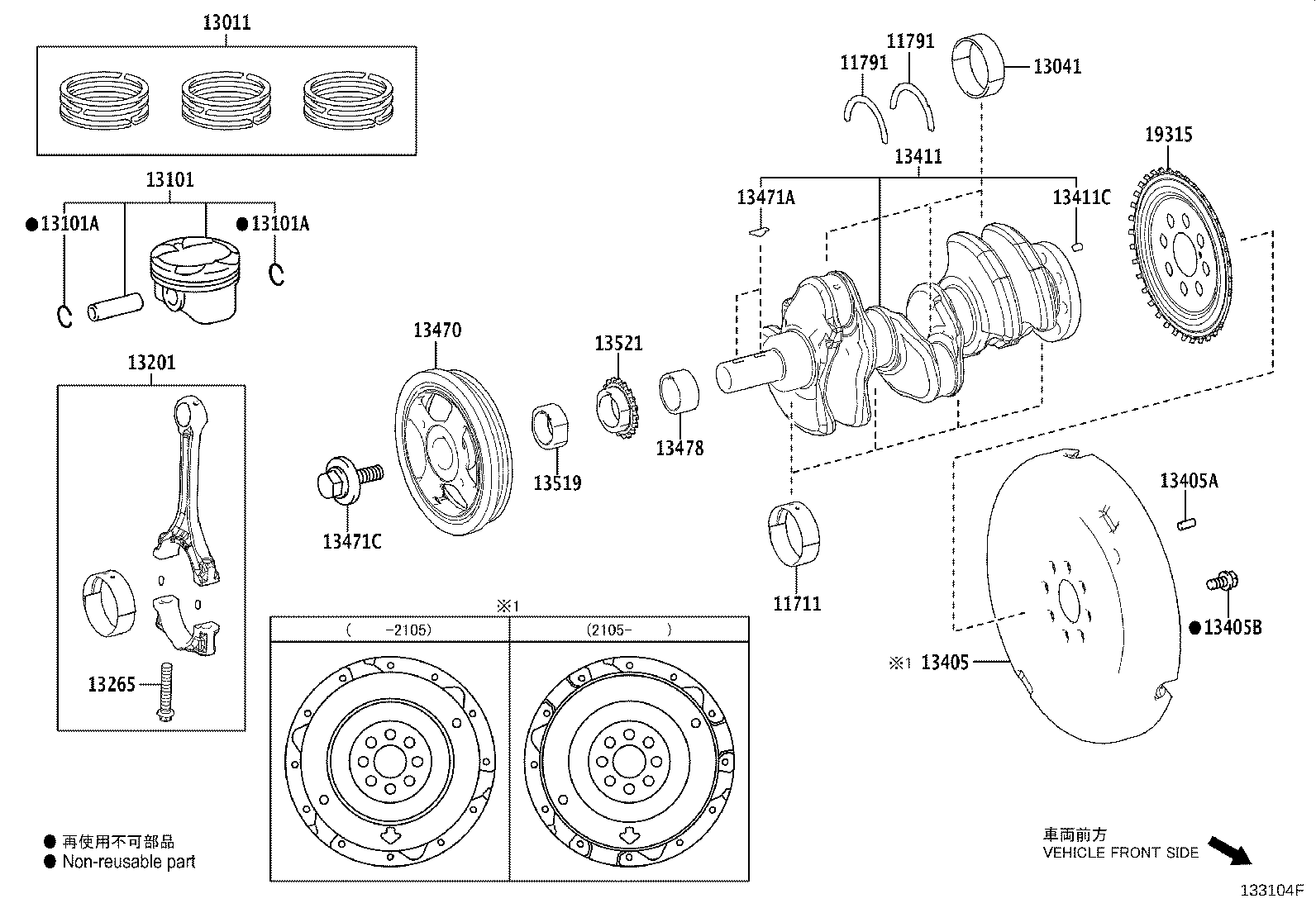

Exploded illustration 133104F 13478 — SPACER, CRANKSHAFT PULLEY (2 parts) 13519 — GEAR, OIL PUMP DRIVE (2 parts) 19315 — PLATE, CRANK ANGLE SENSOR, NO.1 (2 parts) 11791 — WASHER, CRANKSHAFT THRUST, UPPER (2 parts) 11791 — WASHER, CRANKSHAFT THRUST, UPPER (2 parts) 11711 — BEARING, CRANKSHAFT (18 parts) 13041 — BEARING, CONNECTING ROD (6 parts) 13201 — ROD SUB-ASSY, CONNECTING (6 parts) 13265 — BOLT, CONNECTING ROD (2 parts) 13470 — PULLEY ASSY, CRANKSHAFT (4 parts) 13521 — GEAR OR SPROCKET, CRANKSHAFT TIMING (2 parts) 13011 — RING SET, PISTON (2 parts) 13471C — BOLT(FOR CRANKSHAFT PULLEY SET) (2 parts) 13411 — CRANKSHAFT (5 parts) 13411C — PIN, STRAIGHT(FOR CRANKSHAFT) (4 parts) 13471A — KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) (2 parts) 13405A — PIN, STRAIGHT(FOR FLYWHEEL) (2 parts) 13405 — FLYWHEEL SUB-ASSY (3 parts) 13405B — BOLT, FLYWHEEL SETTING (2 parts) 13101 — PISTON SUB-ASSY, W/PIN (4 parts) 13101A — RING, HOLE SNAP(FOR PISTON PIN) (2 parts) 13101A — RING, HOLE SNAP(FOR PISTON PIN) (2 parts)
133104F · 22 callouts Full size ↗
74 parts on this figure
Part number Description Fitment Price
11711 — Bearing, Crankshaft
11701-15060-01 note Bearing, Crankshaft
2020-08 → 2023-03 ended
M15# MXPB1#,MXPJ1# ¥2,160
11701-15060-02 note Bearing, Crankshaft
2020-08 → 2023-03 ended
M15# MXPB1#,MXPJ1# ¥2,160
11701-15060-03 note Bearing, Crankshaft
2020-08 → 2023-03 ended
M15# MXPB1#,MXPJ1# ¥2,160
11701-15060-04 note Bearing, Crankshaft
2020-08 → 2023-03 ended
M15# MXPB1#,MXPJ1# ¥2,160
11701-15060-05 note Bearing, Crankshaft
2020-08 → 2023-03 ended
M15# MXPB1#,MXPJ1# ¥2,160
11701-15060-06 note Bearing, Crankshaft
2020-08 → 2023-03 ended
M15# MXPB1#,MXPJ1# ¥2,160
11701-15061-01 note Bearing, Crankshaft
2023-03 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥1,960
11701-15061-02 note Bearing, Crankshaft
2023-03 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥1,960
11701-15061-03 note Bearing, Crankshaft
2023-03 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥1,960
11701-15061-04 note Bearing, Crankshaft
2023-03 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥1,960
11701-15061-05 note Bearing, Crankshaft
2023-03 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥1,960
11701-15061-06 note Bearing, Crankshaft
2023-03 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥1,960
11701-15061-01 note Bearing, Crankshaft
2024-01 → —
M15# MXPB1#,MXPJ1# ¥1,960
11701-15061-02 note Bearing, Crankshaft
2024-01 → —
M15# MXPB1#,MXPJ1# ¥1,960
11701-15061-03 note Bearing, Crankshaft
2024-01 → —
M15# MXPB1#,MXPJ1# ¥1,960
11701-15061-04 note Bearing, Crankshaft
2024-01 → —
M15# MXPB1#,MXPJ1# ¥1,960
11701-15061-05 note Bearing, Crankshaft
2024-01 → —
M15# MXPB1#,MXPJ1# ¥1,960
11701-15061-06 note Bearing, Crankshaft
2024-01 → —
M15# MXPB1#,MXPJ1# ¥1,960
11791 — Washer, Crankshaft Thrust, Upper
11791-15030 note Washer, Crankshaft Thrust, Upper
2020-08 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥460
11791-15030 note Washer, Crankshaft Thrust, Upper
2024-01 → —
M15# MXPB1#,MXPJ1# ¥460
13011 — Ring Set, Piston
13011-15150 note Ring Set, Piston
2020-08 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥10,100
13011-15150 note Ring Set, Piston
2024-01 → —
M15# MXPB1#,MXPJ1# ¥10,100
13041 — Bearing, Connecting Rod
13041-24020-01 note Bearing, Connecting Rod
2020-08 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥1,380
13041-24020-02 note Bearing, Connecting Rod
2020-08 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥1,380
13041-24020-03 note Bearing, Connecting Rod
2020-08 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥1,380
13041-24020-01 note Bearing, Connecting Rod
2024-01 → —
M15# MXPB1#,MXPJ1# ¥1,380
13041-24020-02 note Bearing, Connecting Rod
2024-01 → —
M15# MXPB1#,MXPJ1# ¥1,380
13041-24020-03 note Bearing, Connecting Rod
2024-01 → —
M15# MXPB1#,MXPJ1# ¥1,380
13101 — Piston Sub-assy, W/Pin
13101-15060 note Piston Sub-assy, W/Pin
2020-08 → 2024-01 ended
M15AFKS MXPB1# ¥3,910
13101-F2040 note Piston Sub-assy, W/Pin
2020-08 → 2024-01 ended
M15AFXE MXPJ1# ¥3,910
13101-15060 note Piston Sub-assy, W/Pin
2024-01 → —
M15AFKS MXPB1# ¥3,910
13101-F2040 note Piston Sub-assy, W/Pin
2024-01 → —
M15AFXE MXPJ1# ¥3,910
13101A — Ring, Hole Snap(FOR PISTON PIN)
90520-19019 Ring, Hole Snap(FOR PISTON PIN)
2020-08 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥70
90520-19019 Ring, Hole Snap(FOR PISTON PIN)
2024-01 → —
M15# MXPB1#,MXPJ1# ¥70
13201 — Rod Sub-assy, Connecting
13201-29835-A0 note Rod Sub-assy, Connecting
2020-08 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥8,600
13201-29835-B0 note Rod Sub-assy, Connecting
2020-08 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥8,600
13201-29835-C0 note Rod Sub-assy, Connecting
2020-08 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥8,600
13201-29835-A0 note Rod Sub-assy, Connecting
2024-01 → —
M15# MXPB1#,MXPJ1# ¥8,600
13201-29835-B0 note Rod Sub-assy, Connecting
2024-01 → —
M15# MXPB1#,MXPJ1# ¥8,600
13201-29835-C0 note Rod Sub-assy, Connecting
2024-01 → —
M15# MXPB1#,MXPJ1# ¥8,600
13265 — Bolt, Connecting Rod
13265-25020 Bolt, Connecting Rod
2020-08 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥310
13265-25020 Bolt, Connecting Rod
2024-01 → —
M15# MXPB1#,MXPJ1# ¥310
13405 — Flywheel Sub-assy
13451-15110 Flywheel Sub-assy
2020-08 → 2021-06 ended
M15AFXE MXPJ1# ¥17,800
13451-15111 Flywheel Sub-assy
2021-06 → 2024-01 ended
M15AFXE MXPJ1# ¥16,100
13451-15111 Flywheel Sub-assy
2024-01 → —
M15AFXE MXPJ1# ¥16,100
13405A — Pin, Straight(FOR FLYWHEEL)
90250-08120 note Pin, Straight(FOR FLYWHEEL)
2020-08 → 2024-01 ended
M15AFXE MXPJ1# ¥140
90250-08120 note Pin, Straight(FOR FLYWHEEL)
2024-01 → —
M15AFXE MXPJ1# ¥140
13405B — Bolt, Flywheel Setting
90105-12404 Bolt, Flywheel Setting
2020-08 → 2024-01 ended
M15AFXE MXPJ1# ¥100
90105-12404 Bolt, Flywheel Setting
2024-01 → —
M15AFXE MXPJ1# ¥100
13411 — Crankshaft
13401-15010 Crankshaft
2020-08 → 2021-09 ended
M15# MXPB1#,MXPJ1# ¥50,300
13401-15010 note Crankshaft
2021-09 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥50,300
13401-F3030 note Crankshaft
2021-09 → 2024-01 ended
M15# MXPB1#,MXPJ1# —
13401-15010 note Crankshaft
2024-01 → —
M15# MXPB1#,MXPJ1# ¥50,300
13401-F3030 note Crankshaft
2024-01 → —
M15# MXPB1#,MXPJ1# —
13411C — Pin, Straight(FOR CRANKSHAFT)
90250-06035 note Pin, Straight(FOR CRANKSHAFT)
2020-08 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥70
90250-06035 note Pin, Straight(FOR CRANKSHAFT)
2024-01 → —
M15# MXPB1#,MXPJ1# ¥70
90250-06035 Pin, Straight(FOR CRANKSHAFT)
2024-01 → 2024-02 ended
M15AFXE MXPJ1# ¥70
90250-C0025 note Pin, Straight(FOR CRANKSHAFT)
2024-02 → —
M15# MXPB1#,MXPJ1# —
13470 — Pulley Assy, Crankshaft
13470-15140 Pulley Assy, Crankshaft
2020-08 → 2024-01 ended
M15AFKS MXPB1# ¥9,900
13470-15150 Pulley Assy, Crankshaft
2020-08 → 2024-01 ended
M15AFXE MXPJ1# ¥4,620
13470-15140 Pulley Assy, Crankshaft
2024-01 → 2025-02 ended
M15AFKS MXPB1# ¥9,900
13470-15150 Pulley Assy, Crankshaft
2024-01 → —
M15AFXE MXPJ1# ¥4,620
13471A — Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
90280-04001 Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
2020-08 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥80
90280-04001 Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
2024-01 → —
M15# MXPB1#,MXPJ1# ¥80
13471C — Bolt(FOR CRANKSHAFT PULLEY SET)
90119-16020 Bolt(FOR CRANKSHAFT PULLEY SET)
2020-08 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥490
90119-16020 Bolt(FOR CRANKSHAFT PULLEY SET)
2024-01 → —
M15# MXPB1#,MXPJ1# ¥490
13478 — Spacer, Crankshaft Pulley
13478-15010 Spacer, Crankshaft Pulley
2020-08 → 2024-01 ended
M15AFXE MXPJ1# ¥700
13478-15010 Spacer, Crankshaft Pulley
2024-01 → —
M15AFXE MXPJ1# ¥700
13519 — Gear, Oil Pump Drive
13519-15010 Gear, Oil Pump Drive
2020-08 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥660
13519-15010 Gear, Oil Pump Drive
2024-01 → —
M15# MXPB1#,MXPJ1# ¥660
13521 — Gear OR Sprocket, Crankshaft Timing
13521-15030 Gear OR Sprocket, Crankshaft Timing
2020-08 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥1,350
13521-15030 Gear OR Sprocket, Crankshaft Timing
2024-01 → —
M15# MXPB1#,MXPJ1# ¥1,350
19315 — Plate, Crank Angle Sensor, NO.1
19315-24010 Plate, Crank Angle Sensor, NO.1
2020-08 → 2024-01 ended
M15# MXPB1#,MXPJ1# ¥2,110
19315-24010 Plate, Crank Angle Sensor, NO.1
2024-01 → —
M15# MXPB1#,MXPJ1# ¥2,110
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
