Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

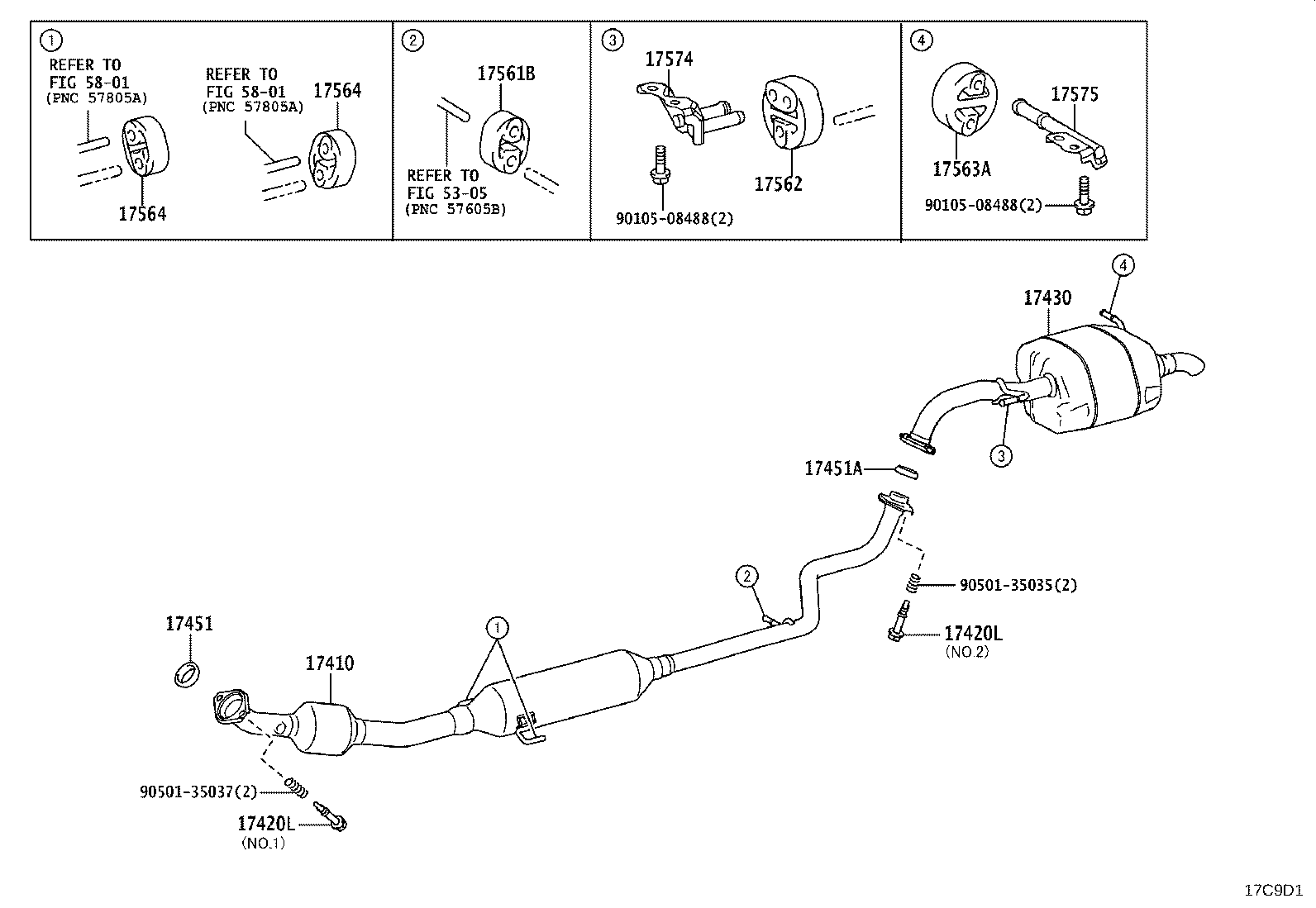

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17410 — Pipe Assy, Exhaust, Front | ||||
| 17410-15290 |
Pipe Assy, Exhaust, Front
2020-08 → 2024-01
ended
|
M15AFKS MXPB10 | ¥55,800 | |
| 17410-15300 |
Pipe Assy, Exhaust, Front
2020-08 → 2024-01
ended
|
M15AFXE MXPJ10 | ¥55,800 | |
| 17410-15310 |
Pipe Assy, Exhaust, Front
2020-08 → 2024-01
ended
|
M15AFKS MXPB15 | ¥6,400 | |
| 17410-15320 |
Pipe Assy, Exhaust, Front
2020-08 → 2024-01
ended
|
M15AFXE MXPJ15 | ¥55,800 | |
| 17410-15310 |
Pipe Assy, Exhaust, Front
2024-01 → —
|
M15AFKS MXPB15 | ¥6,400 | |
| 17410-15490 |
Pipe Assy, Exhaust, Front
2024-01 → —
|
M15AFKS MXPB10 | ¥50,700 | |
| 17410-15510 |
Pipe Assy, Exhaust, Front
2024-01 → —
|
M15AFXE MXPJ10 | ¥50,700 | |
| 17410-15520 |
Pipe Assy, Exhaust, Front
2024-01 → —
|
M15AFXE MXPJ15 | ¥50,700 | |
| 17420L — Bolt, Flange(FOR EXHAUST PIPE) | ||||
| 90109-10182 |
Bolt, Flange(FOR EXHAUST PIPE)
2020-08 → 2021-03
ended
|
M15AFKS MXPB15 | ¥190 | |
| 90109-10182 note |
Bolt, Flange(FOR EXHAUST PIPE)
2020-08 → 2021-03
ended
|
M15# MXPB10,MXPJ1# | ¥190 | |
| 90109-10183 note |
Bolt, Flange(FOR EXHAUST PIPE)
2020-08 → 2021-03
ended
|
M15# MXPB10,MXPJ1# | ¥190 | |
| 90901-05020 |
Bolt, Flange(FOR EXHAUST PIPE)
2021-03 → 2024-01
ended
|
M15AFKS MXPB15 | ¥230 | |
| 90901-05020 note |
Bolt, Flange(FOR EXHAUST PIPE)
2021-03 → 2024-01
ended
|
M15# MXPB10,MXPJ1# | ¥230 | |
| 90901-05026 note |
Bolt, Flange(FOR EXHAUST PIPE)
2021-03 → 2024-01
ended
|
M15# MXPB10,MXPJ1# | ¥310 | |
| 90901-05020 note |
Bolt, Flange(FOR EXHAUST PIPE)
2024-01 → —
|
M15# MXPB1#,MXPJ1# | ¥230 | |
| 90901-05026 note |
Bolt, Flange(FOR EXHAUST PIPE)
2024-01 → —
|
M15# MXPB10,MXPJ1# | ¥310 | |
| 17430 — Pipe Assy, Exhaust, Tail | ||||
| 17430-15670 |
Pipe Assy, Exhaust, Tail
2020-08 → 2024-01
ended
|
M15AFKS MXPB10 | ¥15,800 | |
| 17430-15680 |
Pipe Assy, Exhaust, Tail
2020-08 → 2021-05
ended
|
M15AFKS MXPB15 | ¥17,400 | |
| 17430-15681 |
Pipe Assy, Exhaust, Tail
2021-06 → 2024-01
ended
|
M15AFKS MXPB15 | ¥17,400 | |
| 17430-15740 |
Pipe Assy, Exhaust, Tail
2020-08 → 2021-05
ended
|
M15AFXE MXPJ15 | ¥15,800 | |
| 17430-15741 |
Pipe Assy, Exhaust, Tail
2021-06 → 2024-01
ended
|
M15AFXE MXPJ15 | ¥17,400 | |
| 17430-15770 |
Pipe Assy, Exhaust, Tail
2020-08 → 2024-01
ended
|
M15AFXE MXPJ10 | ¥15,800 | |
| 17430-15670 |
Pipe Assy, Exhaust, Tail
2024-01 → —
|
M15AFKS MXPB10 | ¥15,800 | |
| 17430-15682 |
Pipe Assy, Exhaust, Tail
2024-01 → —
|
M15AFKS MXPB15 | ¥15,800 | |
| 17430-15742 |
Pipe Assy, Exhaust, Tail
2024-01 → —
|
M15AFXE MXPJ15 | ¥15,800 | |
| 17430-15770 |
Pipe Assy, Exhaust, Tail
2024-01 → —
|
M15AFXE MXPJ10 | ¥15,800 | |
| 17451 — Gasket, Exhaust Pipe | ||||
| 17451-21070 |
Gasket, Exhaust Pipe
2020-08 → 2024-01
ended
|
M15# MXPB10,MXPJ1# | ¥1,360 | |
| 90917-06048 |
Gasket, Exhaust Pipe
2020-08 → 2024-01
ended
|
M15AFKS MXPB15 | ¥300 | |
| 17451-21070 |
Gasket, Exhaust Pipe
2024-01 → —
|
M15# MXPB10,MXPJ1# | ¥1,360 | |
| 90917-06048 |
Gasket, Exhaust Pipe
2024-01 → —
|
M15AFKS MXPB15 | ¥300 | |
| 17451A — Gasket, Exhaust Pipe, NO.2 | ||||
| 17451-23042 |
Gasket, Exhaust Pipe, NO.2
2020-08 → 2023-11
ended
|
M15# MXPB10,MXPJ1# | ¥790 | |
| 17451-23043 |
Gasket, Exhaust Pipe, NO.2
2023-11 → 2024-01
ended
|
M15# MXPB10,MXPJ1# | ¥720 | |
| 90917-06048 |
Gasket, Exhaust Pipe, NO.2
2020-08 → 2024-01
ended
|
M15AFKS MXPB15 | ¥300 | |
| 17451-23043 |
Gasket, Exhaust Pipe, NO.2
2024-01 → —
|
M15# MXPB10,MXPJ1# | ¥720 | |
| 90917-06048 |
Gasket, Exhaust Pipe, NO.2
2024-01 → —
|
M15AFKS MXPB15 | ¥300 | |
| 17561B — Support, Exhaust Pipe, NO.1 | ||||
| 17565-47010 |
Support, Exhaust Pipe, NO.1
2020-08 → 2024-01
ended
|
M15AFKS MXPB15 | ¥320 | |
| 17565-47010 |
Support, Exhaust Pipe, NO.1
2020-08 → 2024-01
ended
|
M15# MXPB10,MXPJ1# | ¥320 | |
| 17565-47010 |
Support, Exhaust Pipe, NO.1
2024-01 → —
|
M15AFKS MXPB10 | ¥320 | |
| 17565-47010 |
Support, Exhaust Pipe, NO.1
2024-01 → —
|
M15AFKS MXPB15 | ¥320 | |
| 17565-47010 |
Support, Exhaust Pipe, NO.1
2024-01 → —
|
M15AFXE MXPJ1# | ¥320 | |
| 17562 — Support, Exhaust Pipe, NO.2 | ||||
| 17565-28020 |
Support, Exhaust Pipe, NO.2
2020-08 → 2024-01
ended
|
M15# MXPB15,MXPJ15 | ¥440 | |
| 17565-74320 |
Support, Exhaust Pipe, NO.2
2020-08 → 2024-01
ended
|
M15# MXPB10,MXPJ10 | ¥880 | |
| 17565-28020 |
Support, Exhaust Pipe, NO.2
2024-01 → —
|
M15# MXPB15,MXPJ15 | ¥440 | |
| 17565-74320 |
Support, Exhaust Pipe, NO.2
2024-01 → —
|
M15# MXPB10,MXPJ10 | ¥880 | |
| 17563A — Support, Exhaust Pipe, NO.3 | ||||
| 17565-28010 |
Support, Exhaust Pipe, NO.3
2020-08 → 2024-01
ended
|
M15# MXPB10,MXPJ10 | ¥670 | |
| 17565-28010 |
Support, Exhaust Pipe, NO.3
2024-01 → —
|
M15# MXPB10,MXPJ10 | ¥670 | |
| 17564 — Support,Exhaust Pipe, NO.4 | ||||
| 17565-15150 |
Support,Exhaust Pipe, NO.4
2024-01 → —
|
M15AFKS MXPB10 | ¥320 | |
| 17574 — Bracket, Exhaust Pipe Support, NO.4 | ||||
| 17574-15060 |
Bracket, Exhaust Pipe Support, NO.4
2020-08 → 2024-01
ended
|
M15# MXPB10,MXPJ10 | ¥990 | |
| 17574-15070 |
Bracket, Exhaust Pipe Support, NO.4
2020-08 → 2024-01
ended
|
M15# MXPB15,MXPJ15 | ¥810 | |
| 17574-15060 |
Bracket, Exhaust Pipe Support, NO.4
2024-01 → —
|
M15# MXPB10,MXPJ10 | ¥990 | |
| 17574-15070 |
Bracket, Exhaust Pipe Support, NO.4
2024-01 → —
|
M15# MXPB15,MXPJ15 | ¥810 | |
| 17575 — Bracket, Exhaust Pipe Support, NO.5 | ||||
| 17575-15040 |
Bracket, Exhaust Pipe Support, NO.5
2020-08 → 2024-01
ended
|
M15# MXPB10,MXPJ10 | ¥810 | |
| 17575-15050 |
Bracket, Exhaust Pipe Support, NO.5
2020-08 → 2024-01
ended
|
M15# MXPB15,MXPJ15 | ¥810 | |
| 17575-15040 |
Bracket, Exhaust Pipe Support, NO.5
2024-01 → —
|
M15# MXPB10,MXPJ10 | ¥810 | |
| 17575-15050 |
Bracket, Exhaust Pipe Support, NO.5
2024-01 → —
|
M15# MXPB15,MXPJ15 | ¥810 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
