Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

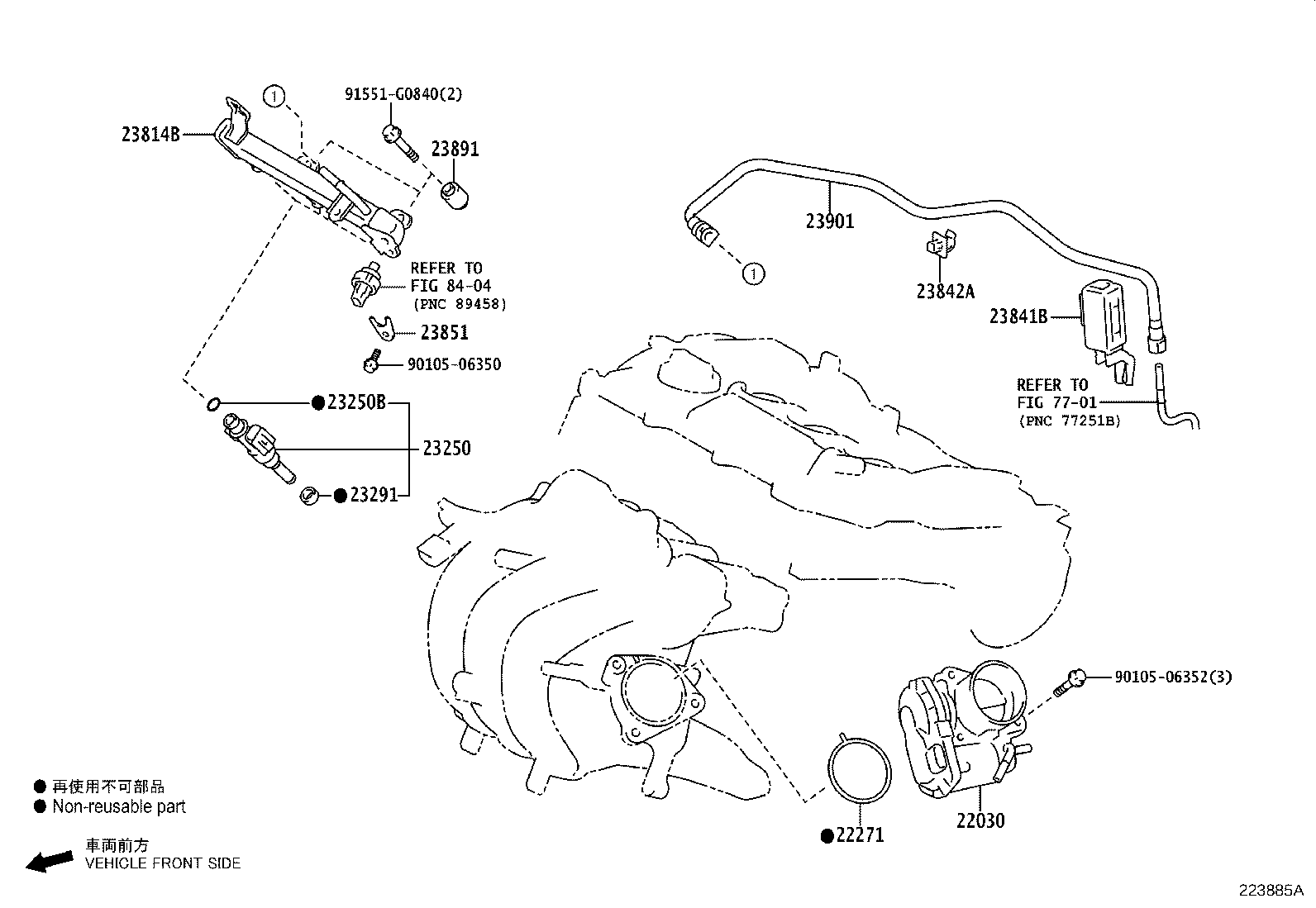

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 22030 — Body Assy, Throttle W/Throttle Position Sensor | ||||
| 22030-15010 |
Body Assy, Throttle W/Throttle Position Sensor
2020-08 → 2024-01
ended
|
M15# MXPB1#,MXPJ1# | ¥52,700 | |
| 22030-15010 |
Body Assy, Throttle W/Throttle Position Sensor
2024-01 → —
|
M15# MXPB1#,MXPJ1# | ¥52,700 | |
| 22271 — Gasket, Throttle Body | ||||
| 22271-15050 |
Gasket, Throttle Body
2020-08 → 2024-01
ended
|
M15# MXPB1#,MXPJ1# | ¥340 | |
| 22271-15050 |
Gasket, Throttle Body
2024-01 → —
|
M15# MXPB1#,MXPJ1# | ¥340 | |
| 23250 — Injector Assy, Fuel | ||||
| 23209-19025 |
Injector Assy, Fuel
2020-08 → 2024-01
ended
|
M15AFXE MXPJ1# | ¥12,600 | |
| 23209-24010-01 note |
Injector Assy, Fuel
2020-08 → 2024-01
ended
|
M15AFKS MXPB1# | ¥26,900 | |
| 23209-24010-02 note |
Injector Assy, Fuel
2020-08 → 2024-01
ended
|
M15AFKS MXPB1# | ¥26,900 | |
| 23209-24010-03 note |
Injector Assy, Fuel
2020-08 → 2024-01
ended
|
M15AFKS MXPB1# | ¥26,900 | |
| 23209-24010-04 note |
Injector Assy, Fuel
2020-08 → 2024-01
ended
|
M15AFKS MXPB1# | ¥26,900 | |
| 23209-24010-05 note |
Injector Assy, Fuel
2020-08 → 2024-01
ended
|
M15AFKS MXPB1# | ¥26,900 | |
| 23209-24010-06 note |
Injector Assy, Fuel
2020-08 → 2024-01
ended
|
M15AFKS MXPB1# | ¥26,900 | |
| 23209-24010-07 note |
Injector Assy, Fuel
2020-08 → 2024-01
ended
|
M15AFKS MXPB1# | ¥26,900 | |
| 23209-24010-08 note |
Injector Assy, Fuel
2020-08 → 2024-01
ended
|
M15AFKS MXPB1# | ¥26,900 | |
| 23209-24010-09 note |
Injector Assy, Fuel
2020-08 → 2024-01
ended
|
M15AFKS MXPB1# | ¥26,900 | |
| 23209-19025 |
Injector Assy, Fuel
2024-01 → —
|
M15AFXE MXPJ1# | ¥12,600 | |
| 23209-24010-01 note |
Injector Assy, Fuel
2024-01 → —
|
M15AFKS MXPB1# | ¥26,900 | |
| 23209-24010-02 note |
Injector Assy, Fuel
2024-01 → —
|
M15AFKS MXPB1# | ¥26,900 | |
| 23209-24010-03 note |
Injector Assy, Fuel
2024-01 → —
|
M15AFKS MXPB1# | ¥26,900 | |
| 23209-24010-04 note |
Injector Assy, Fuel
2024-01 → —
|
M15AFKS MXPB1# | ¥26,900 | |
| 23209-24010-05 note |
Injector Assy, Fuel
2024-01 → —
|
M15AFKS MXPB1# | ¥26,900 | |
| 23209-24010-06 note |
Injector Assy, Fuel
2024-01 → —
|
M15AFKS MXPB1# | ¥26,900 | |
| 23209-24010-07 note |
Injector Assy, Fuel
2024-01 → —
|
M15AFKS MXPB1# | ¥26,900 | |
| 23209-24010-08 note |
Injector Assy, Fuel
2024-01 → —
|
M15AFKS MXPB1# | ¥26,900 | |
| 23209-24010-09 note |
Injector Assy, Fuel
2024-01 → —
|
M15AFKS MXPB1# | ¥26,900 | |
| 23250B — Ring, O(FOR FUEL INJECTOR) | ||||
| 90301-07037 |
Ring, O(FOR FUEL INJECTOR)
2020-08 → 2024-01
ended
|
M15AFXE MXPJ1# | ¥140 | |
| 90301-07037 |
Ring, O(FOR FUEL INJECTOR)
2024-01 → —
|
M15AFXE MXPJ1# | ¥140 | |
| 23291 — Insulator, Injector Vibration | ||||
| 23291-28020 |
Insulator, Injector Vibration
2020-08 → 2024-01
ended
|
M15AFXE MXPJ1# | ¥310 | |
| 23291-28020 |
Insulator, Injector Vibration
2024-01 → —
|
M15AFXE MXPJ1# | ¥310 | |
| 23814B — Pipe, Fuel Delivery | ||||
| 23814-15070 |
Pipe, Fuel Delivery
2020-08 → 2022-07
ended
|
M15AFKS MXPB1# | ¥16,500 | |
| 23814-15071 |
Pipe, Fuel Delivery
2022-08 → 2024-01
ended
|
M15AFKS MXPB1# | ¥14,900 | |
| 23814-15080 |
Pipe, Fuel Delivery
2020-08 → 2024-01
ended
|
M15AFXE MXPJ1# | ¥7,800 | |
| 23814-15071 |
Pipe, Fuel Delivery
2024-01 → —
|
M15AFKS MXPB1# | ¥14,900 | |
| 23814-15090 |
Pipe, Fuel Delivery
2024-01 → —
|
M15AFXE MXPJ1# | ¥6,700 | |
| 23841B — Clamp, Fuel Pipe, NO.1(FOR EFI) | ||||
| 23841-15030 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2020-08 → 2023-12
ended
|
M15# MXPB1#,MXPJ1# | ¥1,080 | |
| 23841-15050 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2023-12 → 2024-01
ended
|
M15# MXPB1#,MXPJ1# | ¥1,490 | |
| 23841-15050 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2024-01 → —
|
M15# MXPB1#,MXPJ1# | ¥1,490 | |
| 23842A — Clamp, Fuel Pipe, NO.2(FOR EFI) | ||||
| 23841-47050 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2020-08 → 2024-01
ended
|
M15# MXPB1#,MXPJ1# | ¥170 | |
| 23841-15060 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2024-01 → —
|
M15# MXPB1#,MXPJ1# | ¥200 | |
| 23851 — Holder, Fuel Pressure Sensor, NO.1 | ||||
| 23851-25020 |
Holder, Fuel Pressure Sensor, NO.1
2020-08 → 2024-01
ended
|
M15AFKS MXPB1# | ¥1,310 | |
| 23851-25030 |
Holder, Fuel Pressure Sensor, NO.1
2020-08 → 2024-01
ended
|
M15AFXE MXPJ1# | ¥660 | |
| 23851-25020 |
Holder, Fuel Pressure Sensor, NO.1
2024-01 → —
|
M15AFKS MXPB1# | ¥1,310 | |
| 23891 — Spacer, Fuel Delivery | ||||
| 23891-24010 |
Spacer, Fuel Delivery
2020-08 → 2024-01
ended
|
M15AFXE MXPJ1# | ¥240 | |
| 23891-24010 |
Spacer, Fuel Delivery
2024-01 → —
|
M15AFXE MXPJ1# | ¥240 | |
| 23901 — Tube Sub-assy, Fuel | ||||
| 23901-15050 |
Tube Sub-assy, Fuel
2020-08 → 2024-01
ended
|
M15AFKS MXPB1# | ¥4,020 | |
| 23901-15060 |
Tube Sub-assy, Fuel
2020-08 → 2022-08
ended
|
M15AFXE MXPJ1# | ¥4,020 | |
| 23901-15070 |
Tube Sub-assy, Fuel
2022-08 → 2024-01
ended
|
M15AFXE MXPJ1# | ¥4,020 | |
| 23901-15100 |
Tube Sub-assy, Fuel
2024-01 → —
|
M15AFKS MXPB1# | ¥3,220 | |
| 23901-15120 |
Tube Sub-assy, Fuel
2024-01 → —
|
M15AFXE MXPJ1# | ¥3,650 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
