Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

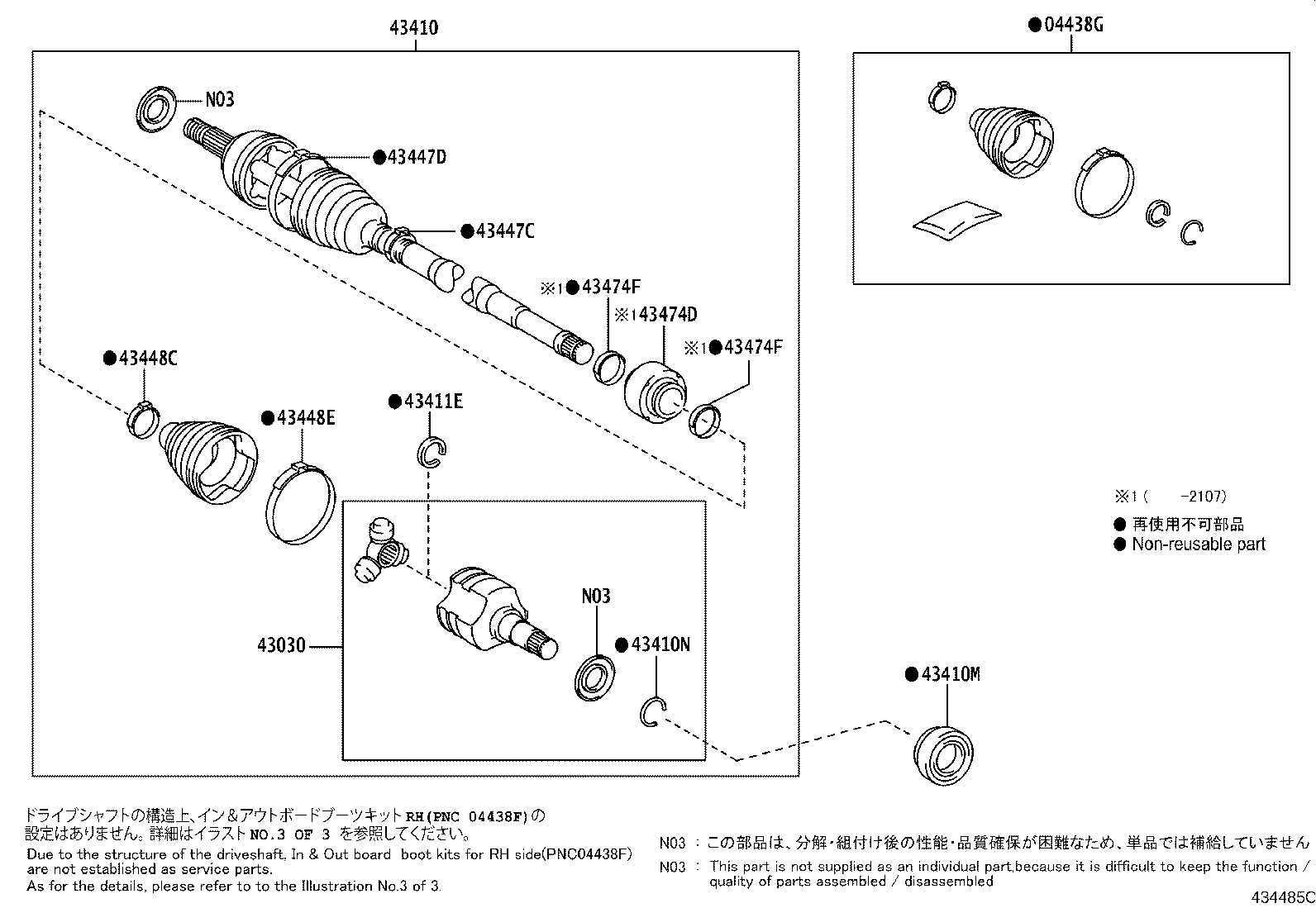

Exploded illustration 434485C 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (6 parts) 43474D — DAMPER, FRONT DRIVE SHAFT, RH (5 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (6 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (5 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (6 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (7 parts) 43410N — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) (6 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (6 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (5 parts) 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (4 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (9 parts) 43030 — JOINT ASSY, FRONT DRIVE INBOARD, RH (8 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (6 parts)
434485C · 13 callouts Full size ↗
74 parts on this figure
Part number Description Fitment Price
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-52490 Boot Kit, Front Drive Shaft Inboard Joint, RH
2020-08 → 2024-01 ended
MXPJ1# HBDG,HBDX,HBDZ ¥5,100
04437-53050 Boot Kit, Front Drive Shaft Inboard Joint, RH
2020-08 → 2024-01 ended
MXPB15 ¥5,100
04437-K0020 Boot Kit, Front Drive Shaft Inboard Joint, RH
2020-08 → 2024-01 ended
MXPB10 ¥4,150
04437-52490 Boot Kit, Front Drive Shaft Inboard Joint, RH
2024-01 → —
MXPJ1# HBDG,HBDX,HBDZ,U ¥5,100
04437-53050 Boot Kit, Front Drive Shaft Inboard Joint, RH
2024-01 → —
MXPB15 ¥5,100
04437-K0020 Boot Kit, Front Drive Shaft Inboard Joint, RH
2024-01 → —
MXPB10 ¥4,150
43030 — Joint Assy, Front Drive Inboard, RH
43030-K0010 Joint Assy, Front Drive Inboard, RH
2020-08 → 2024-01 ended
MXPB15 ¥19,900
43040-0D130 Joint Assy, Front Drive Inboard, RH
2022-08 → 2024-01 ended
MXPJ10 GRS ¥14,900
43040-K0010 Joint Assy, Front Drive Inboard, RH
2020-08 → 2024-01 ended
MXPJ1# HBDG,HBDX,HBDZ ¥13,000
43040-K0020 Joint Assy, Front Drive Inboard, RH
2020-08 → 2024-01 ended
MXPB10 ¥13,000
43030-K0010 Joint Assy, Front Drive Inboard, RH
2024-01 → —
MXPB15 ¥19,900
43040-0D130 Joint Assy, Front Drive Inboard, RH
2024-01 → —
MXPJ10 GRS ¥14,900
43040-K0010 Joint Assy, Front Drive Inboard, RH
2024-01 → —
MXPJ1# HBDG,HBDX,HBDZ,U ¥13,000
43040-K0020 Joint Assy, Front Drive Inboard, RH
2024-01 → —
MXPB10 ¥13,000
43410 — Shaft Assy, Front Drive, RH
43410-0D680 Shaft Assy, Front Drive, RH
2022-08 → 2024-01 ended
MXPJ10 GRS ¥50,200
43410-52360 Shaft Assy, Front Drive, RH
2020-08 → 2024-01 ended
MXPJ1# HBDG,HBDX,HBDZ ¥52,100
43410-52370 Shaft Assy, Front Drive, RH
2020-08 → 2024-01 ended
MXPB15 ¥52,100
43410-52380 Shaft Assy, Front Drive, RH
2020-08 → 2021-06 ended
MXPB10 ¥57,400
43410-52490 Shaft Assy, Front Drive, RH
2021-07 → 2024-01 ended
MXPB10 ¥50,200
43410-0D680 Shaft Assy, Front Drive, RH
2024-01 → —
MXPJ10 GRS ¥50,200
43410-52360 Shaft Assy, Front Drive, RH
2024-01 → —
MXPJ1# HBDG,HBDX,HBDZ,U ¥52,100
43410-52370 Shaft Assy, Front Drive, RH
2024-01 → —
MXPB15 ¥52,100
43410-52490 Shaft Assy, Front Drive, RH
2024-01 → —
MXPB10 ¥50,200
43410M — Oil Seal, Front Drive Shaft, RH
90311-35083 Oil Seal, Front Drive Shaft, RH
2020-08 → 2024-01 ended
MXPB10,MXPJ1# ¥400
90316-28003 Oil Seal, Front Drive Shaft, RH
2020-08 → 2024-01 ended
MXPB15 ¥450
90311-35083 Oil Seal, Front Drive Shaft, RH
2024-01 → —
MXPB10,MXPJ1# ¥400
90316-28003 Oil Seal, Front Drive Shaft, RH
2024-01 → —
MXPB15 ¥450
43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
43425-02260 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2022-08 → 2024-01 ended
MXPJ10 GRS —
90520-33008 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2020-08 → 2024-01 ended
MXPB15 ¥110
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2020-08 → 2024-01 ended
MXPB10,MXPJ15;MXPJ10 HBDG,HBDX,HBDZ ¥110
43425-02260 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2024-01 → —
MXPJ10 GRS —
90520-33008 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2024-01 → —
MXPB15 ¥110
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2024-01 → —
MXPB10,MXPJ15;MXPJ10 HBDG,HBDX,HBDZ,U ¥110
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-05080 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2022-08 → 2024-01 ended
MXPJ10 GRS ¥60
43425-12070 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2020-08 → 2024-01 ended
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥40
90520-22029 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2020-08 → 2024-01 ended
MXPB10 ¥90
43425-05080 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2024-01 → —
MXPJ10 GRS ¥60
43425-12070 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2024-01 → —
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥40
90520-22029 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2024-01 → —
MXPB10 ¥90
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-02C50 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2022-08 → 2024-01 ended
MXPJ10 GRS —
42345-12230 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2020-08 → 2024-01 ended
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥220
42345-52260 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2020-08 → 2024-01 ended
MXPB10 ¥220
42345-02C50 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2024-01 → —
MXPJ10 GRS —
42345-12230 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2024-01 → —
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥220
42345-52260 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2024-01 → —
MXPB10 ¥220
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-02C60 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2022-08 → 2024-01 ended
MXPJ10 GRS ¥820
42345-12240 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2020-08 → 2024-01 ended
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥340
42345-52250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2020-08 → 2024-01 ended
MXPB10 ¥330
42345-02C60 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2024-01 → —
MXPJ10 GRS ¥820
42345-12240 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2024-01 → —
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥340
42345-52250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2024-01 → —
MXPB10 ¥330
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-02C50 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2022-08 → 2024-01 ended
MXPJ10 GRS —
42345-12230 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2020-08 → 2024-01 ended
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥220
42345-52340 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2023-10 → 2024-01 ended
MXPB10 ¥400
42345-K0080 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2020-08 → 2023-10 ended
MXPB10 ¥250
42345-02C50 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2024-01 → —
MXPJ10 GRS —
42345-12230 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2024-01 → —
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥220
42345-52340 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2024-01 → —
MXPB10 ¥400
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-02G70 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2022-08 → 2024-01 ended
MXPJ10 GRS —
42345-12180 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2020-08 → 2024-01 ended
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥330
42345-K0091 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2020-08 → 2024-01 ended
MXPB10 ¥430
42345-02G70 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2024-01 → —
MXPJ10 GRS —
42345-12180 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2024-01 → —
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥330
42345-K0091 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2024-01 → —
MXPB10 ¥430
43474D — Damper, Front Drive Shaft, RH
43474-12160 Damper, Front Drive Shaft, RH
2020-08 → 2024-01 ended
MXPB15 ¥2,480
43474-52110 Damper, Front Drive Shaft, RH
2020-08 → 2021-07 ended
MXPB10 ¥1,520
43474-52130 Damper, Front Drive Shaft, RH
2020-08 → 2024-01 ended
MXPJ1# HBDG,HBDX,HBDZ ¥2,480
43474-12160 Damper, Front Drive Shaft, RH
2024-01 → —
MXPB15 ¥2,480
43474-52130 Damper, Front Drive Shaft, RH
2024-01 → —
MXPJ1# HBDG,HBDX,HBDZ,U ¥2,480
43474F — Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-0D770 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2022-08 → 2024-01 ended
MXPJ10 GRS ¥190
42345-12090 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2020-08 → 2021-07 ended
MXPB10 ¥140
42345-12090 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2020-08 → 2024-01 ended
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥140
42345-0D770 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2024-01 → —
MXPJ10 GRS ¥190
42345-12090 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2024-01 → —
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥140
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
