Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

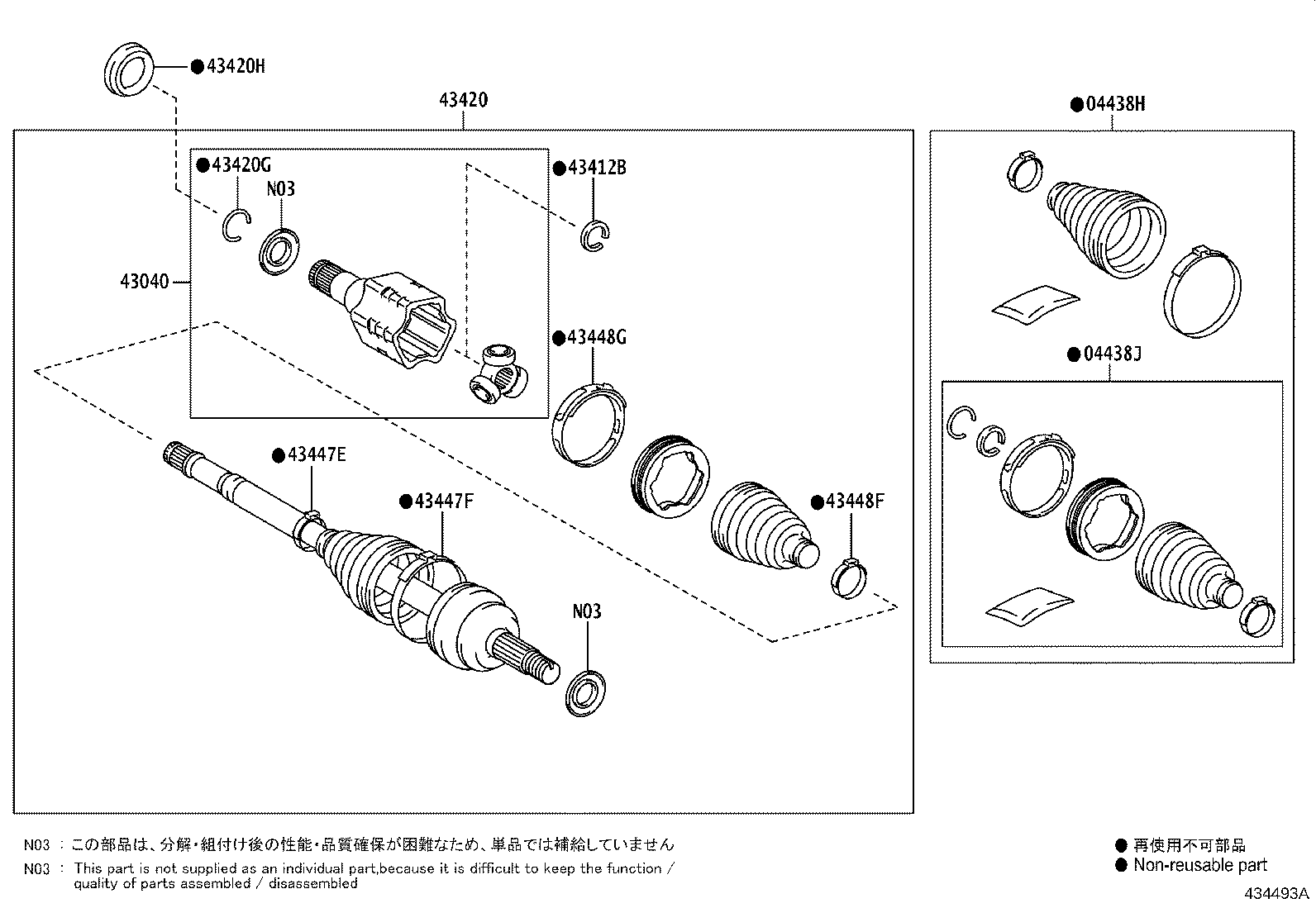

Exploded illustration 434493A 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (4 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (7 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (6 parts) 43420 — SHAFT ASSY, FRONT DRIVE, LH (6 parts) 43040 — JOINT ASSY, FRONT DRIVE INBOARD, LH (6 parts) 43420H — OIL SEAL, FRONT DRIVE SHAFT, LH (4 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (6 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (4 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (2 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (6 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (6 parts)
434493A · 11 callouts Full size ↗
57 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04427-52905 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2020-08 → 2024-01 ended
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥7,700
04427-52905 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2024-01 → —
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥7,700
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04437-52490 Boot Kit, Front Drive Shaft Inboard Joint, LH
2020-08 → 2024-01 ended
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥5,100
04437-K0020 Boot Kit, Front Drive Shaft Inboard Joint, LH
2020-08 → 2024-01 ended
MXPB10 ¥4,150
04437-52490 Boot Kit, Front Drive Shaft Inboard Joint, LH
2024-01 → —
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥5,100
04437-K0020 Boot Kit, Front Drive Shaft Inboard Joint, LH
2024-01 → —
MXPB10 ¥4,150
43040 — Joint Assy, Front Drive Inboard, LH
43040-0D150 Joint Assy, Front Drive Inboard, LH
2022-08 → 2024-01 ended
MXPJ10 GRS —
43040-K0010 Joint Assy, Front Drive Inboard, LH
2020-08 → 2024-01 ended
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥13,000
43040-K0020 Joint Assy, Front Drive Inboard, LH
2020-08 → 2024-01 ended
MXPB10 ¥13,000
43040-0D150 Joint Assy, Front Drive Inboard, LH
2024-01 → —
MXPJ10 GRS —
43040-K0010 Joint Assy, Front Drive Inboard, LH
2024-01 → —
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥13,000
43040-K0020 Joint Assy, Front Drive Inboard, LH
2024-01 → —
MXPB10 ¥13,000
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-05120 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2022-08 → 2024-01 ended
MXPJ10 GRS ¥60
43425-12070 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2020-08 → 2024-01 ended
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥40
90520-22029 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2020-08 → 2024-01 ended
MXPB10 ¥90
43425-05120 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2024-01 → —
MXPJ10 GRS ¥60
43425-12070 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2024-01 → —
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥40
90520-22029 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2024-01 → —
MXPB10 ¥90
43420 — Shaft Assy, Front Drive, LH
43420-0D750 Shaft Assy, Front Drive, LH
2022-08 → 2024-01 ended
MXPJ10 GRS ¥46,900
43420-52320 Shaft Assy, Front Drive, LH
2020-08 → 2024-01 ended
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥46,900
43420-52350 Shaft Assy, Front Drive, LH
2020-08 → 2024-01 ended
MXPB10 ¥46,900
43420-0D750 Shaft Assy, Front Drive, LH
2024-01 → —
MXPJ10 GRS ¥46,900
43420-52320 Shaft Assy, Front Drive, LH
2024-01 → —
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥46,900
43420-52350 Shaft Assy, Front Drive, LH
2024-01 → —
MXPB10 ¥46,900
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
43425-02260 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2022-08 → 2024-01 ended
MXPJ10 GRS —
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2020-08 → 2024-01 ended
MXPB1#,MXPJ15;MXPJ10 HBDG,HBDX,HBDZ ¥110
43425-02260 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2024-01 → —
MXPJ10 GRS —
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2024-01 → —
MXPB1#,MXPJ15;MXPJ10 HBDG,HBDX,HBDZ,U ¥110
43420H — Oil Seal, Front Drive Shaft, LH
90311-35082 Oil Seal, Front Drive Shaft, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥470
90311-35082 Oil Seal, Front Drive Shaft, LH
2024-01 → —
MXPJ1# ¥470
90311-35082 Oil Seal, Front Drive Shaft, LH
2024-01 → 2024-12 ended
MXPB1# ¥470
90311-9U001 Oil Seal, Front Drive Shaft, LH
2024-12 → —
MXPB1# —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-02C50 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2022-08 → 2024-01 ended
MXPJ10 GRS —
42345-12230 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2020-08 → 2024-01 ended
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥220
42345-52260 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2020-08 → 2024-01 ended
MXPB10 ¥220
42345-02C50 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2024-01 → —
MXPJ10 GRS —
42345-12230 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2024-01 → —
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥220
42345-52260 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2024-01 → —
MXPB10 ¥220
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-02C60 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2022-08 → 2024-01 ended
MXPJ10 GRS ¥820
42345-12240 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2020-08 → 2024-01 ended
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥340
42345-52250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2020-08 → 2024-01 ended
MXPB10 ¥330
42345-02C60 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2024-01 → —
MXPJ10 GRS ¥820
42345-12240 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2024-01 → —
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥340
42345-52250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2024-01 → —
MXPB10 ¥330
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-02C50 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2022-08 → 2024-01 ended
MXPJ10 GRS —
42345-12230 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2020-08 → 2024-01 ended
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥220
42345-52340 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2023-10 → 2024-01 ended
MXPB10 ¥400
42345-K0080 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2020-08 → 2023-10 ended
MXPB10 ¥250
42345-02C50 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2024-01 → —
MXPJ10 GRS —
42345-12230 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2024-01 → —
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥220
42345-52340 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2024-01 → —
MXPB10 ¥400
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-05130 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2022-08 → 2024-01 ended
MXPJ10 GRS ¥260
42345-12180 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2020-08 → 2024-01 ended
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥330
42345-K0091 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2020-08 → 2024-01 ended
MXPB10 ¥430
42345-05130 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2024-01 → —
MXPJ10 GRS ¥260
42345-12180 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2024-01 → —
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥330
42345-K0091 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2024-01 → —
MXPB10 ¥430
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
