Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

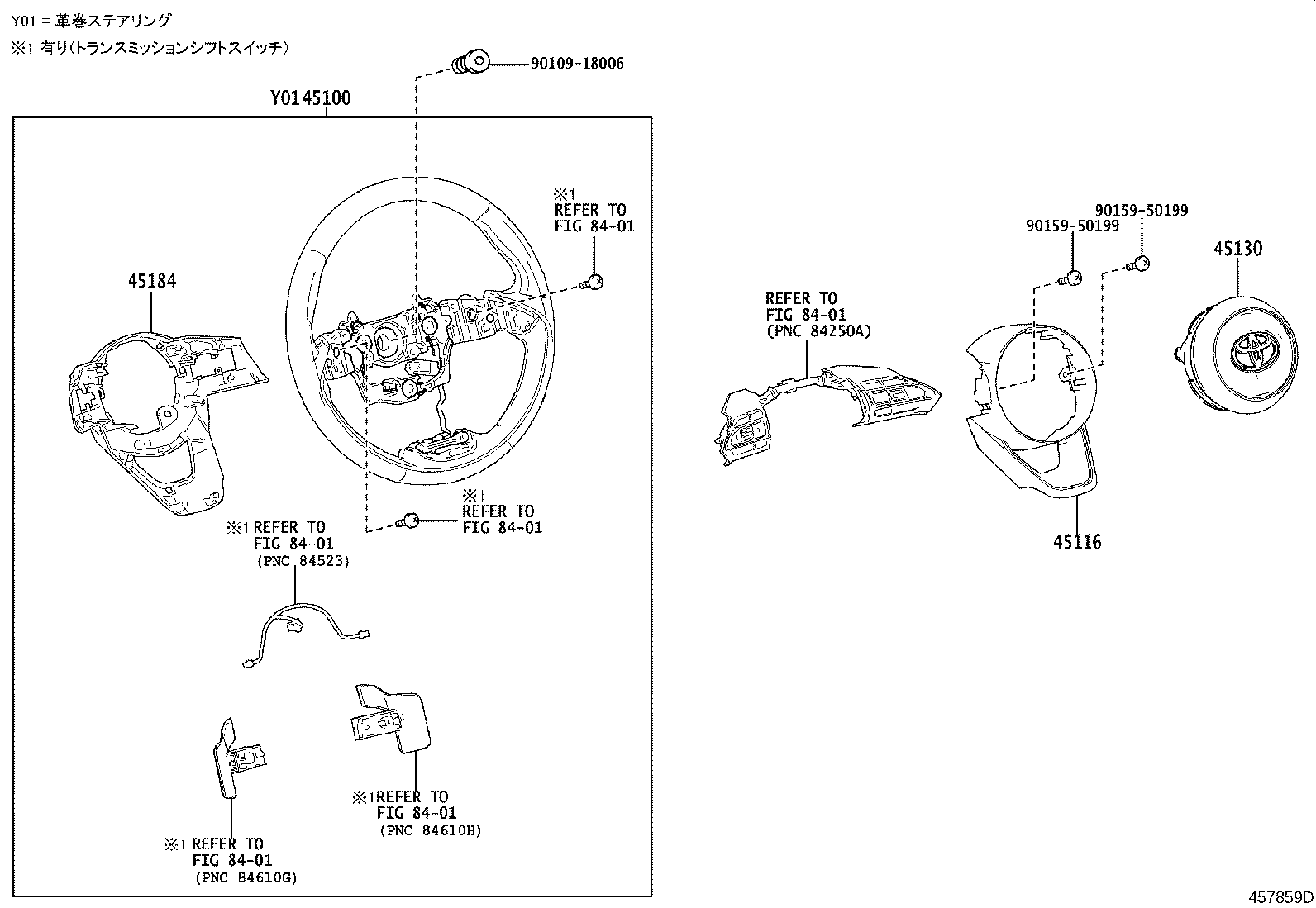

Exploded illustration 457859D 45130 — BUTTON ASSY, HORN (7 parts) 45116 — ORNAMENT, STEERING WHEEL, NO.1 (10 parts) 8401 — not listed in this catalogue 9015950199 — not listed in this catalogue 9015950199 — not listed in this catalogue 45100 — WHEEL ASSY, STEERING (27 parts) 45184 — COVER, STEERING WHEEL BOSS, LOWER (7 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 9010918006 — not listed in this catalogue 8401 — not listed in this catalogue
457859D · 4 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
51 parts on this figure
Part number Description Fitment Price
45100 — Wheel Assy, Steering
45100-52670-C0 note Wheel Assy, Steering
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# HBDZ,Z ¥68,100
45100-52670-C0 note Wheel Assy, Steering
2020-08 → 2022-12 ended
MXPB1#,MXPJ1# G,HBDG ¥68,100
45100-52670-C0 note Wheel Assy, Steering
2022-08 → 2022-12 ended
MXPB1#,MXPJ1# HBDZ,Z ¥68,100
45100-52671-C0 note Wheel Assy, Steering
2023-01 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥61,800
45100-52671-C0 note Wheel Assy, Steering
2023-01 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥61,800
45100-52710-C0 note Wheel Assy, Steering
2020-08 → 2022-12 ended
MXPB1#,MXPJ1# HBDX,X ¥19,400
45100-52711-C0 note Wheel Assy, Steering
2023-01 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥17,500
45100-52720-C0 note Wheel Assy, Steering
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# HBDZ,Z ¥44,200
45100-52720-C0 note Wheel Assy, Steering
2020-08 → 2022-12 ended
MXPB1#,MXPJ1# G,HBDG ¥44,200
45100-52721-C0 note Wheel Assy, Steering
2023-01 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥40,100
45100-52800-C0 note Wheel Assy, Steering
2022-08 → 2022-12 ended
MXPJ10 GRS ¥44,200
45100-52801-C0 note Wheel Assy, Steering
2023-01 → 2024-01 ended
MXPJ10 GRS ¥40,100
45100-52810-C0 note Wheel Assy, Steering
2022-08 → 2022-12 ended
MXPJ10 GRS ¥68,100
45100-52811-C0 note Wheel Assy, Steering
2023-01 → 2024-01 ended
MXPJ10 GRS ¥61,800
45100-52820-C0 note Wheel Assy, Steering
2022-08 → 2022-12 ended
MXPB10 GRS ¥48,600
45100-52821-C0 note Wheel Assy, Steering
2023-01 → 2024-01 ended
MXPB10 GRS ¥44,200
45100-52830-C0 note Wheel Assy, Steering
2022-08 → 2022-12 ended
MXPB10 GRS ¥72,500
45100-52831-C0 note Wheel Assy, Steering
2023-01 → 2024-01 ended
MXPB10 GRS ¥65,900
45100-52671-C0 note Wheel Assy, Steering
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥61,800
45100-52671-C0 note Wheel Assy, Steering
2024-01 → —
MXPB1#,MXPJ1# G,HBDG ¥61,800
45100-52671-C0 note Wheel Assy, Steering
2024-01 → —
MXPJ1# U ¥61,800
45100-52711-C0 note Wheel Assy, Steering
2024-01 → —
MXPB1#,MXPJ1# HBDX,U,X ¥17,500
45100-52721-C0 note Wheel Assy, Steering
2024-01 → —
MXPB1#,MXPJ1# G,HBDG ¥40,100
45100-52801-C0 note Wheel Assy, Steering
2024-01 → —
MXPJ10 GRS ¥40,100
45100-52811-C0 note Wheel Assy, Steering
2024-01 → —
MXPJ10 GRS ¥61,800
45100-52821-C0 note Wheel Assy, Steering
2024-01 → —
MXPB10 GRS ¥44,200
45100-52831-C0 note Wheel Assy, Steering
2024-01 → —
MXPB10 GRS ¥65,900
45116 — Ornament, Steering Wheel, NO.1
45116-52200-C0 note Ornament, Steering Wheel, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥2,910
45116-52220-C0 note Ornament, Steering Wheel, NO.1
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥4,650
45116-K0020-C1 note Ornament, Steering Wheel, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥2,910
45116-K0020-C1 note Ornament, Steering Wheel, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥2,910
45116-K0020-C2 note Ornament, Steering Wheel, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥2,910
45116-K0020-C2 note Ornament, Steering Wheel, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥2,910
45116-52200-C0 note Ornament, Steering Wheel, NO.1
2024-01 → —
MXPB1#,MXPJ1# HBDX,U,X ¥2,910
45116-52220-C0 note Ornament, Steering Wheel, NO.1
2024-01 → —
MXPB10,MXPJ10 GRS ¥4,650
45116-K0020-C6 note Ornament, Steering Wheel, NO.1
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥2,910
45116-K0020-C6 note Ornament, Steering Wheel, NO.1
2024-01 → —
MXPB1#,MXPJ1# G,HBDG ¥2,910
45130 — Button Assy, Horn
45130-52860-C0 note Button Assy, Horn
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥53,500
45130-52860-C0 note Button Assy, Horn
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥53,500
45130-52860-C0 note Button Assy, Horn
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥53,500
45130-52A20-C0 note Button Assy, Horn
2024-01 → 2024-04 ended
MXPB1#,MXPJ1# HBDZ,Z ¥53,500
45130-52A20-C0 note Button Assy, Horn
2024-01 → 2024-04 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥53,500
45130-52A21-C0 note Button Assy, Horn
2024-05 → —
MXPB1#,MXPJ1# HBDZ,Z ¥48,600
45130-52A21-C0 note Button Assy, Horn
2024-05 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥48,600
45184 — Cover, Steering Wheel Boss, Lower
45184-52210-C0 note Cover, Steering Wheel Boss, Lower
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,340
45184-52210-C0 note Cover, Steering Wheel Boss, Lower
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,340
45184-52210-C0 note Cover, Steering Wheel Boss, Lower
2020-08 → 2024-01 ended
MXPJ10 GRS,HBDX;MXPB1#,MXPJ15 HBDX,X ¥1,340
45184-K0020-C0 note Cover, Steering Wheel Boss, Lower
2022-08 → 2024-01 ended
MXPB10 GRS ¥1,340
45184-52210-C0 note Cover, Steering Wheel Boss, Lower
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥1,340
45184-52210-C0 note Cover, Steering Wheel Boss, Lower
2024-01 → —
MXPJ10 GRS,HBDG,HBDX,U;MXPB1#,MXPJ15 G,HBDG,HBDX,U,X ¥1,340
45184-K0020-C0 note Cover, Steering Wheel Boss, Lower
2024-01 → —
MXPB10 GRS ¥1,340
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
