Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

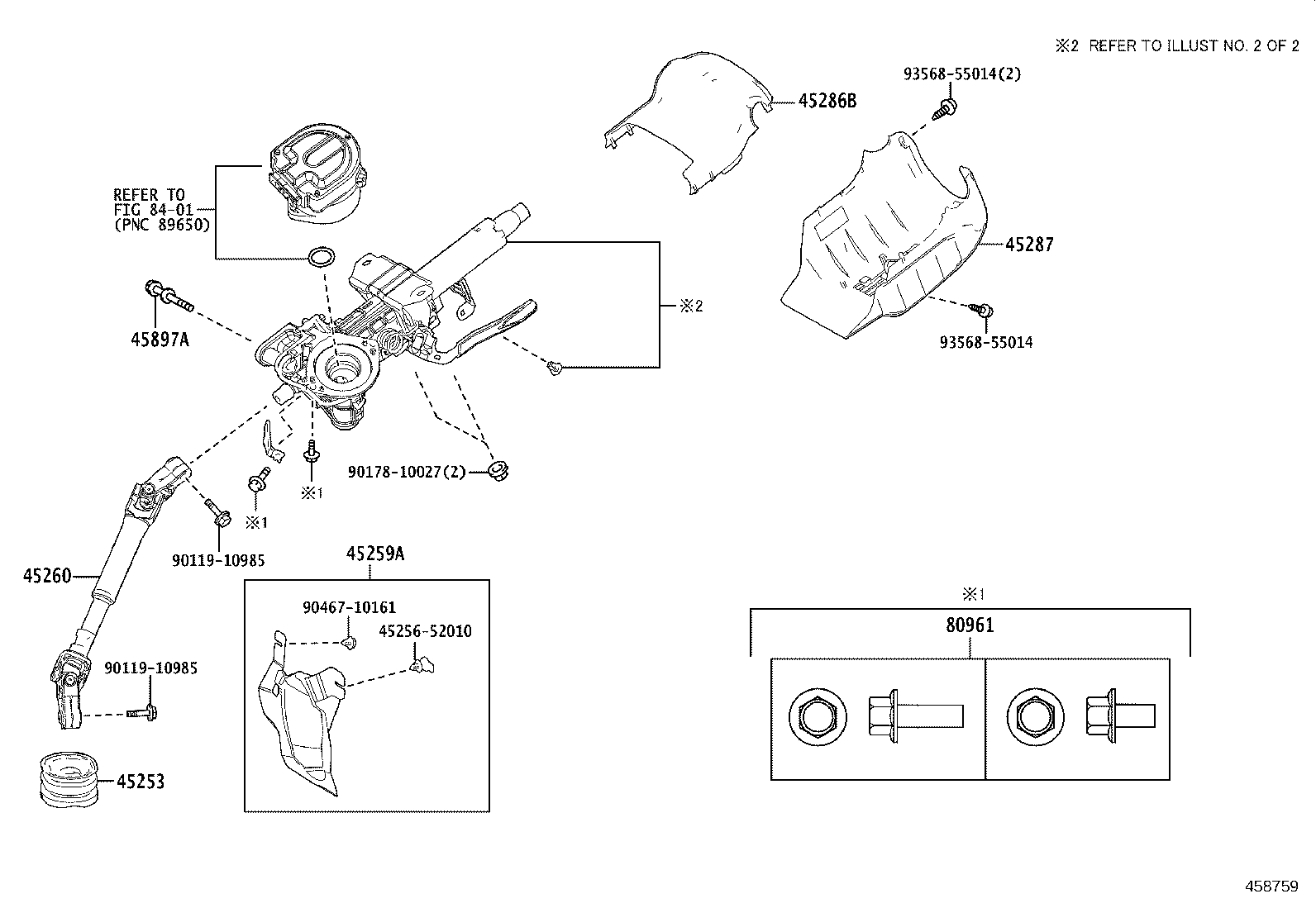

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45253 — Cover, Steering Column Hole | ||||
| 45253-K0010 |
Cover, Steering Column Hole
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥840 | |
| 45253-K0010 |
Cover, Steering Column Hole
2024-01 → —
|
MXPB1#,MXPJ1# | ¥840 | |
| 45259A — Sheet, Column Hole Cover Silencer | ||||
| 45259-K0010 |
Sheet, Column Hole Cover Silencer
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥1,020 | |
| 45259-K0010 |
Sheet, Column Hole Cover Silencer
2024-01 → —
|
MXPB1#,MXPJ1# | ¥1,020 | |
| 45260 — Shaft Assy, Steering Intermediate, NO.2 | ||||
| 45260-52330 |
Shaft Assy, Steering Intermediate, NO.2
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥11,700 | |
| 45260-52330 |
Shaft Assy, Steering Intermediate, NO.2
2024-01 → —
|
MXPB1#,MXPJ1# | ¥11,700 | |
| 45286B — Cover, Steering Column, Upr | ||||
| 45286-52210-C1 note |
Cover, Steering Column, Upr
2022-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥1,350 | |
| 45286-52210-C1 note |
Cover, Steering Column, Upr
2022-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG | ¥1,350 | |
| 45286-52210-C1 note |
Cover, Steering Column, Upr
2022-08 → 2024-01
ended
|
MXPB1#,MXPJ1# GRS,HBDX,X | ¥1,350 | |
| 45286-K0010-C0 note |
Cover, Steering Column, Upr
2020-08 → 2022-08
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥1,350 | |
| 45286-K0010-C0 note |
Cover, Steering Column, Upr
2020-08 → 2022-08
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥1,350 | |
| 45286-K0010-C0 note |
Cover, Steering Column, Upr
2020-08 → 2022-08
ended
|
MXPB1#,MXPJ1# G,HBDG | ¥1,350 | |
| 45286-52210-C1 note |
Cover, Steering Column, Upr
2024-01 → —
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X | ¥1,350 | |
| 45286-52210-C1 note |
Cover, Steering Column, Upr
2024-01 → —
|
MXPB1#,MXPJ1# HBDZ,Z | ¥1,350 | |
| 45287 — Cover, Steering Column, Lwr | ||||
| 45024-52040-C1 note |
Cover, Steering Column, Lwr
2022-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥2,490 | |
| 45024-52040-C1 note |
Cover, Steering Column, Lwr
2022-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG | ¥2,490 | |
| 45024-52040-C1 note |
Cover, Steering Column, Lwr
2022-08 → 2024-01
ended
|
MXPB1#,MXPJ1# GRS,HBDX,X | ¥2,490 | |
| 45024-K0010-C0 note |
Cover, Steering Column, Lwr
2020-08 → 2022-08
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥2,740 | |
| 45024-K0010-C0 note |
Cover, Steering Column, Lwr
2020-08 → 2022-08
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥2,740 | |
| 45024-K0010-C0 note |
Cover, Steering Column, Lwr
2020-08 → 2022-08
ended
|
MXPB1#,MXPJ1# G,HBDG | ¥2,740 | |
| 45024-52040-C1 note |
Cover, Steering Column, Lwr
2024-01 → —
|
MXPB1#,MXPJ1# HBDZ,Z | ¥2,490 | |
| 45024-52040-C1 note |
Cover, Steering Column, Lwr
2024-01 → —
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X | ¥2,490 | |
| 45897A — Bolt, Tilt Steering Pawl Set | ||||
| 90119-10981 |
Bolt, Tilt Steering Pawl Set
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥190 | |
| 90119-10981 |
Bolt, Tilt Steering Pawl Set
2024-01 → —
|
MXPB1#,MXPJ1# | ¥190 | |
| 80961 — Fastener Set, Power Steering Motor | ||||
| 80961-52010 |
Fastener Set, Power Steering Motor
2020-08 → 2023-03
ended
|
MXPB1#,MXPJ1# | ¥240 | |
| 80961-52040 |
Fastener Set, Power Steering Motor
2023-03 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥240 | |
| 80961-52020 |
Fastener Set, Power Steering Motor
2024-01 → —
|
MXPB1#,MXPJ1# | ¥220 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
