Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

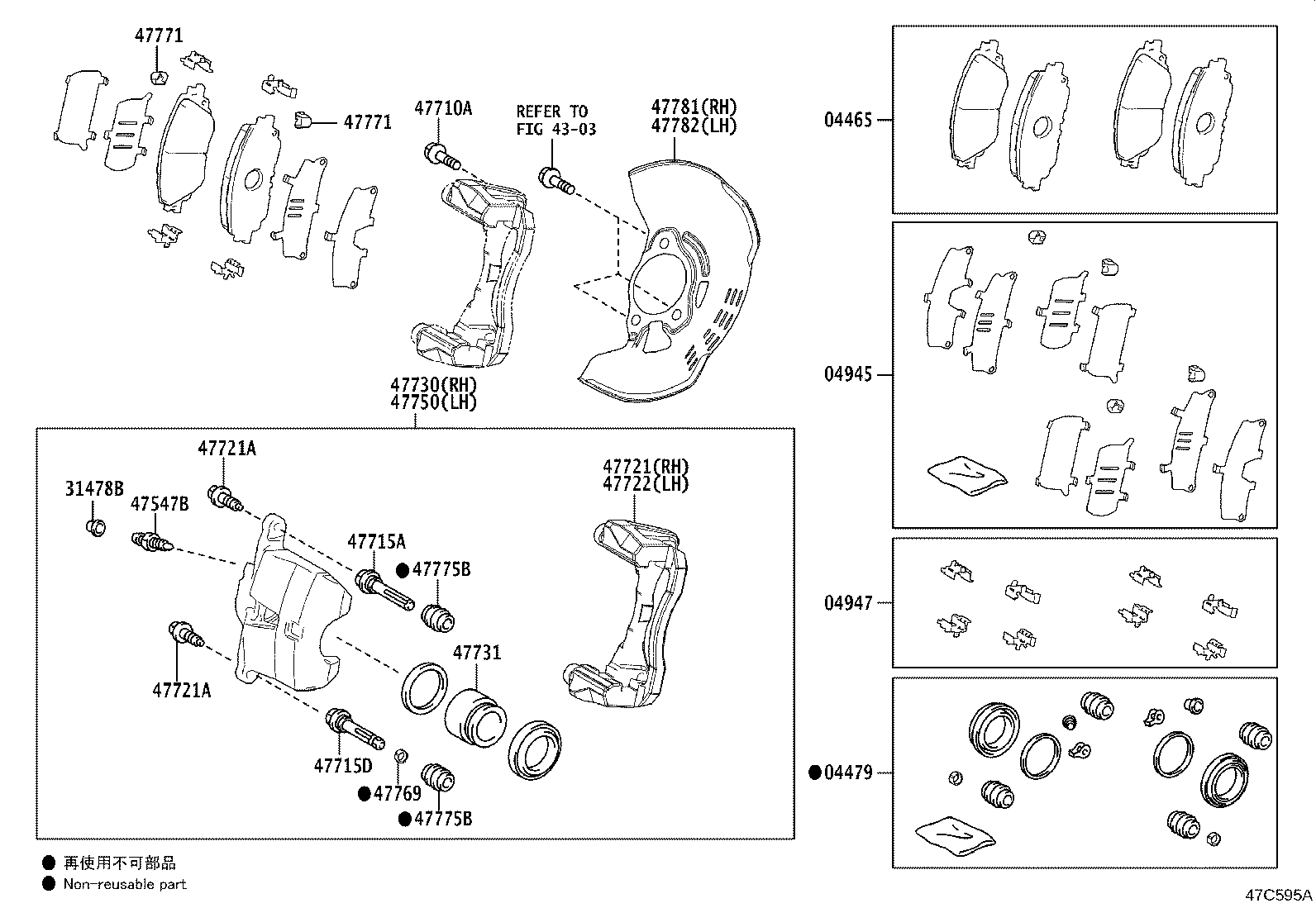

Exploded illustration 47C595A 47721A — BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) (2 parts) 47721A — BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) (2 parts) 47775B — BOOT, BUSH DUST, NO.1 (2 parts) 47721 — MOUNTING, FRONT DISC BRAKE CYLINDER, RH (4 parts) 47722 — MOUNTING, FRONT DISC BRAKE CYLINDER, LH (4 parts) 47730 — CYLINDER ASSY, FRONT DISC BRAKE, RH (4 parts) 47750 — CYLINDER ASSY, DISC BRAKE, LH (4 parts) 47715D — PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2 (2 parts) 47547B — PLUG, BLEEDER(FOR FRONT DISC BRAKE) (2 parts) 31478B — CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) (2 parts) 47731 — PISTON, FRONT DISC BRAKE (2 parts) 47715A — PIN, FRONT DISC BRAKE CYLINDER SLIDE (2 parts) 47769 — BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) (2 parts) 47775B — BOOT, BUSH DUST, NO.1 (2 parts) 04465 — PAD KIT, DISC BRAKE, FRONT (2 parts) 47781 — COVER, DISC BRAKE DUST, FRONT RH (2 parts) 47710A — BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) (2 parts) 47771 — PLATE, PAD WEAR INDICATOR, NO.1 (2 parts) 47771 — PLATE, PAD WEAR INDICATOR, NO.1 (2 parts) 47782 — COVER, DISC BRAKE DUST, FRONT LH (2 parts) 04945 — SHIM KIT, ANTI SQUEAL, FRONT (2 parts) 04947 — FITTING KIT, DISC BRAKE, FRONT (2 parts) 04479 — CYLINDER KIT, DISC BRAKE, FRONT (2 parts)
47C595A · 23 callouts Full size ↗
48 parts on this figure
Part number Description Fitment Price
04465 — Pad Kit, Disc Brake, Front
04465-12670 note Pad Kit, Disc Brake, Front
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥9,200
04465-12670 note Pad Kit, Disc Brake, Front
2024-01 → —
MXPB1#,MXPJ1# ¥9,200
04479 — Cylinder Kit, Disc Brake, Front
04478-12130 Cylinder Kit, Disc Brake, Front
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,800
04478-12130 Cylinder Kit, Disc Brake, Front
2024-01 → —
MXPB1#,MXPJ1# ¥1,800
04945 — Shim Kit, Anti Squeal, Front
04945-12120 Shim Kit, Anti Squeal, Front
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,850
04945-12120 Shim Kit, Anti Squeal, Front
2024-01 → —
MXPB1#,MXPJ1# ¥1,850
04947 — Fitting Kit, Disc Brake, Front
04947-47030 Fitting Kit, Disc Brake, Front
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,080
04947-47030 Fitting Kit, Disc Brake, Front
2024-01 → —
MXPB1#,MXPJ1# ¥2,080
31478B — Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
31478-30010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥160
31478-30010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2024-01 → —
MXPB1#,MXPJ1# ¥160
47547B — Plug, Bleeder(FOR FRONT DISC BRAKE)
47547-20010 Plug, Bleeder(FOR FRONT DISC BRAKE)
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥200
47547-20010 Plug, Bleeder(FOR FRONT DISC BRAKE)
2024-01 → —
MXPB1#,MXPJ1# ¥200
47710A — Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
90105-12208 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥160
90105-12208 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
2024-01 → —
MXPB1#,MXPJ1# ¥160
47715A — Pin, Front Disc Brake Cylinder Slide
47715-52190 Pin, Front Disc Brake Cylinder Slide
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥360
47715-52190 Pin, Front Disc Brake Cylinder Slide
2024-01 → —
MXPB1#,MXPJ1# ¥360
47715D — Pin, Front Disc Brake Cylinder Slide, NO.2
47715-12A10 Pin, Front Disc Brake Cylinder Slide, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥360
47715-12A10 Pin, Front Disc Brake Cylinder Slide, NO.2
2024-01 → —
MXPB1#,MXPJ1# ¥360
47721 — Mounting, Front Disc Brake Cylinder, RH
47721-12B10 Mounting, Front Disc Brake Cylinder, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥6,100
47721-52420 Mounting, Front Disc Brake Cylinder, RH
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥9,900
47721-12B10 Mounting, Front Disc Brake Cylinder, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥6,100
47721-52420 Mounting, Front Disc Brake Cylinder, RH
2024-01 → —
MXPB10,MXPJ10 GRS ¥9,900
47721A — Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥90
90105-08164 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
2024-01 → —
MXPB1#,MXPJ1# ¥90
47722 — Mounting, Front Disc Brake Cylinder, LH
47722-12B10 Mounting, Front Disc Brake Cylinder, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥6,100
47722-52470 Mounting, Front Disc Brake Cylinder, LH
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥9,900
47722-12B10 Mounting, Front Disc Brake Cylinder, LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥6,100
47722-52470 Mounting, Front Disc Brake Cylinder, LH
2024-01 → —
MXPB10,MXPJ10 GRS ¥9,900
47730 — Cylinder Assy, Front Disc Brake, RH
47730-12B10 Cylinder Assy, Front Disc Brake, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥27,900
47730-52420 Cylinder Assy, Front Disc Brake, RH
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥45,900
47730-12B10 Cylinder Assy, Front Disc Brake, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥27,900
47730-52420 Cylinder Assy, Front Disc Brake, RH
2024-01 → —
MXPB10,MXPJ10 GRS ¥45,900
47731 — Piston, Front Disc Brake
47731-52210 Piston, Front Disc Brake
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥670
47731-52210 Piston, Front Disc Brake
2024-01 → —
MXPB1#,MXPJ1# ¥670
47750 — Cylinder Assy, Disc Brake, LH
47750-12B10 Cylinder Assy, Disc Brake, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥27,900
47750-52470 Cylinder Assy, Disc Brake, LH
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥45,900
47750-12B10 Cylinder Assy, Disc Brake, LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥27,900
47750-52470 Cylinder Assy, Disc Brake, LH
2024-01 → —
MXPB10,MXPJ10 GRS ¥45,900
47769 — Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47769-50010 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥50
47769-50010 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
2024-01 → —
MXPB1#,MXPJ1# ¥50
47771 — Plate, Pad Wear Indicator, NO.1
47771-33380 Plate, Pad Wear Indicator, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥200
47771-33380 Plate, Pad Wear Indicator, NO.1
2024-01 → —
MXPB1#,MXPJ1# ¥200
47775B — Boot, Bush Dust, NO.1
47775-52190 Boot, Bush Dust, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥210
47775-52190 Boot, Bush Dust, NO.1
2024-01 → —
MXPB1#,MXPJ1# ¥210
47781 — Cover, Disc Brake Dust, Front RH
47781-10080 Cover, Disc Brake Dust, Front RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,050
47781-10080 Cover, Disc Brake Dust, Front RH
2024-01 → —
MXPB1#,MXPJ1# ¥1,050
47782 — Cover, Disc Brake Dust, Front LH
47782-10080 Cover, Disc Brake Dust, Front LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,050
47782-10080 Cover, Disc Brake Dust, Front LH
2024-01 → —
MXPB1#,MXPJ1# ¥1,050
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
