Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

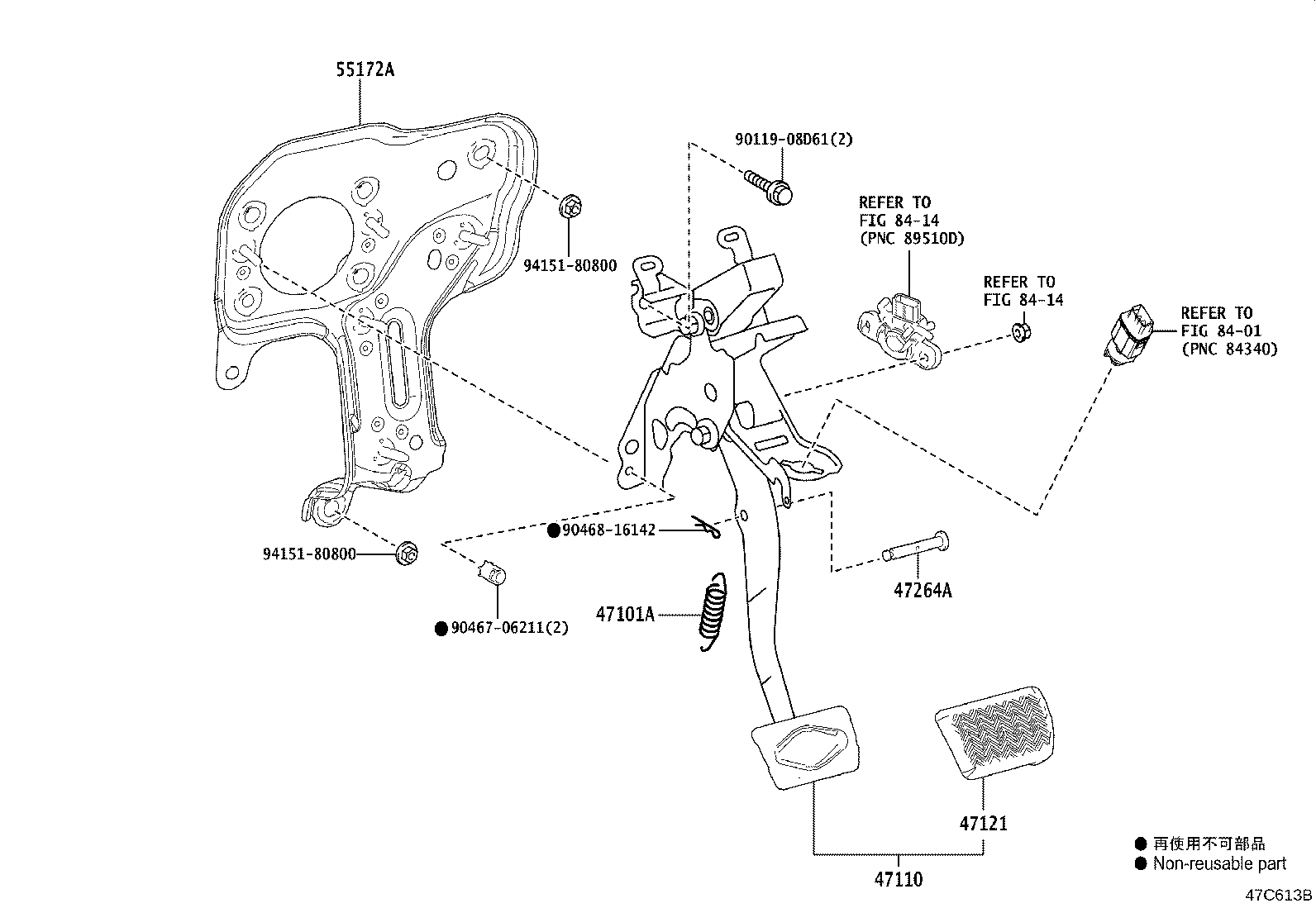

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47101A — Spring(FOR BRAKE PEDAL RETURN) | ||||
| 90506-14088 |
Spring(FOR BRAKE PEDAL RETURN)
2020-08 → 2024-01
ended
|
MXPJ1# | ¥120 | |
| 90506-17003 |
Spring(FOR BRAKE PEDAL RETURN)
2020-08 → 2024-01
ended
|
MXPB1# | ¥180 | |
| 90506-17003 |
Spring(FOR BRAKE PEDAL RETURN)
2024-01 → —
|
MXPB1#,MXPJ1# | ¥180 | |
| 47110 — Support Assy, Brake Pedal | ||||
| 47110-52520 |
Support Assy, Brake Pedal
2022-08 → 2024-01
ended
|
MXPB10 GRS | ¥8,100 | |
| 47110-52560 |
Support Assy, Brake Pedal
2022-08 → 2024-01
ended
|
MXPJ10 GRS | ¥8,100 | |
| 47110-K0070 |
Support Assy, Brake Pedal
2020-08 → 2024-01
ended
|
MXPB1# G,X,Z | ¥6,800 | |
| 47110-K0090 |
Support Assy, Brake Pedal
2020-08 → 2024-01
ended
|
MXPJ1# HBDG,HBDX,HBDZ | ¥6,800 | |
| 47110-52520 |
Support Assy, Brake Pedal
2024-01 → —
|
MXPB10 GRS | ¥8,100 | |
| 47110-52550 |
Support Assy, Brake Pedal
2024-01 → —
|
MXPJ10 GRS | ¥8,100 | |
| 47110-K0060 |
Support Assy, Brake Pedal
2024-01 → —
|
MXPJ1# HBDG,HBDX,HBDZ,U | ¥6,800 | |
| 47110-K0070 |
Support Assy, Brake Pedal
2024-01 → —
|
MXPB1# G,X,Z | ¥6,800 | |
| 47121 — Pad, Brake Pedal | ||||
| 47121-47010 |
Pad, Brake Pedal
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z | ¥400 | |
| 47121-78010 |
Pad, Brake Pedal
2022-08 → 2024-01
ended
|
MXPB10,MXPJ10 GRS | ¥3,030 | |
| 47121-47010 |
Pad, Brake Pedal
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z | ¥400 | |
| 47121-78010 |
Pad, Brake Pedal
2024-01 → —
|
MXPB10,MXPJ10 GRS | ¥3,030 | |
| 47264A — Pin(FOR PUSH ROD) | ||||
| 90249-08051 |
Pin(FOR PUSH ROD)
2020-08 → 2022-06
ended
|
MXPB1#,MXPJ1# | ¥170 | |
| 90249-08256 |
Pin(FOR PUSH ROD)
2022-07 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥130 | |
| 90249-08256 |
Pin(FOR PUSH ROD)
2024-01 → —
|
MXPB1#,MXPJ1# | ¥130 | |
| 55172A — Base, Brake Pedal Support | ||||
| 55172-K0010 |
Base, Brake Pedal Support
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥2,540 | |
| 55172-K0010 |
Base, Brake Pedal Support
2024-01 → —
|
MXPB1#,MXPJ1# | ¥2,540 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
