Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

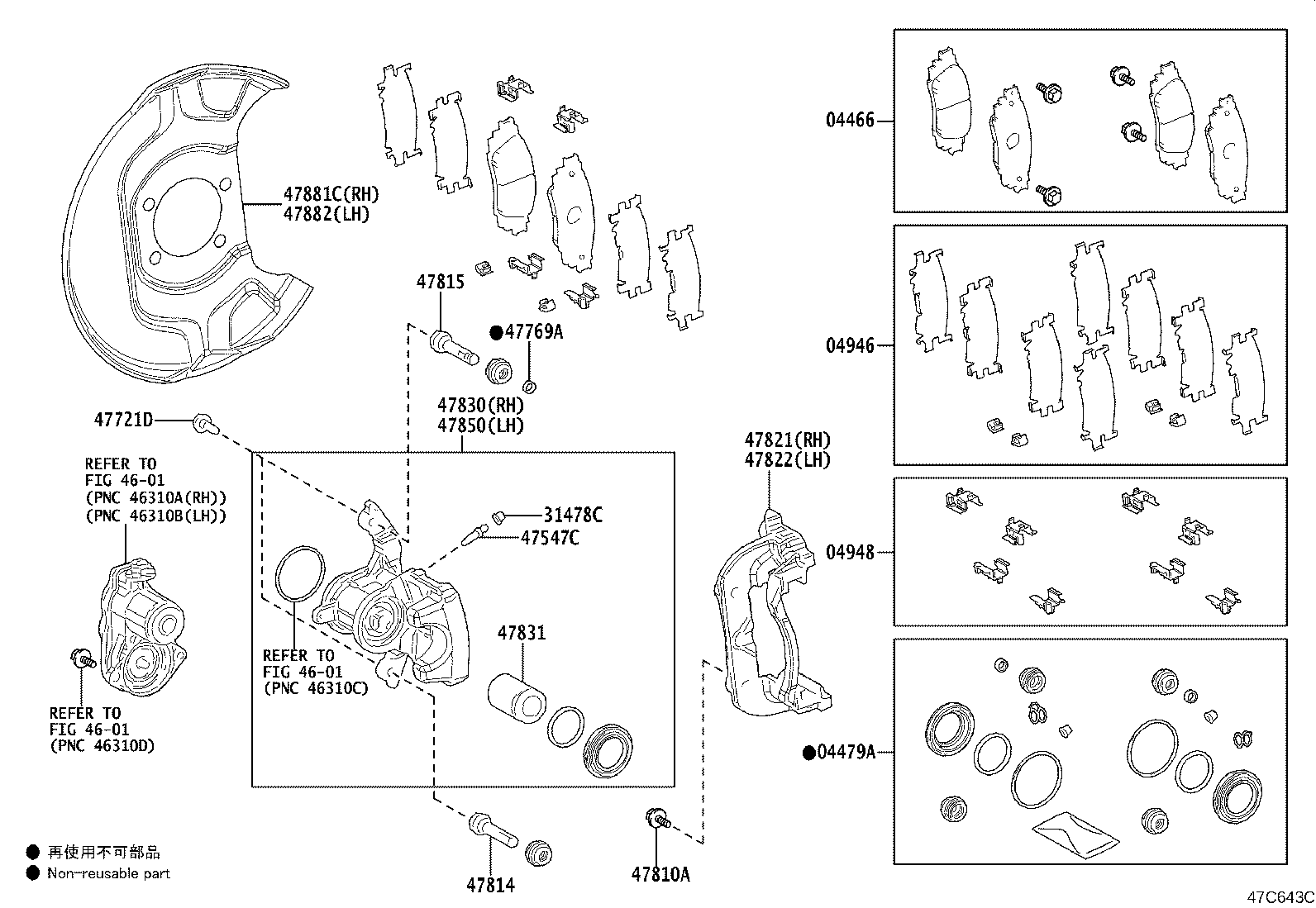

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04466 — Pad Kit, Disc Brake, Rear | ||||
| 04466-10011 note |
Pad Kit, Disc Brake, Rear
2020-08 → 2024-01
ended
|
MXPB15,MXPJ15 | ¥6,100 | |
| 04466-52210 note |
Pad Kit, Disc Brake, Rear
2020-08 → 2024-01
ended
|
MXPB10,MXPJ10 | ¥5,900 | |
| 04466-10011 note |
Pad Kit, Disc Brake, Rear
2024-01 → —
|
MXPB15,MXPJ15 | ¥6,100 | |
| 04466-52210 note |
Pad Kit, Disc Brake, Rear
2024-01 → —
|
MXPB10,MXPJ10 | ¥5,900 | |
| 04479A — Cylinder Kit, Disc Brake, Rear | ||||
| 04479-10091 |
Cylinder Kit, Disc Brake, Rear
2020-08 → 2022-11
ended
|
MXPB1#,MXPJ1# | ¥3,200 | |
| 04479-10091 |
Cylinder Kit, Disc Brake, Rear
2023-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥3,200 | |
| 04479-52290 |
Cylinder Kit, Disc Brake, Rear
2022-11 → 2023-08
ended
|
MXPB1#,MXPJ1# | ¥3,200 | |
| 04479-10091 |
Cylinder Kit, Disc Brake, Rear
2024-01 → —
|
MXPB1#,MXPJ1# | ¥3,200 | |
| 04946 — Shim Kit, Anti Squeal(FOR REAR DISC BRAKE) | ||||
| 04946-48130 |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2020-08 → 2024-01
ended
|
MXPB15,MXPJ15 | ¥1,780 | |
| 04946-52130 |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2020-08 → 2024-01
ended
|
MXPB10,MXPJ10 | ¥1,780 | |
| 04946-48130 |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2024-01 → —
|
MXPB15,MXPJ15 | ¥1,780 | |
| 04946-52130 |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2024-01 → —
|
MXPB10,MXPJ10 | ¥1,780 | |
| 04948 — Fitting Kit, Disc Brake, Rear | ||||
| 04948-52060 |
Fitting Kit, Disc Brake, Rear
2020-08 → 2024-01
ended
|
MXPB10,MXPJ10 | ¥1,730 | |
| 04948-58010 |
Fitting Kit, Disc Brake, Rear
2020-08 → 2024-01
ended
|
MXPB15,MXPJ15 | ¥1,040 | |
| 04948-52060 |
Fitting Kit, Disc Brake, Rear
2024-01 → —
|
MXPB10,MXPJ10 | ¥1,730 | |
| 04948-58010 |
Fitting Kit, Disc Brake, Rear
2024-01 → —
|
MXPB15,MXPJ15 | ¥1,040 | |
| 31478C — Cap, Bleeder Plug(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥160 | |
| 31478-30010 |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2024-01 → —
|
MXPB1#,MXPJ1# | ¥160 | |
| 47547C — Plug, Bleeder(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
Plug, Bleeder(FOR REAR DISC BRAKE)
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥200 | |
| 47547-20010 |
Plug, Bleeder(FOR REAR DISC BRAKE)
2024-01 → —
|
MXPB1#,MXPJ1# | ¥200 | |
| 47721D — Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90015-AA603 note |
Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥270 | |
| 90015-AA603 note |
Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
2024-01 → —
|
MXPB1#,MXPJ1# | ¥270 | |
| 47769A — Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-50010 |
Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥50 | |
| 47769-50010 |
Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2024-01 → —
|
MXPB1#,MXPJ1# | ¥50 | |
| 47810A — Bolt, Hexagon(FOR REAR CALIPER) | ||||
| 90105-12174 |
Bolt, Hexagon(FOR REAR CALIPER)
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥130 | |
| 90105-12174 |
Bolt, Hexagon(FOR REAR CALIPER)
2024-01 → —
|
MXPB1#,MXPJ1# | ¥130 | |
| 47814 — Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE) | ||||
| 47814-78010 |
Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥510 | |
| 47814-78010 |
Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2024-01 → —
|
MXPB1#,MXPJ1# | ¥510 | |
| 47815 — Pin, Rear Cylinder Slide, NO.2(FOR REAR DISC BRAKE) | ||||
| 47815-78010 |
Pin, Rear Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥510 | |
| 47815-78010 |
Pin, Rear Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
2024-01 → —
|
MXPB1#,MXPJ1# | ¥510 | |
| 47821 — Mounting, Rear Disc Brake Cylinder, RH | ||||
| 47821-10030 |
Mounting, Rear Disc Brake Cylinder, RH
2020-08 → 2024-01
ended
|
MXPB15,MXPJ15 | ¥4,380 | |
| 47821-52240 |
Mounting, Rear Disc Brake Cylinder, RH
2020-08 → 2024-01
ended
|
MXPB10,MXPJ10 G,HBDG,HBDX,HBDZ,X,Z | ¥4,380 | |
| 47821-52290 |
Mounting, Rear Disc Brake Cylinder, RH
2022-08 → 2024-01
ended
|
MXPB10,MXPJ10 GRS | ¥7,300 | |
| 47821-10030 |
Mounting, Rear Disc Brake Cylinder, RH
2024-01 → —
|
MXPB15,MXPJ15 | ¥4,380 | |
| 47821-52240 |
Mounting, Rear Disc Brake Cylinder, RH
2024-01 → —
|
MXPB10,MXPJ10 G,HBDG,HBDX,HBDZ,U,X,Z | ¥4,380 | |
| 47821-52290 |
Mounting, Rear Disc Brake Cylinder, RH
2024-01 → —
|
MXPB10,MXPJ10 GRS | ¥7,300 | |
| 47822 — Mounting, Rear Disc Brake Cylinder, LH | ||||
| 47822-10030 |
Mounting, Rear Disc Brake Cylinder, LH
2020-08 → 2024-01
ended
|
MXPB15,MXPJ15 | ¥4,380 | |
| 47822-52240 |
Mounting, Rear Disc Brake Cylinder, LH
2020-08 → 2024-01
ended
|
MXPB10,MXPJ10 G,HBDG,HBDX,HBDZ,X,Z | ¥4,380 | |
| 47822-52290 |
Mounting, Rear Disc Brake Cylinder, LH
2022-08 → 2024-01
ended
|
MXPB10,MXPJ10 GRS | ¥7,300 | |
| 47822-10030 |
Mounting, Rear Disc Brake Cylinder, LH
2024-01 → —
|
MXPB15,MXPJ15 | ¥4,380 | |
| 47822-52240 |
Mounting, Rear Disc Brake Cylinder, LH
2024-01 → —
|
MXPB10,MXPJ10 G,HBDG,HBDX,HBDZ,U,X,Z | ¥4,380 | |
| 47822-52290 |
Mounting, Rear Disc Brake Cylinder, LH
2024-01 → —
|
MXPB10,MXPJ10 GRS | ¥7,300 | |
| 47830 — Cylinder Assy, Disc Brake, Rear RH | ||||
| 47830-52240 |
Cylinder Assy, Disc Brake, Rear RH
2022-12 → 2023-08
ended
|
MXPB10,MXPJ10 G,HBDG,HBDX,HBDZ,X,Z | ¥28,800 | |
| 47830-52260 |
Cylinder Assy, Disc Brake, Rear RH
2020-08 → 2024-01
ended
|
MXPB15,MXPJ15 | ¥26,100 | |
| 47830-52290 |
Cylinder Assy, Disc Brake, Rear RH
2022-08 → 2024-01
ended
|
MXPB10,MXPJ10 GRS | ¥43,000 | |
| 47850-12280 |
Cylinder Assy, Disc Brake, Rear RH
2020-08 → 2022-11
ended
|
MXPB10,MXPJ10 G,HBDG,HBDX,HBDZ,X,Z | ¥26,100 | |
| 47850-12280 |
Cylinder Assy, Disc Brake, Rear RH
2023-08 → 2024-01
ended
|
MXPB10,MXPJ10 G,HBDG,HBDX,HBDZ,X,Z | ¥26,100 | |
| 47830-52260 |
Cylinder Assy, Disc Brake, Rear RH
2024-01 → —
|
MXPB15,MXPJ15 | ¥26,100 | |
| 47830-52290 |
Cylinder Assy, Disc Brake, Rear RH
2024-01 → —
|
MXPB10,MXPJ10 GRS | ¥43,000 | |
| 47850-12280 |
Cylinder Assy, Disc Brake, Rear RH
2024-01 → —
|
MXPB10,MXPJ10 G,HBDG,HBDX,HBDZ,U,X,Z | ¥26,100 | |
| 47831 — Piston, Rear Disc Brake | ||||
| 47831-10030 |
Piston, Rear Disc Brake
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥800 | |
| 47831-10030 |
Piston, Rear Disc Brake
2024-01 → —
|
MXPB1#,MXPJ1# | ¥800 | |
| 47850 — Cylinder Assy, Disc Brake, Rear LH | ||||
| 47830-12280 |
Cylinder Assy, Disc Brake, Rear LH
2020-08 → 2022-11
ended
|
MXPB10,MXPJ10 G,HBDG,HBDX,HBDZ,X,Z | ¥26,100 | |
| 47830-12280 |
Cylinder Assy, Disc Brake, Rear LH
2023-08 → 2024-01
ended
|
MXPB10,MXPJ10 G,HBDG,HBDX,HBDZ,X,Z | ¥26,100 | |
| 47850-52240 |
Cylinder Assy, Disc Brake, Rear LH
2022-12 → 2023-08
ended
|
MXPB10,MXPJ10 G,HBDG,HBDX,HBDZ,X,Z | ¥28,800 | |
| 47850-52260 |
Cylinder Assy, Disc Brake, Rear LH
2020-08 → 2024-01
ended
|
MXPB15,MXPJ15 | ¥26,100 | |
| 47850-52290 |
Cylinder Assy, Disc Brake, Rear LH
2022-08 → 2024-01
ended
|
MXPB10,MXPJ10 GRS | ¥43,000 | |
| 47830-12280 |
Cylinder Assy, Disc Brake, Rear LH
2024-01 → —
|
MXPB10,MXPJ10 G,HBDG,HBDX,HBDZ,U,X,Z | ¥26,100 | |
| 47850-52260 |
Cylinder Assy, Disc Brake, Rear LH
2024-01 → —
|
MXPB15,MXPJ15 | ¥26,100 | |
| 47850-52290 |
Cylinder Assy, Disc Brake, Rear LH
2024-01 → —
|
MXPB10,MXPJ10 GRS | ¥43,000 | |
| 47881C — Cover, Disc Brake Dust, Rear RH | ||||
| 47881-52070 |
Cover, Disc Brake Dust, Rear RH
2020-08 → 2024-01
ended
|
MXPB10,MXPJ10 | ¥1,050 | |
| 47881-52080 |
Cover, Disc Brake Dust, Rear RH
2020-08 → 2024-01
ended
|
MXPB15,MXPJ15 | ¥1,050 | |
| 47881-52070 |
Cover, Disc Brake Dust, Rear RH
2024-01 → —
|
MXPB10,MXPJ10 | ¥1,050 | |
| 47881-52080 |
Cover, Disc Brake Dust, Rear RH
2024-01 → —
|
MXPB15,MXPJ15 | ¥1,050 | |
| 47882 — Cover, Disc Brake Dust, Rear LH | ||||
| 47882-52070 |
Cover, Disc Brake Dust, Rear LH
2020-08 → 2024-01
ended
|
MXPB10,MXPJ10 | ¥1,050 | |
| 47882-52080 |
Cover, Disc Brake Dust, Rear LH
2020-08 → 2024-01
ended
|
MXPB15,MXPJ15 | ¥1,050 | |
| 47882-52070 |
Cover, Disc Brake Dust, Rear LH
2024-01 → —
|
MXPB10,MXPJ10 | ¥1,050 | |
| 47882-52080 |
Cover, Disc Brake Dust, Rear LH
2024-01 → —
|
MXPB15,MXPJ15 | ¥1,050 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
