Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

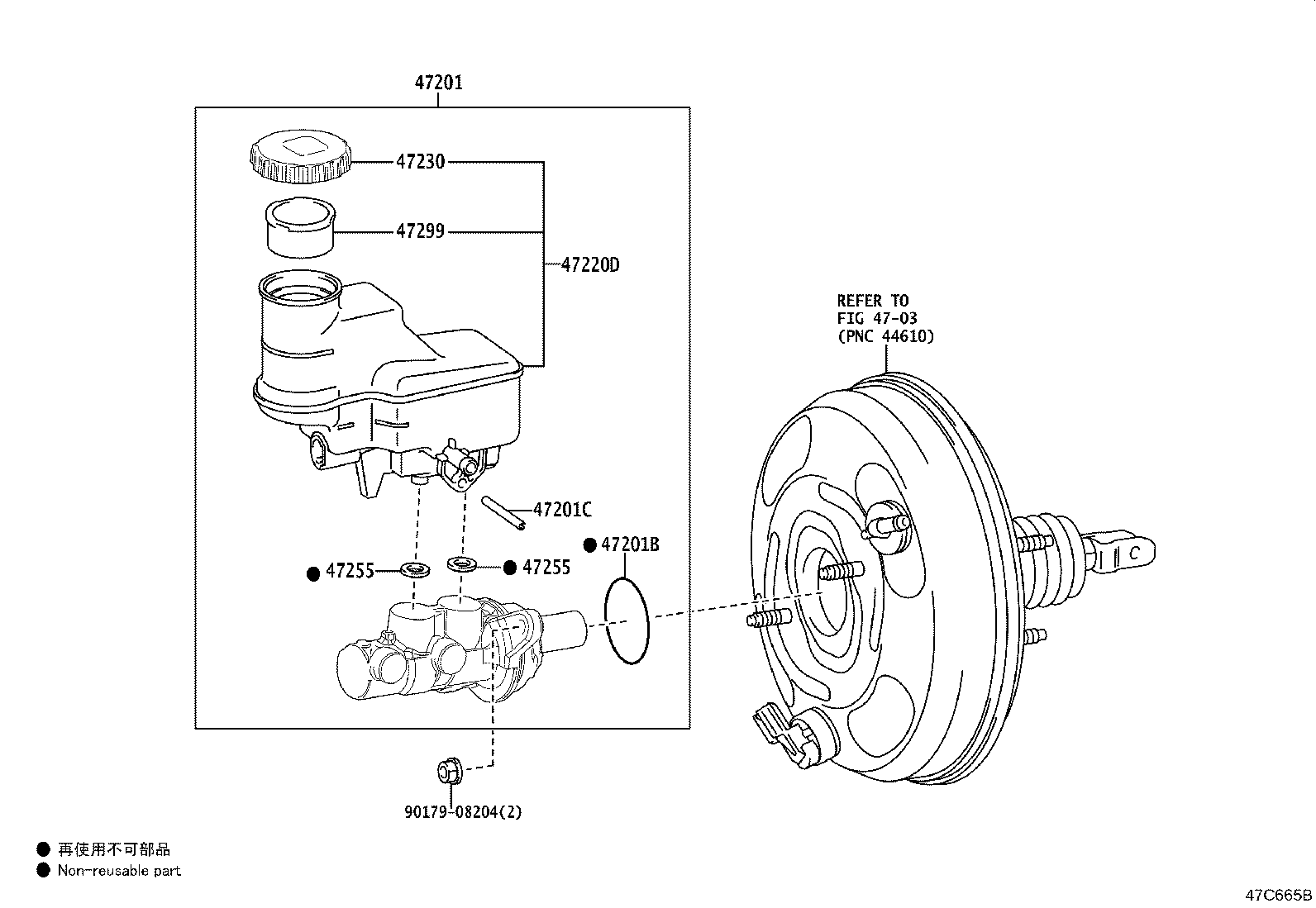

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47201 — Cylinder Sub-assy, Brake Master | ||||
| 47201-K0050 |
Cylinder Sub-assy, Brake Master
2020-08 → 2024-01
ended
|
MXPB1# | ¥20,300 | |
| 47201-52840 |
Cylinder Sub-assy, Brake Master
2024-01 → —
|
MXPJ1# | ¥20,300 | |
| 47201-K0050 |
Cylinder Sub-assy, Brake Master
2024-01 → —
|
MXPB1# | ¥20,300 | |
| 47201B — Ring, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH002 |
Ring, O(FOR BRAKE MASTER CYLINDER)
2020-08 → 2024-01
ended
|
MXPB1# | ¥200 | |
| 90015-AH002 |
Ring, O(FOR BRAKE MASTER CYLINDER)
2024-01 → —
|
MXPB1# | ¥200 | |
| 47201C — Ring Pin, Brake Master Cylinder | ||||
| 90029-15803 |
Ring Pin, Brake Master Cylinder
2020-08 → 2024-01
ended
|
MXPB1# | ¥130 | |
| 90029-15803 |
Ring Pin, Brake Master Cylinder
2024-01 → —
|
MXPB1# | ¥130 | |
| 90069-35007 |
Ring Pin, Brake Master Cylinder
2024-01 → —
|
MXPJ1# | ¥130 | |
| 47220D — Reservoir Assy, Brake Master Cylinder | ||||
| 47220-K0060 |
Reservoir Assy, Brake Master Cylinder
2020-08 → 2024-01
ended
|
MXPB1# | ¥6,000 | |
| 47220-K0060 |
Reservoir Assy, Brake Master Cylinder
2024-01 → —
|
MXPB1# | ¥6,000 | |
| 47230 — Cap Assy, Brake Master Cylinder Reservoir Filler | ||||
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2020-08 → 2022-01
ended
|
MXPJ15 | ¥770 | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2020-08 → 2024-01
ended
|
MXPB1#;MXPJ10 HBDG,HBDX,HBDZ | ¥770 | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2022-08 → 2024-01
ended
|
MXPJ10 GRS | ¥770 | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2024-01 → —
|
MXPB1# | ¥770 | |
| 47255 — Grommet, Master Cylinder Reservoir | ||||
| 90029-48001 |
Grommet, Master Cylinder Reservoir
2020-08 → 2024-01
ended
|
MXPB1# | ¥360 | |
| 90029-48001 |
Grommet, Master Cylinder Reservoir
2024-01 → —
|
MXPB1# | ¥360 | |
| 47299 — Strainer, Brake Master Cylinder Reservoir | ||||
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir
2020-08 → 2024-01
ended
|
MXPB1# | ¥140 | |
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir
2024-01 → —
|
MXPB1# | ¥140 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
