Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

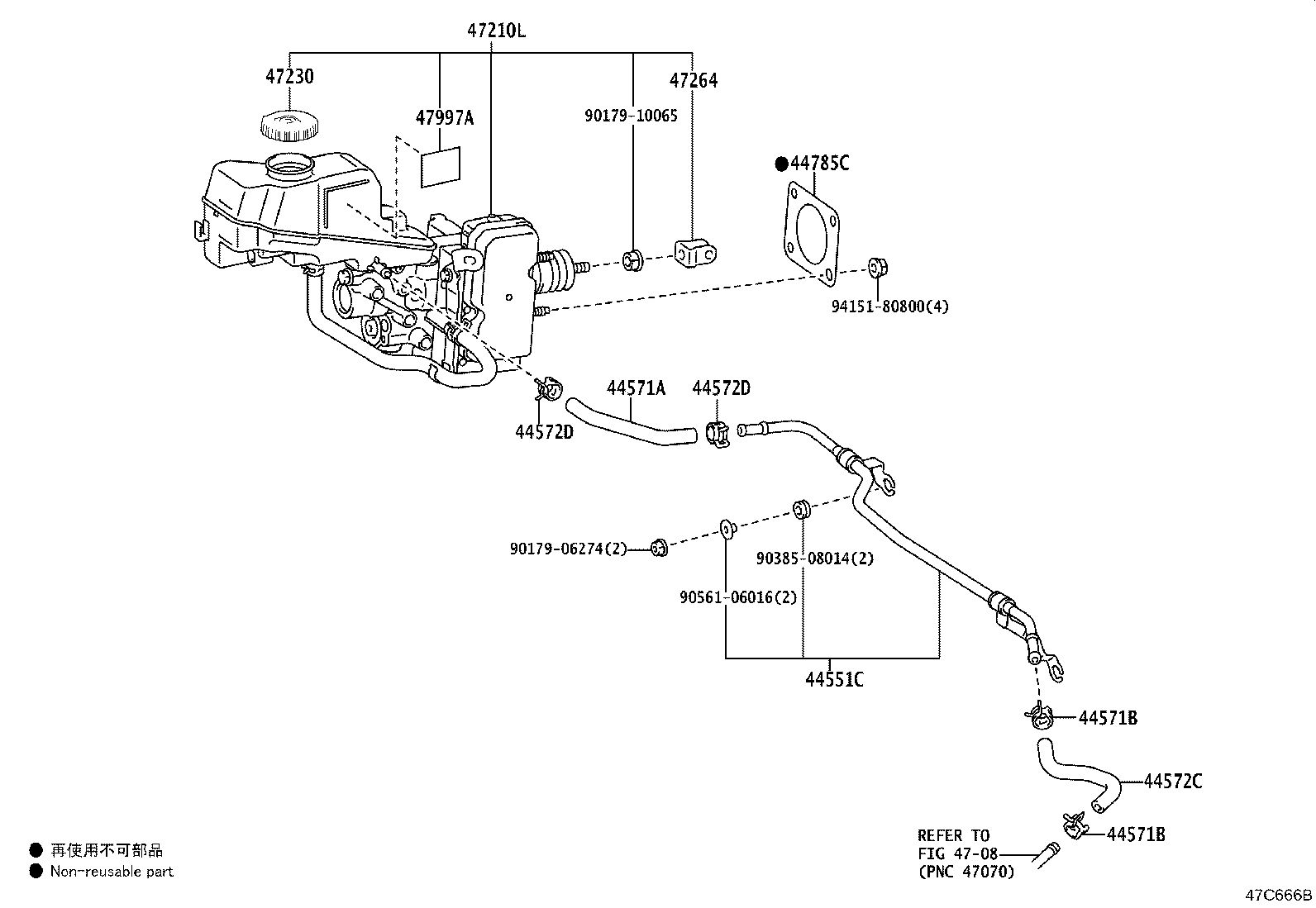

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44551C — Tube, Brake Actuator, NO.1 | ||||
| 44551-K0010 |
Tube, Brake Actuator, NO.1
2020-08 → 2024-01
ended
|
MXPJ1# | ¥1,660 | |
| 44571A — Hose, Brake Actuator, NO.1 | ||||
| 44571-K0010 |
Hose, Brake Actuator, NO.1
2020-08 → 2024-01
ended
|
MXPJ1# | ¥430 | |
| 44571B — Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.1) | ||||
| 96137-41501 |
Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.1)
2020-08 → 2024-01
ended
|
MXPJ1# | ¥120 | |
| 44572C — Hose, Brake Actuator, NO.2 | ||||
| 44572-K0010 |
Hose, Brake Actuator, NO.2
2020-08 → 2024-01
ended
|
MXPJ1# | ¥430 | |
| 44572D — Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.2) | ||||
| 96137-41501 |
Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.2)
2020-08 → 2024-01
ended
|
MXPJ1# | ¥120 | |
| 44785C — Gasket, Brake Booster | ||||
| 44785-12040 |
Gasket, Brake Booster
2020-08 → 2024-01
ended
|
MXPJ1# | ¥200 | |
| 44785-28020 |
Gasket, Brake Booster
2024-01 → —
|
MXPJ1# | ¥250 | |
| 47210L — Brake Booster Assy, W/Master Cylinder | ||||
| 47050-52650 note |
Brake Booster Assy, W/Master Cylinder
2020-08 → 2021-12
ended
|
MXPJ10 | ¥147,000 | |
| 47050-52651 note |
Brake Booster Assy, W/Master Cylinder
2022-08 → 2024-01
ended
|
MXPJ10 HBDG,HBDX,HBDZ | ¥147,000 | |
| 47050-52670 note |
Brake Booster Assy, W/Master Cylinder
2022-08 → 2024-01
ended
|
MXPJ10 GRS | ¥147,000 | |
| 47050-52690 note |
Brake Booster Assy, W/Master Cylinder
2020-08 → 2021-12
ended
|
MXPJ15 | ¥147,000 | |
| 47050-52691 note |
Brake Booster Assy, W/Master Cylinder
2022-01 → 2024-01
ended
|
MXPJ15 | ¥147,000 | |
| 47050-52800 note |
Brake Booster Assy, W/Master Cylinder
2021-12 → 2022-08
ended
|
MXPJ10 | ¥147,000 | |
| 47210-52790 |
Brake Booster Assy, W/Master Cylinder
2024-01 → —
|
MXPJ1# | ¥99,000 | |
| 47230 — Cap Assy, Brake Master Cylinder Reservoir Filler | ||||
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2020-08 → 2022-01
ended
|
MXPJ15 | ¥770 | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2020-08 → 2024-01
ended
|
MXPB1#;MXPJ10 HBDG,HBDX,HBDZ | ¥770 | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2022-08 → 2024-01
ended
|
MXPJ10 GRS | ¥770 | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2024-01 → —
|
MXPB1# | ¥770 | |
| 47264 — Clevis, Master Cylinder Push Rod | ||||
| 47264-12060 |
Clevis, Master Cylinder Push Rod
2020-08 → 2024-01
ended
|
MXPJ1# | ¥250 | |
| 47997A — Label, Accumulator Caution, NO.1 | ||||
| 47997-76010 |
Label, Accumulator Caution, NO.1
2020-08 → 2024-01
ended
|
MXPJ1# HBDG,HBDX,HBDZ | ¥110 | |
| 47997-76010 |
Label, Accumulator Caution, NO.1
2022-08 → 2024-01
ended
|
MXPJ10 GRS | ¥110 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
