Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

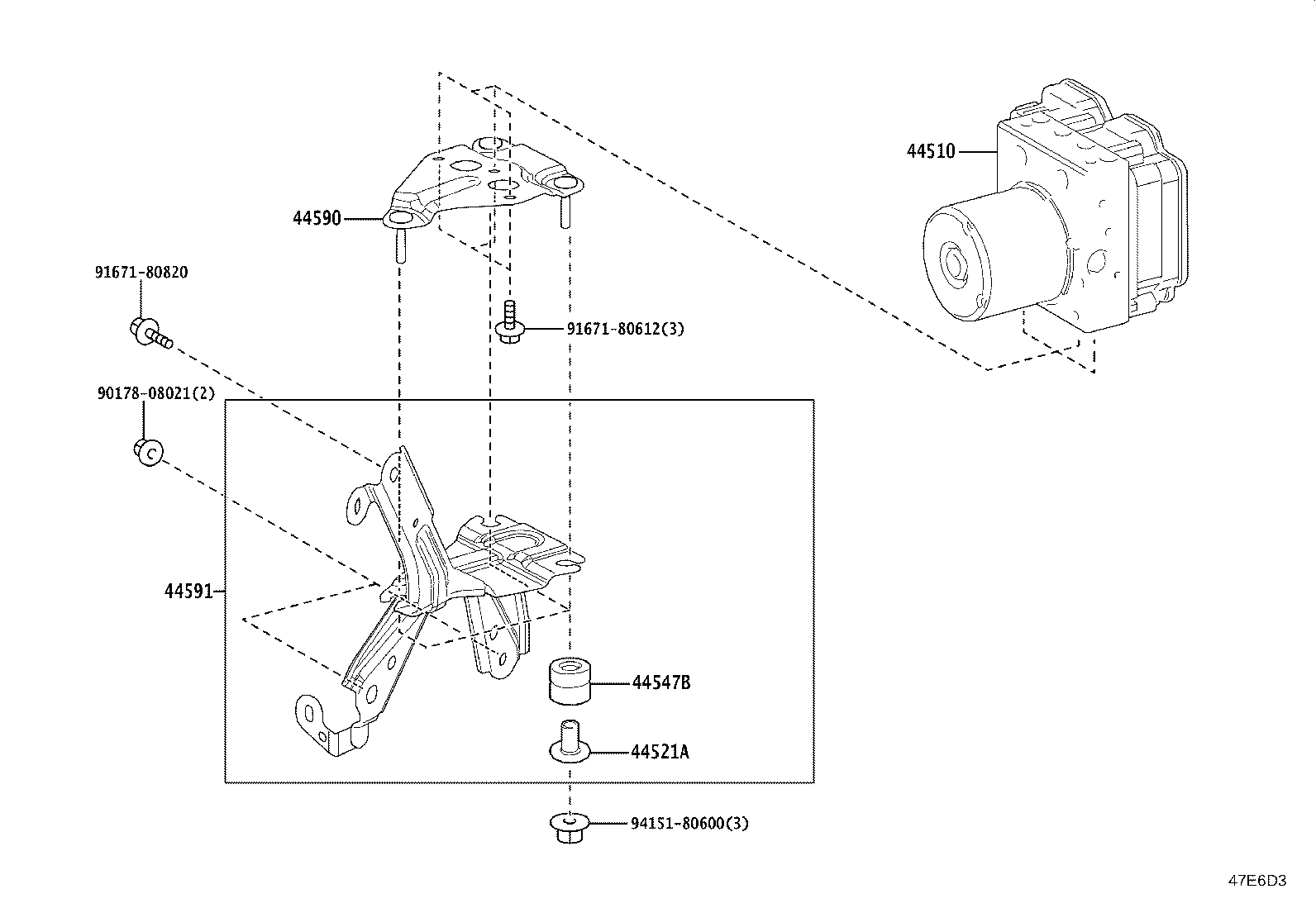

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44510 — Actuator Assy, Brake | ||||
| 44050-52S50 note |
Actuator Assy, Brake
2022-08 → 2024-01
ended
|
MXPB1# G,X,Z | ¥149,000 | |
| 44050-52S70 note |
Actuator Assy, Brake
2020-08 → 2021-12
ended
|
MXPB10 | ¥149,000 | |
| 44050-52S71 note |
Actuator Assy, Brake
2021-12 → 2022-08
ended
|
MXPB10 | ¥149,000 | |
| 44050-52T10 note |
Actuator Assy, Brake
2020-08 → 2021-11
ended
|
MXPB15 | ¥149,000 | |
| 44050-52T11 note |
Actuator Assy, Brake
2021-12 → 2022-08
ended
|
MXPB15 | ¥149,000 | |
| 44050-52T30 note |
Actuator Assy, Brake
2020-08 → 2024-01
ended
|
MXPJ1# | ¥149,000 | |
| 44050-52V60 note |
Actuator Assy, Brake
2022-08 → 2024-01
ended
|
MXPB10 GRS | ¥149,000 | |
| 44050-52W70 note |
Actuator Assy, Brake
2024-01 → —
|
MXPB1# G,X,Z | ¥135,000 | |
| 44050-52W80 note |
Actuator Assy, Brake
2024-01 → —
|
MXPB10 GRS | ¥135,000 | |
| 44050-52X00 note |
Actuator Assy, Brake
2024-01 → —
|
MXPJ10 | ¥135,000 | |
| 44050-52X40 note |
Actuator Assy, Brake
2024-01 → —
|
MXPJ15 | ¥135,000 | |
| 44521A — Collar, Brake Actuator Case, NO.1 | ||||
| 44521-12050 |
Collar, Brake Actuator Case, NO.1
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥90 | |
| 44521-12050 |
Collar, Brake Actuator Case, NO.1
2024-01 → —
|
MXPB1#,MXPJ1# | ¥90 | |
| 44547B — Cushion, Brake Actuator Bracket | ||||
| 44547-K0010 |
Cushion, Brake Actuator Bracket
2020-08 → 2024-01
ended
|
MXPB1# | ¥110 | |
| 44547-K0010 |
Cushion, Brake Actuator Bracket
2024-01 → —
|
MXPB1#,MXPJ1# | ¥110 | |
| 44590 — Bracket Assy, Brake Actuator | ||||
| 44590-K0010 |
Bracket Assy, Brake Actuator
2020-08 → 2024-01
ended
|
MXPJ1# | ¥2,410 | |
| 44590-K0020 |
Bracket Assy, Brake Actuator
2020-08 → 2024-01
ended
|
MXPB1# | ¥720 | |
| 44590-52320 |
Bracket Assy, Brake Actuator
2024-01 → —
|
MXPJ1# | ¥730 | |
| 44590-K0020 |
Bracket Assy, Brake Actuator
2024-01 → —
|
MXPB1# | ¥720 | |
| 44591 — Bracket, Brake Actuator, NO.1 | ||||
| 44591-K0070 |
Bracket, Brake Actuator, NO.1
2020-08 → 2024-01
ended
|
MXPB1# | ¥2,760 | |
| 44591-52200 |
Bracket, Brake Actuator, NO.1
2024-01 → —
|
MXPJ1# | ¥2,760 | |
| 44591-K0070 |
Bracket, Brake Actuator, NO.1
2024-01 → —
|
MXPB1# | ¥2,760 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
