Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

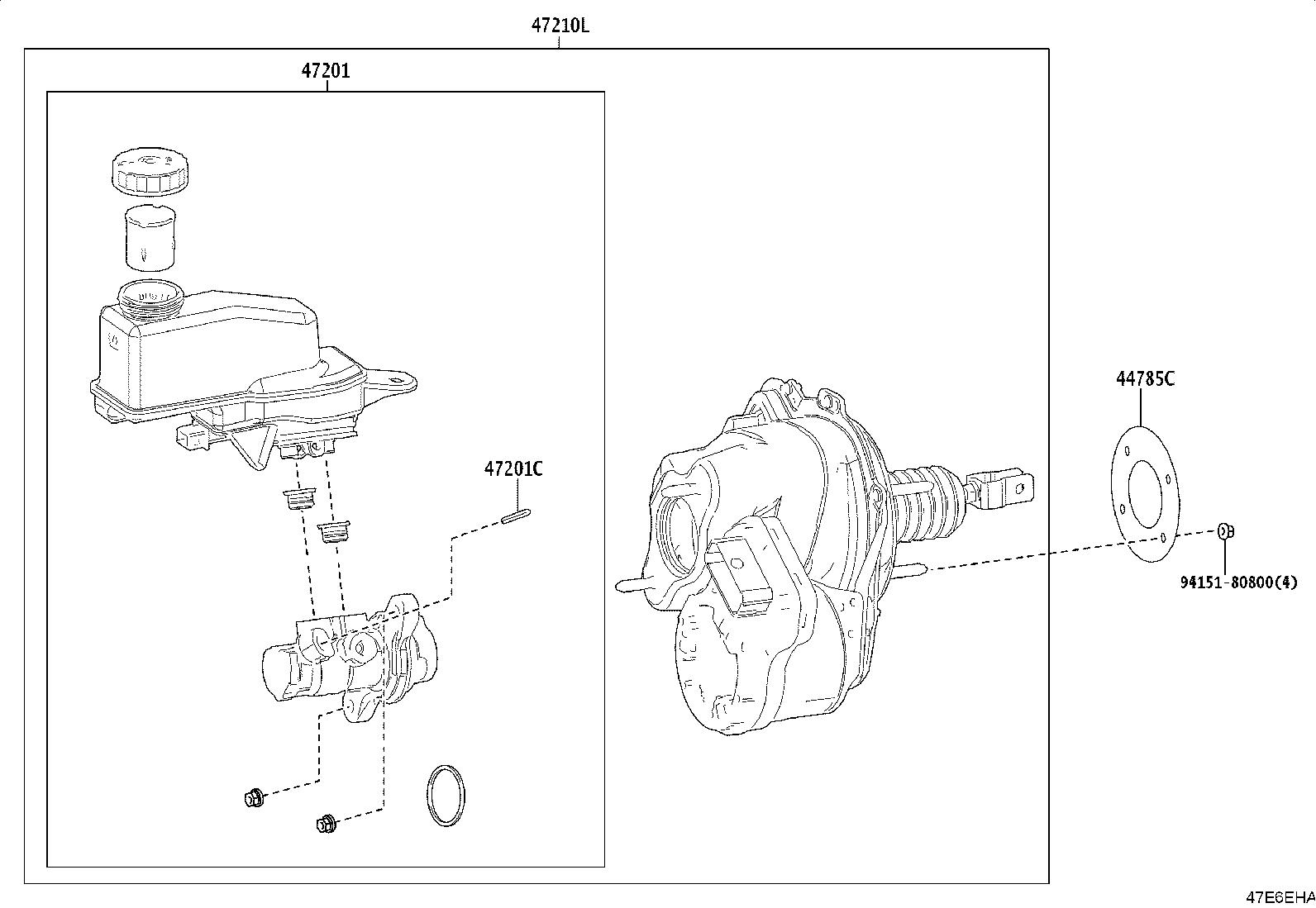

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44785C — Gasket, Brake Booster | ||||
| 44785-12040 |
Gasket, Brake Booster
2020-08 → 2024-01
ended
|
MXPJ1# | ¥200 | |
| 44785-28020 |
Gasket, Brake Booster
2024-01 → —
|
MXPJ1# | ¥250 | |
| 47201 — Cylinder Sub-assy, Brake Master | ||||
| 47201-K0050 |
Cylinder Sub-assy, Brake Master
2020-08 → 2024-01
ended
|
MXPB1# | ¥20,300 | |
| 47201-52840 |
Cylinder Sub-assy, Brake Master
2024-01 → —
|
MXPJ1# | ¥20,300 | |
| 47201-K0050 |
Cylinder Sub-assy, Brake Master
2024-01 → —
|
MXPB1# | ¥20,300 | |
| 47201C — Ring Pin, Brake Master Cylinder | ||||
| 90029-15803 |
Ring Pin, Brake Master Cylinder
2020-08 → 2024-01
ended
|
MXPB1# | ¥130 | |
| 90029-15803 |
Ring Pin, Brake Master Cylinder
2024-01 → —
|
MXPB1# | ¥130 | |
| 90069-35007 |
Ring Pin, Brake Master Cylinder
2024-01 → —
|
MXPJ1# | ¥130 | |
| 47210L — Brake Booster Assy, W/Master Cylinder | ||||
| 47050-52650 note |
Brake Booster Assy, W/Master Cylinder
2020-08 → 2021-12
ended
|
MXPJ10 | ¥147,000 | |
| 47050-52651 note |
Brake Booster Assy, W/Master Cylinder
2022-08 → 2024-01
ended
|
MXPJ10 HBDG,HBDX,HBDZ | ¥147,000 | |
| 47050-52670 note |
Brake Booster Assy, W/Master Cylinder
2022-08 → 2024-01
ended
|
MXPJ10 GRS | ¥147,000 | |
| 47050-52690 note |
Brake Booster Assy, W/Master Cylinder
2020-08 → 2021-12
ended
|
MXPJ15 | ¥147,000 | |
| 47050-52691 note |
Brake Booster Assy, W/Master Cylinder
2022-01 → 2024-01
ended
|
MXPJ15 | ¥147,000 | |
| 47050-52800 note |
Brake Booster Assy, W/Master Cylinder
2021-12 → 2022-08
ended
|
MXPJ10 | ¥147,000 | |
| 47210-52790 |
Brake Booster Assy, W/Master Cylinder
2024-01 → —
|
MXPJ1# | ¥99,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
