Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

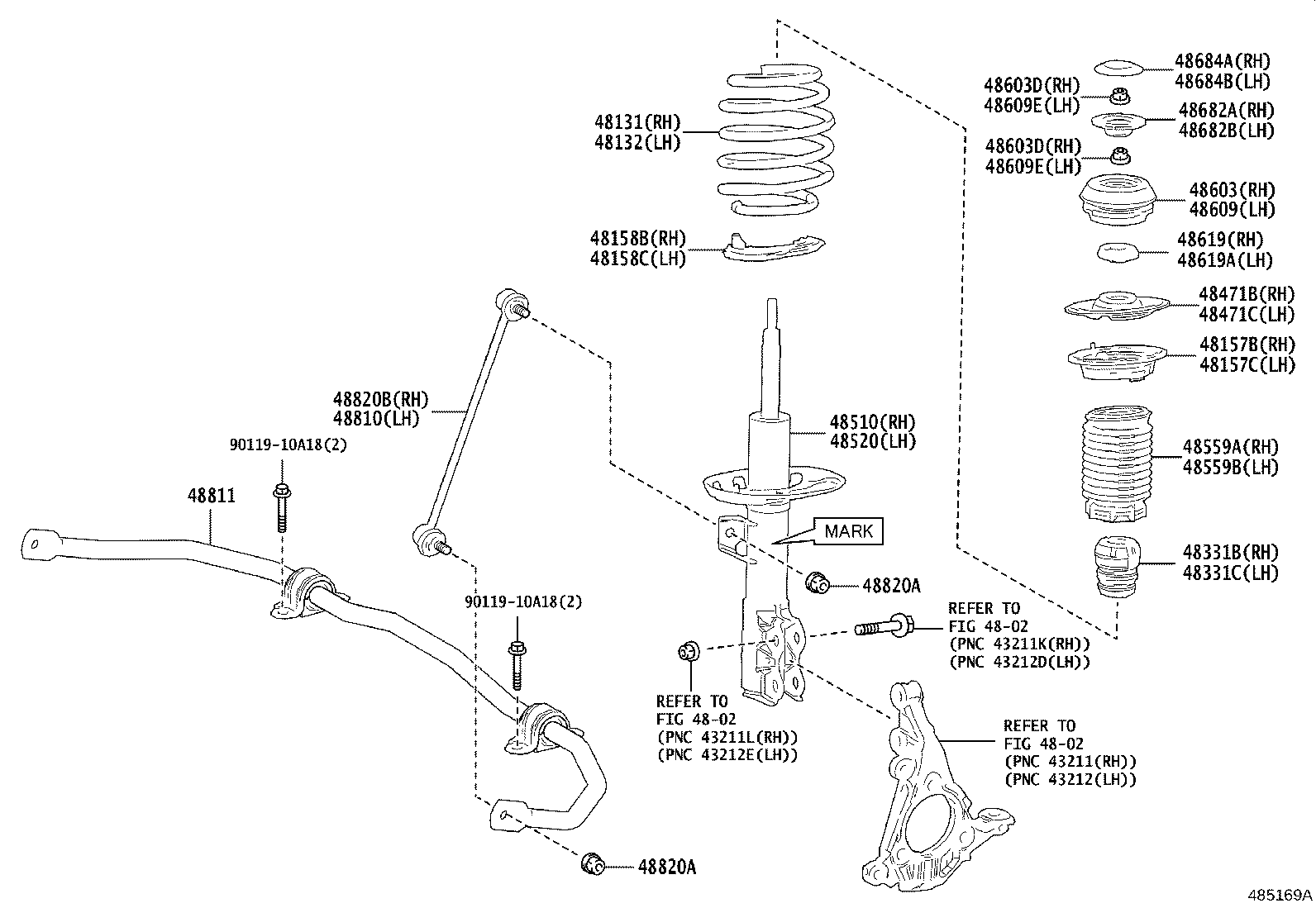

Exploded illustration 485169A 48510 — ABSORBER ASSY, SHOCK, FRONT RH (8 parts) 48520 — ABSORBER ASSY, SHOCK, FRONT LH (8 parts) 48157B — INSULATOR, FRONT COIL SPRING, UPPER RH (2 parts) 48157C — INSULATOR, FRONT COIL SPRING, UPPER LH (2 parts) 48158B — INSULATOR, FRONT COIL SPRING, LOWER RH (2 parts) 48158C — INSULATOR, FRONT COIL SPRING, LOWER LH (2 parts) 48810 — LINK ASSY, FRONT STABILIZER, LH (2 parts) 48811 — BAR, STABILIZER, FRONT (2 parts) 48820B — LINK ASSY, FRONT STABILIZER, RH (2 parts) 9011910A18 — not listed in this catalogue 48820A — NUT(FOR FRONT STABILIZER LINK) (2 parts) 48820A — NUT(FOR FRONT STABILIZER LINK) (2 parts) 48331B — BUMPER, FRONT SPRING, RH (4 parts) 48331C — BUMPER, FRONT SPRING, LH (4 parts) 48471B — SEAT, FRONT COIL SPRING, UPPER RH (2 parts) 48471C — SEAT, FRONT COIL SPRING, UPPER LH (2 parts) 48559A — COVER, FRONT SHOCK ABSORBER DUST, RH NO.1 (2 parts) 48559B — COVER, FRONT SHOCK ABSORBER DUST, LH NO.1 (2 parts) 48603 — SUPPORT SUB-ASSY, FRONT SUSPENSION, RH (2 parts) 48609 — SUPPORT SUB-ASSY, FRONT SUSPENSION, LH (2 parts) 48619 — BEARING, STRUT MOUNTING, RH (2 parts) 48619A — BEARING, STRUT MOUNTING, LH (2 parts) 48682A — SUPPORT, FRONT SUSPENSION, NO.2 RH (2 parts) 48682B — SUPPORT, FRONT SUSPENSION, NO.2 LH (2 parts) 48684A — COVER, FRONT SUSPENSION SUPPORT DUST, RH (2 parts) 48684B — COVER, FRONT SUSPENSION SUPPORT DUST, LH (2 parts) 48131 — SPRING, FRONT COIL, RH (8 parts) 48132 — SPRING, FRONT COIL, LH (8 parts) 4802 — not listed in this catalogue 4802 — not listed in this catalogue 4802 — not listed in this catalogue 9011910A18 — not listed in this catalogue 48603D — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) (2 parts) 48609E — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) (2 parts) 48603D — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) (2 parts) 48609E — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) (2 parts)
485169A · 31 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
84 parts on this figure
Part number Description Fitment Price
48131 — Spring, Front Coil, RH
48131-52Q40 Spring, Front Coil, RH
2020-08 → 2024-01 ended
MXPB10 G,X,Z ¥4,160
48131-52Q50 Spring, Front Coil, RH
2020-08 → 2024-01 ended
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥4,720
48131-52S30 Spring, Front Coil, RH
2022-08 → 2024-01 ended
MXPB10 GRS ¥4,160
48131-52S40 Spring, Front Coil, RH
2022-08 → 2024-01 ended
MXPJ10 GRS ¥4,160
48131-52Q40 Spring, Front Coil, RH
2024-01 → —
MXPB10 G,X,Z ¥4,160
48131-52Q50 Spring, Front Coil, RH
2024-01 → —
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥4,720
48131-52S30 Spring, Front Coil, RH
2024-01 → —
MXPB10 GRS ¥4,160
48131-52S40 Spring, Front Coil, RH
2024-01 → —
MXPJ10 GRS ¥4,160
48132 — Spring, Front Coil, LH
48131-52Q40 Spring, Front Coil, LH
2020-08 → 2024-01 ended
MXPB10 G,X,Z ¥4,160
48131-52Q50 Spring, Front Coil, LH
2020-08 → 2024-01 ended
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥4,720
48131-52S30 Spring, Front Coil, LH
2022-08 → 2024-01 ended
MXPB10 GRS ¥4,160
48131-52S40 Spring, Front Coil, LH
2022-08 → 2024-01 ended
MXPJ10 GRS ¥4,160
48131-52Q40 Spring, Front Coil, LH
2024-01 → —
MXPB10 G,X,Z ¥4,160
48131-52Q50 Spring, Front Coil, LH
2024-01 → —
MXPB15,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥4,720
48131-52S30 Spring, Front Coil, LH
2024-01 → —
MXPB10 GRS ¥4,160
48131-52S40 Spring, Front Coil, LH
2024-01 → —
MXPJ10 GRS ¥4,160
48157B — Insulator, Front Coil Spring, Upper RH
48157-K0010 Insulator, Front Coil Spring, Upper RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥620
48157-K0010 Insulator, Front Coil Spring, Upper RH
2024-01 → —
MXPB1#,MXPJ1# ¥620
48157C — Insulator, Front Coil Spring, Upper LH
48157-K0010 Insulator, Front Coil Spring, Upper LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥620
48157-K0010 Insulator, Front Coil Spring, Upper LH
2024-01 → —
MXPB1#,MXPJ1# ¥620
48158B — Insulator, Front Coil Spring, Lower RH
48158-K0011 Insulator, Front Coil Spring, Lower RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥580
48158-K0011 Insulator, Front Coil Spring, Lower RH
2024-01 → —
MXPB1#,MXPJ1# ¥580
48158C — Insulator, Front Coil Spring, Lower LH
48158-K0011 Insulator, Front Coil Spring, Lower LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥580
48158-K0011 Insulator, Front Coil Spring, Lower LH
2024-01 → —
MXPB1#,MXPJ1# ¥580
48331B — Bumper, Front Spring, RH
48331-K0010 Bumper, Front Spring, RH
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥300
48331-K0020 Bumper, Front Spring, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥540
48331-K0010 Bumper, Front Spring, RH
2024-01 → —
MXPB10,MXPJ10 GRS ¥300
48331-K0020 Bumper, Front Spring, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥540
48331C — Bumper, Front Spring, LH
48331-K0010 Bumper, Front Spring, LH
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥300
48331-K0020 Bumper, Front Spring, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥540
48331-K0010 Bumper, Front Spring, LH
2024-01 → —
MXPB10,MXPJ10 GRS ¥300
48331-K0020 Bumper, Front Spring, LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥540
48471B — Seat, Front Coil Spring, Upper RH
48471-K0010 Seat, Front Coil Spring, Upper RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥880
48471-K0010 Seat, Front Coil Spring, Upper RH
2024-01 → —
MXPB1#,MXPJ1# ¥880
48471C — Seat, Front Coil Spring, Upper LH
48471-K0010 Seat, Front Coil Spring, Upper LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥880
48471-K0010 Seat, Front Coil Spring, Upper LH
2024-01 → —
MXPB1#,MXPJ1# ¥880
48510 — Absorber Assy, Shock, Front RH
48510-52U00 note Absorber Assy, Shock, Front RH
2020-08 → 2024-01 ended
MXPB1# G,X,Z ¥17,600
48510-52U10 note Absorber Assy, Shock, Front RH
2020-08 → 2024-01 ended
MXPJ1# HBDG,HBDX,HBDZ ¥17,600
48510-52V60 note Absorber Assy, Shock, Front RH
2022-08 → 2024-01 ended
MXPB10 GRS ¥16,000
48510-52V70 note Absorber Assy, Shock, Front RH
2022-08 → 2024-01 ended
MXPJ10 GRS ¥16,000
48510-52V60 note Absorber Assy, Shock, Front RH
2024-01 → —
MXPB10 GRS ¥16,000
48510-52V70 note Absorber Assy, Shock, Front RH
2024-01 → —
MXPJ10 GRS ¥16,000
48510-52W80 note Absorber Assy, Shock, Front RH
2024-01 → —
MXPB1# G,X,Z ¥16,000
48510-52W90 note Absorber Assy, Shock, Front RH
2024-01 → —
MXPJ1# HBDG,HBDX,HBDZ,U ¥16,000
48520 — Absorber Assy, Shock, Front LH
48520-52J00 note Absorber Assy, Shock, Front LH
2020-08 → 2024-01 ended
MXPB1# G,X,Z ¥17,600
48520-52J10 note Absorber Assy, Shock, Front LH
2020-08 → 2024-01 ended
MXPJ1# HBDG,HBDX,HBDZ ¥17,600
48520-52K60 note Absorber Assy, Shock, Front LH
2022-08 → 2024-01 ended
MXPB10 GRS ¥16,000
48520-52K70 note Absorber Assy, Shock, Front LH
2022-08 → 2024-01 ended
MXPJ10 GRS ¥16,000
48520-52K60 note Absorber Assy, Shock, Front LH
2024-01 → —
MXPB10 GRS ¥16,000
48520-52K70 note Absorber Assy, Shock, Front LH
2024-01 → —
MXPJ10 GRS ¥16,000
48520-52L80 note Absorber Assy, Shock, Front LH
2024-01 → —
MXPB1# G,X,Z ¥16,000
48520-52L90 note Absorber Assy, Shock, Front LH
2024-01 → —
MXPJ1# HBDG,HBDX,HBDZ,U ¥16,000
48559A — Cover, Front Shock Absorber Dust, RH NO.1
48559-K0010 Cover, Front Shock Absorber Dust, RH NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥910
48559-K0010 Cover, Front Shock Absorber Dust, RH NO.1
2024-01 → —
MXPB1#,MXPJ1# ¥910
48559B — Cover, Front Shock Absorber Dust, LH NO.1
48559-K0010 Cover, Front Shock Absorber Dust, LH NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥910
48559-K0010 Cover, Front Shock Absorber Dust, LH NO.1
2024-01 → —
MXPB1#,MXPJ1# ¥910
48603 — Support Sub-assy, Front Suspension, RH
48609-K0011 Support Sub-assy, Front Suspension, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,690
48609-K0011 Support Sub-assy, Front Suspension, RH
2024-01 → —
MXPB1#,MXPJ1# ¥1,690
48603D — Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90179-12145 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥100
90179-12145 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
2024-01 → —
MXPB1#,MXPJ1# ¥100
48609 — Support Sub-assy, Front Suspension, LH
48609-K0011 Support Sub-assy, Front Suspension, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,690
48609-K0011 Support Sub-assy, Front Suspension, LH
2024-01 → —
MXPB1#,MXPJ1# ¥1,690
48609E — Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90179-12145 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥100
90179-12145 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
2024-01 → —
MXPB1#,MXPJ1# ¥100
48619 — Bearing, Strut Mounting, RH
48619-K0010 Bearing, Strut Mounting, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥840
48619-K0010 Bearing, Strut Mounting, RH
2024-01 → —
MXPB1#,MXPJ1# ¥840
48619A — Bearing, Strut Mounting, LH
48619-K0010 Bearing, Strut Mounting, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥840
48619-K0010 Bearing, Strut Mounting, LH
2024-01 → —
MXPB1#,MXPJ1# ¥840
48682A — Support, Front Suspension, NO.2 RH
48682-K0010 Support, Front Suspension, NO.2 RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥410
48682-K0010 Support, Front Suspension, NO.2 RH
2024-01 → —
MXPB1#,MXPJ1# ¥410
48682B — Support, Front Suspension, NO.2 LH
48682-K0010 Support, Front Suspension, NO.2 LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥410
48682-K0010 Support, Front Suspension, NO.2 LH
2024-01 → —
MXPB1#,MXPJ1# ¥410
48684A — Cover, Front Suspension Support Dust, RH
48684-52020 Cover, Front Suspension Support Dust, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥500
48684-52020 Cover, Front Suspension Support Dust, RH
2024-01 → —
MXPB1#,MXPJ1# ¥500
48684B — Cover, Front Suspension Support Dust, LH
48684-52020 Cover, Front Suspension Support Dust, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥500
48684-52020 Cover, Front Suspension Support Dust, LH
2024-01 → —
MXPB1#,MXPJ1# ¥500
48810 — Link Assy, Front Stabilizer, LH
48820-K0020 Link Assy, Front Stabilizer, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥4,350
48820-K0020 Link Assy, Front Stabilizer, LH
2024-01 → —
MXPB1#,MXPJ1# ¥4,350
48811 — Bar, Stabilizer, Front
48804-52010 Bar, Stabilizer, Front
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥7,700
48804-52010 Bar, Stabilizer, Front
2024-01 → —
MXPB1#,MXPJ1# ¥7,700
48820A — Nut(FOR FRONT STABILIZER LINK)
94151-21241 Nut(FOR FRONT STABILIZER LINK)
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥100
94151-21241 Nut(FOR FRONT STABILIZER LINK)
2024-01 → —
MXPB1#,MXPJ1# ¥100
48820B — Link Assy, Front Stabilizer, RH
48820-K0020 Link Assy, Front Stabilizer, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥4,350
48820-K0020 Link Assy, Front Stabilizer, RH
2024-01 → —
MXPB1#,MXPJ1# ¥4,350
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
