Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

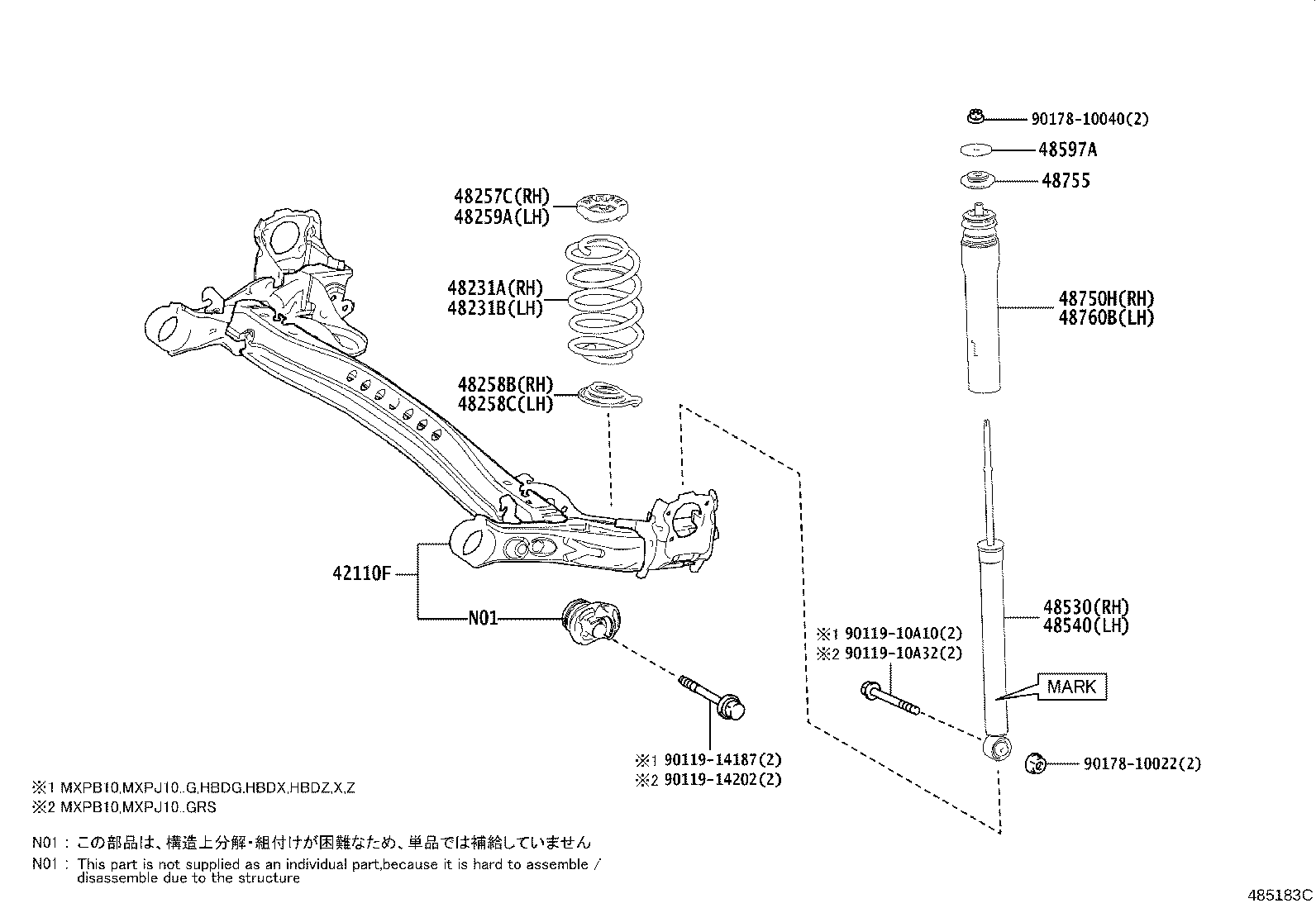

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42110F — Beam Assy, Rear Axle | ||||
| 42110-52320 |
Beam Assy, Rear Axle
2020-08 → 2024-01
ended
|
MXPB10,MXPJ10 | ¥49,200 | |
| 42110-52320 |
Beam Assy, Rear Axle
2024-01 → —
|
MXPB10,MXPJ10 | ¥49,200 | |
| 48231A — Spring, Coil, Rear RH | ||||
| 48231-52N00 |
Spring, Coil, Rear RH
2020-08 → 2024-01
ended
|
MXPB10 G,X,Z | ¥4,440 | |
| 48231-52N10 |
Spring, Coil, Rear RH
2020-08 → 2024-01
ended
|
MXPJ10 HBDG,HBDX,HBDZ | ¥4,720 | |
| 48231-52N40 |
Spring, Coil, Rear RH
2020-08 → 2024-01
ended
|
MXPB15 | ¥3,610 | |
| 48231-52N50 |
Spring, Coil, Rear RH
2020-08 → 2024-01
ended
|
MXPJ15 | ¥3,890 | |
| 48231-52Q00 |
Spring, Coil, Rear RH
2022-08 → 2024-01
ended
|
MXPB10 GRS | ¥4,160 | |
| 48231-52Q10 |
Spring, Coil, Rear RH
2022-08 → 2024-01
ended
|
MXPJ10 GRS | ¥4,440 | |
| 48231-52N00 |
Spring, Coil, Rear RH
2024-01 → —
|
MXPB10 G,X,Z | ¥4,440 | |
| 48231-52N10 |
Spring, Coil, Rear RH
2024-01 → —
|
MXPJ10 HBDG,HBDX,HBDZ,U | ¥4,720 | |
| 48231-52N40 |
Spring, Coil, Rear RH
2024-01 → 2025-03
ended
|
MXPB15 | ¥3,610 | |
| 48231-52N50 |
Spring, Coil, Rear RH
2024-01 → 2025-03
ended
|
MXPJ15 | ¥3,890 | |
| 48231-52Q00 |
Spring, Coil, Rear RH
2024-01 → —
|
MXPB10 GRS | ¥4,160 | |
| 48231-52Q10 |
Spring, Coil, Rear RH
2024-01 → —
|
MXPJ10 GRS | ¥4,440 | |
| 48231B — Spring, Coil, Rear LH | ||||
| 48231-52N00 |
Spring, Coil, Rear LH
2020-08 → 2024-01
ended
|
MXPB10 G,X,Z | ¥4,440 | |
| 48231-52N10 |
Spring, Coil, Rear LH
2020-08 → 2024-01
ended
|
MXPJ10 HBDG,HBDX,HBDZ | ¥4,720 | |
| 48231-52N40 |
Spring, Coil, Rear LH
2020-08 → 2024-01
ended
|
MXPB15 | ¥3,610 | |
| 48231-52N50 |
Spring, Coil, Rear LH
2020-08 → 2024-01
ended
|
MXPJ15 | ¥3,890 | |
| 48231-52Q00 |
Spring, Coil, Rear LH
2022-08 → 2024-01
ended
|
MXPB10 GRS | ¥4,160 | |
| 48231-52Q10 |
Spring, Coil, Rear LH
2022-08 → 2024-01
ended
|
MXPJ10 GRS | ¥4,440 | |
| 48231-52N00 |
Spring, Coil, Rear LH
2024-01 → —
|
MXPB10 G,X,Z | ¥4,440 | |
| 48231-52N10 |
Spring, Coil, Rear LH
2024-01 → —
|
MXPJ10 HBDG,HBDX,HBDZ,U | ¥4,720 | |
| 48231-52N40 |
Spring, Coil, Rear LH
2024-01 → 2025-03
ended
|
MXPB15 | ¥3,610 | |
| 48231-52N50 |
Spring, Coil, Rear LH
2024-01 → 2025-03
ended
|
MXPJ15 | ¥3,890 | |
| 48231-52Q00 |
Spring, Coil, Rear LH
2024-01 → —
|
MXPB10 GRS | ¥4,160 | |
| 48231-52Q10 |
Spring, Coil, Rear LH
2024-01 → —
|
MXPJ10 GRS | ¥4,440 | |
| 48257C — Insulator, Rear Coil Spring, Upper RH | ||||
| 48257-52010 |
Insulator, Rear Coil Spring, Upper RH
2020-08 → 2024-01
ended
|
MXPB10,MXPJ10 | ¥350 | |
| 48257-K0020 |
Insulator, Rear Coil Spring, Upper RH
2020-08 → 2024-01
ended
|
MXPB15,MXPJ15 | ¥360 | |
| 48257-52010 |
Insulator, Rear Coil Spring, Upper RH
2024-01 → —
|
MXPB10,MXPJ10 | ¥350 | |
| 48257-K0020 |
Insulator, Rear Coil Spring, Upper RH
2024-01 → —
|
MXPB15,MXPJ15 | ¥360 | |
| 48258B — Insulator, Rear Coil Spring, Lower RH | ||||
| 48258-K0010 |
Insulator, Rear Coil Spring, Lower RH
2020-08 → 2024-01
ended
|
MXPB10,MXPJ10 | ¥380 | |
| 48258-K0020 |
Insulator, Rear Coil Spring, Lower RH
2020-08 → 2024-01
ended
|
MXPB15,MXPJ15 | ¥450 | |
| 48258-K0010 |
Insulator, Rear Coil Spring, Lower RH
2024-01 → —
|
MXPB10,MXPJ10 | ¥380 | |
| 48258-K0020 |
Insulator, Rear Coil Spring, Lower RH
2024-01 → —
|
MXPB15,MXPJ15 | ¥450 | |
| 48258C — Insulator, Rear Coil Spring, Lower LH | ||||
| 48258-K0010 |
Insulator, Rear Coil Spring, Lower LH
2020-08 → 2024-01
ended
|
MXPB10,MXPJ10 | ¥380 | |
| 48258-K0020 |
Insulator, Rear Coil Spring, Lower LH
2020-08 → 2024-01
ended
|
MXPB15,MXPJ15 | ¥450 | |
| 48258-K0010 |
Insulator, Rear Coil Spring, Lower LH
2024-01 → —
|
MXPB10,MXPJ10 | ¥380 | |
| 48258-K0020 |
Insulator, Rear Coil Spring, Lower LH
2024-01 → —
|
MXPB15,MXPJ15 | ¥450 | |
| 48259A — Insulator, Rear Coil Spring, Upper LH | ||||
| 48257-52010 |
Insulator, Rear Coil Spring, Upper LH
2020-08 → 2024-01
ended
|
MXPB10,MXPJ10 | ¥350 | |
| 48257-K0020 |
Insulator, Rear Coil Spring, Upper LH
2020-08 → 2024-01
ended
|
MXPB15,MXPJ15 | ¥360 | |
| 48257-52010 |
Insulator, Rear Coil Spring, Upper LH
2024-01 → —
|
MXPB10,MXPJ10 | ¥350 | |
| 48257-K0020 |
Insulator, Rear Coil Spring, Upper LH
2024-01 → —
|
MXPB15,MXPJ15 | ¥360 | |
| 48530 — Absorber Assy, Shock, Rear RH | ||||
| 48530-52R10 note |
Absorber Assy, Shock, Rear RH
2020-08 → 2024-01
ended
|
MXPB10 G,X,Z | ¥7,100 | |
| 48530-52R20 note |
Absorber Assy, Shock, Rear RH
2020-08 → 2024-01
ended
|
MXPJ10 HBDG,HBDX,HBDZ | ¥7,100 | |
| 48530-52R50 note |
Absorber Assy, Shock, Rear RH
2020-08 → 2024-01
ended
|
MXPB15 | ¥7,900 | |
| 48530-52R60 note |
Absorber Assy, Shock, Rear RH
2020-08 → 2024-01
ended
|
MXPJ15 | ¥7,900 | |
| 48530-52T40 note |
Absorber Assy, Shock, Rear RH
2022-08 → 2024-01
ended
|
MXPB10 GRS | ¥7,100 | |
| 48530-52T50 note |
Absorber Assy, Shock, Rear RH
2022-08 → 2024-01
ended
|
MXPJ10 GRS | ¥7,100 | |
| 48530-52U40 note |
Absorber Assy, Shock, Rear RH
2024-01 → —
|
MXPB10 G,X,Z | ¥6,400 | |
| 48530-52U50 note |
Absorber Assy, Shock, Rear RH
2024-01 → —
|
MXPJ10 HBDG,HBDX,HBDZ,U | ¥6,400 | |
| 48530-52U60 note |
Absorber Assy, Shock, Rear RH
2024-01 → —
|
MXPB15 | ¥7,200 | |
| 48530-52U70 note |
Absorber Assy, Shock, Rear RH
2024-01 → —
|
MXPJ15 | ¥7,200 | |
| 48530-52U80 note |
Absorber Assy, Shock, Rear RH
2024-01 → —
|
MXPB10 GRS | ¥6,400 | |
| 48530-52U90 note |
Absorber Assy, Shock, Rear RH
2024-01 → —
|
MXPJ10 GRS | ¥6,400 | |
| 48540 — Absorber Assy, Shock, Rear LH | ||||
| 48530-52R10 note |
Absorber Assy, Shock, Rear LH
2020-08 → 2024-01
ended
|
MXPB10 G,X,Z | ¥7,100 | |
| 48530-52R20 note |
Absorber Assy, Shock, Rear LH
2020-08 → 2024-01
ended
|
MXPJ10 HBDG,HBDX,HBDZ | ¥7,100 | |
| 48530-52R50 note |
Absorber Assy, Shock, Rear LH
2020-08 → 2024-01
ended
|
MXPB15 | ¥7,900 | |
| 48530-52R60 note |
Absorber Assy, Shock, Rear LH
2020-08 → 2024-01
ended
|
MXPJ15 | ¥7,900 | |
| 48530-52T40 note |
Absorber Assy, Shock, Rear LH
2022-08 → 2024-01
ended
|
MXPB10 GRS | ¥7,100 | |
| 48530-52T50 note |
Absorber Assy, Shock, Rear LH
2022-08 → 2024-01
ended
|
MXPJ10 GRS | ¥7,100 | |
| 48530-52U40 note |
Absorber Assy, Shock, Rear LH
2024-01 → —
|
MXPB10 G,X,Z | ¥6,400 | |
| 48530-52U50 note |
Absorber Assy, Shock, Rear LH
2024-01 → —
|
MXPJ10 HBDG,HBDX,HBDZ,U | ¥6,400 | |
| 48530-52U60 note |
Absorber Assy, Shock, Rear LH
2024-01 → —
|
MXPB15 | ¥7,200 | |
| 48530-52U70 note |
Absorber Assy, Shock, Rear LH
2024-01 → —
|
MXPJ15 | ¥7,200 | |
| 48530-52U80 note |
Absorber Assy, Shock, Rear LH
2024-01 → —
|
MXPB10 GRS | ¥6,400 | |
| 48530-52U90 note |
Absorber Assy, Shock, Rear LH
2024-01 → —
|
MXPJ10 GRS | ¥6,400 | |
| 48597A — Retainer, Rear Shock Absorber Cushion | ||||
| 90201-10138 |
Retainer, Rear Shock Absorber Cushion
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥310 | |
| 90201-10138 |
Retainer, Rear Shock Absorber Cushion
2024-01 → —
|
MXPB1#,MXPJ1# | ¥310 | |
| 48750H — Support Assy, Rear Suspension, RH | ||||
| 48750-K0010 |
Support Assy, Rear Suspension, RH
2020-08 → 2024-01
ended
|
MXPB10,MXPJ10 | ¥1,610 | |
| 48750-K0020 |
Support Assy, Rear Suspension, RH
2020-08 → 2024-01
ended
|
MXPB15,MXPJ15 | ¥1,560 | |
| 48750-K0010 |
Support Assy, Rear Suspension, RH
2024-01 → —
|
MXPB10,MXPJ10 | ¥1,610 | |
| 48750-K0020 |
Support Assy, Rear Suspension, RH
2024-01 → —
|
MXPB15,MXPJ15 | ¥1,560 | |
| 48755 — Support, Rear Suspension | ||||
| 48755-K0011 |
Support, Rear Suspension
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥570 | |
| 48755-K0011 |
Support, Rear Suspension
2024-01 → —
|
MXPB1#,MXPJ1# | ¥570 | |
| 48760B — Support Assy Rear Suspension, LH | ||||
| 48750-K0010 |
Support Assy Rear Suspension, LH
2020-08 → 2024-01
ended
|
MXPB10,MXPJ10 | ¥1,610 | |
| 48750-K0020 |
Support Assy Rear Suspension, LH
2020-08 → 2024-01
ended
|
MXPB15,MXPJ15 | ¥1,560 | |
| 48750-K0010 |
Support Assy Rear Suspension, LH
2024-01 → —
|
MXPB10,MXPJ10 | ¥1,610 | |
| 48750-K0020 |
Support Assy Rear Suspension, LH
2024-01 → —
|
MXPB15,MXPJ15 | ¥1,560 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
