Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

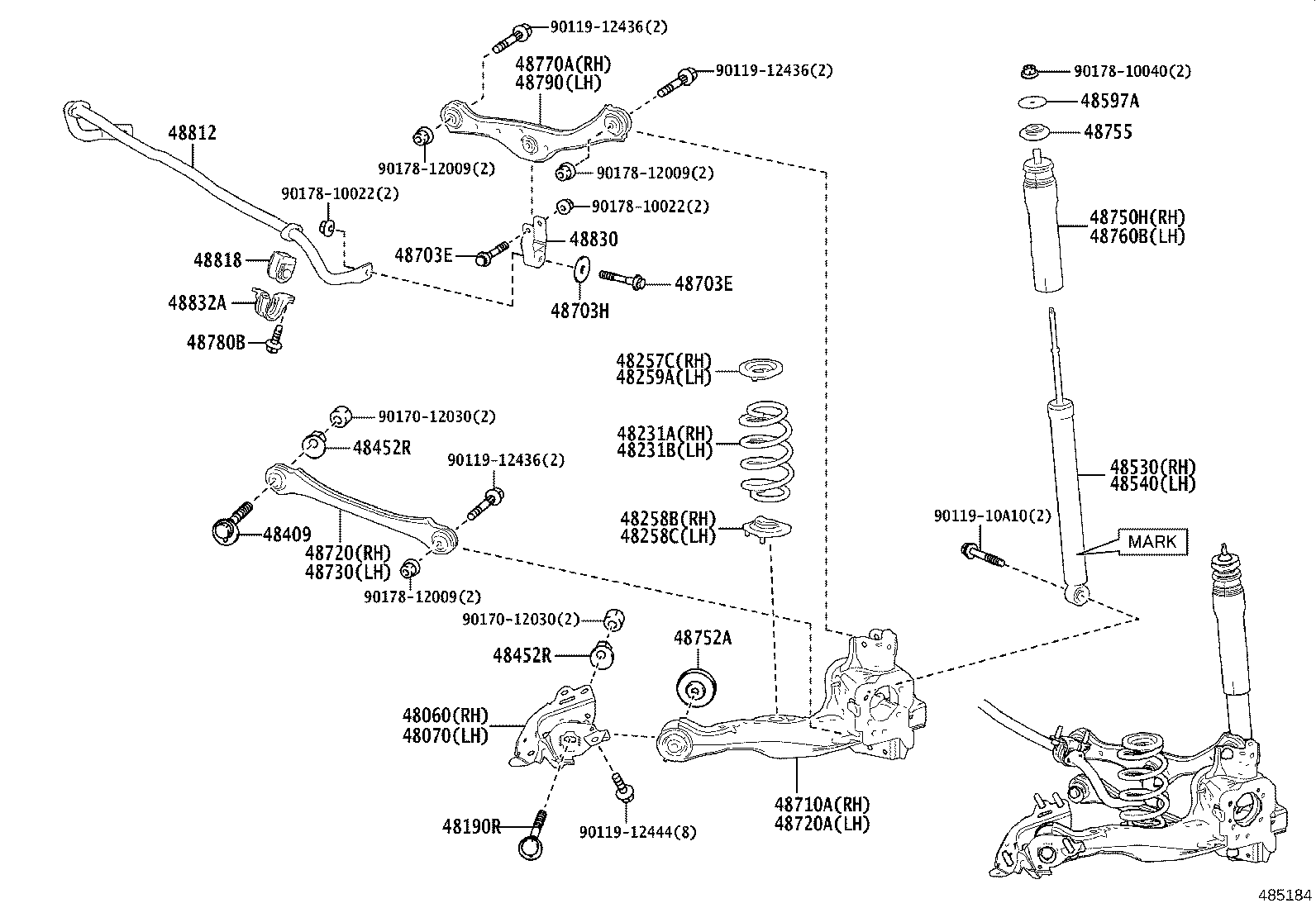

Exploded illustration 485184 48530 — ABSORBER ASSY, SHOCK, REAR RH (12 parts) 48540 — ABSORBER ASSY, SHOCK, REAR LH (12 parts) 48750H — SUPPORT ASSY, REAR SUSPENSION, RH (4 parts) 48760B — SUPPORT ASSY REAR SUSPENSION, LH (4 parts) 48597A — RETAINER, REAR SHOCK ABSORBER CUSHION (2 parts) 48755 — SUPPORT, REAR SUSPENSION (2 parts) 9017810040 — not listed in this catalogue 9011910A10 — not listed in this catalogue 48259A — INSULATOR, REAR COIL SPRING, UPPER LH (4 parts) 48257C — INSULATOR, REAR COIL SPRING, UPPER RH (4 parts) 48190R — CAM ASSY, CAMBER ADJUST (2 parts) 48720 — ARM ASSY, LOWER CONTROL, RH (2 parts) 48730 — ARM ASSY, LOWER CONTROL, LH (2 parts) 48752A — STOPPER, REAR SUSPENSION SUPPORT (2 parts) 48770A — ARM ASSY, UPPER CONTROL, REAR RH (2 parts) 48790 — ARM ASSY, UPPER CONTROL, REAR LH (4 parts) 9011912436 — not listed in this catalogue 9011912436 — not listed in this catalogue 9011912444 — not listed in this catalogue 9017012030 — not listed in this catalogue 9017012030 — not listed in this catalogue 9017810022 — not listed in this catalogue 9017810022 — not listed in this catalogue 9017812009 — not listed in this catalogue 9017812009 — not listed in this catalogue 48710A — ARM ASSY, REAR SUSPENSION, NO.1 RH (2 parts) 48720A — ARM ASSY, REAR SUSPENSION, NO.1 LH (2 parts) 48231A — SPRING, COIL, REAR RH (12 parts) 48231B — SPRING, COIL, REAR LH (12 parts) 48258B — INSULATOR, REAR COIL SPRING, LOWER RH (4 parts) 48258C — INSULATOR, REAR COIL SPRING, LOWER LH (4 parts) 48060 — BRACKET ASSY, REAR SUSPENSION ARM, RH (2 parts) 48070 — BRACKET ASSY, REAR SUSPENSION ARM, LH (2 parts) 48452R — PLATE, REAR SUSPENSION TOE ADJUST, NO.2 (2 parts) 48452R — PLATE, REAR SUSPENSION TOE ADJUST, NO.2 (2 parts) 48409 — CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST (2 parts) 9011912436 — not listed in this catalogue 9017812009 — not listed in this catalogue 48812 — BAR, STABILIZER, REAR (2 parts) 48818 — BUSH, STABILIZER, REAR (2 parts) 48832A — BRACKET, REAR STABILIZER BAR, NO.1 (2 parts) 48830 — LINK ASSY, REAR STABILIZER (2 parts) 48703E — BOLT(FOR REAR SUSPENSION ARM) (2 parts) 48703E — BOLT(FOR REAR SUSPENSION ARM) (2 parts) 48703H — WASHER, NO.1(FOR REAR SUSPENSION ARM) (2 parts) 48780B — BOLT(FOR STRUT ROD) (2 parts)
485184 · 33 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
116 parts on this figure
Part number Description Fitment Price
48060 — Bracket Assy, Rear Suspension Arm, RH
48060-52010 Bracket Assy, Rear Suspension Arm, RH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥2,390
48060-52010 Bracket Assy, Rear Suspension Arm, RH
2024-01 → —
MXPB15,MXPJ15 ¥2,390
48070 — Bracket Assy, Rear Suspension Arm, LH
48070-52010 Bracket Assy, Rear Suspension Arm, LH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥2,390
48070-52010 Bracket Assy, Rear Suspension Arm, LH
2024-01 → —
MXPB15,MXPJ15 ¥2,390
48190R — Cam Assy, Camber Adjust
48190-K0010 Cam Assy, Camber Adjust
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥500
48190-K0010 Cam Assy, Camber Adjust
2024-01 → —
MXPB15,MXPJ15 ¥500
48231A — Spring, Coil, Rear RH
48231-52N00 Spring, Coil, Rear RH
2020-08 → 2024-01 ended
MXPB10 G,X,Z ¥4,440
48231-52N10 Spring, Coil, Rear RH
2020-08 → 2024-01 ended
MXPJ10 HBDG,HBDX,HBDZ ¥4,720
48231-52N40 Spring, Coil, Rear RH
2020-08 → 2024-01 ended
MXPB15 ¥3,610
48231-52N50 Spring, Coil, Rear RH
2020-08 → 2024-01 ended
MXPJ15 ¥3,890
48231-52Q00 Spring, Coil, Rear RH
2022-08 → 2024-01 ended
MXPB10 GRS ¥4,160
48231-52Q10 Spring, Coil, Rear RH
2022-08 → 2024-01 ended
MXPJ10 GRS ¥4,440
48231-52N00 Spring, Coil, Rear RH
2024-01 → —
MXPB10 G,X,Z ¥4,440
48231-52N10 Spring, Coil, Rear RH
2024-01 → —
MXPJ10 HBDG,HBDX,HBDZ,U ¥4,720
48231-52N40 Spring, Coil, Rear RH
2024-01 → 2025-03 ended
MXPB15 ¥3,610
48231-52N50 Spring, Coil, Rear RH
2024-01 → 2025-03 ended
MXPJ15 ¥3,890
48231-52Q00 Spring, Coil, Rear RH
2024-01 → —
MXPB10 GRS ¥4,160
48231-52Q10 Spring, Coil, Rear RH
2024-01 → —
MXPJ10 GRS ¥4,440
48231B — Spring, Coil, Rear LH
48231-52N00 Spring, Coil, Rear LH
2020-08 → 2024-01 ended
MXPB10 G,X,Z ¥4,440
48231-52N10 Spring, Coil, Rear LH
2020-08 → 2024-01 ended
MXPJ10 HBDG,HBDX,HBDZ ¥4,720
48231-52N40 Spring, Coil, Rear LH
2020-08 → 2024-01 ended
MXPB15 ¥3,610
48231-52N50 Spring, Coil, Rear LH
2020-08 → 2024-01 ended
MXPJ15 ¥3,890
48231-52Q00 Spring, Coil, Rear LH
2022-08 → 2024-01 ended
MXPB10 GRS ¥4,160
48231-52Q10 Spring, Coil, Rear LH
2022-08 → 2024-01 ended
MXPJ10 GRS ¥4,440
48231-52N00 Spring, Coil, Rear LH
2024-01 → —
MXPB10 G,X,Z ¥4,440
48231-52N10 Spring, Coil, Rear LH
2024-01 → —
MXPJ10 HBDG,HBDX,HBDZ,U ¥4,720
48231-52N40 Spring, Coil, Rear LH
2024-01 → 2025-03 ended
MXPB15 ¥3,610
48231-52N50 Spring, Coil, Rear LH
2024-01 → 2025-03 ended
MXPJ15 ¥3,890
48231-52Q00 Spring, Coil, Rear LH
2024-01 → —
MXPB10 GRS ¥4,160
48231-52Q10 Spring, Coil, Rear LH
2024-01 → —
MXPJ10 GRS ¥4,440
48257C — Insulator, Rear Coil Spring, Upper RH
48257-52010 Insulator, Rear Coil Spring, Upper RH
2020-08 → 2024-01 ended
MXPB10,MXPJ10 ¥350
48257-K0020 Insulator, Rear Coil Spring, Upper RH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥360
48257-52010 Insulator, Rear Coil Spring, Upper RH
2024-01 → —
MXPB10,MXPJ10 ¥350
48257-K0020 Insulator, Rear Coil Spring, Upper RH
2024-01 → —
MXPB15,MXPJ15 ¥360
48258B — Insulator, Rear Coil Spring, Lower RH
48258-K0010 Insulator, Rear Coil Spring, Lower RH
2020-08 → 2024-01 ended
MXPB10,MXPJ10 ¥380
48258-K0020 Insulator, Rear Coil Spring, Lower RH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥450
48258-K0010 Insulator, Rear Coil Spring, Lower RH
2024-01 → —
MXPB10,MXPJ10 ¥380
48258-K0020 Insulator, Rear Coil Spring, Lower RH
2024-01 → —
MXPB15,MXPJ15 ¥450
48258C — Insulator, Rear Coil Spring, Lower LH
48258-K0010 Insulator, Rear Coil Spring, Lower LH
2020-08 → 2024-01 ended
MXPB10,MXPJ10 ¥380
48258-K0020 Insulator, Rear Coil Spring, Lower LH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥450
48258-K0010 Insulator, Rear Coil Spring, Lower LH
2024-01 → —
MXPB10,MXPJ10 ¥380
48258-K0020 Insulator, Rear Coil Spring, Lower LH
2024-01 → —
MXPB15,MXPJ15 ¥450
48259A — Insulator, Rear Coil Spring, Upper LH
48257-52010 Insulator, Rear Coil Spring, Upper LH
2020-08 → 2024-01 ended
MXPB10,MXPJ10 ¥350
48257-K0020 Insulator, Rear Coil Spring, Upper LH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥360
48257-52010 Insulator, Rear Coil Spring, Upper LH
2024-01 → —
MXPB10,MXPJ10 ¥350
48257-K0020 Insulator, Rear Coil Spring, Upper LH
2024-01 → —
MXPB15,MXPJ15 ¥360
48409 — Cam Sub-assy, Rear Suspension Toe Adjust
48409-11040 Cam Sub-assy, Rear Suspension Toe Adjust
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥520
48409-11040 Cam Sub-assy, Rear Suspension Toe Adjust
2024-01 → —
MXPB15,MXPJ15 ¥520
48452R — Plate, Rear Suspension Toe Adjust, NO.2
48452-30040 Plate, Rear Suspension Toe Adjust, NO.2
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥400
48452-30040 Plate, Rear Suspension Toe Adjust, NO.2
2024-01 → —
MXPB15,MXPJ15 ¥400
48530 — Absorber Assy, Shock, Rear RH
48530-52R10 note Absorber Assy, Shock, Rear RH
2020-08 → 2024-01 ended
MXPB10 G,X,Z ¥7,100
48530-52R20 note Absorber Assy, Shock, Rear RH
2020-08 → 2024-01 ended
MXPJ10 HBDG,HBDX,HBDZ ¥7,100
48530-52R50 note Absorber Assy, Shock, Rear RH
2020-08 → 2024-01 ended
MXPB15 ¥7,900
48530-52R60 note Absorber Assy, Shock, Rear RH
2020-08 → 2024-01 ended
MXPJ15 ¥7,900
48530-52T40 note Absorber Assy, Shock, Rear RH
2022-08 → 2024-01 ended
MXPB10 GRS ¥7,100
48530-52T50 note Absorber Assy, Shock, Rear RH
2022-08 → 2024-01 ended
MXPJ10 GRS ¥7,100
48530-52U40 note Absorber Assy, Shock, Rear RH
2024-01 → —
MXPB10 G,X,Z ¥6,400
48530-52U50 note Absorber Assy, Shock, Rear RH
2024-01 → —
MXPJ10 HBDG,HBDX,HBDZ,U ¥6,400
48530-52U60 note Absorber Assy, Shock, Rear RH
2024-01 → —
MXPB15 ¥7,200
48530-52U70 note Absorber Assy, Shock, Rear RH
2024-01 → —
MXPJ15 ¥7,200
48530-52U80 note Absorber Assy, Shock, Rear RH
2024-01 → —
MXPB10 GRS ¥6,400
48530-52U90 note Absorber Assy, Shock, Rear RH
2024-01 → —
MXPJ10 GRS ¥6,400
48540 — Absorber Assy, Shock, Rear LH
48530-52R10 note Absorber Assy, Shock, Rear LH
2020-08 → 2024-01 ended
MXPB10 G,X,Z ¥7,100
48530-52R20 note Absorber Assy, Shock, Rear LH
2020-08 → 2024-01 ended
MXPJ10 HBDG,HBDX,HBDZ ¥7,100
48530-52R50 note Absorber Assy, Shock, Rear LH
2020-08 → 2024-01 ended
MXPB15 ¥7,900
48530-52R60 note Absorber Assy, Shock, Rear LH
2020-08 → 2024-01 ended
MXPJ15 ¥7,900
48530-52T40 note Absorber Assy, Shock, Rear LH
2022-08 → 2024-01 ended
MXPB10 GRS ¥7,100
48530-52T50 note Absorber Assy, Shock, Rear LH
2022-08 → 2024-01 ended
MXPJ10 GRS ¥7,100
48530-52U40 note Absorber Assy, Shock, Rear LH
2024-01 → —
MXPB10 G,X,Z ¥6,400
48530-52U50 note Absorber Assy, Shock, Rear LH
2024-01 → —
MXPJ10 HBDG,HBDX,HBDZ,U ¥6,400
48530-52U60 note Absorber Assy, Shock, Rear LH
2024-01 → —
MXPB15 ¥7,200
48530-52U70 note Absorber Assy, Shock, Rear LH
2024-01 → —
MXPJ15 ¥7,200
48530-52U80 note Absorber Assy, Shock, Rear LH
2024-01 → —
MXPB10 GRS ¥6,400
48530-52U90 note Absorber Assy, Shock, Rear LH
2024-01 → —
MXPJ10 GRS ¥6,400
48597A — Retainer, Rear Shock Absorber Cushion
90201-10138 Retainer, Rear Shock Absorber Cushion
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥310
90201-10138 Retainer, Rear Shock Absorber Cushion
2024-01 → —
MXPB1#,MXPJ1# ¥310
48703E — Bolt(FOR REAR SUSPENSION ARM)
90105-10600 note Bolt(FOR REAR SUSPENSION ARM)
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥190
90105-10600 note Bolt(FOR REAR SUSPENSION ARM)
2024-01 → —
MXPB15,MXPJ15 ¥190
48703H — Washer, NO.1(FOR REAR SUSPENSION ARM)
90201-10031 Washer, NO.1(FOR REAR SUSPENSION ARM)
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥230
90201-10031 Washer, NO.1(FOR REAR SUSPENSION ARM)
2024-01 → —
MXPB15,MXPJ15 ¥230
48710A — Arm Assy, Rear Suspension, NO.1 RH
48710-52080 Arm Assy, Rear Suspension, NO.1 RH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥34,700
48710-52080 Arm Assy, Rear Suspension, NO.1 RH
2024-01 → —
MXPB15,MXPJ15 ¥34,700
48720 — Arm Assy, Lower Control, RH
48720-K0010 Arm Assy, Lower Control, RH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥6,500
48720-K0010 Arm Assy, Lower Control, RH
2024-01 → —
MXPB15,MXPJ15 ¥6,500
48720A — Arm Assy, Rear Suspension, NO.1 LH
48720-52050 Arm Assy, Rear Suspension, NO.1 LH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥34,700
48720-52050 Arm Assy, Rear Suspension, NO.1 LH
2024-01 → —
MXPB15,MXPJ15 ¥34,700
48730 — Arm Assy, Lower Control, LH
48720-K0010 Arm Assy, Lower Control, LH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥6,500
48720-K0010 Arm Assy, Lower Control, LH
2024-01 → —
MXPB15,MXPJ15 ¥6,500
48750H — Support Assy, Rear Suspension, RH
48750-K0010 Support Assy, Rear Suspension, RH
2020-08 → 2024-01 ended
MXPB10,MXPJ10 ¥1,610
48750-K0020 Support Assy, Rear Suspension, RH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥1,560
48750-K0010 Support Assy, Rear Suspension, RH
2024-01 → —
MXPB10,MXPJ10 ¥1,610
48750-K0020 Support Assy, Rear Suspension, RH
2024-01 → —
MXPB15,MXPJ15 ¥1,560
48752A — Stopper, Rear Suspension Support
48752-K0010 Stopper, Rear Suspension Support
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥950
48752-K0010 Stopper, Rear Suspension Support
2024-01 → —
MXPB15,MXPJ15 ¥950
48755 — Support, Rear Suspension
48755-K0011 Support, Rear Suspension
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥570
48755-K0011 Support, Rear Suspension
2024-01 → —
MXPB1#,MXPJ1# ¥570
48760B — Support Assy Rear Suspension, LH
48750-K0010 Support Assy Rear Suspension, LH
2020-08 → 2024-01 ended
MXPB10,MXPJ10 ¥1,610
48750-K0020 Support Assy Rear Suspension, LH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥1,560
48750-K0010 Support Assy Rear Suspension, LH
2024-01 → —
MXPB10,MXPJ10 ¥1,610
48750-K0020 Support Assy Rear Suspension, LH
2024-01 → —
MXPB15,MXPJ15 ¥1,560
48770A — Arm Assy, Upper Control, Rear RH
48770-K0010 Arm Assy, Upper Control, Rear RH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥7,400
48770-K0010 Arm Assy, Upper Control, Rear RH
2024-01 → —
MXPB15,MXPJ15 ¥7,400
48780B — Bolt(FOR STRUT ROD)
90119-10A11 Bolt(FOR STRUT ROD)
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥120
90119-10A11 Bolt(FOR STRUT ROD)
2024-01 → —
MXPB15,MXPJ15 ¥120
48790 — Arm Assy, Upper Control, Rear LH
48790-52010 note Arm Assy, Upper Control, Rear LH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 HBDZ,Z ¥8,600
48790-K0010 Arm Assy, Upper Control, Rear LH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥7,400
48790-52010 note Arm Assy, Upper Control, Rear LH
2024-01 → —
MXPB15,MXPJ15 HBDZ,Z ¥8,600
48790-K0010 Arm Assy, Upper Control, Rear LH
2024-01 → —
MXPB15,MXPJ15 ¥7,400
48812 — Bar, Stabilizer, Rear
48812-52110 Bar, Stabilizer, Rear
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥5,500
48812-52110 Bar, Stabilizer, Rear
2024-01 → —
MXPB15,MXPJ15 ¥5,500
48818 — Bush, Stabilizer, Rear
48818-52020 Bush, Stabilizer, Rear
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥760
48818-52020 Bush, Stabilizer, Rear
2024-01 → —
MXPB15,MXPJ15 ¥760
48830 — Link Assy, Rear Stabilizer
48830-K0010 Link Assy, Rear Stabilizer
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥1,750
48830-K0010 Link Assy, Rear Stabilizer
2024-01 → —
MXPB15,MXPJ15 ¥1,750
48832A — Bracket, Rear Stabilizer Bar, NO.1
48832-K0010 Bracket, Rear Stabilizer Bar, NO.1
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥630
48832-K0010 Bracket, Rear Stabilizer Bar, NO.1
2024-01 → —
MXPB15,MXPJ15 ¥630
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
