Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

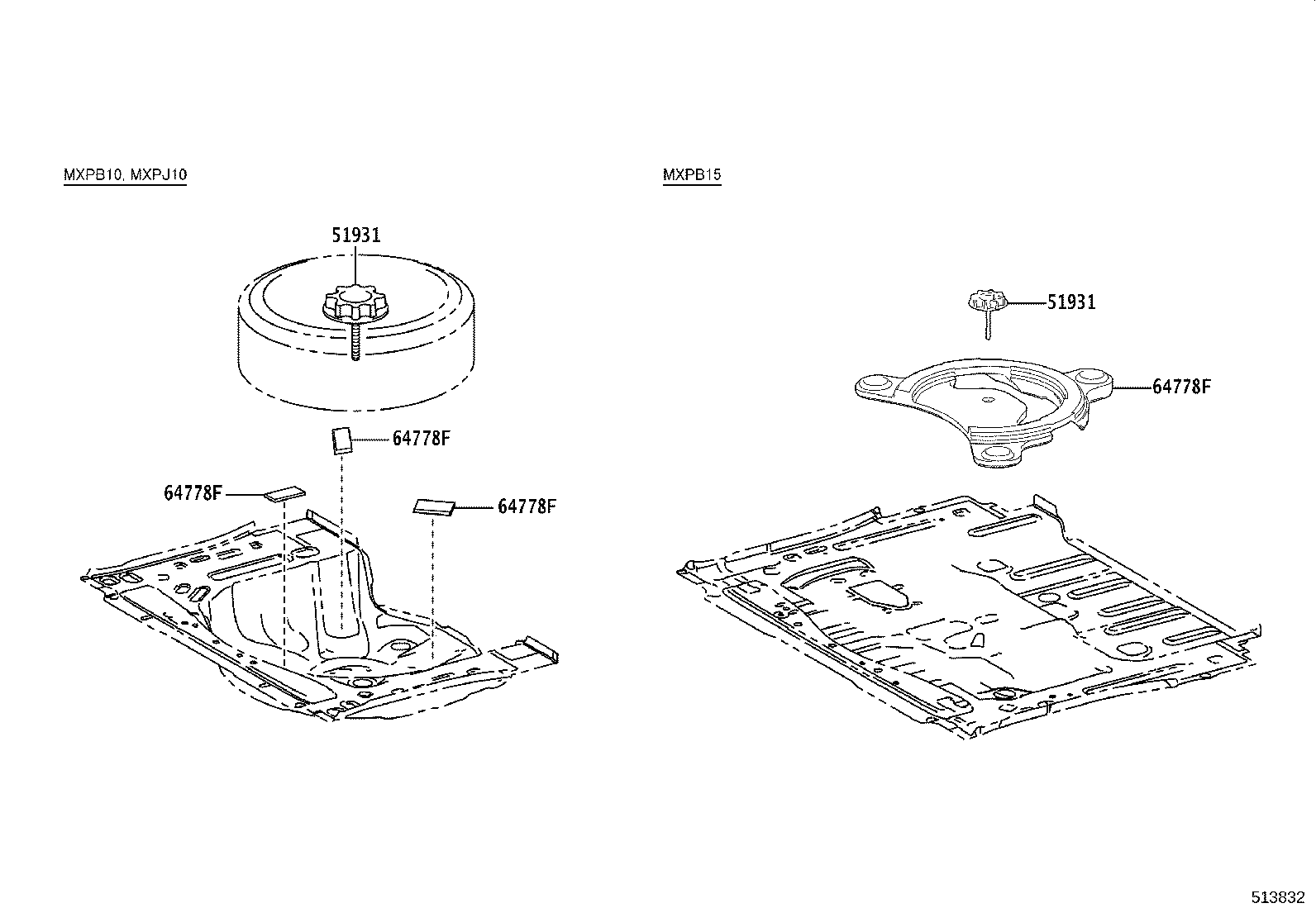

Exploded illustration 513832 64778F — PROTECTOR, SPARE WHEEL (4 parts) 51931 — CARRIER, SPARE WHEEL, NO.1 (4 parts) 64778F — PROTECTOR, SPARE WHEEL (4 parts) 64778F — PROTECTOR, SPARE WHEEL (4 parts) 64778F — PROTECTOR, SPARE WHEEL (4 parts) 51931 — CARRIER, SPARE WHEEL, NO.1 (4 parts)
513832 · 6 callouts Full size ↗
8 parts on this figure
Part number Description Fitment Price
51931 — Carrier, Spare Wheel, NO.1
51931-20050 note Carrier, Spare Wheel, NO.1
2020-08 → 2024-01 ended
MXPB15 ¥380
51931-22040 note Carrier, Spare Wheel, NO.1
2020-08 → 2024-01 ended
MXPB10,MXPJ10 ¥1,020
51931-20050 note Carrier, Spare Wheel, NO.1
2024-01 → 2025-03 ended
MXPB15 ¥380
51931-22040 note Carrier, Spare Wheel, NO.1
2024-01 → 2025-03 ended
MXPB10,MXPJ10 G,GRS,HBDG,HBDX,HBDZ,X,Z ¥1,020
64778F — Protector, Spare Wheel
64778-52110 note Protector, Spare Wheel
2020-08 → 2024-01 ended
MXPB10,MXPJ10 ¥660
64778-52130 note Protector, Spare Wheel
2020-08 → 2024-01 ended
MXPB15 ¥2,340
64778-52110 note Protector, Spare Wheel
2024-01 → 2025-03 ended
MXPB10,MXPJ10 G,GRS,HBDG,HBDX,HBDZ,X,Z ¥660
64778-52130 note Protector, Spare Wheel
2024-01 → 2025-03 ended
MXPB15 ¥2,340
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
