Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

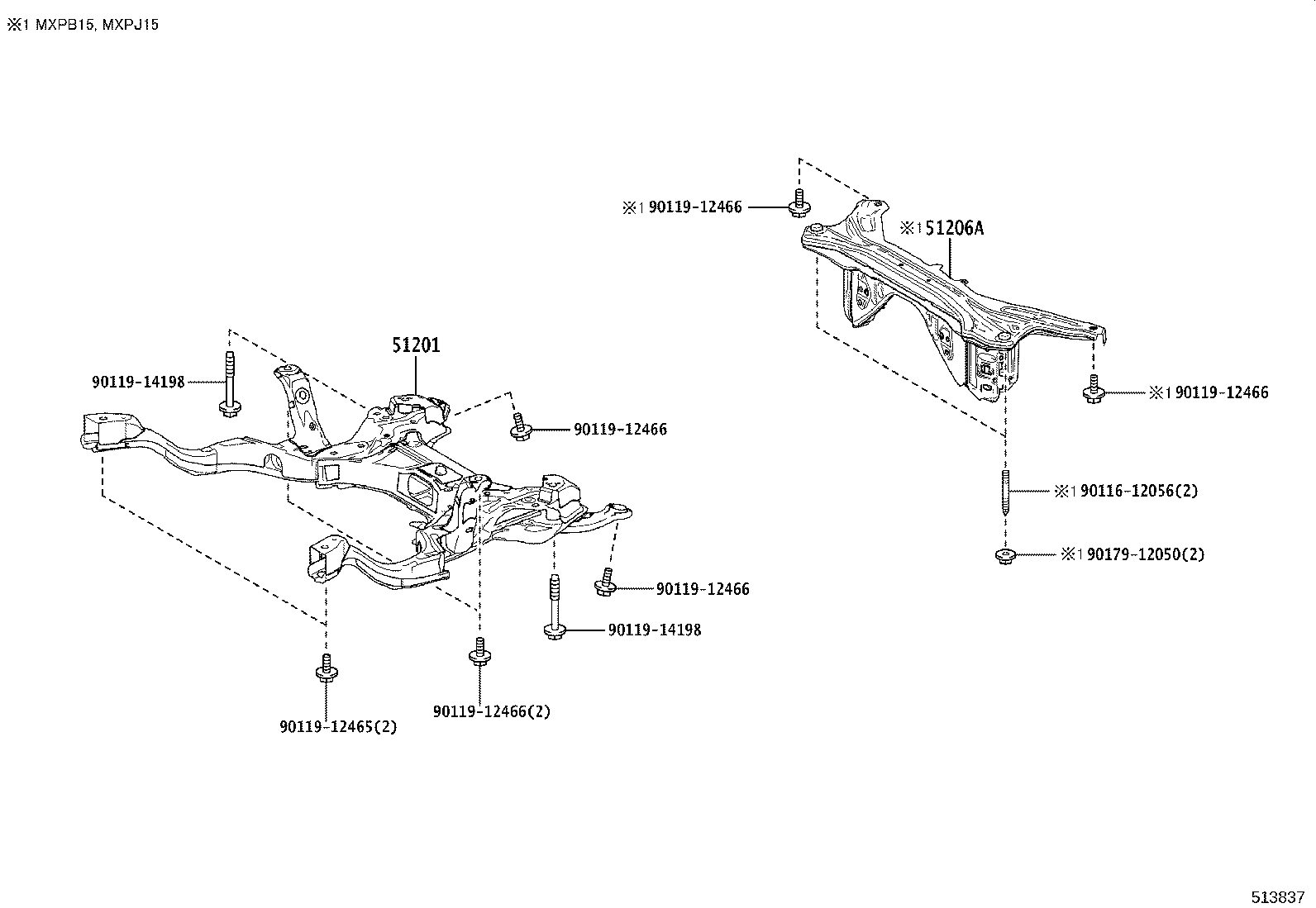

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51201 — Crossmember Sub-assy, Front Suspension | ||||
| 51201-52180 |
Crossmember Sub-assy, Front Suspension
2020-08 → 2022-07
ended
|
MXPB1#,MXPJ1# | ¥56,600 | |
| 51201-52181 |
Crossmember Sub-assy, Front Suspension
2022-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥51,500 | |
| 51201-52181 |
Crossmember Sub-assy, Front Suspension
2024-01 → —
|
MXPB1#,MXPJ1# | ¥51,500 | |
| 51206A — Member Sub-assy, Rear Suspension | ||||
| 51206-K0010 |
Member Sub-assy, Rear Suspension
2020-08 → 2024-01
ended
|
MXPB15 | ¥35,900 | |
| 51206-K0020 |
Member Sub-assy, Rear Suspension
2020-08 → 2024-01
ended
|
MXPJ15 | ¥35,900 | |
| 51206-K0010 |
Member Sub-assy, Rear Suspension
2024-01 → —
|
MXPB15 | ¥35,900 | |
| 51206-K0020 |
Member Sub-assy, Rear Suspension
2024-01 → —
|
MXPJ15 | ¥35,900 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
