Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

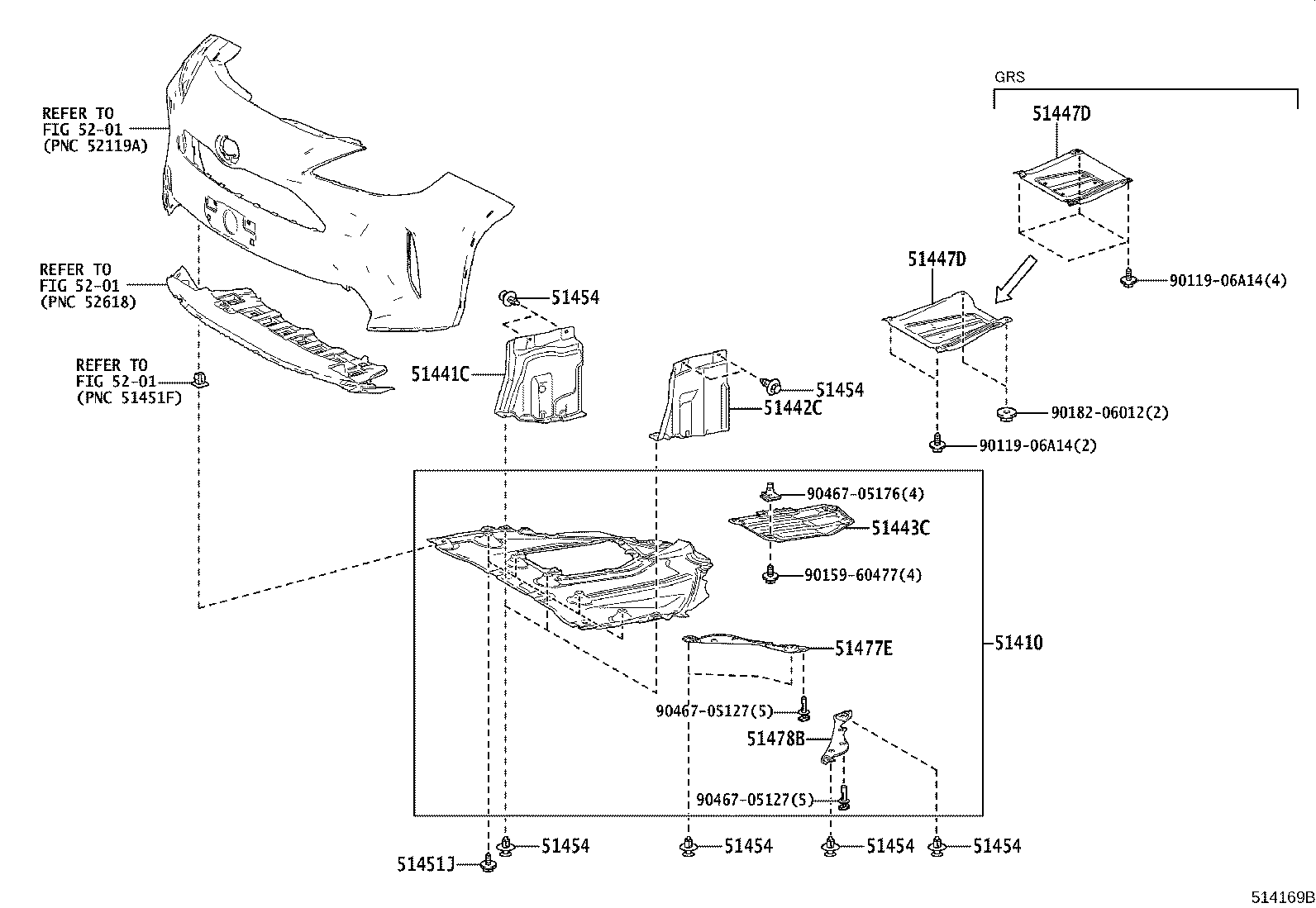

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51410 — Cover Assy, Engine Under, NO.1 | ||||
| 51410-52190 |
Cover Assy, Engine Under, NO.1
2022-08 → 2024-01
ended
|
MXPB1# | ¥11,900 | |
| 51410-K0020 |
Cover Assy, Engine Under, NO.1
2020-08 → 2024-01
ended
|
MXPJ1# | ¥14,000 | |
| 51410-K0020 |
Cover Assy, Engine Under, NO.1
2020-08 → 2022-08
ended
|
MXPB1# | ¥14,000 | |
| 51410-52190 |
Cover Assy, Engine Under, NO.1
2024-01 → —
|
MXPB1# | ¥11,900 | |
| 51410-K0020 |
Cover Assy, Engine Under, NO.1
2024-01 → 2025-01
ended
|
MXPJ1# | ¥14,000 | |
| 51441C — Cover, Engine Under, RH | ||||
| 51441-52430 |
Cover, Engine Under, RH
2022-08 → 2024-01
ended
|
MXPB1# | ¥2,090 | |
| 51441-K0020 |
Cover, Engine Under, RH
2020-08 → 2022-08
ended
|
MXPB1# | ¥2,090 | |
| 51441-K0020 |
Cover, Engine Under, RH
2020-08 → 2024-01
ended
|
MXPJ1# | ¥2,090 | |
| 51441-52430 |
Cover, Engine Under, RH
2024-01 → —
|
MXPB1# | ¥2,090 | |
| 51441-K0020 |
Cover, Engine Under, RH
2024-01 → —
|
MXPJ1# | ¥2,090 | |
| 51442C — Cover, Engine Under, LH | ||||
| 51442-52280 |
Cover, Engine Under, LH
2022-08 → 2024-01
ended
|
MXPB1# | ¥2,090 | |
| 51442-K0020 |
Cover, Engine Under, LH
2020-08 → 2022-08
ended
|
MXPB1# | ¥2,090 | |
| 51442-K0020 |
Cover, Engine Under, LH
2020-08 → 2024-01
ended
|
MXPJ1# | ¥2,090 | |
| 51442-52280 |
Cover, Engine Under, LH
2024-01 → —
|
MXPB1# | ¥2,090 | |
| 51442-K0020 |
Cover, Engine Under, LH
2024-01 → —
|
MXPJ1# | ¥2,090 | |
| 51443C — Cover, Engine Under, Rear RH | ||||
| 51443-52120 |
Cover, Engine Under, Rear RH
2022-08 → 2024-01
ended
|
MXPB1# | ¥1,570 | |
| 51443-K0010 |
Cover, Engine Under, Rear RH
2020-08 → 2024-01
ended
|
MXPJ1# | ¥2,620 | |
| 51443-K0010 |
Cover, Engine Under, Rear RH
2020-08 → 2022-08
ended
|
MXPB1# | ¥2,620 | |
| 51443-52120 |
Cover, Engine Under, Rear RH
2024-01 → —
|
MXPB1# | ¥1,570 | |
| 51443-K0010 |
Cover, Engine Under, Rear RH
2024-01 → 2025-02
ended
|
MXPJ1# | ¥2,620 | |
| 51447D — Cover, Engine Under, NO.4 Center | ||||
| 51447-0D040 |
Cover, Engine Under, NO.4 Center
2022-08 → 2024-01
ended
|
MXPB10,MXPJ10 GRS | ¥1,240 | |
| 51447-52060 |
Cover, Engine Under, NO.4 Center
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z | ¥1,240 | |
| 51447-0D040 |
Cover, Engine Under, NO.4 Center
2024-01 → —
|
MXPB10,MXPJ10 GRS | ¥1,240 | |
| 51447-52060 |
Cover, Engine Under, NO.4 Center
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z | ¥1,240 | |
| 51451J — Bolt, NO.1 | ||||
| 90119-06A13 |
Bolt, NO.1
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥60 | |
| 90119-06A13 |
Bolt, NO.1
2024-01 → —
|
MXPB1#,MXPJ1# | ¥60 | |
| 51454 — Clip | ||||
| 90467-07220 |
Clip
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥80 | |
| 90467-07220 |
Clip
2024-01 → —
|
MXPB1#,MXPJ1# | ¥80 | |
| 51477E — Plate, Engine Under Cover Side, RH | ||||
| 51477-52030 |
Plate, Engine Under Cover Side, RH
2022-08 → 2024-01
ended
|
MXPB1# | ¥590 | |
| 51477-52030 |
Plate, Engine Under Cover Side, RH
2024-01 → —
|
MXPB1# | ¥590 | |
| 51478B — Plate, Engine Under Cover Side, LH | ||||
| 51478-52040 |
Plate, Engine Under Cover Side, LH
2022-08 → 2024-01
ended
|
MXPB1# | ¥750 | |
| 51478-52040 |
Plate, Engine Under Cover Side, LH
2024-01 → —
|
MXPB1# | ¥750 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
