Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

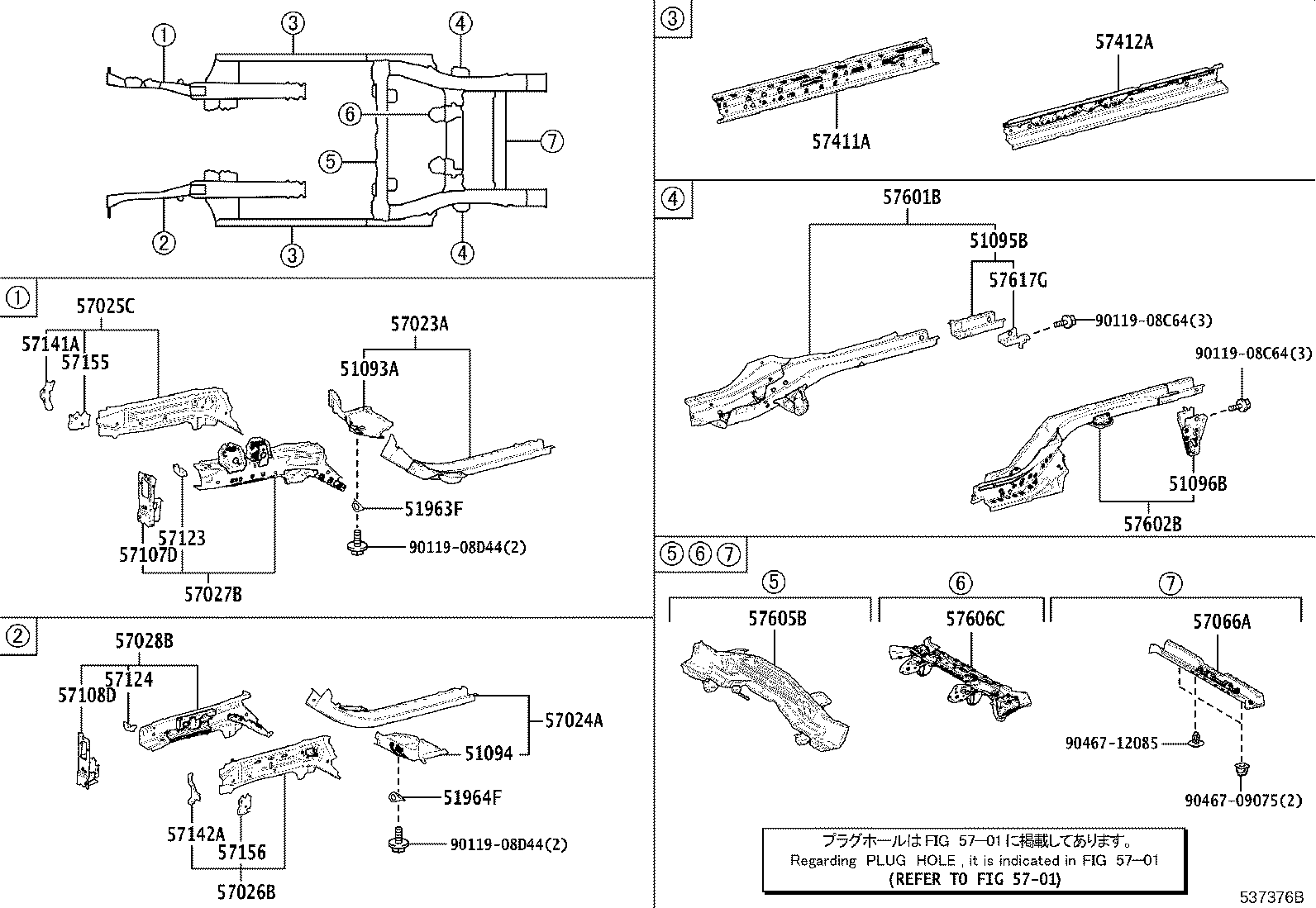

Exploded illustration 537376B 5701 — not listed in this catalogue 51093A — HOOK SUB-ASSY, TRANSPORT, FRONT RH (3 parts) 51095B — HOOK SUB-ASSY, TRANSPORT, REAR RH (2 parts) 51096B — HOOK SUB-ASSY, TRANSPORT, REAR LH (2 parts) 57023A — MEMBER SUB-ASSY, REAR SIDE, RH (3 parts) 57025C — MEMBER SUB-ASSY, FRONT SIDE, OUTER RH (2 parts) 57026B — MEMBER SUB-ASSY, FRONT SIDE, OUTER LH (2 parts) 57027B — MEMBER SUB-ASSY, FRONT SIDE, INNER RH (2 parts) 57028B — MEMBER SUB-ASSY, FRONT SIDE, INNER LH (2 parts) 57107D — REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH (2 parts) 57108D — REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH (2 parts) 57123 — SUPPORT, FRONT SIDE MEMBER, RH (2 parts) 57124 — SUPPORT, FRONT SIDE MEMBER, LH (2 parts) 57141A — SUPPORT, FRONT BUMPER ARM, RH (2 parts) 57142A — SUPPORT, FRONT BUMPER ARM, LH (2 parts) 57155 — REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH (2 parts) 57156 — REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH (2 parts) 57411A — MEMBER, FLOOR SIDE, INNER RH (2 parts) 57412A — MEMBER, FLOOR SIDE, INNER LH (2 parts) 57601B — MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH (4 parts) 57602B — MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH (7 parts) 57605B — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 (6 parts) 57606C — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 (4 parts) 57617G — RETAINER, REAR BUMPER ARM (2 parts) 57066A — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6 (2 parts) 9046709075 — not listed in this catalogue 9046712085 — not listed in this catalogue 9011908C64 — not listed in this catalogue 9011908C64 — not listed in this catalogue 57024A — MEMBER SUB-ASSY, REAR SIDE, LH (3 parts) 51963F — HOOK, TRANSPORT (2 parts) 51964F — HOOK, TRANSPORT, LH (2 parts) 9011908D44 — not listed in this catalogue 9011908D44 — not listed in this catalogue 51094 — HOOK SUB-ASSY, TRANSPORT, FRONT LH (3 parts)
537376B · 28 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
73 parts on this figure
Part number Description Fitment Price
51093A — Hook Sub-assy, Transport, Front RH
51093-K0010 Hook Sub-assy, Transport, Front RH
2020-08 → 2022-07 ended
MXPB1#,MXPJ1# ¥3,040
51093-K0011 Hook Sub-assy, Transport, Front RH
2022-07 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,760
51093-K0011 Hook Sub-assy, Transport, Front RH
2024-01 → —
MXPB1#,MXPJ1# ¥2,760
51094 — Hook Sub-assy, Transport, Front LH
51094-K0010 Hook Sub-assy, Transport, Front LH
2020-08 → 2022-07 ended
MXPB1#,MXPJ1# ¥3,040
51094-K0011 Hook Sub-assy, Transport, Front LH
2022-07 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,760
51094-K0011 Hook Sub-assy, Transport, Front LH
2024-01 → —
MXPB1#,MXPJ1# ¥2,760
51095B — Hook Sub-assy, Transport, Rear RH
51095-52060 Hook Sub-assy, Transport, Rear RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,760
51095-52060 Hook Sub-assy, Transport, Rear RH
2024-01 → —
MXPB1#,MXPJ1# ¥2,760
51096B — Hook Sub-assy, Transport, Rear LH
51096-K0010 Hook Sub-assy, Transport, Rear LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,000
51096-K0010 Hook Sub-assy, Transport, Rear LH
2024-01 → —
MXPB1#,MXPJ1# ¥2,000
51963F — Hook, Transport
51963-52090 Hook, Transport
2022-07 → 2024-01 ended
MXPB1#,MXPJ1# ¥700
51963-52090 Hook, Transport
2024-01 → —
MXPB1#,MXPJ1# ¥700
51964F — Hook, Transport, LH
51964-52040 Hook, Transport, LH
2022-07 → 2024-01 ended
MXPB1#,MXPJ1# ¥700
51964-52040 Hook, Transport, LH
2024-01 → —
MXPB1#,MXPJ1# ¥700
57023A — Member Sub-assy, Rear Side, RH
57023-K0010 Member Sub-assy, Rear Side, RH
2020-08 → 2022-07 ended
MXPB1#,MXPJ1# ¥16,700
57023-K0011 Member Sub-assy, Rear Side, RH
2022-07 → 2024-01 ended
MXPB1#,MXPJ1# ¥15,100
57023-K0011 Member Sub-assy, Rear Side, RH
2024-01 → —
MXPB1#,MXPJ1# ¥15,100
57024A — Member Sub-assy, Rear Side, LH
57024-K0010 Member Sub-assy, Rear Side, LH
2020-08 → 2022-07 ended
MXPB1#,MXPJ1# ¥16,700
57024-K0011 Member Sub-assy, Rear Side, LH
2022-07 → 2024-01 ended
MXPB1#,MXPJ1# ¥15,100
57024-K0011 Member Sub-assy, Rear Side, LH
2024-01 → —
MXPB1#,MXPJ1# ¥15,100
57025C — Member Sub-assy, Front Side, Outer RH
57025-K0010 Member Sub-assy, Front Side, Outer RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥5,200
57025-K0010 Member Sub-assy, Front Side, Outer RH
2024-01 → —
MXPB1#,MXPJ1# ¥5,200
57026B — Member Sub-assy, Front Side, Outer LH
57026-K0010 Member Sub-assy, Front Side, Outer LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥5,200
57026-K0010 Member Sub-assy, Front Side, Outer LH
2024-01 → —
MXPB1#,MXPJ1# ¥5,200
57027B — Member Sub-assy, Front Side, Inner RH
57027-52020 Member Sub-assy, Front Side, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥13,100
57027-52020 Member Sub-assy, Front Side, Inner RH
2024-01 → —
MXPB1#,MXPJ1# ¥13,100
57028B — Member Sub-assy, Front Side, Inner LH
57028-K0010 Member Sub-assy, Front Side, Inner LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥11,800
57028-K0010 Member Sub-assy, Front Side, Inner LH
2024-01 → —
MXPB1#,MXPJ1# ¥11,800
57066A — Member Sub-assy, Rear Floor Cross, NO.6
57066-K0010 Member Sub-assy, Rear Floor Cross, NO.6
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥8,100
57066-K0010 Member Sub-assy, Rear Floor Cross, NO.6
2024-01 → —
MXPB15,MXPJ15 ¥8,100
57107D — Reinforce Sub-assy, Front Bumper Mounting, RH
57107-K0010 Reinforce Sub-assy, Front Bumper Mounting, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,700
57107-K0010 Reinforce Sub-assy, Front Bumper Mounting, RH
2024-01 → —
MXPB1#,MXPJ1# ¥2,700
57108D — Reinforce Sub-assy, Front Bumper Mounting, LH
57108-K0010 Reinforce Sub-assy, Front Bumper Mounting, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,550
57108-K0010 Reinforce Sub-assy, Front Bumper Mounting, LH
2024-01 → —
MXPB1#,MXPJ1# ¥2,550
57123 — Support, Front Side Member, RH
57123-K0010 Support, Front Side Member, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥820
57123-K0010 Support, Front Side Member, RH
2024-01 → —
MXPB1#,MXPJ1# ¥820
57124 — Support, Front Side Member, LH
57124-K0010 Support, Front Side Member, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥600
57124-K0010 Support, Front Side Member, LH
2024-01 → —
MXPB1#,MXPJ1# ¥600
57141A — Support, Front Bumper Arm, RH
57141-K0010 Support, Front Bumper Arm, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,020
57141-K0010 Support, Front Bumper Arm, RH
2024-01 → —
MXPB1#,MXPJ1# ¥1,020
57142A — Support, Front Bumper Arm, LH
57142-K0010 Support, Front Bumper Arm, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,190
57142-K0010 Support, Front Bumper Arm, LH
2024-01 → —
MXPB1#,MXPJ1# ¥1,190
57155 — Reinforcement, Front Side Member, NO.3, RH
57155-K0010 Reinforcement, Front Side Member, NO.3, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥640
57155-K0010 Reinforcement, Front Side Member, NO.3, RH
2024-01 → —
MXPB1#,MXPJ1# ¥640
57156 — Reinforcement, Front Side Member, NO.3, LH
57156-K0010 Reinforcement, Front Side Member, NO.3, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥640
57156-K0010 Reinforcement, Front Side Member, NO.3, LH
2024-01 → —
MXPB1#,MXPJ1# ¥640
57411A — Member, Floor Side, Inner RH
57401-52260 Member, Floor Side, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥12,300
57401-52260 Member, Floor Side, Inner RH
2024-01 → —
MXPB1#,MXPJ1# ¥12,300
57412A — Member, Floor Side, Inner LH
57402-52310 Member, Floor Side, Inner LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥12,300
57402-52310 Member, Floor Side, Inner LH
2024-01 → —
MXPB1#,MXPJ1# ¥12,300
57601B — Member Sub-assy, Rear Floor Side, Front RH
57601-52430 Member Sub-assy, Rear Floor Side, Front RH
2020-08 → 2024-01 ended
MXPB10,MXPJ10 ¥24,700
57601-52450 Member Sub-assy, Rear Floor Side, Front RH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥27,500
57601-52430 Member Sub-assy, Rear Floor Side, Front RH
2024-01 → —
MXPB10,MXPJ10 ¥24,700
57601-52450 Member Sub-assy, Rear Floor Side, Front RH
2024-01 → —
MXPB15,MXPJ15 ¥27,500
57602B — Member Sub-assy, Rear Floor Side, Front LH
57602-52520 Member Sub-assy, Rear Floor Side, Front LH
2020-08 → 2024-01 ended
MXPB10 ¥26,100
57602-52520 Member Sub-assy, Rear Floor Side, Front LH
2020-08 → 2022-08 ended
MXPJ10 ¥26,100
57602-52540 Member Sub-assy, Rear Floor Side, Front LH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥27,500
57602-52670 Member Sub-assy, Rear Floor Side, Front LH
2022-08 → 2024-01 ended
MXPJ10 ¥26,100
57602-52520 Member Sub-assy, Rear Floor Side, Front LH
2024-01 → —
MXPB10 ¥26,100
57602-52540 Member Sub-assy, Rear Floor Side, Front LH
2024-01 → —
MXPB15,MXPJ15 ¥27,500
57602-52670 Member Sub-assy, Rear Floor Side, Front LH
2024-01 → —
MXPJ10 ¥26,100
57605B — Member Sub-assy, Rear Floor Cross, NO.1
57605-K0020 Member Sub-assy, Rear Floor Cross, NO.1
2020-08 → 2024-01 ended
MXPB10 ¥9,800
57605-K0040 Member Sub-assy, Rear Floor Cross, NO.1
2020-08 → 2024-01 ended
MXPJ1# ¥6,500
57605-K0050 Member Sub-assy, Rear Floor Cross, NO.1
2020-08 → 2024-01 ended
MXPB15 ¥8,100
57605-K0020 Member Sub-assy, Rear Floor Cross, NO.1
2024-01 → —
MXPB10 ¥9,800
57605-K0040 Member Sub-assy, Rear Floor Cross, NO.1
2024-01 → —
MXPJ1# ¥6,500
57605-K0050 Member Sub-assy, Rear Floor Cross, NO.1
2024-01 → —
MXPB15 ¥8,100
57606C — Member Sub-assy, Rear Floor Cross, NO.2
57606-K0020 Member Sub-assy, Rear Floor Cross, NO.2
2020-08 → 2024-01 ended
MXPB10,MXPJ10 ¥13,100
57606-K0030 Member Sub-assy, Rear Floor Cross, NO.2
2020-08 → 2024-01 ended
MXPB15,MXPJ15 ¥16,400
57606-K0020 Member Sub-assy, Rear Floor Cross, NO.2
2024-01 → —
MXPB10,MXPJ10 ¥13,100
57606-K0030 Member Sub-assy, Rear Floor Cross, NO.2
2024-01 → —
MXPB15,MXPJ15 ¥16,400
57617G — Retainer, Rear Bumper Arm
57617-K0010 Retainer, Rear Bumper Arm
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,660
57617-K0010 Retainer, Rear Bumper Arm
2024-01 → —
MXPB1#,MXPJ1# ¥1,660
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
