Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

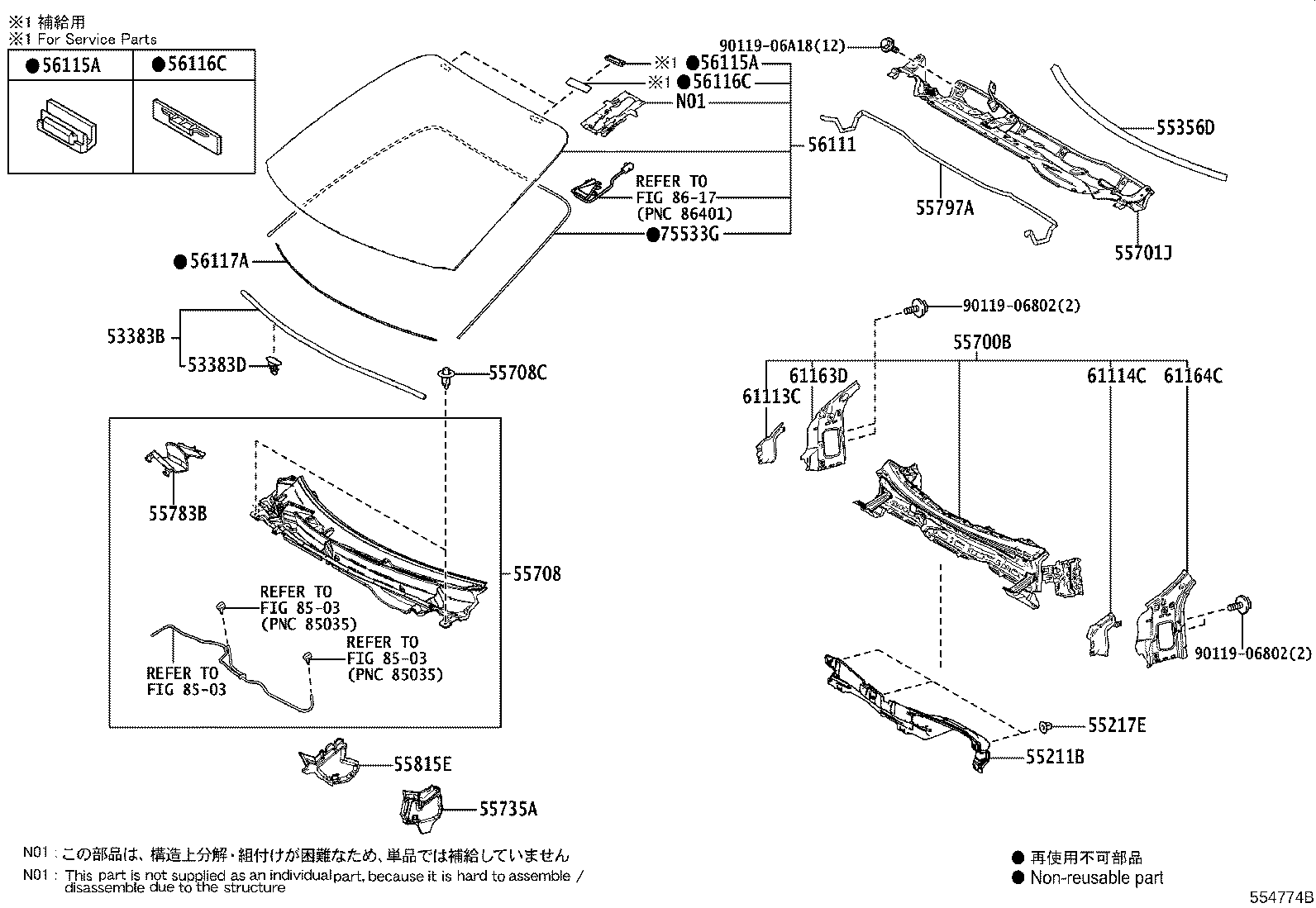

Exploded illustration 554774B 61163D — PILLAR, FRONT BODY, LOWER INNER RH (2 parts) 61114C — PANEL, SIDE, INNER LH (2 parts) 61164C — PILLAR, FRONT BODY, LOWER INNER LH (2 parts) 61113C — PANEL, SIDE, INNER RH (2 parts) 9011906A18 — not listed in this catalogue 8503 — not listed in this catalogue 8503 — not listed in this catalogue 56115A — STOPPER, WINDSHIELD GLASS, NO.1 (2 parts) 56116C — STOPPER, WINDSHIELD GLASS, NO.2 (2 parts) 55211B — SILENCER, FRONT PANEL (2 parts) 55217E — RETAINER, DASH PANEL SILENCER (2 parts) 55700B — COWL ASSY (2 parts) 55708 — LOUVER SUB-ASSY, COWL TOP VENTILATOR (4 parts) 55783B — LOUVER, COWL TOP VENTILATOR, CENTER NO.1 (2 parts) 55708C — CLIP, COWL TOP VENTILATOR LOUVER (2 parts) 75533G — MOULDING, WINDSHIELD, OUTSIDE (2 parts) 56117A — DAM, WINDOW GLASS ADHESIVE (28 parts) 56111 — GLASS, WINDSHIELD (34 parts) 55356D — CUSHION, INSTRUMENT PANEL, NO.2 (2 parts) 55701J — PANEL SUB-ASSY, COWL TOP, OUTER (3 parts) 55797A — SEAL, COWL WATER EXTRACT (2 parts) 8617 — not listed in this catalogue 55735A — PLATE, WATER GUARD, LH (2 parts) 55815E — SEAL, FRONT VENTILATOR, NO.1 (2 parts) 53383B — SEAL, HOOD TO COWL TOP (2 parts) 53383D — CLIP(FOR HOOD TO COWL TOP SEAL) (2 parts) 9011906802 — not listed in this catalogue 9011906802 — not listed in this catalogue 56116C — STOPPER, WINDSHIELD GLASS, NO.2 (2 parts) 8503 — not listed in this catalogue 56115A — STOPPER, WINDSHIELD GLASS, NO.1 (2 parts)
554774B · 24 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
105 parts on this figure
Part number Description Fitment Price
53383B — Seal, Hood TO Cowl Top
53383-52190 Seal, Hood TO Cowl Top
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥680
53383-52190 Seal, Hood TO Cowl Top
2024-01 → —
MXPB1#,MXPJ1# ¥680
53383D — Clip(FOR HOOD TO COWL TOP SEAL)
67867-12150 Clip(FOR HOOD TO COWL TOP SEAL)
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥100
67867-12150 Clip(FOR HOOD TO COWL TOP SEAL)
2024-01 → —
MXPB1#,MXPJ1# ¥100
55211B — Silencer, Front Panel
55211-K0050 Silencer, Front Panel
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,610
55211-K0050 Silencer, Front Panel
2024-01 → —
MXPB1#,MXPJ1# ¥1,610
55217E — Retainer, Dash Panel Silencer
55217-51010 Retainer, Dash Panel Silencer
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥90
55217-51010 Retainer, Dash Panel Silencer
2024-01 → —
MXPB1#,MXPJ1# ¥90
55356D — Cushion, Instrument Panel, NO.2
55356-K2010 Cushion, Instrument Panel, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,130
55356-K2010 Cushion, Instrument Panel, NO.2
2024-01 → —
MXPB1#,MXPJ1# ¥1,130
55700B — Cowl Assy
55700-52440 Cowl Assy
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥20,700
55700-52440 Cowl Assy
2024-01 → —
MXPB1#,MXPJ1# ¥20,700
55701J — Panel Sub-assy, Cowl Top, Outer
55701-52420 Panel Sub-assy, Cowl Top, Outer
2020-08 → 2020-10 ended
MXPB1#,MXPJ1# ¥10,900
55701-52470 Panel Sub-assy, Cowl Top, Outer
2020-11 → 2024-01 ended
MXPB1#,MXPJ1# ¥9,800
55701-52470 Panel Sub-assy, Cowl Top, Outer
2024-01 → —
MXPB1#,MXPJ1# ¥9,800
55708 — Louver Sub-assy, Cowl Top Ventilator
55708-52440 Louver Sub-assy, Cowl Top Ventilator
2020-08 → 2022-07 ended
MXPB1#,MXPJ1# ¥11,800
55708-52441 Louver Sub-assy, Cowl Top Ventilator
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥10,700
55708-52450 note Louver Sub-assy, Cowl Top Ventilator
2020-08 → 2022-07 ended
MXPB1#,MXPJ1# ¥13,000
55708-52441 Louver Sub-assy, Cowl Top Ventilator
2024-01 → —
MXPB1#,MXPJ1# ¥10,700
55708C — Clip, Cowl Top Ventilator Louver
90467-07076-C7 note Clip, Cowl Top Ventilator Louver
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥80
90467-07076-C7 note Clip, Cowl Top Ventilator Louver
2024-01 → —
MXPB1#,MXPJ1# ¥80
55735A — Plate, Water Guard, LH
55735-52160 Plate, Water Guard, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,490
55735-52160 Plate, Water Guard, LH
2024-01 → —
MXPB1#,MXPJ1# ¥1,490
55783B — Louver, Cowl Top Ventilator, Center NO.1
55783-52380 Louver, Cowl Top Ventilator, Center NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,820
55783-52380 Louver, Cowl Top Ventilator, Center NO.1
2024-01 → —
MXPB1#,MXPJ1# ¥1,820
55797A — Seal, Cowl Water Extract
55797-K0010 Seal, Cowl Water Extract
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥970
55797-K0010 Seal, Cowl Water Extract
2024-01 → —
MXPB1#,MXPJ1# ¥970
55815E — Seal, Front Ventilator, NO.1
55815-52090 Seal, Front Ventilator, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,590
55815-52090 Seal, Front Ventilator, NO.1
2024-01 → —
MXPB1#,MXPJ1# ¥1,590
56111 — Glass, Windshield
56101-52C40 note Glass, Windshield
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# HBDX,X —
56101-52F00 Glass, Windshield
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X —
56101-52F10 note Glass, Windshield
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X —
56101-52F20 note Glass, Windshield
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z —
56101-52F30 note Glass, Windshield
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z —
56101-52F40 note Glass, Windshield
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# HBDX,X —
56101-52F50 Glass, Windshield
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z —
56101-52F60 note Glass, Windshield
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z —
56101-52T50 note Glass, Windshield
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X —
56101-52T60 note Glass, Windshield
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X —
56101-52T70 note Glass, Windshield
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z —
56101-52T80 note Glass, Windshield
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z —
56101-52T90 note Glass, Windshield
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z —
56101-52U00 note Glass, Windshield
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z —
56101-52Z50 Glass, Windshield
2024-01 → —
MXPB1#,MXPJ1# HBDX,U,X —
56101-52Z60 note Glass, Windshield
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,U,X —
56101-52Z80 note Glass, Windshield
2025-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X —
56101-52Z80 note Glass, Windshield
2025-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X —
56101-5C010 note Glass, Windshield
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,U,X —
56101-5C010 note Glass, Windshield
2024-01 → —
MXPB1#,MXPJ1# HBDX,U,X —
56101-5C030 note Glass, Windshield
2025-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X —
56101-5C030 note Glass, Windshield
2025-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X —
56101-5C050 Glass, Windshield
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z —
56101-5C070 note Glass, Windshield
2025-01 → —
MXPB1#,MXPJ1# HBDZ,Z —
56101-5C070 note Glass, Windshield
2025-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDZ,Z —
56101-5C090 note Glass, Windshield
2025-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z —
56101-5C100 note Glass, Windshield
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDZ,Z —
56101-5C110 note Glass, Windshield
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDZ,Z —
56101-5C130 note Glass, Windshield
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z —
56101-5C150 note Glass, Windshield
2025-01 → —
MXPB1#,MXPJ1# HBDZ,Z —
56101-5C150 note Glass, Windshield
2025-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDZ,Z —
56101-5C170 note Glass, Windshield
2025-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z —
56101-5C190 note Glass, Windshield
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDZ,Z —
56101-5C190 note Glass, Windshield
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z —
56115A — Stopper, Windshield Glass, NO.1
56115-30100 Stopper, Windshield Glass, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥130
56115-30100 Stopper, Windshield Glass, NO.1
2024-01 → —
MXPB1#,MXPJ1# ¥130
56116C — Stopper, Windshield Glass, NO.2
56116-22050 Stopper, Windshield Glass, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥120
56116-22050 Stopper, Windshield Glass, NO.2
2024-01 → —
MXPB1#,MXPJ1# ¥120
56117A — Dam, Window Glass Adhesive
56117-50140 note Dam, Window Glass Adhesive
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥870
56117-50140 note Dam, Window Glass Adhesive
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥870
56117-50140 note Dam, Window Glass Adhesive
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥870
56117-50140 note Dam, Window Glass Adhesive
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥870
56117-50140 note Dam, Window Glass Adhesive
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥870
56117-50140 note Dam, Window Glass Adhesive
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥870
56117-50140 note Dam, Window Glass Adhesive
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥870
56117-50140 note Dam, Window Glass Adhesive
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥870
56117-50140 note Dam, Window Glass Adhesive
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# HBDX,X ¥870
56117-50140 note Dam, Window Glass Adhesive
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# HBDX,X ¥870
56117-50140 note Dam, Window Glass Adhesive
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDZ,Z ¥870
56117-50140 note Dam, Window Glass Adhesive
2025-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥870
56117-50140 note Dam, Window Glass Adhesive
2025-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥870
56117-50140 note Dam, Window Glass Adhesive
2025-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥870
56117-50140 note Dam, Window Glass Adhesive
2025-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥870
56117-50140 note Dam, Window Glass Adhesive
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥870
56117-50140 note Dam, Window Glass Adhesive
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥870
56117-50140 note Dam, Window Glass Adhesive
2024-01 → —
MXPB1#,MXPJ1# ¥870
56117-50140 note Dam, Window Glass Adhesive
2024-01 → —
MXPB1#,MXPJ1# ¥870
56117-50140 note Dam, Window Glass Adhesive
2025-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥870
56117-50140 note Dam, Window Glass Adhesive
2025-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDZ,Z ¥870
56117-50140 note Dam, Window Glass Adhesive
2025-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥870
56117-50140 note Dam, Window Glass Adhesive
2025-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥870
56117-50140 note Dam, Window Glass Adhesive
2025-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDZ,Z ¥870
56117-50140 note Dam, Window Glass Adhesive
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,U,X ¥870
56117-50140 note Dam, Window Glass Adhesive
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,U,X ¥870
56117-50140 note Dam, Window Glass Adhesive
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDZ,Z ¥870
56117-50140 note Dam, Window Glass Adhesive
2025-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥870
61113C — Panel, Side, Inner RH
61113-K0010 Panel, Side, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥900
61113-K0010 Panel, Side, Inner RH
2024-01 → —
MXPB1#,MXPJ1# ¥900
61114C — Panel, Side, Inner LH
61114-K0010 Panel, Side, Inner LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥900
61114-K0010 Panel, Side, Inner LH
2024-01 → —
MXPB1#,MXPJ1# ¥900
61163D — Pillar, Front Body, Lower Inner RH
61163-52050 Pillar, Front Body, Lower Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥11,800
61163-52050 Pillar, Front Body, Lower Inner RH
2024-01 → —
MXPB1#,MXPJ1# ¥11,800
61164C — Pillar, Front Body, Lower Inner LH
61164-52060 Pillar, Front Body, Lower Inner LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥11,800
61164-52060 Pillar, Front Body, Lower Inner LH
2024-01 → —
MXPB1#,MXPJ1# ¥11,800
75533G — Moulding, Windshield, Outside
75533-52320 Moulding, Windshield, Outside
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,390
75533-52320 Moulding, Windshield, Outside
2024-01 → —
MXPB1#,MXPJ1# ¥1,390
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
