Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

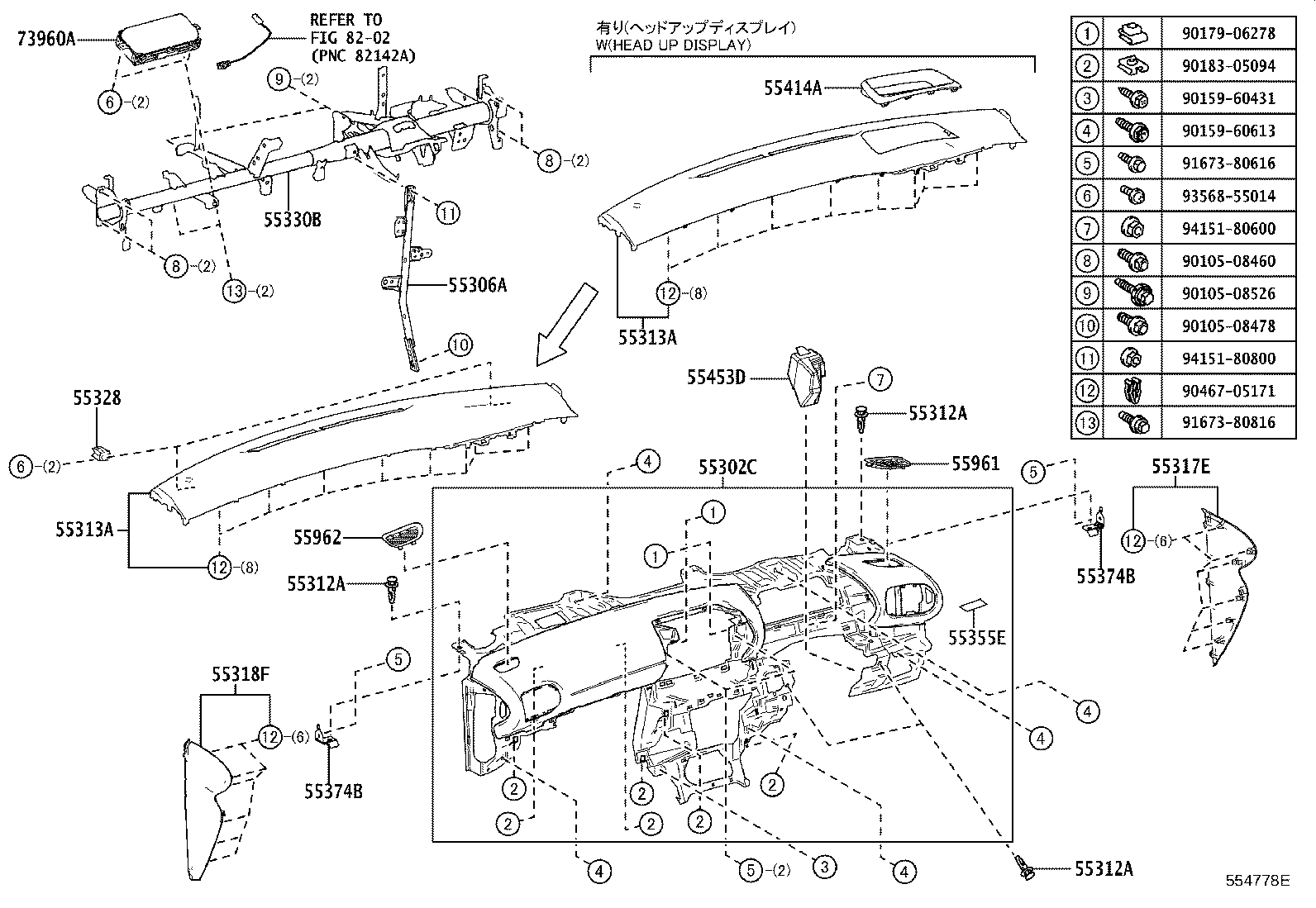

Exploded illustration 554778E 9167380816 — not listed in this catalogue 73960A — AIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR (2 parts) 55374B — BRACKET, INSTRUMENT PANEL (4 parts) 55374B — BRACKET, INSTRUMENT PANEL (4 parts) 55328 — PIN, INSTRUMENT PANEL, NO.1 (2 parts) 55330B — REINFORCEMENT ASSY, INSTRUMENT PANEL (2 parts) 55961 — NOZZLE, SIDE DEFROSTER, NO.1 (5 parts) 55962 — NOZZLE, SIDE DEFROSTER, NO.2 (5 parts) 8202 — not listed in this catalogue 9015960613 — not listed in this catalogue 9010508526 — not listed in this catalogue 9356855014 — not listed in this catalogue 9017906278 — not listed in this catalogue 9018305094 — not listed in this catalogue 9015960431 — not listed in this catalogue 9415180600 — not listed in this catalogue 9010508460 — not listed in this catalogue 55313A — PANEL, INSTRUMENT MAIN (7 parts) 55313A — PANEL, INSTRUMENT MAIN (7 parts) 55414A — PANEL, INSTRUMENT CLUSTER FINISH, END (2 parts) 9010508478 — not listed in this catalogue 9415180800 — not listed in this catalogue 9046705171 — not listed in this catalogue 55312A — CLIP, INSTRUMENT PANEL (2 parts) 55312A — CLIP, INSTRUMENT PANEL (2 parts) 55312A — CLIP, INSTRUMENT PANEL (2 parts) 55302C — PANEL SUB-ASSY, INSTRUMENT (9 parts) 55306A — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 (2 parts) 9167380616 — not listed in this catalogue 55317E — PANEL, INSTRUMENT SIDE, NO.1 (5 parts) 55318F — PANEL, INSTRUMENT SIDE, NO.2 (13 parts) 55453D — PAD, INSTRUMENT PANEL SAFETY, NO.1 (2 parts) 55355E — CUSHION, INSTRUMENT PANEL (1 parts)
554778E · 19 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
55302C — Panel Sub-assy, Instrument
55302-52250-C0 note Panel Sub-assy, Instrument
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥34,800
55302-K0020-C0 note Panel Sub-assy, Instrument
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥34,800
55302-K0020-C0 note Panel Sub-assy, Instrument
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥34,800
55302-K0020-C0 note Panel Sub-assy, Instrument
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥34,800
55302-52250-C0 note Panel Sub-assy, Instrument
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥34,800
55302-K0020-C0 note Panel Sub-assy, Instrument
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥34,800
55302-K0020-C0 note Panel Sub-assy, Instrument
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥34,800
55302-K0020-C0 note Panel Sub-assy, Instrument
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥34,800
55302-K0020-C0 note Panel Sub-assy, Instrument
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,U ¥34,800
55306A — Brace Sub-assy, Instrument Panel, NO.1
55306-K0010 Brace Sub-assy, Instrument Panel, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,740
55306-K0010 Brace Sub-assy, Instrument Panel, NO.1
2024-01 → —
MXPB1#,MXPJ1# ¥1,740
55312A — Clip, Instrument Panel
52161-16010 Clip, Instrument Panel
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥120
52161-16010 Clip, Instrument Panel
2024-01 → —
MXPB1#,MXPJ1# ¥120
55313A — Panel, Instrument Main
55313-K0010-C0 note Panel, Instrument Main
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥9,300
55313-K0010-C0 note Panel, Instrument Main
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥9,300
55313-K0010-C0 note Panel, Instrument Main
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥9,300
55313-K0020-C0 note Panel, Instrument Main
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥9,300
55313-K0010-C0 note Panel, Instrument Main
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥9,300
55313-K0010-C0 note Panel, Instrument Main
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥9,300
55313-K0020-C0 note Panel, Instrument Main
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥9,300
55317E — Panel, Instrument Side, NO.1
55317-K0010-C0 note Panel, Instrument Side, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,750
55317-K0010-C0 note Panel, Instrument Side, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,750
55317-K0010-C0 note Panel, Instrument Side, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥1,750
55317-K0010-C0 note Panel, Instrument Side, NO.1
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥1,750
55317-K0010-C0 note Panel, Instrument Side, NO.1
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥1,750
55318F — Panel, Instrument Side, NO.2
55318-52170-C0 note Panel, Instrument Side, NO.2
2023-01 → 2024-01 ended
MXPJ10 GRS,HBDX ¥1,930
55318-52170-C0 note Panel, Instrument Side, NO.2
2023-01 → 2024-01 ended
MXPJ10 HBDG ¥1,930
55318-52170-C0 note Panel, Instrument Side, NO.2
2023-01 → 2024-01 ended
MXPJ10 HBDZ ¥1,930
55318-K0010-C0 note Panel, Instrument Side, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ15 HBDZ,Z ¥1,750
55318-K0010-C0 note Panel, Instrument Side, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ15 GRS,HBDX,X ¥1,750
55318-K0010-C0 note Panel, Instrument Side, NO.2
2020-08 → 2023-01 ended
MXPJ10 HBDZ ¥1,750
55318-K0010-C0 note Panel, Instrument Side, NO.2
2020-08 → 2023-01 ended
MXPJ10 HBDG ¥1,750
55318-K0010-C0 note Panel, Instrument Side, NO.2
2020-08 → 2023-01 ended
MXPJ10 GRS,HBDX ¥1,750
55318-K0010-C0 note Panel, Instrument Side, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ15 G,HBDG ¥1,750
55318-52170-C0 note Panel, Instrument Side, NO.2
2024-01 → —
MXPJ10 HBDZ ¥1,930
55318-52170-C0 note Panel, Instrument Side, NO.2
2024-01 → —
MXPJ10 GRS,HBDG,HBDX,U ¥1,930
55318-K0010-C0 note Panel, Instrument Side, NO.2
2024-01 → —
MXPB1#,MXPJ15 HBDZ,Z ¥1,750
55318-K0010-C0 note Panel, Instrument Side, NO.2
2024-01 → —
MXPB1#,MXPJ15 G,GRS,HBDG,HBDX,U,X ¥1,750
55328 — Pin, Instrument Panel, NO.1
55328-12430 Pin, Instrument Panel, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥340
55328-12430 Pin, Instrument Panel, NO.1
2024-01 → —
MXPB1#,MXPJ1# ¥340
55330B — Reinforcement Assy, Instrument Panel
55330-52A10 Reinforcement Assy, Instrument Panel
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥15,200
55330-52B20 Reinforcement Assy, Instrument Panel
2024-01 → —
MXPB1#,MXPJ1# ¥13,800
55355E — Cushion, Instrument Panel
55355-53050 Cushion, Instrument Panel
2024-01 → —
MXPB1#,MXPJ1# ¥60
55374B — Bracket, Instrument Panel
55363-52010 note Bracket, Instrument Panel
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥200
55363-52020 note Bracket, Instrument Panel
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥200
55363-52010 note Bracket, Instrument Panel
2024-01 → —
MXPB1#,MXPJ1# ¥200
55363-52020 note Bracket, Instrument Panel
2024-01 → —
MXPB1#,MXPJ1# ¥200
55414A — Panel, Instrument Cluster Finish, End
55414-K0010-C0 note Panel, Instrument Cluster Finish, End
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥2,170
55414-K0010-C0 note Panel, Instrument Cluster Finish, End
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥2,170
55453D — Pad, Instrument Panel Safety, NO.1
55453-52160 Pad, Instrument Panel Safety, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,490
55453-52160 Pad, Instrument Panel Safety, NO.1
2024-01 → —
MXPB1#,MXPJ1# ¥1,490
55961 — Nozzle, Side Defroster, NO.1
55961-K0010-C0 note Nozzle, Side Defroster, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥400
55961-K0010-C0 note Nozzle, Side Defroster, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥400
55961-K0010-C0 note Nozzle, Side Defroster, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥400
55961-K0010-C0 note Nozzle, Side Defroster, NO.1
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥400
55961-K0010-C0 note Nozzle, Side Defroster, NO.1
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥400
55962 — Nozzle, Side Defroster, NO.2
55962-K0010-C0 note Nozzle, Side Defroster, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥430
55962-K0010-C0 note Nozzle, Side Defroster, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥430
55962-K0010-C0 note Nozzle, Side Defroster, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥430
55962-K0010-C0 note Nozzle, Side Defroster, NO.2
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥430
55962-K0010-C0 note Nozzle, Side Defroster, NO.2
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥430
73960A — Airbag Assy, Instrument Panel Passenger W/O Door
73960-K0010 Airbag Assy, Instrument Panel Passenger W/O Door
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥75,600
73960-K0010 Airbag Assy, Instrument Panel Passenger W/O Door
2024-01 → —
MXPB1#,MXPJ1# ¥75,600
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
