Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

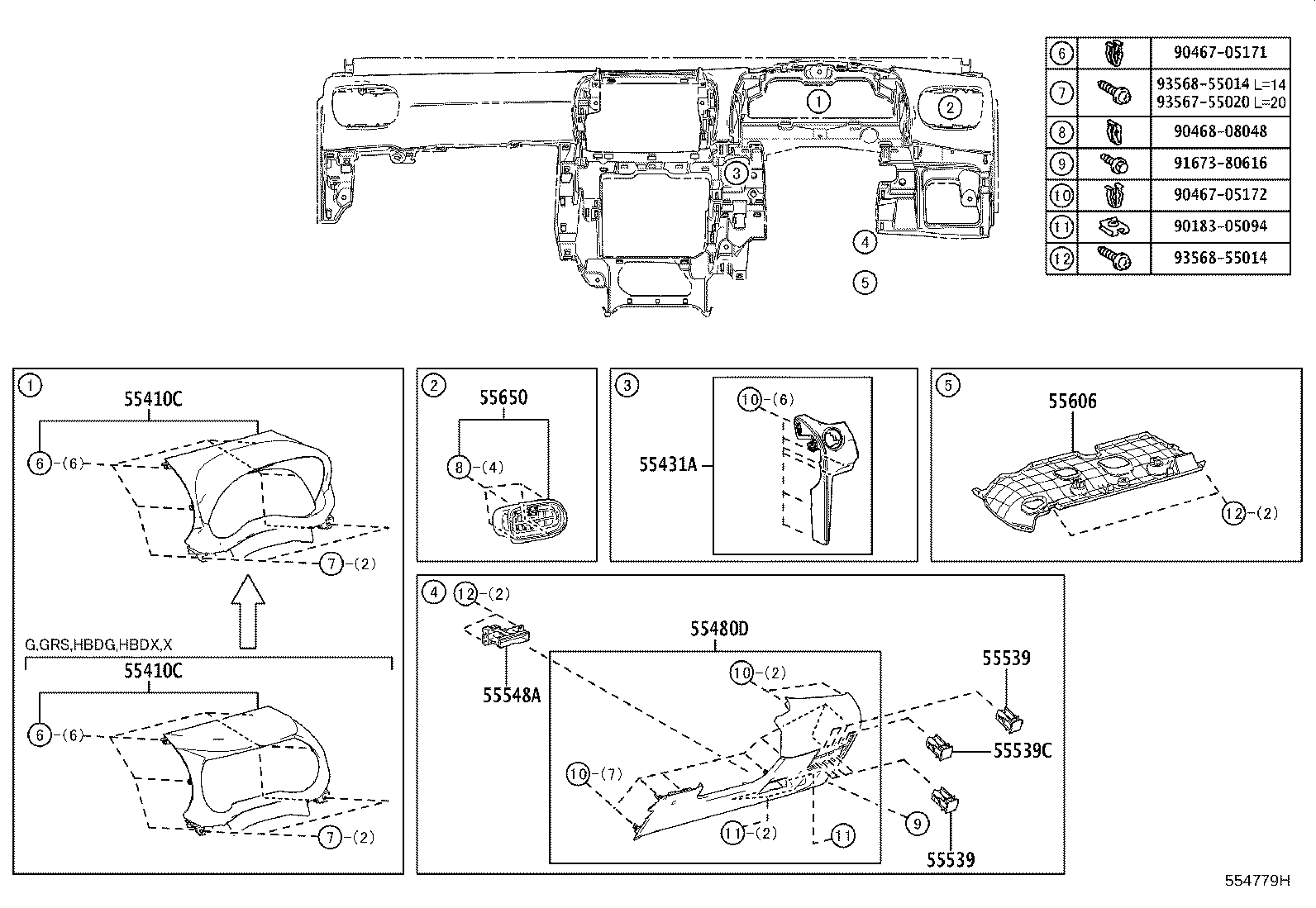

Exploded illustration 554779H 9046808048 — not listed in this catalogue 9167380616 — not listed in this catalogue 9046705172 — not listed in this catalogue 9046705171 — not listed in this catalogue 9018305094 — not listed in this catalogue 9356855014 — not listed in this catalogue 55410C — PANEL ASSY, INSTRUMENT CLUSTER FINISH (3 parts) 55650 — REGISTER ASSY, INSTRUMENT PANEL, NO.1 (8 parts) 55606 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 (2 parts) 55431A — PANEL, INSTRUMENT PANEL FINISH (6 parts) 9356855014 — not listed in this catalogue 9356755020 — not listed in this catalogue 55410C — PANEL ASSY, INSTRUMENT CLUSTER FINISH (3 parts) 55539 — COVER, SPARE SWITCH HOLE (4 parts) 55539 — COVER, SPARE SWITCH HOLE (4 parts) 55539C — COVER, SPARE SWITCH HOLE (2 parts) 55548A — COVER, INSTRUMENT PANEL HOLE (6 parts) 55480D — PANEL ASSY, INSTRUMENT PANEL FINISH, LWR (9 parts)
554779H · 10 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
40 parts on this figure
Part number Description Fitment Price
55410C — Panel Assy, Instrument Cluster Finish
55410-K0010 Panel Assy, Instrument Cluster Finish
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥5,900
55410-K0020 Panel Assy, Instrument Cluster Finish
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,X ¥4,280
55410-K0010 Panel Assy, Instrument Cluster Finish
2024-01 → —
MXPB1#,MXPJ1# ¥5,900
55431A — Panel, Instrument Panel Finish
55431-52120-C0 note Panel, Instrument Panel Finish
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥2,430
55431-52120-C0 note Panel, Instrument Panel Finish
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥2,430
55431-52120-C0 note Panel, Instrument Panel Finish
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥2,430
55431-52120-E1 note Panel, Instrument Panel Finish
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥2,680
55431-52120-C0 note Panel, Instrument Panel Finish
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥2,430
55431-52120-C0 note Panel, Instrument Panel Finish
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥2,430
55480D — Panel Assy, Instrument Panel Finish, Lwr
55480-K0010-C2 note Panel Assy, Instrument Panel Finish, Lwr
2020-08 → 2022-05 ended
MXPB1#,MXPJ1# G,HBDG ¥5,900
55480-K0010-C2 note Panel Assy, Instrument Panel Finish, Lwr
2022-05 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG ¥5,900
55480-K0010-C2 note Panel Assy, Instrument Panel Finish, Lwr
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥5,900
55480-K0010-C2 note Panel Assy, Instrument Panel Finish, Lwr
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥5,900
55480-K0010-C2 note Panel Assy, Instrument Panel Finish, Lwr
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥5,900
55480-K0010-C3 note Panel Assy, Instrument Panel Finish, Lwr
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥6,500
55480-K0010-C4 note Panel Assy, Instrument Panel Finish, Lwr
2022-05 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥6,500
55480-K0010-C2 note Panel Assy, Instrument Panel Finish, Lwr
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥5,900
55480-K0010-C2 note Panel Assy, Instrument Panel Finish, Lwr
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥5,900
55539 — Cover, Spare Switch Hole
55539-33170-C0 note Cover, Spare Switch Hole
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥220
55539-33170 Cover, Spare Switch Hole
2024-07 → 2025-03 ended
MXPB1#,MXPJ1# HBDZ,Z —
55539-33170-C0 note Cover, Spare Switch Hole
2024-01 → 2024-07 ended
MXPB1#,MXPJ1# ¥220
55539-33170-C3 note Cover, Spare Switch Hole
2024-07 → —
MXPB1#,MXPJ1# ¥220
55539C — Cover, Spare Switch Hole
55539-42070-C1 note Cover, Spare Switch Hole
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥440
55539-42070-C1 note Cover, Spare Switch Hole
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥440
55548A — Cover, Instrument Panel Hole
55548-47060-C1 note Cover, Instrument Panel Hole
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥950
55548-47060-C1 note Cover, Instrument Panel Hole
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥950
55548-47060-C1 note Cover, Instrument Panel Hole
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥950
55548-47060-C1 note Cover, Instrument Panel Hole
2024-01 → 2024-07 ended
MXPB1#,MXPJ1# HBDX,X ¥950
55548-47060-C1 note Cover, Instrument Panel Hole
2024-01 → 2024-07 ended
MXPB1#,MXPJ1# HBDX,X ¥950
55548-47060-C1 note Cover, Instrument Panel Hole
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥950
55606 — Cover Sub-assy, Instrument Panel Under, NO.1
55606-K0010 Cover Sub-assy, Instrument Panel Under, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,320
55606-K0010 Cover Sub-assy, Instrument Panel Under, NO.1
2024-01 → —
MXPB1#,MXPJ1# ¥2,320
55650 — Register Assy, Instrument Panel, NO.1
55650-52480-B0 note Register Assy, Instrument Panel, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥3,550
55650-52480-B0 note Register Assy, Instrument Panel, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥3,550
55650-52520-B0 note Register Assy, Instrument Panel, NO.1
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥4,250
55650-K0010-C0 note Register Assy, Instrument Panel, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥3,220
55650-52480-B2 note Register Assy, Instrument Panel, NO.1
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥3,220
55650-52480-B2 note Register Assy, Instrument Panel, NO.1
2024-01 → —
MXPB1#,MXPJ1# G,HBDG ¥3,220
55650-52520-B0 note Register Assy, Instrument Panel, NO.1
2024-01 → —
MXPB10,MXPJ10 GRS ¥4,250
55650-K0010-C0 note Register Assy, Instrument Panel, NO.1
2024-01 → —
MXPB1#,MXPJ1# HBDX,U,X ¥3,220
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
