Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

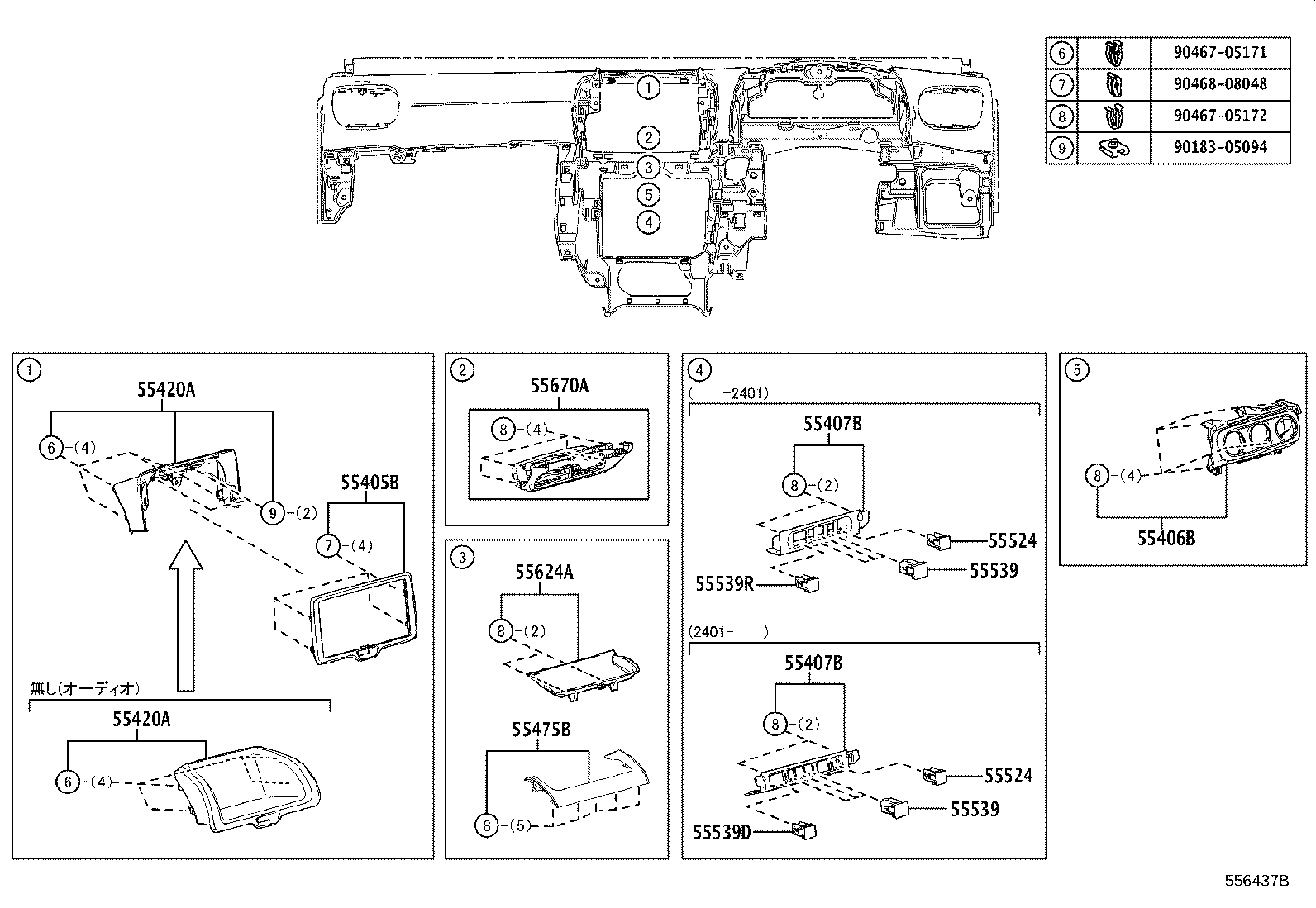

Exploded illustration 556437B 9046705171 — not listed in this catalogue 9046808048 — not listed in this catalogue 9046705172 — not listed in this catalogue 9018305094 — not listed in this catalogue 55405B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER (8 parts) 55670A — REGISTER ASSY, INSTRUMENT PANEL, CENTER (2 parts) 55406B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER (2 parts) 55475B — GARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER (2 parts) 55624A — TRAY, INSTRUMENT PANEL, CENTER (5 parts) 55420A — PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER (8 parts) 55420A — PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER (8 parts) 55407B — BASE SUB-ASSY, SWITCH HOLE (2 parts) 55539 — COVER, SPARE SWITCH HOLE (4 parts) 55524 — COVER, SWITCH BACE HOLE (2 parts) 55539D — COVER, SPARE SWITCH HOLE (1 parts) 55407B — BASE SUB-ASSY, SWITCH HOLE (2 parts) 55539 — COVER, SPARE SWITCH HOLE (4 parts) 55524 — COVER, SWITCH BACE HOLE (2 parts) 55539R — COVER, SPARE SWITCH HOLE (1 parts)
556437B · 15 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
55405B — Panel Sub-assy, Instrument Cluster Finish, Center
55405-52E00 note Panel Sub-assy, Instrument Cluster Finish, Center
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥5,700
55405-K0010 Panel Sub-assy, Instrument Cluster Finish, Center
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥1,960
55405-K0020 Panel Sub-assy, Instrument Cluster Finish, Center
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥3,250
55405-52E00 note Panel Sub-assy, Instrument Cluster Finish, Center
2024-01 → —
MXPB1#,MXPJ1# HBDX,X ¥5,700
55405-K0010 note Panel Sub-assy, Instrument Cluster Finish, Center
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥1,960
55405-K0010 note Panel Sub-assy, Instrument Cluster Finish, Center
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥1,960
55405-K0010 Panel Sub-assy, Instrument Cluster Finish, Center
2024-01 → —
MXPJ1# U ¥1,960
55405-K0020 Panel Sub-assy, Instrument Cluster Finish, Center
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥3,250
55406B — Panel Sub-assy, Instrument Cluster Finish, Lower Center
55406-52380 Panel Sub-assy, Instrument Cluster Finish, Lower Center
2020-08 → 2024-01 ended
MXPB1# X ¥2,430
55406-52380 Panel Sub-assy, Instrument Cluster Finish, Lower Center
2024-01 → —
MXPB1# X ¥2,430
55407B — Base Sub-assy, Switch Hole
55407-52031 Base Sub-assy, Switch Hole
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,160
55407-52160 Base Sub-assy, Switch Hole
2024-01 → —
MXPB1#,MXPJ1# ¥1,960
55420A — Panel Assy, Instrument Cluster Finish, Center
55420-52160 Panel Assy, Instrument Cluster Finish, Center
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,920
55420-52220 note Panel Assy, Instrument Cluster Finish, Center
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥3,890
55420-52230 note Panel Assy, Instrument Cluster Finish, Center
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥11,400
55420-52160 Panel Assy, Instrument Cluster Finish, Center
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,U,Z ¥2,920
55420-52160 note Panel Assy, Instrument Cluster Finish, Center
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥2,920
55420-52160 note Panel Assy, Instrument Cluster Finish, Center
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥2,920
55420-52220 Panel Assy, Instrument Cluster Finish, Center
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥3,890
55420-52230 note Panel Assy, Instrument Cluster Finish, Center
2024-01 → —
MXPB1#,MXPJ1# HBDX,X ¥11,400
55475B — Garnish, Instrument Cluster Finish Panel, Center
55475-52110 Garnish, Instrument Cluster Finish Panel, Center
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,160
55475-52250 Garnish, Instrument Cluster Finish Panel, Center
2024-01 → —
MXPB1#,MXPJ1# ¥3,250
55524 — Cover, Switch Bace Hole
55524-12010-C0 note Cover, Switch Bace Hole
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥310
55524-12010-C0 note Cover, Switch Bace Hole
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥310
55539 — Cover, Spare Switch Hole
55539-33170-C0 note Cover, Spare Switch Hole
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥220
55539-33170 Cover, Spare Switch Hole
2024-07 → 2025-03 ended
MXPB1#,MXPJ1# HBDZ,Z —
55539-33170-C0 note Cover, Spare Switch Hole
2024-01 → 2024-07 ended
MXPB1#,MXPJ1# ¥220
55539-33170-C3 note Cover, Spare Switch Hole
2024-07 → —
MXPB1#,MXPJ1# ¥220
55539D — Cover, Spare Switch Hole
55539-58100-C1 note Cover, Spare Switch Hole
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥350
55539R — Cover, Spare Switch Hole
55539-12260-C0 note Cover, Spare Switch Hole
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥240
55624A — Tray, Instrument Panel, Center
55445-52290-C0 note Tray, Instrument Panel, Center
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,820
55445-52290-C0 note Tray, Instrument Panel, Center
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,820
55445-52290-C0 note Tray, Instrument Panel, Center
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥1,820
55445-52290-C0 note Tray, Instrument Panel, Center
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥1,820
55445-52290-C0 note Tray, Instrument Panel, Center
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥1,820
55670A — Register Assy, Instrument Panel, Center
55670-K0010 Register Assy, Instrument Panel, Center
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥6,200
55670-K0010 Register Assy, Instrument Panel, Center
2024-01 → —
MXPB1#,MXPJ1# ¥6,200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
