Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

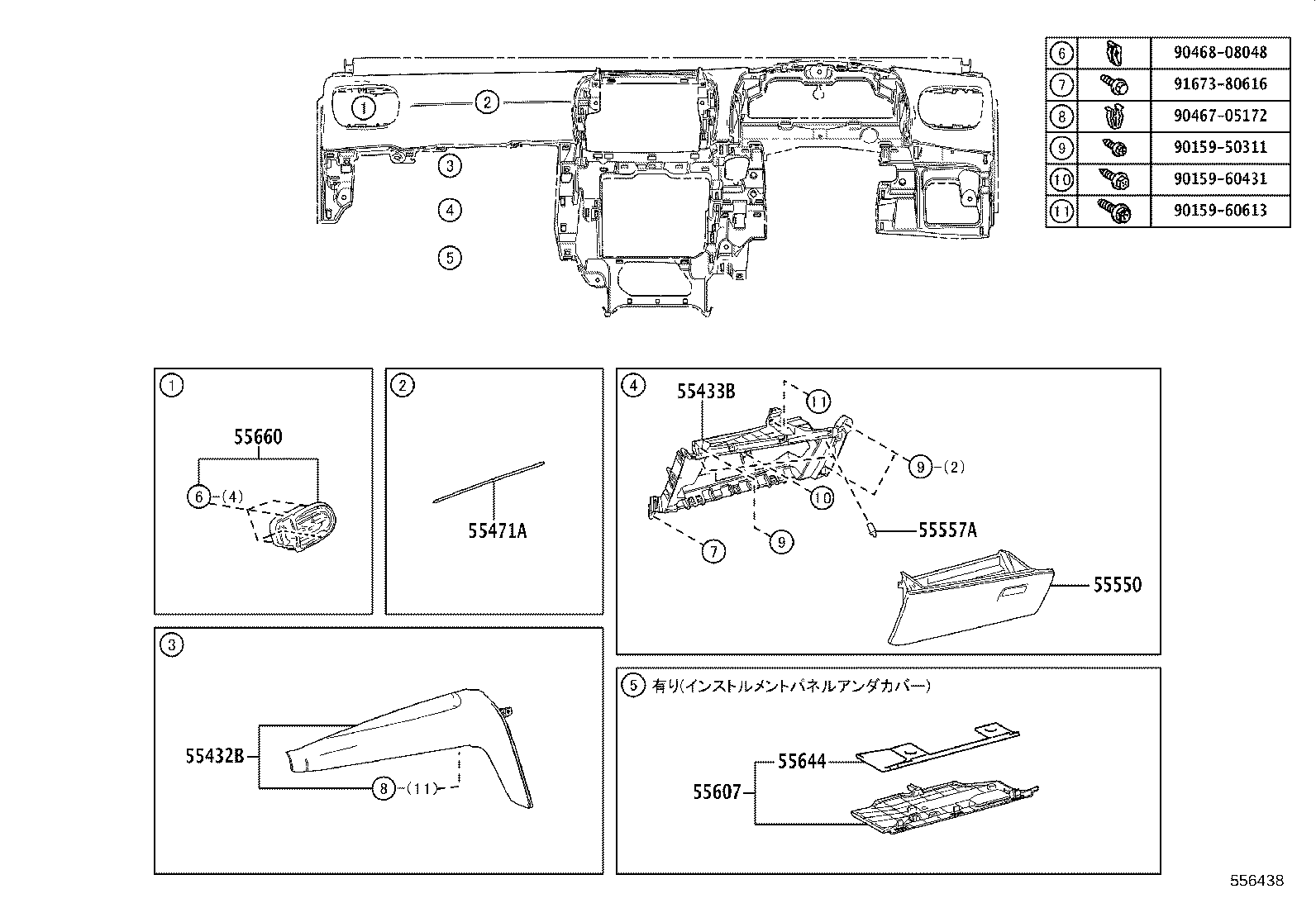

Exploded illustration 556438 55550 — DOOR ASSY, GLOVE COMPARTMENT (14 parts) 55471A — ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL (10 parts) 55557A — CUSHION, GLOVE COMPARTMENT DOOR CHECK (2 parts) 55660 — REGISTER ASSY, INSTRUMENT PANEL, NO.2 (8 parts) 9015950311 — not listed in this catalogue 9015960431 — not listed in this catalogue 9015960613 — not listed in this catalogue 55432B — PANEL, INSTRUMENT PANEL FINISH, LOWER (6 parts) 55433B — PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 (5 parts) 55607 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 (4 parts) 55644 — PAD, INSTRUMENT PANEL UNDER SILENCER, NO.2 (4 parts) 9046808048 — not listed in this catalogue 9167380616 — not listed in this catalogue 9046705172 — not listed in this catalogue
556438 · 8 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
53 parts on this figure
Part number Description Fitment Price
55432B — Panel, Instrument Panel Finish, Lower
55435-52170-C0 note Panel, Instrument Panel Finish, Lower
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥3,890
55435-52170-C0 note Panel, Instrument Panel Finish, Lower
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥3,890
55435-52170-C0 note Panel, Instrument Panel Finish, Lower
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥3,890
55435-52170-E1 note Panel, Instrument Panel Finish, Lower
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥4,280
55435-52170-C0 note Panel, Instrument Panel Finish, Lower
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥3,890
55435-52170-C0 note Panel, Instrument Panel Finish, Lower
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥3,890
55433B — Panel, Instrument Panel Finish, Lower NO.2
55433-K0040-C0 note Panel, Instrument Panel Finish, Lower NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥6,500
55433-K0040-C0 note Panel, Instrument Panel Finish, Lower NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥6,500
55433-K0040-C0 note Panel, Instrument Panel Finish, Lower NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥6,500
55433-K0040-C0 note Panel, Instrument Panel Finish, Lower NO.2
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥6,500
55433-K0040-C0 note Panel, Instrument Panel Finish, Lower NO.2
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥6,500
55471A — Ornament, Instrument Cluster Finish Panel
55471-52140-B0 note Ornament, Instrument Cluster Finish Panel
2020-08 → 2021-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,070
55471-52140-B0 note Ornament, Instrument Cluster Finish Panel
2020-08 → 2021-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,070
55471-52141-B0 note Ornament, Instrument Cluster Finish Panel
2021-02 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,070
55471-52141-B0 note Ornament, Instrument Cluster Finish Panel
2021-02 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,070
55471-52250-B0 note Ornament, Instrument Cluster Finish Panel
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥1,070
55471-K0010-C1 note Ornament, Instrument Cluster Finish Panel
2020-08 → 2021-02 ended
MXPB1#,MXPJ1# HBDX,X ¥480
55471-K0011-C1 note Ornament, Instrument Cluster Finish Panel
2021-03 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥440
55471-52141-B1 note Ornament, Instrument Cluster Finish Panel
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥980
55471-52141-B1 note Ornament, Instrument Cluster Finish Panel
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG ¥980
55471-K0011-C1 note Ornament, Instrument Cluster Finish Panel
2024-01 → —
MXPB1#,MXPJ1# HBDX,U,X ¥440
55550 — Door Assy, Glove Compartment
55550-52400-C0 note Door Assy, Glove Compartment
2023-01 → 2024-01 ended
MXPJ10 GRS,HBDX ¥10,500
55550-52400-C0 note Door Assy, Glove Compartment
2023-01 → 2024-01 ended
MXPJ10 HBDG ¥10,500
55550-52400-C0 note Door Assy, Glove Compartment
2023-01 → 2024-01 ended
MXPJ10 HBDZ ¥10,500
55550-K0010-C0 note Door Assy, Glove Compartment
2020-08 → 2022-10 ended
MXPB1#,MXPJ1# HBDZ,Z ¥11,400
55550-K0010-C0 note Door Assy, Glove Compartment
2020-08 → 2022-10 ended
MXPB1#,MXPJ1# G,HBDG ¥11,400
55550-K0010-C0 note Door Assy, Glove Compartment
2020-08 → 2022-10 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥11,400
55550-K0011-C0 note Door Assy, Glove Compartment
2022-10 → 2024-01 ended
MXPB1#,MXPJ15 HBDZ,Z ¥10,300
55550-K0011-C0 note Door Assy, Glove Compartment
2022-10 → 2024-01 ended
MXPB1#,MXPJ15 GRS,HBDX,X ¥10,300
55550-K0011-C0 note Door Assy, Glove Compartment
2022-10 → 2022-12 ended
MXPJ10 ¥10,300
55550-K0011-C0 note Door Assy, Glove Compartment
2022-10 → 2024-01 ended
MXPB1#,MXPJ15 G,HBDG ¥10,300
55550-52400-C0 note Door Assy, Glove Compartment
2024-01 → —
MXPJ10 HBDZ ¥10,500
55550-52400-C0 note Door Assy, Glove Compartment
2024-01 → —
MXPJ10 GRS,HBDG,HBDX,U ¥10,500
55550-K0011-C0 note Door Assy, Glove Compartment
2024-01 → —
MXPB1#,MXPJ15 HBDZ,Z ¥10,300
55550-K0011-C0 note Door Assy, Glove Compartment
2024-01 → —
MXPB1#,MXPJ15 G,GRS,HBDG,HBDX,U,X ¥10,300
55557A — Cushion, Glove Compartment Door Check
55557-10040 Cushion, Glove Compartment Door Check
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥80
55557-10040 Cushion, Glove Compartment Door Check
2024-01 → —
MXPB1#,MXPJ1# ¥80
55607 — Cover Sub-assy, Instrument Panel Under, NO.2
55607-K0010 Cover Sub-assy, Instrument Panel Under, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,HBDZ,Z ¥2,320
55607-K0010 note Cover Sub-assy, Instrument Panel Under, NO.2
2020-08 → 2024-01 ended
MXPB1# X ¥2,320
55607-K0010 note Cover Sub-assy, Instrument Panel Under, NO.2
2024-01 → —
MXPB1# X ¥2,320
55607-K0010 Cover Sub-assy, Instrument Panel Under, NO.2
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,HBDZ,U,Z ¥2,320
55644 — Pad, Instrument Panel Under Silencer, NO.2
55644-K0030 Pad, Instrument Panel Under Silencer, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,HBDZ,Z ¥230
55644-K0030 note Pad, Instrument Panel Under Silencer, NO.2
2020-08 → 2024-01 ended
MXPB1# X ¥230
55644-K0030 Pad, Instrument Panel Under Silencer, NO.2
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,HBDZ,U,Z ¥230
55644-K0030 note Pad, Instrument Panel Under Silencer, NO.2
2024-01 → —
MXPB1# X ¥230
55660 — Register Assy, Instrument Panel, NO.2
55660-52220-B0 note Register Assy, Instrument Panel, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥3,550
55660-52220-B0 note Register Assy, Instrument Panel, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥3,550
55660-52230-B0 note Register Assy, Instrument Panel, NO.2
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥4,250
55660-K0010-C0 note Register Assy, Instrument Panel, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥3,220
55660-52220-B2 note Register Assy, Instrument Panel, NO.2
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥3,220
55660-52220-B2 note Register Assy, Instrument Panel, NO.2
2024-01 → —
MXPB1#,MXPJ1# G,HBDG ¥3,220
55660-52230-B0 note Register Assy, Instrument Panel, NO.2
2024-01 → —
MXPB10,MXPJ10 GRS ¥4,250
55660-K0010-C0 note Register Assy, Instrument Panel, NO.2
2024-01 → —
MXPB1#,MXPJ1# HBDX,U,X ¥3,220
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
