Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

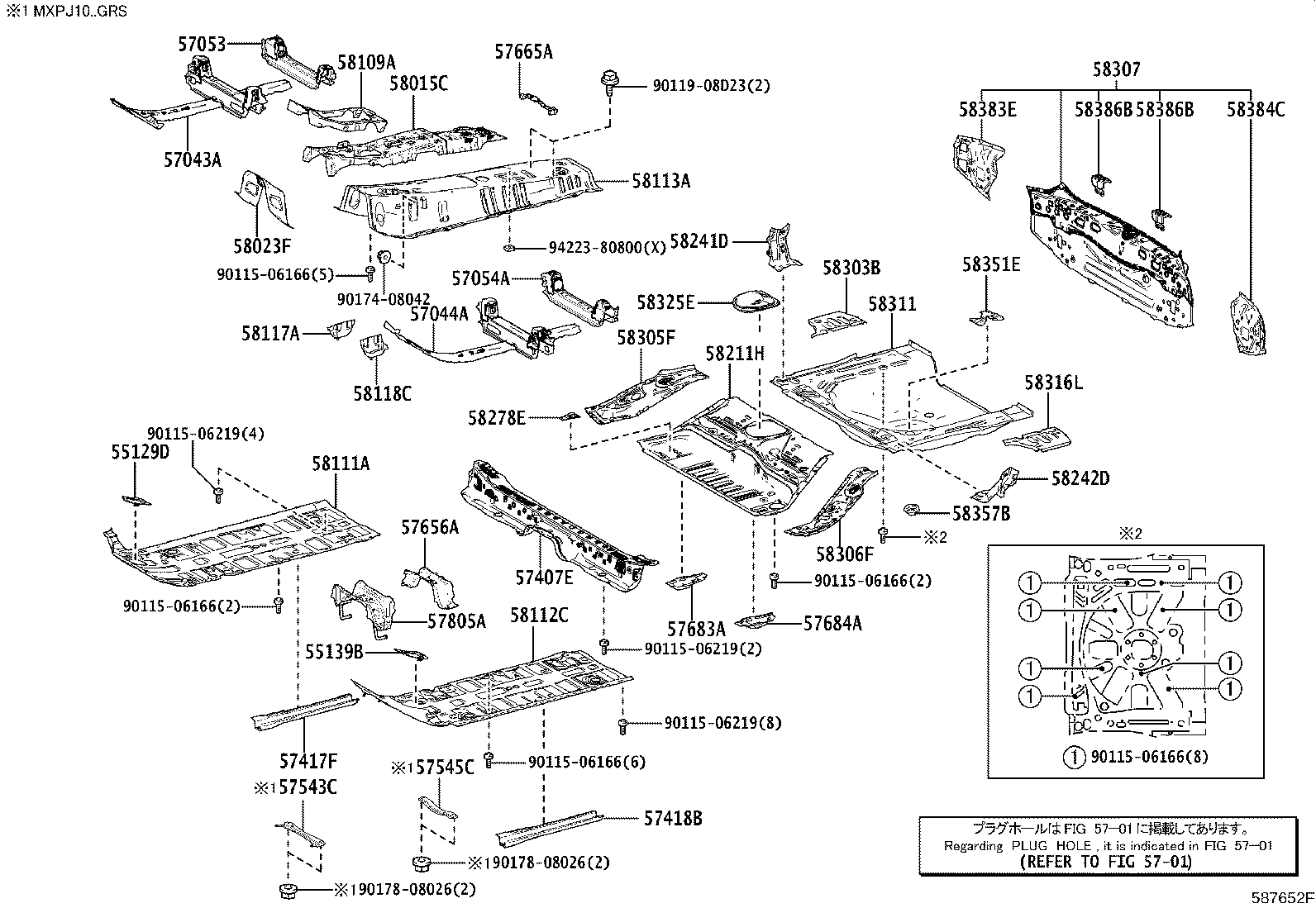

Exploded illustration 587652G 57043A — REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH (2 parts) 57053 — REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH (2 parts) 58015C — PANEL SUB-ASSY, FRONT FLOOR HOUSING (5 parts) 58307 — PANEL SUB-ASSY, BODY LOWER BACK (4 parts) 58386B — BRACKET, REAR BUMPER COVER, NO.2 (2 parts) 58386B — BRACKET, REAR BUMPER COVER, NO.2 (2 parts) 58383E — REINFORCEMENT, BODY LOWER BACK, NO.2 RH (4 parts) 58384C — REINFORCEMENT, BODY LOWER BACK, NO.2 LH (4 parts) 58023F — BRACKET SUB-ASSY, FLEXIBLE HOSE (2 parts) 9011506166 — not listed in this catalogue 9011506166 — not listed in this catalogue 9011506166 — not listed in this catalogue 9011506166 — not listed in this catalogue 9011506219 — not listed in this catalogue 9011506219 — not listed in this catalogue 9011506219 — not listed in this catalogue 9422380800 — not listed in this catalogue 58113A — PANEL, FRONT FLOOR, CENTER (4 parts) 57044A — REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH (2 parts) 57054A — REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH (2 parts) 58117A — REINFORCEMENT, FRONT FLOOR SIDE, RH (4 parts) 58118C — REINFORCEMENT, FRONT FLOOR SIDE, LH (4 parts) 55129D — COVER, DASH PANEL HOLE, RH (3 parts) 55139B — COVER, DASH PANEL HOLE, LH (3 parts) 57407E — MEMBER SUB-ASSY, CENTER FLOOR CROSS (6 parts) 57417F — REINFORCEMENT, FRONT FLOOR UNDER, RH (2 parts) 57418B — REINFORCEMENT, FRONT FLOOR UNDER, LH (2 parts) 57656A — BRACKET, EXHAUST PIPE MOUNTING, NO.1 (6 parts) 57805A — REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1 (4 parts) 58111A — PAN, FRONT FLOOR, RH (2 parts) 58112C — PAN, FRONT FLOOR, LH (2 parts) 58211H — PAN, CENTER FLOOR (6 parts) 58241D — GUSSET, WHEELHOUSE INNER, FRONT RH (2 parts) 58242D — GUSSET, WHEELHOUSE INNER, FRONT LH (2 parts) 58305F — PANEL SUB-ASSY, REAR FLOOR SIDE, RH (5 parts) 58306F — PANEL SUB-ASSY, REAR FLOOR SIDE, LH (5 parts) 58357B — BRACKET, ACTUATOR COVER, NO.3 RH (2 parts) 58311 — PAN, REAR FLOOR (10 parts) 58303B — STEP SUB-ASSY, REAR FLOOR, RH (2 parts) 58316L — EXTENSION, REAR FLOOR SIDE PANEL, REAR (2 parts) 58325E — COVER, REAR FLOOR SERVICE HOLE (6 parts) 58351E — BRACKET, SPARE WHEEL CLAMP (2 parts) 58109A — RETAINER SUB-ASSY, PARKING BRAKE (2 parts) 5701 — not listed in this catalogue 57683A — BRACKET, FUEL TANK MOUNTING, NO.1 (2 parts) 57684A — BRACKET, FUEL TANK MOUNTING, NO.2 (2 parts) 58278E — REINFORCEMENT, SIDE FLOOR, NO.2 (2 parts) 9017408042 — not listed in this catalogue 57543C — BRACE, CENTER FLOOR, NO.1 (2 parts) 57545C — BRACE, CENTER FLOOR, NO.2 (2 parts) 9017808026 — not listed in this catalogue 9017808026 — not listed in this catalogue 9011506166 — not listed in this catalogue 9011908D23 — not listed in this catalogue 57665A — REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2 (1 parts)
587652G · 41 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
128 parts on this figure
Part number Description Fitment Price
55129D — Cover, Dash Panel Hole, RH
55129-52060 Cover, Dash Panel Hole, RH
2022-12 → 2024-01 ended
MXPB1#,MXPJ1# ¥340
55129-K0010 Cover, Dash Panel Hole, RH
2020-08 → 2022-12 ended
MXPB1#,MXPJ1# ¥380
55129-52060 Cover, Dash Panel Hole, RH
2024-01 → —
MXPB1#,MXPJ1# ¥340
55139B — Cover, Dash Panel Hole, LH
55139-52030 Cover, Dash Panel Hole, LH
2022-12 → 2024-01 ended
MXPB1#,MXPJ1# ¥340
55139-K0010 Cover, Dash Panel Hole, LH
2020-08 → 2022-12 ended
MXPB1#,MXPJ1# ¥380
55139-52030 Cover, Dash Panel Hole, LH
2024-01 → —
MXPB1#,MXPJ1# ¥340
57043A — Reinforcement Sub-assy, Front Side Member, Rear RH
57043-52070 Reinforcement Sub-assy, Front Side Member, Rear RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥10,200
57043-52070 Reinforcement Sub-assy, Front Side Member, Rear RH
2024-01 → —
MXPB1#,MXPJ1# ¥10,200
57044A — Reinforcement Sub-assy, Front Side Member, Rear LH
57044-52080 Reinforcement Sub-assy, Front Side Member, Rear LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥10,300
57044-52080 Reinforcement Sub-assy, Front Side Member, Rear LH
2024-01 → —
MXPB1#,MXPJ1# ¥10,300
57053 — Reinforcement Sub-assy, Front Floor Crossmember, RH
57053-K0010 Reinforcement Sub-assy, Front Floor Crossmember, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥6,400
57053-K0010 Reinforcement Sub-assy, Front Floor Crossmember, RH
2024-01 → —
MXPB1#,MXPJ1# ¥6,400
57054A — Reinforcement Sub-assy, Front Floor Crossmember, LH
57054-K0010 Reinforcement Sub-assy, Front Floor Crossmember, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥6,600
57054-K0010 Reinforcement Sub-assy, Front Floor Crossmember, LH
2024-01 → —
MXPB1#,MXPJ1# ¥6,600
57407E — Member Sub-assy, Center Floor Cross
57407-K0010 Member Sub-assy, Center Floor Cross
2020-08 → 2024-01 ended
MXPB10 ¥11,400
57407-K0020 Member Sub-assy, Center Floor Cross
2020-08 → 2024-01 ended
MXPJ1# ¥13,100
57407-K0030 Member Sub-assy, Center Floor Cross
2020-08 → 2024-01 ended
MXPB15 ¥9,800
57407-K0010 Member Sub-assy, Center Floor Cross
2024-01 → —
MXPB10 ¥11,400
57407-K0020 Member Sub-assy, Center Floor Cross
2024-01 → —
MXPJ1# ¥13,100
57407-K0030 Member Sub-assy, Center Floor Cross
2024-01 → —
MXPB15 ¥9,800
57417F — Reinforcement, Front Floor Under, RH
57417-K0010 Reinforcement, Front Floor Under, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,700
57417-K0010 Reinforcement, Front Floor Under, RH
2024-01 → —
MXPB1#,MXPJ1# ¥2,700
57418B — Reinforcement, Front Floor Under, LH
57417-K0010 Reinforcement, Front Floor Under, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,700
57417-K0010 Reinforcement, Front Floor Under, LH
2024-01 → —
MXPB1#,MXPJ1# ¥2,700
57543C — Brace, Center Floor, NO.1
57543-K0010 Brace, Center Floor, NO.1
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥1,450
57543-K0010 Brace, Center Floor, NO.1
2024-01 → —
MXPB10,MXPJ10 GRS ¥1,450
57545C — Brace, Center Floor, NO.2
57545-0D020 Brace, Center Floor, NO.2
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥1,320
57545-52010 Brace, Center Floor, NO.2
2024-01 → —
MXPB10,MXPJ10 GRS ¥1,450
57656A — Bracket, Exhaust Pipe Mounting, NO.1
57656-0D150 Bracket, Exhaust Pipe Mounting, NO.1
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥3,280
57656-K0020 Bracket, Exhaust Pipe Mounting, NO.1
2020-08 → 2024-01 ended
MXPB15 ¥4,210
57656-K0030 Bracket, Exhaust Pipe Mounting, NO.1
2020-08 → 2024-01 ended
MXPB10,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥3,080
57656-0D150 Bracket, Exhaust Pipe Mounting, NO.1
2024-01 → —
MXPB10,MXPJ10 GRS ¥3,280
57656-K0020 Bracket, Exhaust Pipe Mounting, NO.1
2024-01 → —
MXPB15 ¥4,210
57656-K0030 Bracket, Exhaust Pipe Mounting, NO.1
2024-01 → —
MXPB10,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥3,080
57665A — Reinforcement, Rear Floor Crossmember, NO.2
57665-K0010 Reinforcement, Rear Floor Crossmember, NO.2
2024-01 → —
MXPB10,MXPJ1# G,GRS,HBDG,HBDZ,Z —
57683A — Bracket, Fuel Tank Mounting, NO.1
57683-K0020 Bracket, Fuel Tank Mounting, NO.1
2020-08 → 2024-01 ended
MXPJ1# ¥1,320
57683-K0020 Bracket, Fuel Tank Mounting, NO.1
2024-01 → —
MXPJ1# ¥1,320
57684A — Bracket, Fuel Tank Mounting, NO.2
57684-K0020 Bracket, Fuel Tank Mounting, NO.2
2020-08 → 2024-01 ended
MXPJ1# ¥1,320
57684-K0020 Bracket, Fuel Tank Mounting, NO.2
2024-01 → —
MXPJ1# ¥1,320
57805A — Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.1
57805-K0020 Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.1
2020-08 → 2024-01 ended
MXPB15 ¥4,210
57805-K0030 Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.1
2020-08 → 2024-01 ended
MXPB10,MXPJ1# ¥2,800
57805-K0020 Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.1
2024-01 → —
MXPB15 ¥4,210
57805-K0030 Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.1
2024-01 → —
MXPB10,MXPJ1# ¥2,800
58015C — Panel Sub-assy, Front Floor Housing
58015-K0010 Panel Sub-assy, Front Floor Housing
2020-08 → 2024-01 ended
MXPB10,MXPJ1# ¥6,500
58015-K0020 Panel Sub-assy, Front Floor Housing
2020-08 → 2024-01 ended
MXPB15 ¥6,500
58015-52150 Panel Sub-assy, Front Floor Housing
2024-01 → —
MXPB10,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥8,500
58015-K0010 Panel Sub-assy, Front Floor Housing
2024-01 → —
MXPB10,MXPJ1# HBDX,U,X ¥6,500
58015-K0020 Panel Sub-assy, Front Floor Housing
2024-01 → —
MXPB15 ¥6,500
58023F — Bracket Sub-assy, Flexible Hose
58023-K0010 Bracket Sub-assy, Flexible Hose
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,560
58023-K0010 Bracket Sub-assy, Flexible Hose
2024-01 → —
MXPB1#,MXPJ1# ¥2,560
58109A — Retainer Sub-assy, Parking Brake
58109-52020 Retainer Sub-assy, Parking Brake
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥4,060
58109-52020 Retainer Sub-assy, Parking Brake
2024-01 → —
MXPB1#,MXPJ1# ¥4,060
58111A — Pan, Front Floor, RH
58111-K0010 Pan, Front Floor, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥11,400
58111-K0010 Pan, Front Floor, RH
2024-01 → —
MXPB1#,MXPJ1# ¥11,400
58112C — Pan, Front Floor, LH
58112-K0010 Pan, Front Floor, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥11,400
58112-K0010 Pan, Front Floor, LH
2024-01 → —
MXPB1#,MXPJ1# ¥11,400
58113A — Panel, Front Floor, Center
58113-52260 Panel, Front Floor, Center
2020-08 → 2024-01 ended
MXPB15 ¥19,100
58113-52300 Panel, Front Floor, Center
2020-08 → 2024-01 ended
MXPB10,MXPJ1# ¥19,100
58113-52460 Panel, Front Floor, Center
2024-01 → —
MXPB10,MXPJ1# —
58113-52500 Panel, Front Floor, Center
2024-01 → —
MXPB15 —
58117A — Reinforcement, Front Floor Side, RH
58117-52090 Reinforcement, Front Floor Side, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥1,090
58117-52100 Reinforcement, Front Floor Side, RH
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥1,090
58117-52090 Reinforcement, Front Floor Side, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥1,090
58117-52100 Reinforcement, Front Floor Side, RH
2024-01 → —
MXPB10,MXPJ10 GRS ¥1,090
58118C — Reinforcement, Front Floor Side, LH
58118-52040 Reinforcement, Front Floor Side, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥1,090
58118-52060 Reinforcement, Front Floor Side, LH
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥1,090
58118-52040 Reinforcement, Front Floor Side, LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥1,090
58118-52060 Reinforcement, Front Floor Side, LH
2024-01 → —
MXPB10,MXPJ10 GRS ¥1,090
58211H — Pan, Center Floor
58211-K0010 Pan, Center Floor
2020-08 → 2024-01 ended
MXPB10 ¥8,500
58211-K0020 Pan, Center Floor
2020-08 → 2024-01 ended
MXPJ1# ¥8,500
58211-K0030 Pan, Center Floor
2020-08 → 2024-01 ended
MXPB15 ¥8,500
58211-K0010 Pan, Center Floor
2024-01 → —
MXPB10 ¥8,500
58211-K0020 Pan, Center Floor
2024-01 → —
MXPJ1# ¥8,500
58211-K0030 Pan, Center Floor
2024-01 → —
MXPB15 ¥8,500
58241D — Gusset, Wheelhouse Inner, Front RH
58241-52050 Gusset, Wheelhouse Inner, Front RH
2020-08 → 2024-01 ended
MXPB10,MXPJ10 ¥2,000
58241-52050 Gusset, Wheelhouse Inner, Front RH
2024-01 → —
MXPB10,MXPJ10 ¥2,000
58242D — Gusset, Wheelhouse Inner, Front LH
58242-52040 Gusset, Wheelhouse Inner, Front LH
2020-08 → 2024-01 ended
MXPB10,MXPJ10 ¥2,050
58242-52040 Gusset, Wheelhouse Inner, Front LH
2024-01 → —
MXPB10,MXPJ10 ¥2,050
58278E — Reinforcement, Side Floor, NO.2
58278-K0010 Reinforcement, Side Floor, NO.2
2020-08 → 2024-01 ended
MXPJ1# ¥530
58278-K0010 Reinforcement, Side Floor, NO.2
2024-01 → —
MXPJ1# ¥530
58303B — Step Sub-assy, Rear Floor, RH
58303-52050 Step Sub-assy, Rear Floor, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,110
58303-52050 Step Sub-assy, Rear Floor, RH
2024-01 → —
MXPB1#,MXPJ1# ¥2,110
58305F — Panel Sub-assy, Rear Floor Side, RH
58305-52120 Panel Sub-assy, Rear Floor Side, RH
2023-01 → 2024-01 ended
MXPJ1# ¥3,120
58305-K0010 Panel Sub-assy, Rear Floor Side, RH
2020-08 → 2024-01 ended
MXPB1# ¥2,900
58305-K0020 Panel Sub-assy, Rear Floor Side, RH
2020-08 → 2023-01 ended
MXPJ1# ¥3,440
58305-52120 Panel Sub-assy, Rear Floor Side, RH
2024-01 → —
MXPJ1# ¥3,120
58305-K0010 Panel Sub-assy, Rear Floor Side, RH
2024-01 → —
MXPB1# ¥2,900
58306F — Panel Sub-assy, Rear Floor Side, LH
58306-52160 Panel Sub-assy, Rear Floor Side, LH
2023-01 → 2024-01 ended
MXPJ1# ¥3,120
58306-K0010 Panel Sub-assy, Rear Floor Side, LH
2020-08 → 2024-01 ended
MXPB1# ¥2,900
58306-K0020 Panel Sub-assy, Rear Floor Side, LH
2020-08 → 2023-01 ended
MXPJ1# ¥3,440
58306-52160 Panel Sub-assy, Rear Floor Side, LH
2024-01 → —
MXPJ1# ¥3,120
58306-K0010 Panel Sub-assy, Rear Floor Side, LH
2024-01 → —
MXPB1# ¥2,900
58307 — Panel Sub-assy, Body Lower Back
58307-52710 Panel Sub-assy, Body Lower Back
2020-08 → 2024-01 ended
MXPB1#,MXPJ10 ¥13,800
58307-52750 Panel Sub-assy, Body Lower Back
2020-08 → 2024-01 ended
MXPJ15 ¥13,800
58307-52710 Panel Sub-assy, Body Lower Back
2024-01 → —
MXPB1#,MXPJ10 ¥13,800
58307-52750 Panel Sub-assy, Body Lower Back
2024-01 → —
MXPJ15 ¥13,800
58311 — Pan, Rear Floor
58311-52290 Pan, Rear Floor
2020-08 → 2024-01 ended
MXPJ15 ¥19,100
58311-52310 Pan, Rear Floor
2020-08 → 2022-06 ended
MXPB10,MXPJ10 ¥22,200
58311-52311 Pan, Rear Floor
2022-06 → 2024-01 ended
MXPB10,MXPJ10 ¥22,300
58311-52320 Pan, Rear Floor
2020-08 → 2024-01 ended
MXPB15 ¥19,100
58311-52290 Pan, Rear Floor
2024-01 → 2024-09 ended
MXPJ15 ¥19,100
58311-52291 Pan, Rear Floor
2024-09 → —
MXPJ15 ¥17,300
58311-52311 Pan, Rear Floor
2024-01 → 2024-09 ended
MXPB10,MXPJ10 ¥22,300
58311-52312 Pan, Rear Floor
2024-09 → —
MXPB10,MXPJ10 ¥20,200
58311-52320 Pan, Rear Floor
2024-01 → 2024-09 ended
MXPB15 ¥19,100
58311-52321 Pan, Rear Floor
2024-09 → —
MXPB15 ¥17,300
58316L — Extension, Rear Floor Side Panel, Rear
58316-52230 Extension, Rear Floor Side Panel, Rear
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,300
58316-52230 Extension, Rear Floor Side Panel, Rear
2024-01 → —
MXPB1#,MXPJ1# ¥1,300
58325E — Cover, Rear Floor Service Hole
58325-K0010 Cover, Rear Floor Service Hole
2020-08 → 2024-01 ended
MXPB10 ¥1,290
58325-K0020 Cover, Rear Floor Service Hole
2020-08 → 2024-01 ended
MXPJ1# ¥1,320
58325-K0030 Cover, Rear Floor Service Hole
2020-08 → 2024-01 ended
MXPB15 ¥1,250
58325-K0010 Cover, Rear Floor Service Hole
2024-01 → —
MXPB10 ¥1,290
58325-K0020 Cover, Rear Floor Service Hole
2024-01 → —
MXPJ1# ¥1,320
58325-K0030 Cover, Rear Floor Service Hole
2024-01 → —
MXPB15 ¥1,250
58351E — Bracket, Spare Wheel Clamp
58351-12060 Bracket, Spare Wheel Clamp
2020-08 → 2024-01 ended
MXPB1#,MXPJ10 ¥500
58351-12060 Bracket, Spare Wheel Clamp
2024-01 → —
MXPB1#,MXPJ10 ¥500
58357B — Bracket, Actuator Cover, NO.3 RH
58357-52090 Bracket, Actuator Cover, NO.3 RH
2020-08 → 2024-01 ended
MXPB10,MXPJ10 ¥500
58357-52090 Bracket, Actuator Cover, NO.3 RH
2024-01 → —
MXPB10,MXPJ10 ¥500
58383E — Reinforcement, Body Lower Back, NO.2 RH
58383-52080 Reinforcement, Body Lower Back, NO.2 RH
2020-08 → 2024-01 ended
MXPJ15 ¥2,210
58383-52090 Reinforcement, Body Lower Back, NO.2 RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ10 ¥2,360
58383-52080 Reinforcement, Body Lower Back, NO.2 RH
2024-01 → —
MXPJ15 ¥2,210
58383-52090 Reinforcement, Body Lower Back, NO.2 RH
2024-01 → —
MXPB1#,MXPJ10 ¥2,360
58384C — Reinforcement, Body Lower Back, NO.2 LH
58384-52190 Reinforcement, Body Lower Back, NO.2 LH
2020-08 → 2024-01 ended
MXPJ15 ¥2,150
58384-52200 Reinforcement, Body Lower Back, NO.2 LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ10 ¥2,320
58384-52190 Reinforcement, Body Lower Back, NO.2 LH
2024-01 → —
MXPJ15 ¥2,150
58384-52200 Reinforcement, Body Lower Back, NO.2 LH
2024-01 → —
MXPB1#,MXPJ10 ¥2,320
58386B — Bracket, Rear Bumper Cover, NO.2
58386-47020 Bracket, Rear Bumper Cover, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥400
58386-47020 Bracket, Rear Bumper Cover, NO.2
2024-01 → —
MXPB1#,MXPJ1# ¥400
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
