Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01

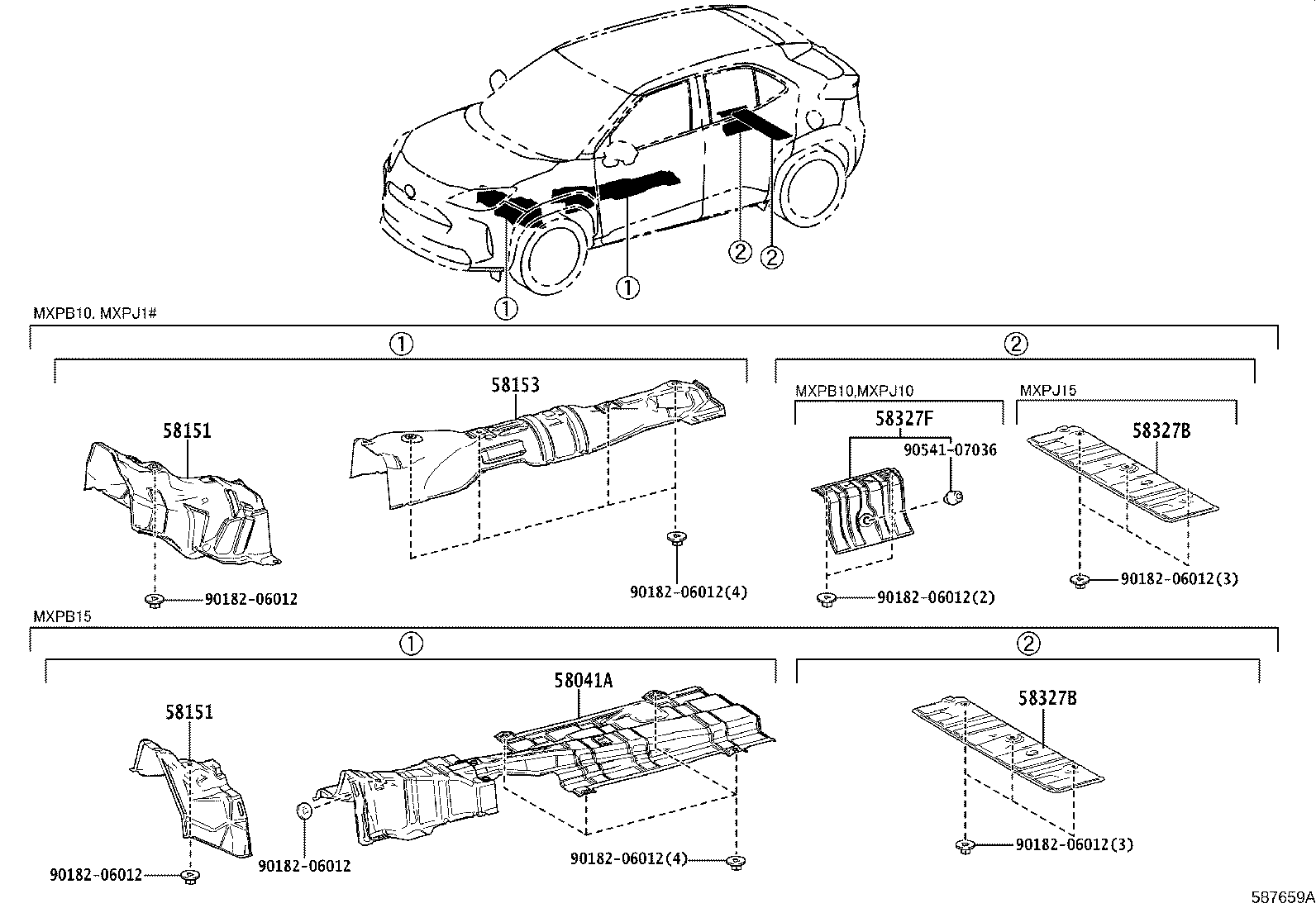

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

14 parts on this figure

Part number	Description	Fitment	Price
58041A — Insulator Sub-assy, Front Floor Heat, NO.1
58041-52040	Insulator Sub-assy, Front Floor Heat, NO.1 2020-08 → 2024-01 ended	MXPB15	¥5,500
58041-52040	Insulator Sub-assy, Front Floor Heat, NO.1 2024-01 → —	MXPB15	¥5,500
58151 — Insulator, Front Floor Heat, NO.1
58151-K0010	Insulator, Front Floor Heat, NO.1 2022-08 → 2024-01 ended	MXPB10,MXPJ10 GRS	¥2,840
58151-K0030	Insulator, Front Floor Heat, NO.1 2020-08 → 2024-01 ended	MXPB15	¥1,780
58151-K0040	Insulator, Front Floor Heat, NO.1 2020-08 → 2024-01 ended	MXPB10,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z	¥2,840
58151-K0010	Insulator, Front Floor Heat, NO.1 2024-01 → —	MXPB10,MXPJ10 GRS	¥2,840
58151-K0030	Insulator, Front Floor Heat, NO.1 2024-01 → —	MXPB15	¥1,780
58151-K0040	Insulator, Front Floor Heat, NO.1 2024-01 → —	MXPB10,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z	¥2,840
58153 — Insulator, Front Floor Heat, NO.2
58153-K0040	Insulator, Front Floor Heat, NO.2 2020-08 → 2024-01 ended	MXPB10,MXPJ1#	¥4,260
58153-52200	Insulator, Front Floor Heat, NO.2 2024-01 → —	MXPB10,MXPJ1#	¥3,870
58327B — Insulator, Main Muffler Heat
58327-K0020	Insulator, Main Muffler Heat 2020-08 → 2024-01 ended	MXPB15,MXPJ15	¥2,030
58327-K0020	Insulator, Main Muffler Heat 2024-01 → —	MXPB15,MXPJ15	¥2,030
58327F — Insulator, Main Muffler Heat, RH
58327-52170	Insulator, Main Muffler Heat, RH 2020-08 → 2024-01 ended	MXPB10,MXPJ10	¥1,280
58327-52170	Insulator, Main Muffler Heat, RH 2024-01 → —	MXPB10,MXPJ10	¥1,280

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
