Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

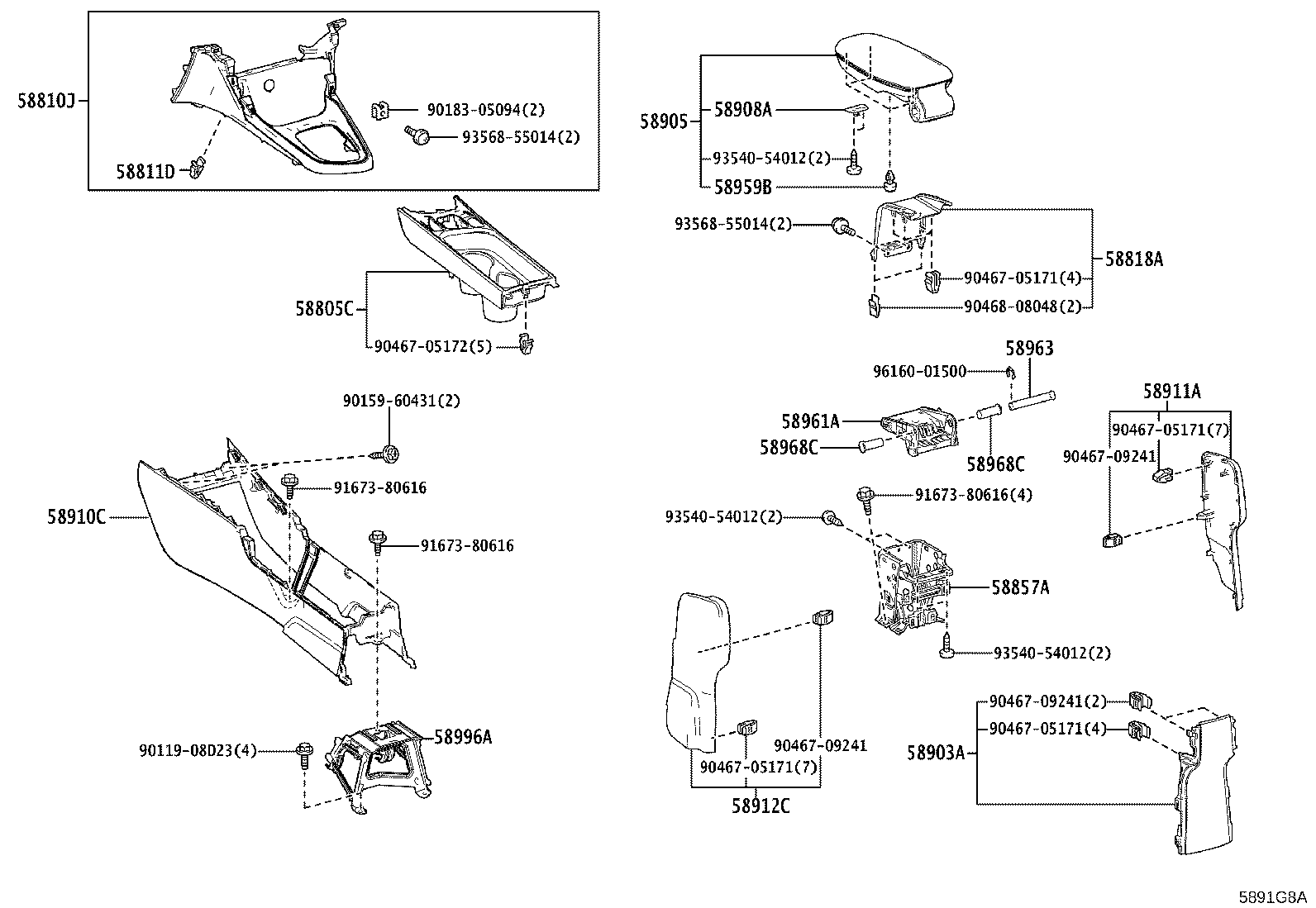

Exploded illustration 5891G8A 58912C — PANEL, BOX SIDE, NO.2 (2 parts) 58903A — PANEL SUB-ASSY, CONSOLE REAR END (10 parts) 9046705171 — not listed in this catalogue 9046709241 — not listed in this catalogue 9046705171 — not listed in this catalogue 9046709241 — not listed in this catalogue 58911A — PANEL, BOX SIDE, NO.1 (2 parts) 58959B — CUSHION, CONSOLE COMPARTMENT DOOR (1 parts) 58908A — LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR (1 parts) 58905 — DOOR SUB-ASSY, CONSOLE COMPARTMENT (1 parts) 58818A — COVER, CONSOLE BOX, FR (1 parts) 58857A — BRACKET, CONSOLE SUPPORT, UPPER NO.1 (1 parts) 58961A — HINGE, CONSOLE COMPARTMENT DOOR MALE (1 parts) 9046705171 — not listed in this catalogue 9354054012 — not listed in this catalogue 9356855014 — not listed in this catalogue 9046705171 — not listed in this catalogue 9046808048 — not listed in this catalogue 9046709241 — not listed in this catalogue 58910C — BOX ASSY, CONSOLE, REAR (5 parts) 58996A — BRACKET, CONSOLE BOX MOUNTING, NO.2 (6 parts) 58805C — PANEL SUB-ASSY, CONSOLE, UPPER REAR (10 parts) 9015960431 — not listed in this catalogue 9167380616 — not listed in this catalogue 9046705172 — not listed in this catalogue 9167380616 — not listed in this catalogue 9011908D23 — not listed in this catalogue 58811D — CLIP(FOR CONSOLE BOX) (2 parts) 58810J — BOX ASSY, CONSOLE (10 parts) 9356855014 — not listed in this catalogue 9018305094 — not listed in this catalogue 9167380616 — not listed in this catalogue 9354054012 — not listed in this catalogue 9354054012 — not listed in this catalogue 58968C — SHIM, CONSOLE COMPARTMENT DOOR STOPPER (1 parts) 58968C — SHIM, CONSOLE COMPARTMENT DOOR STOPPER (1 parts) 9616001500 — not listed in this catalogue 58963 — SHAFT, CONSOLE COMPARTMENT DOOR HINGE (1 parts)
5891G8A · 17 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
55 parts on this figure
Part number Description Fitment Price
58805C — Panel Sub-assy, Console, Upper Rear
58805-52040-C0 note Panel Sub-assy, Console, Upper Rear
2020-08 → 2024-01 ended
MXPB10,MXPJ10 G,HBDG ¥4,370
58805-52040-C0 note Panel Sub-assy, Console, Upper Rear
2020-08 → 2024-01 ended
MXPB10,MXPJ10 GRS,HBDX,X ¥4,370
58805-52040-C0 note Panel Sub-assy, Console, Upper Rear
2020-08 → 2024-01 ended
MXPB10,MXPJ10 HBDZ,Z ¥4,370
58805-52050-C0 note Panel Sub-assy, Console, Upper Rear
2020-08 → 2024-01 ended
MXPB15,MXPJ15 HBDZ,Z ¥4,370
58805-52050-C0 note Panel Sub-assy, Console, Upper Rear
2020-08 → 2024-01 ended
MXPB15,MXPJ15 HBDX,X ¥4,370
58805-52050-C0 note Panel Sub-assy, Console, Upper Rear
2020-08 → 2024-01 ended
MXPB15,MXPJ15 G,HBDG ¥4,370
58805-52040-C0 note Panel Sub-assy, Console, Upper Rear
2024-01 → —
MXPB10,MXPJ10 HBDZ,Z ¥4,370
58805-52040-C0 note Panel Sub-assy, Console, Upper Rear
2024-01 → —
MXPB10,MXPJ10 G,GRS,HBDG,HBDX,U,X ¥4,370
58805-52050-C0 note Panel Sub-assy, Console, Upper Rear
2024-01 → —
MXPB15,MXPJ15 HBDZ,Z ¥4,370
58805-52050-C0 note Panel Sub-assy, Console, Upper Rear
2024-01 → —
MXPB15,MXPJ15 G,HBDG,HBDX,U,X ¥4,370
58810J — Box Assy, Console
58810-52020-B0 note Box Assy, Console
2020-08 → 2022-05 ended
MXPB1#,MXPJ1# HBDZ,Z ¥11,900
58810-52020-B0 note Box Assy, Console
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥11,900
58810-52020-B0 note Box Assy, Console
2022-05 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥11,900
58810-52020-C0 note Box Assy, Console
2022-05 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥11,900
58810-52020-C0 note Box Assy, Console
2022-05 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥11,900
58810-52020-C1 note Box Assy, Console
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥10,800
58810-52150-B0 note Box Assy, Console
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥10,800
58810-52020-C1 note Box Assy, Console
2024-01 → —
MXPB1#,MXPJ1# HBDX,U,X ¥10,800
58810-52150-B0 note Box Assy, Console
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥10,800
58810-52150-B0 note Box Assy, Console
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG ¥10,800
58811D — Clip(FOR CONSOLE BOX)
90467-05172 Clip(FOR CONSOLE BOX)
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥60
90467-05172 Clip(FOR CONSOLE BOX)
2024-01 → —
MXPB1#,MXPJ1# ¥60
58818A — Cover, Console Box, FR
58818-52080 Cover, Console Box, FR
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥1,390
58857A — Bracket, Console Support, Upper NO.1
58857-52020 Bracket, Console Support, Upper NO.1
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥2,710
58903A — Panel Sub-assy, Console Rear End
58903-K0010-C0 note Panel Sub-assy, Console Rear End
2020-08 → 2024-01 ended
MXPB10,MXPJ1# HBDZ,Z ¥3,410
58903-K0010-C0 note Panel Sub-assy, Console Rear End
2020-08 → 2024-01 ended
MXPB10,MXPJ1# G,HBDG ¥3,410
58903-K0010-C0 note Panel Sub-assy, Console Rear End
2020-08 → 2024-01 ended
MXPB10,MXPJ1# GRS,HBDX,X ¥3,410
58903-K0020-C0 note Panel Sub-assy, Console Rear End
2020-08 → 2024-01 ended
MXPB15 X ¥2,920
58903-K0020-C0 note Panel Sub-assy, Console Rear End
2020-08 → 2024-01 ended
MXPB15 G ¥2,920
58903-K0020-C0 note Panel Sub-assy, Console Rear End
2020-08 → 2024-01 ended
MXPB15 Z ¥2,920
58903-52130 Panel Sub-assy, Console Rear End
2024-01 → —
MXPB10,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥2,430
58903-52140 Panel Sub-assy, Console Rear End
2024-01 → —
MXPB15 G,Z ¥2,430
58903-K0010-C0 note Panel Sub-assy, Console Rear End
2024-01 → —
MXPB10,MXPJ1# HBDX,U,X ¥3,410
58903-K0020-C0 note Panel Sub-assy, Console Rear End
2024-01 → —
MXPB15 X ¥2,920
58905 — Door Sub-assy, Console Compartment
58905-52140 Door Sub-assy, Console Compartment
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥14,200
58908A — Lock Sub-assy, Console Compartment Door
58908-12080 Lock Sub-assy, Console Compartment Door
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥970
58910C — Box Assy, Console, Rear
58910-K0010-C0 note Box Assy, Console, Rear
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥6,500
58910-K0010-C0 note Box Assy, Console, Rear
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥6,500
58910-K0010-C0 note Box Assy, Console, Rear
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥6,500
58910-K0010-C0 note Box Assy, Console, Rear
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥6,500
58910-K0010-C0 note Box Assy, Console, Rear
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥6,500
58911A — Panel, Box Side, NO.1
58911-52320 Panel, Box Side, NO.1
2024-01 → —
MXPB10,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥2,430
58911-52330 Panel, Box Side, NO.1
2024-01 → —
MXPB15 G,Z ¥2,430
58912C — Panel, Box Side, NO.2
58912-52100 Panel, Box Side, NO.2
2024-01 → —
MXPB10,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥2,430
58912-52110 Panel, Box Side, NO.2
2024-01 → —
MXPB15 G,Z ¥2,430
58959B — Cushion, Console Compartment Door
58959-60060 Cushion, Console Compartment Door
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥100
58961A — Hinge, Console Compartment Door Male
58961-52060 Hinge, Console Compartment Door Male
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥2,290
58963 — Shaft, Console Compartment Door Hinge
58963-K0020 Shaft, Console Compartment Door Hinge
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥900
58968C — Shim, Console Compartment Door Stopper
58968-52040 Shim, Console Compartment Door Stopper
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥270
58996A — Bracket, Console Box Mounting, NO.2
58996-K0010 Bracket, Console Box Mounting, NO.2
2020-08 → 2024-01 ended
MXPB10,MXPJ1# ¥1,080
58996-K0020 Bracket, Console Box Mounting, NO.2
2020-08 → 2024-01 ended
MXPB15 ¥760
58996-52120 Bracket, Console Box Mounting, NO.2
2024-01 → —
MXPB15 G,Z ¥1,660
58996-K0010 Bracket, Console Box Mounting, NO.2
2024-01 → —
MXPB10,MXPJ1# HBDX,U,X ¥1,080
58996-K0020 Bracket, Console Box Mounting, NO.2
2024-01 → —
MXPB15 X ¥760
58996-K0110 Bracket, Console Box Mounting, NO.2
2024-01 → —
MXPB10,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥2,340
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
