Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

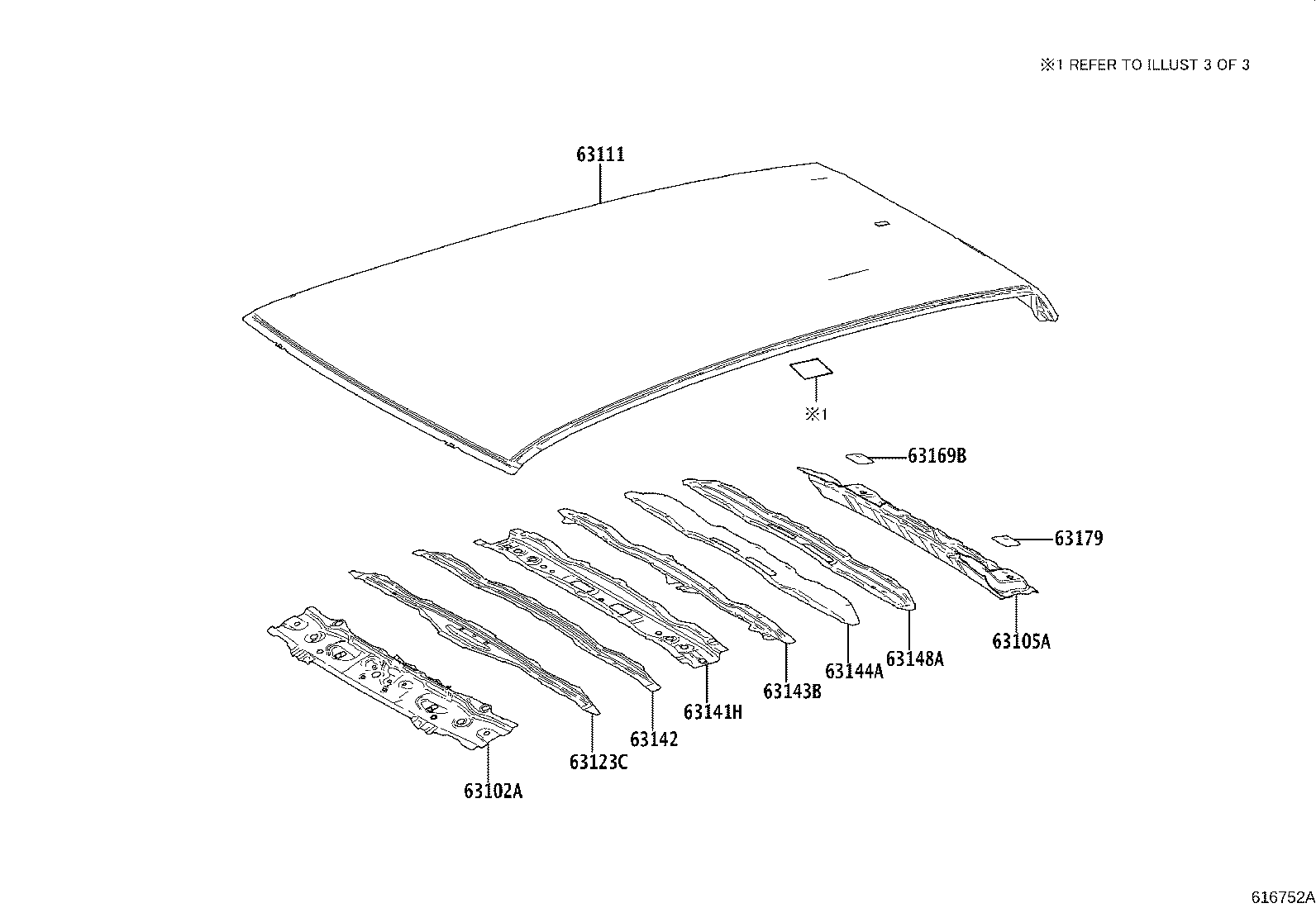

Exploded illustration 616752A 63111 — PANEL, ROOF (6 parts) 63102A — PANEL SUB-ASSY, WINDSHIELD HEADER (3 parts) 63123C — REINFORCEMENT, ROOF PANEL (3 parts) 63142 — REINFORCEMENT, ROOF PANEL, NO.2 (3 parts) 63141H — REINFORCEMENT, ROOF PANEL, CENTER (3 parts) 63143B — REINFORCEMENT, ROOF PANEL, NO.3 (3 parts) 63144A — REINFORCEMENT, ROOF PANEL, NO.4 (3 parts) 63148A — REINFORCEMENT, ROOF PANEL, NO.7 (3 parts) 63105A — FRAME SUB-ASSY, BACK DOOR OPENING (3 parts) 63179 — PLATE, ROOF PANEL REINFORCEMENT, LH (3 parts) 63169B — PLATE, ROOF PANEL REINFORCEMENT, RH (3 parts)
616752A · 11 callouts Full size ↗
36 parts on this figure
Part number Description Fitment Price
63102A — Panel Sub-assy, Windshield Header
63102-52270 note Panel Sub-assy, Windshield Header
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥3,100
63102-52270 Panel Sub-assy, Windshield Header
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥3,100
63102-52270 Panel Sub-assy, Windshield Header
2024-01 → —
MXPB1#,MXPJ1# ¥3,100
63105A — Frame Sub-assy, Back Door Opening
63105-52230 Frame Sub-assy, Back Door Opening
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥5,100
63105-52230 note Frame Sub-assy, Back Door Opening
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥5,100
63105-52230 Frame Sub-assy, Back Door Opening
2024-01 → —
MXPB1#,MXPJ1# ¥5,100
63111 — Panel, Roof
63111-52480 Panel, Roof
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥26,900
63111-52490 note Panel, Roof
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥26,900
63111-52490 note Panel, Roof
2022-05 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG ¥26,900
63111-52490 note Panel, Roof
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥26,900
63111-52480 Panel, Roof
2024-01 → —
MXPB1#,MXPJ1# ¥26,900
63111-52490 note Panel, Roof
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥26,900
63123C — Reinforcement, Roof Panel
63123-52030 Reinforcement, Roof Panel
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,420
63123-52030 note Reinforcement, Roof Panel
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,420
63123-52030 Reinforcement, Roof Panel
2024-01 → —
MXPB1#,MXPJ1# ¥1,420
63141H — Reinforcement, Roof Panel, Center
63141-52210 Reinforcement, Roof Panel, Center
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥3,320
63141-52210 note Reinforcement, Roof Panel, Center
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥3,320
63141-52210 Reinforcement, Roof Panel, Center
2024-01 → —
MXPB1#,MXPJ1# ¥3,320
63142 — Reinforcement, Roof Panel, NO.2
63142-52120 Reinforcement, Roof Panel, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,420
63142-52120 note Reinforcement, Roof Panel, NO.2
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,420
63142-52120 Reinforcement, Roof Panel, NO.2
2024-01 → —
MXPB1#,MXPJ1# ¥1,420
63143B — Reinforcement, Roof Panel, NO.3
63143-52230 Reinforcement, Roof Panel, NO.3
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,420
63143-52230 note Reinforcement, Roof Panel, NO.3
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,420
63143-52230 Reinforcement, Roof Panel, NO.3
2024-01 → —
MXPB1#,MXPJ1# ¥1,420
63144A — Reinforcement, Roof Panel, NO.4
63144-52180 Reinforcement, Roof Panel, NO.4
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,890
63144-52180 note Reinforcement, Roof Panel, NO.4
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,890
63144-52180 Reinforcement, Roof Panel, NO.4
2024-01 → —
MXPB1#,MXPJ1# ¥1,890
63148A — Reinforcement, Roof Panel, NO.7
63148-52150 Reinforcement, Roof Panel, NO.7
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,840
63148-52150 note Reinforcement, Roof Panel, NO.7
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,840
63148-52150 Reinforcement, Roof Panel, NO.7
2024-01 → —
MXPB1#,MXPJ1# ¥1,840
63169B — Plate, Roof Panel Reinforcement, RH
63169-48010 Plate, Roof Panel Reinforcement, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥280
63169-48010 note Plate, Roof Panel Reinforcement, RH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥280
63169-48010 Plate, Roof Panel Reinforcement, RH
2024-01 → —
MXPB1#,MXPJ1# ¥280
63179 — Plate, Roof Panel Reinforcement, LH
63179-48010 Plate, Roof Panel Reinforcement, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥280
63179-48010 note Plate, Roof Panel Reinforcement, LH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥280
63179-48010 Plate, Roof Panel Reinforcement, LH
2024-01 → —
MXPB1#,MXPJ1# ¥280
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
