Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

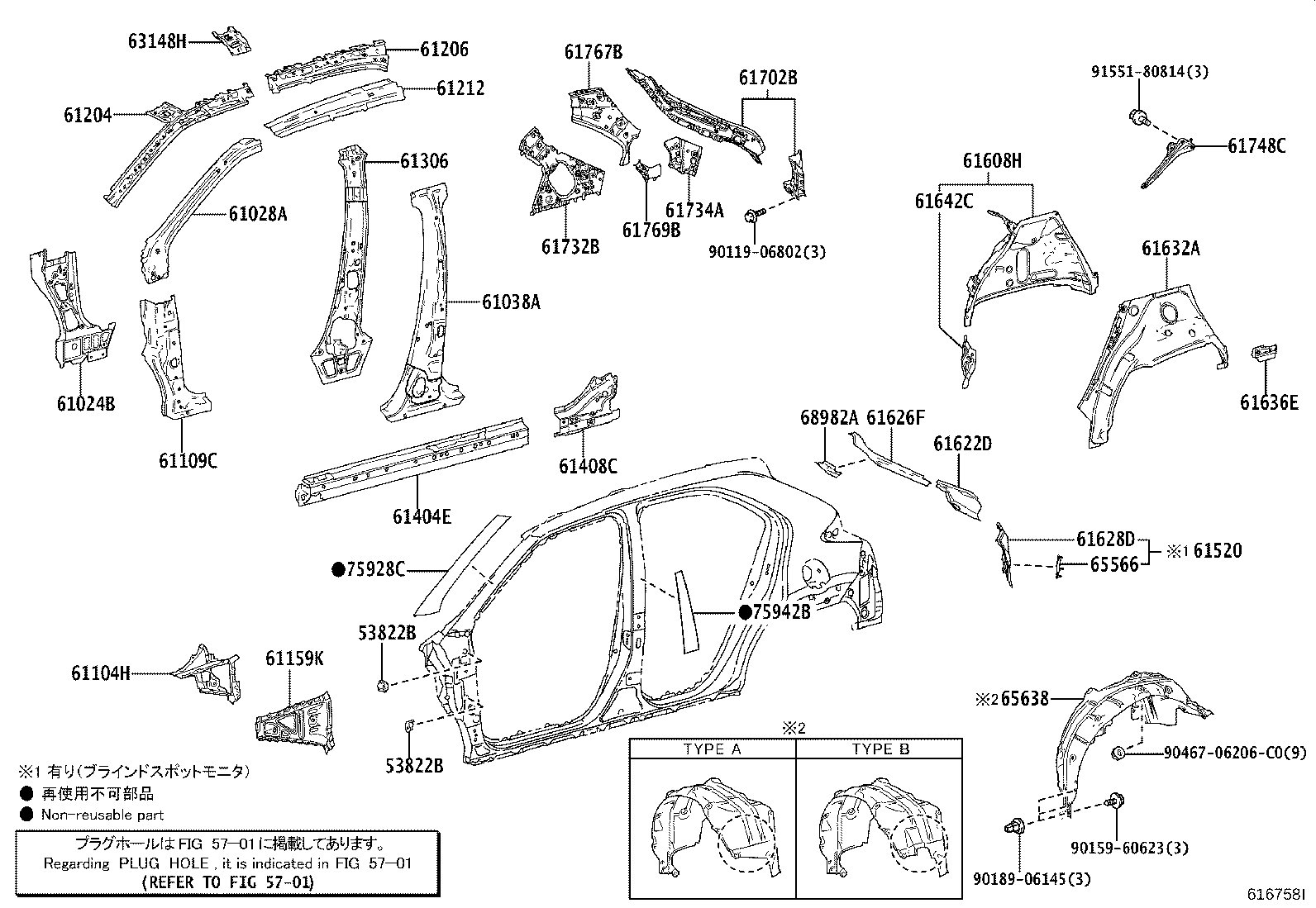

Exploded illustration 616758I 61024B — PILLAR SUB-ASSY, FRONT BODY, INNER LH (2 parts) 61028A — PILLAR SUB-ASSY, FRONT BODY, OUTER LH (2 parts) 61038A — REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH (2 parts) 61104H — PANEL SUB-ASSY, SIDE, NO.2 LH (2 parts) 61109C — REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH (2 parts) 61159K — EXTENSION, FRONT PILLER, LOWER LH (2 parts) 61204 — RAIL SUB-ASSY, ROOF SIDE, INNER LH (2 parts) 61206 — RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH (2 parts) 61212 — RAIL, ROOF SIDE, OUTER LH (2 parts) 61306 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH (2 parts) 61404E — REINFORCE SUB-ASSY, ROCKER, OUTER LH (2 parts) 61408C — PLATE SUB-ASSY, STEP, LOWER LH (3 parts) 61608H — PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH (3 parts) 61622D — TROUGH, BACK DOOR OPENING, LH (2 parts) 61626F — EXTENSION, QUARTER PANEL, UPPER LH (2 parts) 61520 — PANEL ASSY, REAR UPPER SIDE,LH (4 parts) 65566 — PATCH, SIDE PANEL REAR END, LH (4 parts) 61632A — PANEL, QUARTER WHEEL HOUSE, OUTER LH (2 parts) 61636E — EXTENSION, QUARTER WHEEL HOUSE, LH (2 parts) 61642C — GUSSET, QUARTER WHEEL HOUSE, FRONT LH (2 parts) 61702B — PANEL SUB-ASSY, ROOF SIDE, INNER UPPER LH (2 parts) 61732B — PANEL, ROOF SIDE, INNER LH (2 parts) 61734A — PANEL, ROOF SIDE, INNER FRONT LH (2 parts) 61748C — BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH (2 parts) 61767B — REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH (2 parts) 61769B — REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH (2 parts) 63148H — BRACKET, ROOF PANEL REINFORCEMENT (2 parts) 65638 — LINER, REAR WHEEL HOUSE, LH (3 parts) 68982A — RETAINER, BACK DOOR STAY, LH (2 parts) 53822B — BRACKET, FRONT FENDER, REAR LH (2 parts) 53822B — BRACKET, FRONT FENDER, REAR LH (2 parts) 9015960623 — not listed in this catalogue 9018906145 — not listed in this catalogue 9046706206C0 — not listed in this catalogue 9155180814 — not listed in this catalogue 75942B — STRIPE, CENTER PILLAR, LH (2 parts) 75928C — TAPE, BLACK OUT, NO.4 LH (3 parts) 5701 — not listed in this catalogue 61628D — EXTENSION, QUARTER PANEL, REAR LOWER LH (2 parts) 9011906802 — not listed in this catalogue
616758I · 34 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
74 parts on this figure
Part number Description Fitment Price
53822B — Bracket, Front Fender, Rear LH
53821-48030 Bracket, Front Fender, Rear LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥240
53821-48030 Bracket, Front Fender, Rear LH
2024-01 → —
MXPB1#,MXPJ1# ¥240
61024B — Pillar Sub-assy, Front Body, Inner LH
61024-K0010 Pillar Sub-assy, Front Body, Inner LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥11,800
61024-K0010 Pillar Sub-assy, Front Body, Inner LH
2024-01 → —
MXPB1#,MXPJ1# ¥11,800
61028A — Pillar Sub-assy, Front Body, Outer LH
61028-52902 Pillar Sub-assy, Front Body, Outer LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥13,000
61028-52902 Pillar Sub-assy, Front Body, Outer LH
2024-01 → —
MXPB1#,MXPJ1# ¥13,000
61038A — Reinforcement Sub-assy, Center Body Pillar, LH
61038-K2010 Reinforcement Sub-assy, Center Body Pillar, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥14,100
61038-K2010 Reinforcement Sub-assy, Center Body Pillar, LH
2024-01 → —
MXPB1#,MXPJ1# ¥14,100
61104H — Panel Sub-assy, Side, NO.2 LH
61104-52030 Panel Sub-assy, Side, NO.2 LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥3,600
61104-52030 Panel Sub-assy, Side, NO.2 LH
2024-01 → —
MXPB1#,MXPJ1# ¥3,600
61109C — Reinforcement Sub-assy, Front Pillar, Lower LH
61109-52240 Reinforcement Sub-assy, Front Pillar, Lower LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥7,200
61109-52240 Reinforcement Sub-assy, Front Pillar, Lower LH
2024-01 → —
MXPB1#,MXPJ1# ¥7,200
61159K — Extension, Front Piller, Lower LH
61159-52050 Extension, Front Piller, Lower LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,800
61159-52050 Extension, Front Piller, Lower LH
2024-01 → —
MXPB1#,MXPJ1# ¥1,800
61204 — Rail Sub-assy, Roof Side, Inner LH
61204-K2010 Rail Sub-assy, Roof Side, Inner LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥5,200
61204-K2010 Rail Sub-assy, Roof Side, Inner LH
2024-01 → —
MXPB1#,MXPJ1# ¥5,200
61206 — Rail Sub-assy, Roof Side, Inner Rear LH
61206-52070 Rail Sub-assy, Roof Side, Inner Rear LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥3,570
61206-52070 Rail Sub-assy, Roof Side, Inner Rear LH
2024-01 → —
MXPB1#,MXPJ1# ¥3,570
61212 — Rail, Roof Side, Outer LH
61212-52250 Rail, Roof Side, Outer LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥4,150
61212-52250 Rail, Roof Side, Outer LH
2024-01 → —
MXPB1#,MXPJ1# ¥4,150
61306 — Reinforce Sub-assy, Center Body Pillar, Lower LH
61306-52120 Reinforce Sub-assy, Center Body Pillar, Lower LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥6,200
61306-52120 Reinforce Sub-assy, Center Body Pillar, Lower LH
2024-01 → —
MXPB1#,MXPJ1# ¥6,200
61404E — Reinforce Sub-assy, Rocker, Outer LH
61404-52900 Reinforce Sub-assy, Rocker, Outer LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥10,700
61404-52900 Reinforce Sub-assy, Rocker, Outer LH
2024-01 → —
MXPB1#,MXPJ1# ¥10,700
61408C — Plate Sub-assy, Step, Lower LH
61408-52050 Plate Sub-assy, Step, Lower LH
2023-03 → 2024-01 ended
MXPB1#,MXPJ1# ¥4,890
61408-K2010 Plate Sub-assy, Step, Lower LH
2020-08 → 2023-02 ended
MXPB1#,MXPJ1# ¥5,400
61408-52050 Plate Sub-assy, Step, Lower LH
2024-01 → —
MXPB1#,MXPJ1# ¥4,890
61520 — Panel Assy, Rear Upper Side,LH
61056-52010 note Panel Assy, Rear Upper Side,LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥2,160
61056-52010 Panel Assy, Rear Upper Side,LH
2024-01 → —
MXPB10,MXPJ1# GRS,U ¥2,160
61056-52010 note Panel Assy, Rear Upper Side,LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG ¥2,160
61056-52010 note Panel Assy, Rear Upper Side,LH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDZ,Z ¥2,160
61608H — Panel Sub-assy, Quarter Wheel House, Inner LH
61608-52490 Panel Sub-assy, Quarter Wheel House, Inner LH
2020-08 → 2022-07 ended
MXPB1#,MXPJ1# ¥15,100
61608-52491 Panel Sub-assy, Quarter Wheel House, Inner LH
2022-07 → 2024-01 ended
MXPB1#,MXPJ1# ¥13,700
61608-52491 Panel Sub-assy, Quarter Wheel House, Inner LH
2024-01 → —
MXPB1#,MXPJ1# ¥13,700
61622D — Trough, Back Door Opening, LH
61622-K2010 Trough, Back Door Opening, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,740
61622-K2010 Trough, Back Door Opening, LH
2024-01 → —
MXPB1#,MXPJ1# ¥1,740
61626F — Extension, Quarter Panel, Upper LH
61626-K2010 Extension, Quarter Panel, Upper LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,010
61626-K2010 Extension, Quarter Panel, Upper LH
2024-01 → —
MXPB1#,MXPJ1# ¥2,010
61628D — Extension, Quarter Panel, Rear Lower LH
61628-K2010 Extension, Quarter Panel, Rear Lower LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,530
61628-K2010 Extension, Quarter Panel, Rear Lower LH
2024-01 → —
MXPB1#,MXPJ1# ¥1,530
61632A — Panel, Quarter Wheel House, Outer LH
61632-K2010 Panel, Quarter Wheel House, Outer LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥7,000
61632-K2010 Panel, Quarter Wheel House, Outer LH
2024-01 → —
MXPB1#,MXPJ1# ¥7,000
61636E — Extension, Quarter Wheel House, LH
61636-52150 Extension, Quarter Wheel House, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥530
61636-52150 Extension, Quarter Wheel House, LH
2024-01 → —
MXPB1#,MXPJ1# ¥530
61642C — Gusset, Quarter Wheel House, Front LH
61642-52170 Gusset, Quarter Wheel House, Front LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,440
61642-52170 Gusset, Quarter Wheel House, Front LH
2024-01 → —
MXPB1#,MXPJ1# ¥2,440
61702B — Panel Sub-assy, Roof Side, Inner Upper LH
61702-52230 Panel Sub-assy, Roof Side, Inner Upper LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥12,400
61702-52230 Panel Sub-assy, Roof Side, Inner Upper LH
2024-01 → —
MXPB1#,MXPJ1# ¥12,400
61732B — Panel, Roof Side, Inner LH
61732-K2010 Panel, Roof Side, Inner LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,590
61732-K2010 Panel, Roof Side, Inner LH
2024-01 → —
MXPB1#,MXPJ1# ¥2,590
61734A — Panel, Roof Side, Inner Front LH
61734-K2010 Panel, Roof Side, Inner Front LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,450
61734-K2010 Panel, Roof Side, Inner Front LH
2024-01 → —
MXPB1#,MXPJ1# ¥1,450
61748C — Brace, Roof Side Inner TO Wheel House, LH
61748-52080 Brace, Roof Side Inner TO Wheel House, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,260
61748-52080 Brace, Roof Side Inner TO Wheel House, LH
2024-01 → —
MXPB1#,MXPJ1# ¥2,260
61767B — Reinforcement, Belt Anchor TO Roof Side, Inner LH
61767-52230 Reinforcement, Belt Anchor TO Roof Side, Inner LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥4,420
61767-52230 Reinforcement, Belt Anchor TO Roof Side, Inner LH
2024-01 → —
MXPB1#,MXPJ1# ¥4,420
61769B — Reinforce, Belt Anchor TO Roof Side, Inner Rear LH
61769-52250 Reinforce, Belt Anchor TO Roof Side, Inner Rear LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥680
61769-52250 Reinforce, Belt Anchor TO Roof Side, Inner Rear LH
2024-01 → —
MXPB1#,MXPJ1# ¥680
63148H — Bracket, Roof Panel Reinforcement
63148-52180 Bracket, Roof Panel Reinforcement
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,320
63148-52180 Bracket, Roof Panel Reinforcement
2024-01 → —
MXPB1#,MXPJ1# ¥1,320
65566 — Patch, Side Panel Rear End, LH
65565-50010 note Patch, Side Panel Rear End, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥900
65565-50010 note Patch, Side Panel Rear End, LH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDZ,Z ¥900
65565-50010 Patch, Side Panel Rear End, LH
2024-01 → —
MXPB10,MXPJ1# GRS,U ¥900
65565-50010 note Patch, Side Panel Rear End, LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG ¥900
65638 — Liner, Rear Wheel House, LH
65638-52020 note Liner, Rear Wheel House, LH
2020-08 → 2022-01 ended
MXPB1#,MXPJ1# ¥3,910
65638-52021 note Liner, Rear Wheel House, LH
2022-02 → 2024-01 ended
MXPB1#,MXPJ1# ¥3,560
65638-52021 Liner, Rear Wheel House, LH
2024-01 → —
MXPB1#,MXPJ1# ¥3,560
68982A — Retainer, Back Door Stay, LH
68982-52110 Retainer, Back Door Stay, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,050
68982-52110 Retainer, Back Door Stay, LH
2024-01 → —
MXPB1#,MXPJ1# ¥1,050
75928C — Tape, Black Out, NO.4 LH
75928-52040 Tape, Black Out, NO.4 LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,030
75928-52040 Tape, Black Out, NO.4 LH
2024-01 → 2024-12 ended
MXPB1#,MXPJ1# ¥2,030
75928-52060 Tape, Black Out, NO.4 LH
2025-01 → —
MXPB1#,MXPJ1# ¥1,840
75942B — Stripe, Center Pillar, LH
75926-52150 Stripe, Center Pillar, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥890
75926-52150 Stripe, Center Pillar, LH
2024-01 → —
MXPB1#,MXPJ1# ¥890
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
