Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

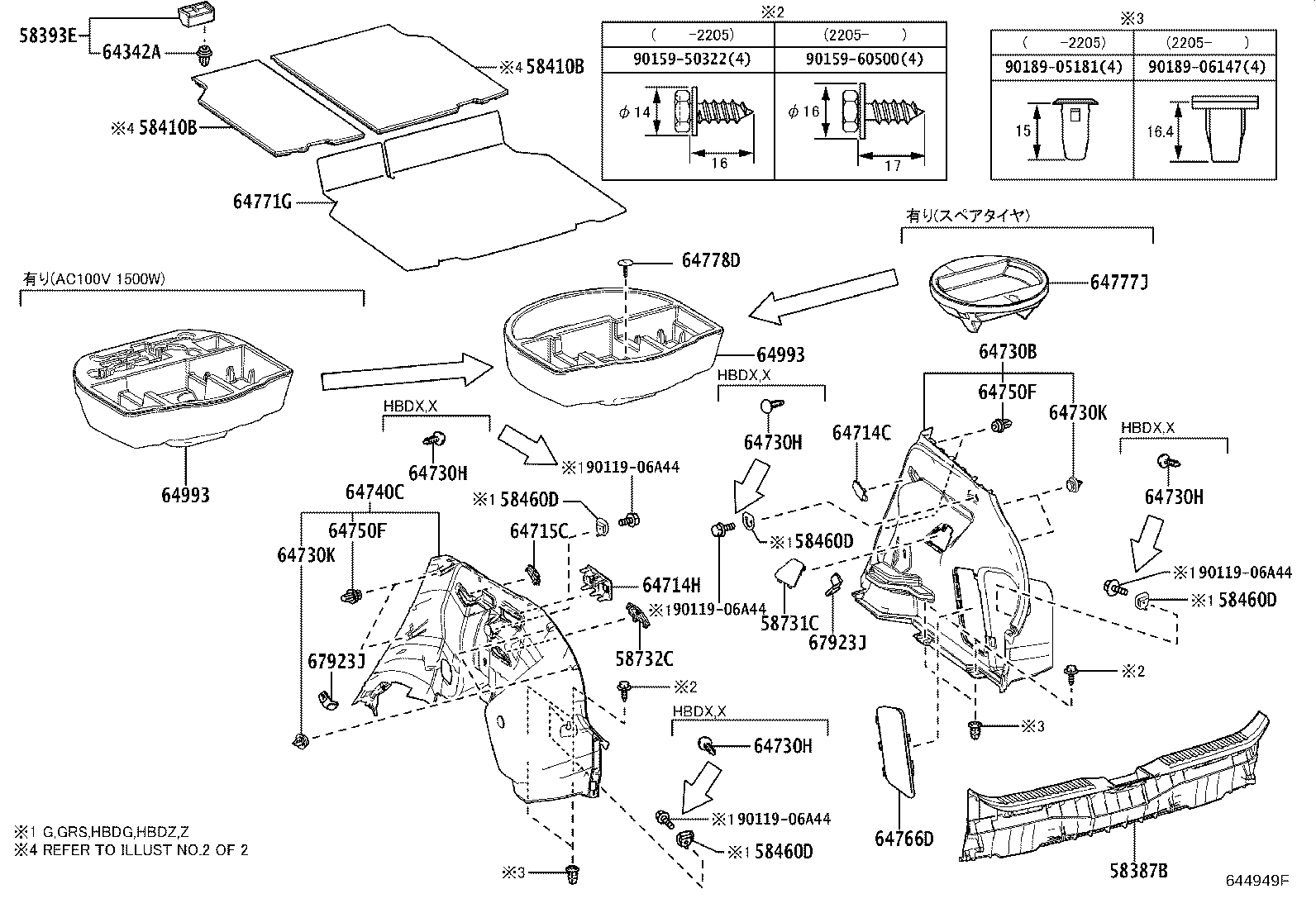

Exploded illustration 644949F 64714C — COVER, DECK SIDE TRIM, RH (5 parts) 64715C — COVER, DECK SIDE TRIM, LH (5 parts) 58732C — CAP, REAR ABSORBER (5 parts) 58731C — CAP, REAR ABSORBER (5 parts) 64766D — COVER, DECK SIDE TRIM JACK (5 parts) 58387B — PLATE, REAR FLOOR FINISH (5 parts) 64730B — PANEL ASSY, DECK TRIM SIDE, RH (10 parts) 64740C — PANEL ASSY, DECK TRIM SIDE, LH (10 parts) 64993 — BOX, DECK FLOOR, REAR (14 parts) 64778D — PROTECTOR, SPARE WHEEL (4 parts) 64993 — BOX, DECK FLOOR, REAR (14 parts) 58460D — STRIKER ASSY, LUGGAGE HOLD BELT (2 parts) 58460D — STRIKER ASSY, LUGGAGE HOLD BELT (2 parts) 58460D — STRIKER ASSY, LUGGAGE HOLD BELT (2 parts) 67923J — CLAMP(FOR DECK TRIM SIDE PANEL) (2 parts) 64730K — CLIP(FOR DECK SIDE TRIM PANEL) (2 parts) 64730K — CLIP(FOR DECK SIDE TRIM PANEL) (2 parts) 64750F — CLIP(FOR DECK SIDE TRIM PANEL) (2 parts) 64750F — CLIP(FOR DECK SIDE TRIM PANEL) (2 parts) 64342A — CLIP (3 parts) 58393E — SUPPORT, DECK BOARD SET (5 parts) 64730H — CLIP(FOR DECK TRIM SIDE PANEL) (2 parts) 64730H — CLIP(FOR DECK TRIM SIDE PANEL) (2 parts) 64730H — CLIP(FOR DECK TRIM SIDE PANEL) (2 parts) 64730H — CLIP(FOR DECK TRIM SIDE PANEL) (2 parts) 9011906A44 — not listed in this catalogue 9011906A44 — not listed in this catalogue 9011906A44 — not listed in this catalogue 58460D — STRIKER ASSY, LUGGAGE HOLD BELT (2 parts) 9011906A44 — not listed in this catalogue 58410B — BOARD ASSY, DECK (21 parts) 58410B — BOARD ASSY, DECK (21 parts) 67923J — CLAMP(FOR DECK TRIM SIDE PANEL) (2 parts) 64777J — CUSHION, SPARE WHEEL (2 parts) 64771G — COVER, SPARE WHEEL (5 parts) 64714H — COVER, DECK SIDE TRIM, NO.1 (12 parts) 9015950322 — not listed in this catalogue 9015960500 — not listed in this catalogue 9018905181 — not listed in this catalogue 9018906147 — not listed in this catalogue
644949F · 32 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
126 parts on this figure
Part number Description Fitment Price
58387B — Plate, Rear Floor Finish
58387-52060-C0 note Plate, Rear Floor Finish
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥7,300
58387-52060-C0 note Plate, Rear Floor Finish
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥7,300
58387-52060-C0 note Plate, Rear Floor Finish
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥7,300
58387-52060-C0 note Plate, Rear Floor Finish
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥7,300
58387-52060-C0 note Plate, Rear Floor Finish
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥7,300
58393E — Support, Deck Board Set
58393-52010-C0 note Support, Deck Board Set
2020-08 → 2024-01 ended
MXPB10,MXPJ10 HBDZ,Z ¥900
58393-52010-C0 note Support, Deck Board Set
2020-08 → 2024-01 ended
MXPB10,MXPJ10 G,HBDG ¥900
58393-52010-C0 note Support, Deck Board Set
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥900
58393-52010-C0 note Support, Deck Board Set
2024-01 → —
MXPB10,MXPJ10 HBDZ,Z ¥900
58393-52010-C0 note Support, Deck Board Set
2024-01 → —
MXPB10,MXPJ10 G,GRS,HBDG ¥900
58410B — Board Assy, Deck
58410-52150-B0 note Board Assy, Deck
2020-08 → 2023-01 ended
MXPB10,MXPJ10 HBDZ,Z ¥13,100
58410-52150-B0 note Board Assy, Deck
2020-08 → 2023-01 ended
MXPB10,MXPJ10 G,HBDG ¥13,100
58410-52150-B0 note Board Assy, Deck
2022-08 → 2023-01 ended
MXPB10,MXPJ10 GRS ¥13,100
58410-52151-B0 note Board Assy, Deck
2023-01 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥11,900
58410-52151-B0 note Board Assy, Deck
2023-01 → 2024-01 ended
MXPB10,MXPJ10 G,HBDG ¥11,900
58410-52151-B0 note Board Assy, Deck
2023-01 → 2024-01 ended
MXPB10,MXPJ10 HBDZ,Z ¥11,900
58410-52160-B0 note Board Assy, Deck
2020-08 → 2023-01 ended
MXPB10,MXPJ10 HBDZ,Z ¥11,500
58410-52160-B0 note Board Assy, Deck
2022-08 → 2023-01 ended
MXPB10,MXPJ10 GRS ¥11,500
58410-52160-B0 note Board Assy, Deck
2020-08 → 2023-01 ended
MXPB10,MXPJ10 G,HBDG ¥11,500
58410-52161-B0 note Board Assy, Deck
2023-01 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥10,400
58410-52161-B0 note Board Assy, Deck
2023-01 → 2024-01 ended
MXPB10,MXPJ10 G,HBDG ¥10,400
58410-52161-B0 note Board Assy, Deck
2023-01 → 2024-01 ended
MXPB10,MXPJ10 HBDZ,Z ¥10,400
58410-52190-B0 note Board Assy, Deck
2020-08 → 2024-01 ended
MXPB15,MXPJ15 HBDX,X ¥16,600
58410-52190-B0 note Board Assy, Deck
2020-08 → 2024-01 ended
MXPB15,MXPJ15 G,HBDG ¥16,600
58410-52190-B0 note Board Assy, Deck
2020-08 → 2024-01 ended
MXPB15,MXPJ15 HBDZ,Z ¥16,600
58410-52151-B0 note Board Assy, Deck
2024-01 → —
MXPB10,MXPJ10 HBDZ,Z ¥11,900
58410-52151-B0 note Board Assy, Deck
2024-01 → —
MXPB10,MXPJ10 G,GRS,HBDG ¥11,900
58410-52161-B0 note Board Assy, Deck
2024-01 → —
MXPB10,MXPJ10 HBDZ,Z ¥10,400
58410-52161-B0 note Board Assy, Deck
2024-01 → —
MXPB10,MXPJ10 G,GRS,HBDG ¥10,400
58410-52190-B0 note Board Assy, Deck
2024-01 → —
MXPB15,MXPJ15 HBDZ,Z ¥16,600
58410-52190-B0 note Board Assy, Deck
2024-01 → —
MXPB15,MXPJ15 G,HBDG,HBDX,U,X ¥16,600
58460D — Striker Assy, Luggage Hold Belt
58460-33020 Striker Assy, Luggage Hold Belt
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥620
58460-33020 Striker Assy, Luggage Hold Belt
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥620
58731C — Cap, Rear Absorber
58731-K0010-C0 note Cap, Rear Absorber
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥590
58731-K0010-C0 note Cap, Rear Absorber
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥590
58731-K0010-C0 note Cap, Rear Absorber
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥590
58731-K0010-C0 note Cap, Rear Absorber
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥590
58731-K0010-C0 note Cap, Rear Absorber
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥590
58732C — Cap, Rear Absorber
58732-K0010-C0 note Cap, Rear Absorber
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥590
58732-K0010-C0 note Cap, Rear Absorber
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥590
58732-K0010-C0 note Cap, Rear Absorber
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥590
58732-K0010-C0 note Cap, Rear Absorber
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥590
58732-K0010-C0 note Cap, Rear Absorber
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥590
64342A — Clip
71769-47020 Clip
2020-08 → 2021-03 ended
MXPB10,MXPJ10 G,HBDG,HBDZ,Z ¥80
90467-10188 Clip
2021-04 → 2024-01 ended
MXPB10,MXPJ10 G,GRS,HBDG,HBDZ,Z ¥80
90467-10188 Clip
2024-01 → —
MXPB10,MXPJ10 G,GRS,HBDG,HBDZ,Z ¥80
64714C — Cover, Deck Side Trim, RH
62566-K0010-C0 note Cover, Deck Side Trim, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥360
62566-K0010-C0 note Cover, Deck Side Trim, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥360
62566-K0010-C0 note Cover, Deck Side Trim, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥360
62566-K0010-C0 note Cover, Deck Side Trim, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥360
62566-K0010-C0 note Cover, Deck Side Trim, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥360
64714H — Cover, Deck Side Trim, NO.1
64714-42050-C0 note Cover, Deck Side Trim, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥590
64714-42050-C0 note Cover, Deck Side Trim, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥590
64714-42060-C0 note Cover, Deck Side Trim, NO.1
2020-08 → 2024-01 ended
MXPJ1# HBDX ¥590
64714-42060-C0 note Cover, Deck Side Trim, NO.1
2020-08 → 2024-01 ended
MXPJ1# HBDG ¥590
64714-42060-C0 note Cover, Deck Side Trim, NO.1
2022-08 → 2024-01 ended
MXPJ10 GRS ¥590
64714-42070-C0 note Cover, Deck Side Trim, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥590
64714-42080-C0 note Cover, Deck Side Trim, NO.1
2020-08 → 2024-01 ended
MXPJ1# HBDZ ¥590
64714-42050-C0 note Cover, Deck Side Trim, NO.1
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥590
64714-42060-C0 note Cover, Deck Side Trim, NO.1
2024-01 → —
MXPJ1# GRS,HBDG,HBDX,U ¥590
64714-42060-C0 note Cover, Deck Side Trim, NO.1
2024-01 → —
MXPJ1# U ¥590
64714-42070-C0 note Cover, Deck Side Trim, NO.1
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥590
64714-42080-C0 note Cover, Deck Side Trim, NO.1
2024-01 → —
MXPJ1# HBDZ ¥590
64715C — Cover, Deck Side Trim, LH
62567-K0010-C0 note Cover, Deck Side Trim, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥360
62567-K0010-C0 note Cover, Deck Side Trim, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥360
62567-K0010-C0 note Cover, Deck Side Trim, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥360
62567-K0010-C0 note Cover, Deck Side Trim, LH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥360
62567-K0010-C0 note Cover, Deck Side Trim, LH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥360
64730B — Panel Assy, Deck Trim Side, RH
64730-52600-C0 note Panel Assy, Deck Trim Side, RH
2020-08 → 2024-01 ended
MXPB10,MXPJ10 HBDZ,Z ¥15,500
64730-52600-C0 note Panel Assy, Deck Trim Side, RH
2020-08 → 2024-01 ended
MXPB10,MXPJ10 G,HBDG ¥15,500
64730-52600-C0 note Panel Assy, Deck Trim Side, RH
2020-08 → 2024-01 ended
MXPB10,MXPJ10 GRS,HBDX,X ¥15,500
64730-52660-C0 note Panel Assy, Deck Trim Side, RH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 HBDZ,Z ¥15,500
64730-52660-C0 note Panel Assy, Deck Trim Side, RH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 HBDX,X ¥15,500
64730-52660-C0 note Panel Assy, Deck Trim Side, RH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 G,HBDG ¥15,500
64730-52600-C0 note Panel Assy, Deck Trim Side, RH
2024-01 → —
MXPB10,MXPJ10 HBDZ,Z ¥15,500
64730-52600-C0 note Panel Assy, Deck Trim Side, RH
2024-01 → —
MXPB10,MXPJ10 G,GRS,HBDG,HBDX,U,X ¥15,500
64730-52660-C0 note Panel Assy, Deck Trim Side, RH
2024-01 → —
MXPB15,MXPJ15 HBDZ,Z ¥15,500
64730-52660-C0 note Panel Assy, Deck Trim Side, RH
2024-01 → —
MXPB15,MXPJ15 G,HBDG,HBDX,U,X ¥15,500
64730H — Clip(FOR DECK TRIM SIDE PANEL)
90467-05164-C7 note Clip(FOR DECK TRIM SIDE PANEL)
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥60
90467-05164-C7 note Clip(FOR DECK TRIM SIDE PANEL)
2024-01 → —
MXPB1#,MXPJ1# HBDX,U,X ¥60
64730K — Clip(FOR DECK SIDE TRIM PANEL)
90467-09240 Clip(FOR DECK SIDE TRIM PANEL)
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥80
90467-09240 Clip(FOR DECK SIDE TRIM PANEL)
2024-01 → —
MXPB1#,MXPJ1# ¥80
64740C — Panel Assy, Deck Trim Side, LH
64740-52720-C0 note Panel Assy, Deck Trim Side, LH
2020-08 → 2024-01 ended
MXPB10,MXPJ10 HBDZ,Z ¥16,500
64740-52720-C0 note Panel Assy, Deck Trim Side, LH
2020-08 → 2024-01 ended
MXPB10,MXPJ10 G,HBDG ¥16,500
64740-52720-C0 note Panel Assy, Deck Trim Side, LH
2020-08 → 2024-01 ended
MXPB10,MXPJ10 GRS,HBDX,X ¥16,500
64740-52740-C0 note Panel Assy, Deck Trim Side, LH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 HBDZ,Z ¥16,500
64740-52740-C0 note Panel Assy, Deck Trim Side, LH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 HBDX,X ¥16,500
64740-52740-C0 note Panel Assy, Deck Trim Side, LH
2020-08 → 2024-01 ended
MXPB15,MXPJ15 G,HBDG ¥16,500
64740-52720-C0 note Panel Assy, Deck Trim Side, LH
2024-01 → —
MXPB10,MXPJ10 HBDZ,Z ¥16,500
64740-52720-C0 note Panel Assy, Deck Trim Side, LH
2024-01 → —
MXPB10,MXPJ10 G,GRS,HBDG,HBDX,U,X ¥16,500
64740-52740-C0 note Panel Assy, Deck Trim Side, LH
2024-01 → —
MXPB15,MXPJ15 HBDZ,Z ¥16,500
64740-52740-C0 note Panel Assy, Deck Trim Side, LH
2024-01 → —
MXPB15,MXPJ15 G,HBDG,HBDX,U,X ¥16,500
64750F — Clip(FOR DECK SIDE TRIM PANEL)
90467-10161 Clip(FOR DECK SIDE TRIM PANEL)
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥90
90467-10161 Clip(FOR DECK SIDE TRIM PANEL)
2024-01 → —
MXPB1#,MXPJ1# ¥90
64766D — Cover, Deck Side Trim Jack
64766-52050-C0 note Cover, Deck Side Trim Jack
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥1,980
64766-52050-C0 note Cover, Deck Side Trim Jack
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,980
64766-52050-C0 note Cover, Deck Side Trim Jack
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,980
64766-52050-C0 note Cover, Deck Side Trim Jack
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥1,980
64766-52050-C0 note Cover, Deck Side Trim Jack
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥1,980
64771G — Cover, Spare Wheel
64771-52300-B0 note Cover, Spare Wheel
2020-08 → 2024-01 ended
MXPB10,MXPJ10 HBDZ,Z ¥9,500
64771-52300-B0 note Cover, Spare Wheel
2020-08 → 2024-01 ended
MXPB10,MXPJ10 G,HBDG ¥9,500
64771-52300-B0 note Cover, Spare Wheel
2020-08 → 2024-01 ended
MXPB10,MXPJ10 GRS,HBDX,X ¥9,500
64771-52300-B0 note Cover, Spare Wheel
2024-01 → —
MXPB10,MXPJ10 HBDZ,Z ¥9,500
64771-52300-B0 note Cover, Spare Wheel
2024-01 → —
MXPB10,MXPJ10 G,GRS,HBDG,HBDX,U,X ¥9,500
64777J — Cushion, Spare Wheel
64777-10020 note Cushion, Spare Wheel
2020-08 → 2024-01 ended
MXPB10,MXPJ10 ¥2,470
64777-10020 note Cushion, Spare Wheel
2024-01 → 2025-03 ended
MXPB10,MXPJ10 G,GRS,HBDG,HBDX,HBDZ,X,Z ¥2,470
64778D — Protector, Spare Wheel
64778-52160 Protector, Spare Wheel
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥200
64778-52160 note Protector, Spare Wheel
2020-08 → 2024-01 ended
MXPB15 ¥200
64778-52160 note Protector, Spare Wheel
2024-01 → 2024-07 ended
MXPB15 ¥200
64778-52160 Protector, Spare Wheel
2024-01 → —
MXPB1#,MXPJ1# ¥200
64993 — Box, Deck Floor, Rear
64993-52380 note Box, Deck Floor, Rear
2023-03 → 2024-01 ended
MXPJ10 GRS,HBDG,HBDZ ¥6,400
64993-52380 note Box, Deck Floor, Rear
2023-03 → 2024-01 ended
MXPJ10 HBDX ¥6,400
64993-K0010 Box, Deck Floor, Rear
2020-08 → 2024-01 ended
MXPB10,MXPJ10 ¥6,800
64993-K0020 note Box, Deck Floor, Rear
2020-08 → 2023-03 ended
MXPJ10 GRS,HBDG,HBDZ ¥7,000
64993-K0020 note Box, Deck Floor, Rear
2020-08 → 2023-03 ended
MXPJ10 HBDX ¥7,000
64993-K0030 note Box, Deck Floor, Rear
2020-08 → 2024-01 ended
MXPB15 ¥7,100
64993-K0030 Box, Deck Floor, Rear
2020-08 → 2024-01 ended
MXPB15 ¥7,100
64993-K0040 Box, Deck Floor, Rear
2020-08 → 2024-01 ended
MXPJ15 ¥6,800
64993-52380 Box, Deck Floor, Rear
2024-01 → —
MXPJ10 U ¥6,400
64993-52380 note Box, Deck Floor, Rear
2024-01 → —
MXPJ10 GRS,HBDG,HBDX,HBDZ ¥6,400
64993-K0010 Box, Deck Floor, Rear
2024-01 → —
MXPB10,MXPJ10 G,GRS,HBDG,HBDX,HBDZ,X,Z ¥6,800
64993-K0030 note Box, Deck Floor, Rear
2024-01 → 2024-07 ended
MXPB15 ¥7,100
64993-K0030 Box, Deck Floor, Rear
2024-01 → —
MXPB15 ¥7,100
64993-K0040 Box, Deck Floor, Rear
2024-01 → —
MXPJ15 ¥6,800
67923J — Clamp(FOR DECK TRIM SIDE PANEL)
67923-52240 Clamp(FOR DECK TRIM SIDE PANEL)
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥130
67923-52240 Clamp(FOR DECK TRIM SIDE PANEL)
2024-01 → —
MXPB1#,MXPJ1# ¥130
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
