Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

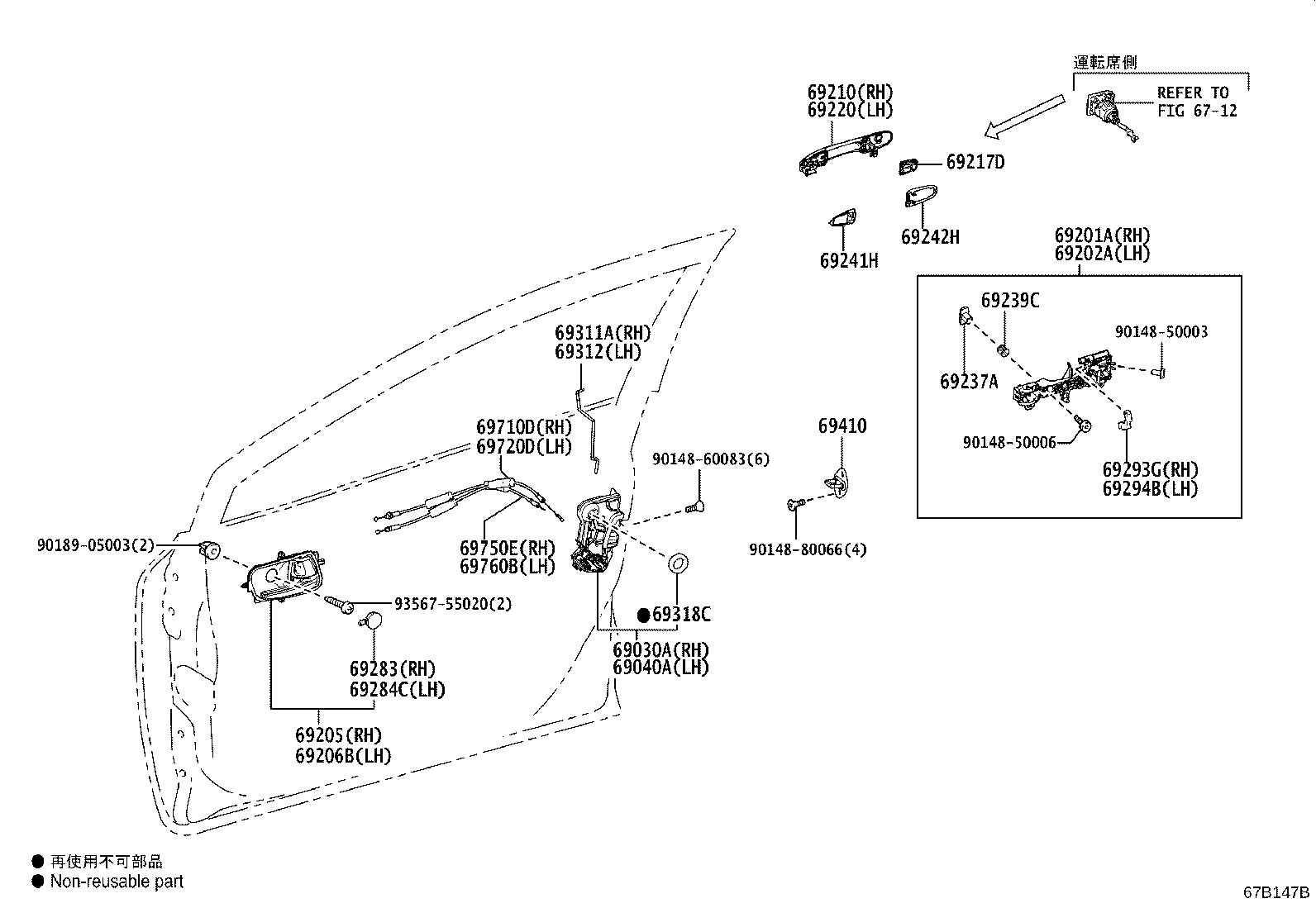

158 parts on this figure

Part number	Description	Fitment	Price
69030A — Lock Assy, Front Door W/Motor, RH
69030-K0010	Lock Assy, Front Door W/Motor, RH 2020-08 → 2022-09 ended	MXPB1#,MXPJ1#	¥12,500
69030-K0011	Lock Assy, Front Door W/Motor, RH 2022-10 → 2024-01 ended	MXPB1#,MXPJ1#	¥11,300
69030-K0011	Lock Assy, Front Door W/Motor, RH 2024-01 → —	MXPB1#,MXPJ1#	¥11,300
69040A — Lock Assy, Front Door W/Motor, LH
69040-K0010	Lock Assy, Front Door W/Motor, LH 2020-08 → 2022-09 ended	MXPB1#,MXPJ1#	¥11,600
69040-K0011	Lock Assy, Front Door W/Motor, LH 2022-10 → 2024-01 ended	MXPB1#,MXPJ1#	¥10,500
69040-K0011	Lock Assy, Front Door W/Motor, LH 2024-01 → —	MXPB1#,MXPJ1#	¥10,500
69201A — Frame Sub-assy, Front Door Outside Handle, RH
69201-47070	Frame Sub-assy, Front Door Outside Handle, RH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥4,210
69201-47070	Frame Sub-assy, Front Door Outside Handle, RH 2024-01 → —	MXPB1#,MXPJ1#	¥4,210
69202A — Frame Sub-assy, Front Door Outside Handle, LH
69202-47040	Frame Sub-assy, Front Door Outside Handle, LH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥4,210
69202-47040	Frame Sub-assy, Front Door Outside Handle, LH 2024-01 → —	MXPB1#,MXPJ1#	¥4,210
69205 — Handle Sub-assy, Front Door Inside, RH
69205-K0040-C0 note	Handle Sub-assy, Front Door Inside, RH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# HBDZ,Z	¥1,920
69205-K0040-C0 note	Handle Sub-assy, Front Door Inside, RH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# G,HBDG	¥1,920
69205-K0040-C0 note	Handle Sub-assy, Front Door Inside, RH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# GRS,HBDX,X	¥1,920
69205-K0040-C0 note	Handle Sub-assy, Front Door Inside, RH 2024-01 → —	MXPB1#,MXPJ1# HBDZ,Z	¥1,920
69205-K0040-C0 note	Handle Sub-assy, Front Door Inside, RH 2024-01 → —	MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X	¥1,920
69206B — Handle Sub-assy, Front Door Inside, LH
69206-K0040-C0 note	Handle Sub-assy, Front Door Inside, LH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# HBDZ,Z	¥1,920
69206-K0040-C0 note	Handle Sub-assy, Front Door Inside, LH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# GRS,HBDX,X	¥1,920
69206-K0040-C0 note	Handle Sub-assy, Front Door Inside, LH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# G,HBDG	¥1,920
69206-K0040-C0 note	Handle Sub-assy, Front Door Inside, LH 2024-01 → —	MXPB1#,MXPJ1# HBDZ,Z	¥1,920
69206-K0040-C0 note	Handle Sub-assy, Front Door Inside, LH 2024-01 → —	MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X	¥1,920
69210 — Handle Assy, Front Door, Outside RH
69210-K0010-A1 note	Handle Assy, Front Door, Outside RH 2020-08 → 2022-08 ended	MXPB1#,MXPJ1#	¥8,500
69210-K0010-A3 note	Handle Assy, Front Door, Outside RH 2022-08 → 2024-01 ended	MXPB1#,MXPJ1# HBDX,X	¥8,500
69210-K0010-A3 note	Handle Assy, Front Door, Outside RH 2022-08 → 2024-01 ended	MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z	¥8,500
69210-K0010-B3 note	Handle Assy, Front Door, Outside RH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥8,500
69210-K0010-C1 note	Handle Assy, Front Door, Outside RH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z	¥8,500
69210-K0010-C1 note	Handle Assy, Front Door, Outside RH 2022-08 → 2024-01 ended	MXPB10,MXPJ10 GRS	¥8,500
69210-K0010-D1 note	Handle Assy, Front Door, Outside RH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥8,500
69210-K0010-E1 note	Handle Assy, Front Door, Outside RH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z	¥8,500
69210-K0010-F0 note	Handle Assy, Front Door, Outside RH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z	¥8,500
69210-K0010-J0 note	Handle Assy, Front Door, Outside RH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥8,500
69210-K0010-J2 note	Handle Assy, Front Door, Outside RH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z	¥8,500
69210-K0010-A3 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB1#,MXPJ1# HBDX,X	¥8,500
69210-K0010-A3 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,U,Z	¥8,500
69210-K0010-B3 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB1#,MXPJ1#	¥8,500
69210-K0010-B6 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB1#,MXPJ1# G,HBDG,HBDZ,U,Z	¥8,500
69210-K0010-B6 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB1#,MXPJ1# GRS,HBDX,X	¥8,500
69210-K0010-C1 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X	¥8,500
69210-K0010-C1 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB1#,MXPJ1# HBDZ,Z	¥8,500
69210-K0010-D1 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,U,Z	¥8,500
69210-K0010-D1 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB1#,MXPJ1# HBDX,X	¥8,500
69210-K0010-E1 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB1#,MXPJ1# HBDX,X	¥8,500
69210-K0010-E1 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB1#,MXPJ1# G,HBDG,HBDZ,U,Z	¥8,500
69210-K0010-J2 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB1#,MXPJ1# HBDX,X	¥8,500
69210-K0010-J2 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB1#,MXPJ1# G,HBDG,HBDZ,U,Z	¥8,500
69210-V2100-A0 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB1#,MXPJ1# GRS,HBDZ,Z	¥8,500
69210-V2100-A0 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPJ1# U	¥8,500
69210-V2100-A0 note	Handle Assy, Front Door, Outside RH 2024-01 → 2025-03 ended	MXPB1#,MXPJ1# G,HBDG	¥8,500
69210-V2100-B3 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB1#,MXPJ1# GRS,HBDZ,Z	¥8,500
69210-V2100-B3 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPJ1# U	¥8,500
69210-V2100-B3 note	Handle Assy, Front Door, Outside RH 2024-01 → 2025-03 ended	MXPB1#,MXPJ1# G,HBDG	¥8,500
69210-V2100-B4 note	Handle Assy, Front Door, Outside RH 2024-01 → 2025-03 ended	MXPB1#,MXPJ1# G,HBDG	¥8,500
69210-V2100-B4 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB1#,MXPJ1# HBDZ,Z	¥8,500
69210-V2100-B4 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB10,MXPJ10 GRS	¥8,500
69210-V2100-B4 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPJ1# U	¥8,500
69210-V2100-C1 note	Handle Assy, Front Door, Outside RH 2024-01 → 2025-03 ended	MXPB1#,MXPJ1# G,HBDG	¥8,500
69210-V2100-C1 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB1#,MXPJ1# HBDZ,Z	¥8,500
69210-V2100-C1 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB10,MXPJ10 GRS	¥8,500
69210-V2100-C1 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPJ1# U	¥8,500
69210-V2100-D1 note	Handle Assy, Front Door, Outside RH 2024-01 → 2025-03 ended	MXPB1#,MXPJ1# G,HBDG	¥8,500
69210-V2100-D1 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB1#,MXPJ1# GRS,HBDZ,Z	¥8,500
69210-V2100-D1 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPJ1# U	¥8,500
69210-V2100-E1 note	Handle Assy, Front Door, Outside RH 2024-01 → 2025-03 ended	MXPB1#,MXPJ1# G,HBDG	¥8,500
69210-V2100-E1 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB1#,MXPJ1# HBDZ,Z	¥8,500
69210-V2100-E1 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPJ1# U	¥8,500
69210-V2100-J1 note	Handle Assy, Front Door, Outside RH 2024-01 → 2025-03 ended	MXPB1#,MXPJ1# G,HBDG	¥8,500
69210-V2100-J1 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPJ1# U	¥8,500
69210-V2100-J1 note	Handle Assy, Front Door, Outside RH 2024-01 → —	MXPB1#,MXPJ1# HBDZ,Z	¥8,500
69217D — Cover, Front Door Outside Handle
69217-47020 note	Cover, Front Door Outside Handle 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥450
69217-47020 note	Cover, Front Door Outside Handle 2024-01 → —	MXPB1#,MXPJ1#	¥450
69220 — Handle Assy, Front Door Outside, LH
69210-K0020-A1 note	Handle Assy, Front Door Outside, LH 2020-08 → 2022-08 ended	MXPB1#,MXPJ1#	¥8,500
69210-K0020-A3 note	Handle Assy, Front Door Outside, LH 2022-08 → 2024-01 ended	MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z	¥8,500
69210-K0020-A3 note	Handle Assy, Front Door Outside, LH 2022-08 → 2024-01 ended	MXPB1#,MXPJ1# HBDX,X	¥8,500
69210-K0020-B3 note	Handle Assy, Front Door Outside, LH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥8,500
69210-K0020-C1 note	Handle Assy, Front Door Outside, LH 2022-08 → 2024-01 ended	MXPB10,MXPJ10 GRS	¥8,500
69210-K0020-C1 note	Handle Assy, Front Door Outside, LH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z	¥8,500
69210-K0020-D1 note	Handle Assy, Front Door Outside, LH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥8,500
69210-K0020-E1 note	Handle Assy, Front Door Outside, LH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z	¥8,500
69210-K0020-F0 note	Handle Assy, Front Door Outside, LH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z	¥8,500
69210-K0020-J0 note	Handle Assy, Front Door Outside, LH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥8,500
69210-K0020-J2 note	Handle Assy, Front Door Outside, LH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z	¥8,500
69210-K0020-A3 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB1#,MXPJ1# HBDX,X	¥8,500
69210-K0020-A3 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,U,Z	¥8,500
69210-K0020-B3 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB1#,MXPJ1#	¥8,500
69210-K0020-B6 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB1#,MXPJ1# GRS,HBDX,X	¥8,500
69210-K0020-B6 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB1#,MXPJ1# G,HBDG,HBDZ,U,Z	¥8,500
69210-K0020-C1 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB1#,MXPJ1# HBDZ,Z	¥8,500
69210-K0020-C1 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X	¥8,500
69210-K0020-D1 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB1#,MXPJ1# HBDX,X	¥8,500
69210-K0020-D1 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,U,Z	¥8,500
69210-K0020-E1 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB1#,MXPJ1# G,HBDG,HBDZ,U,Z	¥8,500
69210-K0020-E1 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB1#,MXPJ1# HBDX,X	¥8,500
69210-K0020-J2 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB1#,MXPJ1# G,HBDG,HBDZ,U,Z	¥8,500
69210-K0020-J2 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB1#,MXPJ1# HBDX,X	¥8,500
69210-V2110-A0 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB1#,MXPJ1# GRS,HBDZ,Z	¥8,500
69210-V2110-A0 note	Handle Assy, Front Door Outside, LH 2024-01 → 2025-03 ended	MXPB1#,MXPJ1# G,HBDG	¥8,500
69210-V2110-A0 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPJ1# U	¥8,500
69210-V2110-B3 note	Handle Assy, Front Door Outside, LH 2024-01 → 2025-03 ended	MXPB1#,MXPJ1# G,HBDG	¥8,500
69210-V2110-B3 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB1#,MXPJ1# GRS,HBDZ,Z	¥8,500
69210-V2110-B3 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPJ1# U	¥8,500
69210-V2110-B4 note	Handle Assy, Front Door Outside, LH 2024-01 → 2025-03 ended	MXPB1#,MXPJ1# G,HBDG	¥8,500
69210-V2110-B4 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB1#,MXPJ1# HBDZ,Z	¥8,500
69210-V2110-B4 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB10,MXPJ10 GRS	¥8,500
69210-V2110-B4 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPJ1# U	¥8,500
69210-V2110-C1 note	Handle Assy, Front Door Outside, LH 2024-01 → 2025-03 ended	MXPB1#,MXPJ1# G,HBDG	¥8,500
69210-V2110-C1 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB1#,MXPJ1# HBDZ,Z	¥8,500
69210-V2110-C1 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB10,MXPJ10 GRS	¥8,500
69210-V2110-C1 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPJ1# U	¥8,500
69210-V2110-D1 note	Handle Assy, Front Door Outside, LH 2024-01 → 2025-03 ended	MXPB1#,MXPJ1# G,HBDG	¥8,500
69210-V2110-D1 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB1#,MXPJ1# GRS,HBDZ,Z	¥8,500
69210-V2110-D1 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPJ1# U	¥8,500
69210-V2110-E1 note	Handle Assy, Front Door Outside, LH 2024-01 → 2025-03 ended	MXPB1#,MXPJ1# G,HBDG	¥8,500
69210-V2110-E1 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPJ1# U	¥8,500
69210-V2110-E1 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB1#,MXPJ1# HBDZ,Z	¥8,500
69210-V2110-J1 note	Handle Assy, Front Door Outside, LH 2024-01 → 2025-03 ended	MXPB1#,MXPJ1# G,HBDG	¥8,500
69210-V2110-J1 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPB1#,MXPJ1# HBDZ,Z	¥8,500
69210-V2110-J1 note	Handle Assy, Front Door Outside, LH 2024-01 → —	MXPJ1# U	¥8,500
69237A — Nut, Front Door Handle
69237-62010	Nut, Front Door Handle 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥160
69237-62010	Nut, Front Door Handle 2024-01 → —	MXPB1#,MXPJ1#	¥160
69239C — Bush, Front Door Handle
69239-47010	Bush, Front Door Handle 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥90
69239-47010	Bush, Front Door Handle 2024-01 → —	MXPB1#,MXPJ1#	¥90
69241H — Pad, Front Door Outside Handle, Front
69241-47020	Pad, Front Door Outside Handle, Front 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥400
69241-47020	Pad, Front Door Outside Handle, Front 2024-01 → —	MXPB1#,MXPJ1#	¥400
69242H — Pad, Front Door Outside Handle, Rear
69242-47030	Pad, Front Door Outside Handle, Rear 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥400
69242-47030	Pad, Front Door Outside Handle, Rear 2024-01 → —	MXPB1#,MXPJ1#	¥400
69283 — Plug, Front Door Inside Handle Bezel, RH
69283-52010-C1 note	Plug, Front Door Inside Handle Bezel, RH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# HBDZ,Z	¥110
69283-52010-C1 note	Plug, Front Door Inside Handle Bezel, RH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# G,HBDG	¥110
69283-52010-C1 note	Plug, Front Door Inside Handle Bezel, RH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# GRS,HBDX,X	¥110
69283-52010-C1 note	Plug, Front Door Inside Handle Bezel, RH 2024-01 → —	MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X	¥110
69283-52010-C1 note	Plug, Front Door Inside Handle Bezel, RH 2024-01 → —	MXPB1#,MXPJ1# HBDZ,Z	¥110
69284C — Plug, Front Door Inside Handle Bezel, LH
69283-52010-C1 note	Plug, Front Door Inside Handle Bezel, LH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# HBDZ,Z	¥110
69283-52010-C1 note	Plug, Front Door Inside Handle Bezel, LH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# G,HBDG	¥110
69283-52010-C1 note	Plug, Front Door Inside Handle Bezel, LH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# GRS,HBDX,X	¥110
69283-52010-C1 note	Plug, Front Door Inside Handle Bezel, LH 2024-01 → —	MXPB1#,MXPJ1# HBDZ,Z	¥110
69283-52010-C1 note	Plug, Front Door Inside Handle Bezel, LH 2024-01 → —	MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X	¥110
69293G — Snap, Front Door Outside Handle, RH
69293-12030	Snap, Front Door Outside Handle, RH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥160
69293-12030	Snap, Front Door Outside Handle, RH 2024-01 → —	MXPB1#,MXPJ1#	¥160
69294B — Snap, Front Door Outside Handle, LH
69293-12040	Snap, Front Door Outside Handle, LH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥160
69293-12040	Snap, Front Door Outside Handle, LH 2024-01 → —	MXPB1#,MXPJ1#	¥160
69311A — Rod, Front Door Lock Open, RH
69311-52260	Rod, Front Door Lock Open, RH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥410
69311-52260	Rod, Front Door Lock Open, RH 2024-01 → —	MXPB1#,MXPJ1#	¥410
69312 — Rod, Front Door Lock Open, LH
69312-52230	Rod, Front Door Lock Open, LH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥410
69312-52230	Rod, Front Door Lock Open, LH 2024-01 → —	MXPB1#,MXPJ1#	¥410
69318C — Seal, Door Lock Wiring Harness
69318-47010	Seal, Door Lock Wiring Harness 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥120
69318-47010	Seal, Door Lock Wiring Harness 2024-01 → —	MXPB1#,MXPJ1#	¥120
69410 — Plate Assy, Front Door Lock Striker
69410-47010	Plate Assy, Front Door Lock Striker 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥1,060
69410-47010	Plate Assy, Front Door Lock Striker 2024-01 → —	MXPB1#,MXPJ1#	¥1,060
69710D — Cable, Front Door Lock Remote Control, RH(FOR OPEN LEVER)
69710-K0010	Cable, Front Door Lock Remote Control, RH(FOR OPEN LEVER) 2020-08 → 2020-09 ended	MXPB1#,MXPJ1#	¥1,250
69710-K0011	Cable, Front Door Lock Remote Control, RH(FOR OPEN LEVER) 2020-09 → 2024-01 ended	MXPB1#,MXPJ1#	¥940
69710-K0011	Cable, Front Door Lock Remote Control, RH(FOR OPEN LEVER) 2024-01 → —	MXPB1#,MXPJ1#	¥940
69720D — Cable, Front Door Lock Remote Control, LH(FOR OPEN LEVER)
69710-K0010	Cable, Front Door Lock Remote Control, LH(FOR OPEN LEVER) 2020-08 → 2020-09 ended	MXPB1#,MXPJ1#	¥1,250
69710-K0011	Cable, Front Door Lock Remote Control, LH(FOR OPEN LEVER) 2020-09 → 2024-01 ended	MXPB1#,MXPJ1#	¥940
69710-K0011	Cable, Front Door Lock Remote Control, LH(FOR OPEN LEVER) 2024-01 → —	MXPB1#,MXPJ1#	¥940
69750E — Cable, Front Door Inside Locking, RH(FOR LOCK / UNLOCK KNOB)
69750-K0010	Cable, Front Door Inside Locking, RH(FOR LOCK / UNLOCK KNOB) 2020-08 → 2020-09 ended	MXPB1#,MXPJ1#	¥1,250
69750-K0011	Cable, Front Door Inside Locking, RH(FOR LOCK / UNLOCK KNOB) 2020-09 → 2024-01 ended	MXPB1#,MXPJ1#	¥940
69750-K0011	Cable, Front Door Inside Locking, RH(FOR LOCK / UNLOCK KNOB) 2024-01 → —	MXPB1#,MXPJ1#	¥940
69760B — Cable, Front Door Inside Locking, LH(FOR LOCK / UNLOCK KNOB)
69750-K0010	Cable, Front Door Inside Locking, LH(FOR LOCK / UNLOCK KNOB) 2020-08 → 2020-09 ended	MXPB1#,MXPJ1#	¥1,250
69750-K0011	Cable, Front Door Inside Locking, LH(FOR LOCK / UNLOCK KNOB) 2020-09 → 2024-01 ended	MXPB1#,MXPJ1#	¥940
69750-K0011	Cable, Front Door Inside Locking, LH(FOR LOCK / UNLOCK KNOB) 2024-01 → —	MXPB1#,MXPJ1#	¥940

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
