Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

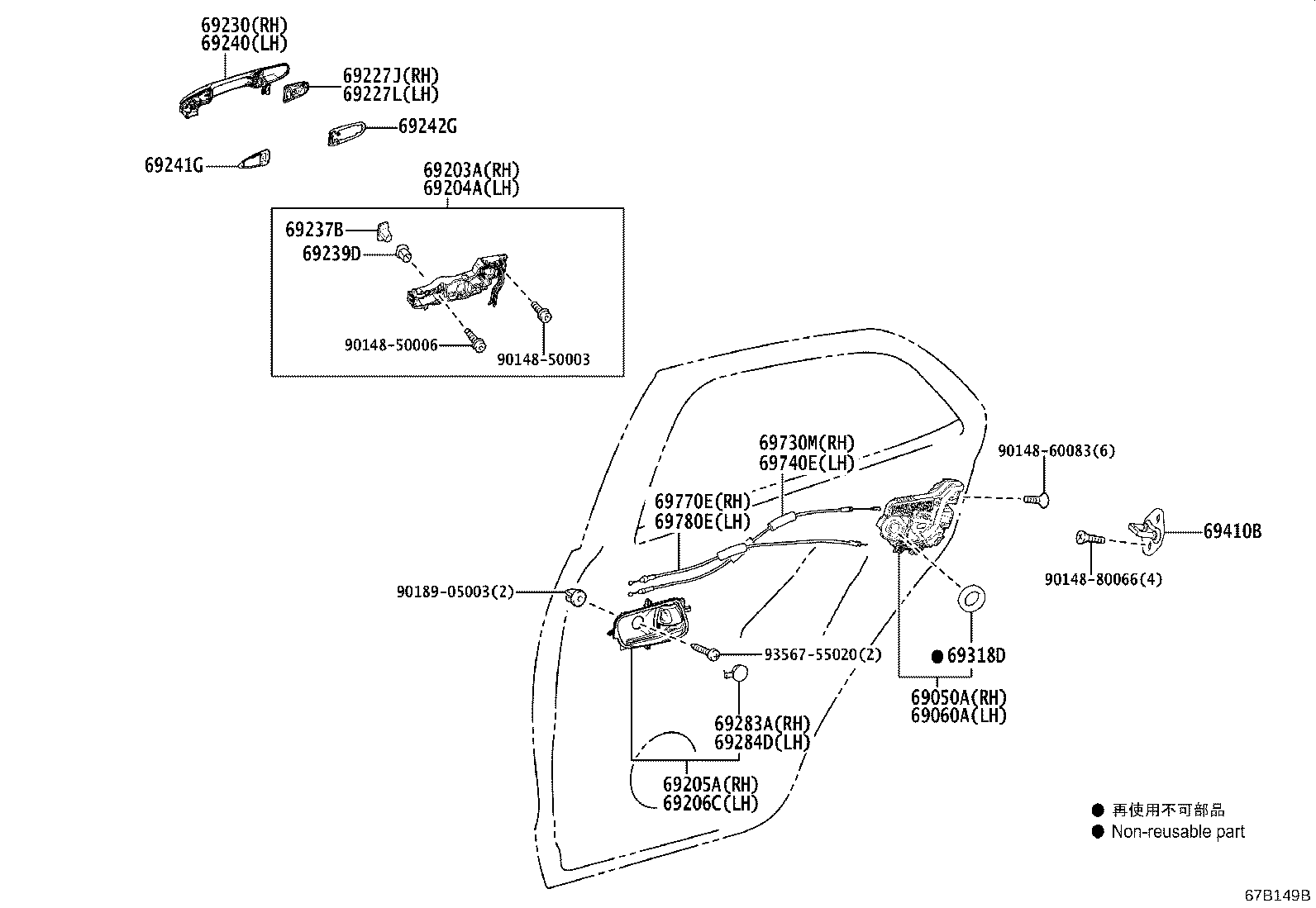

Exploded illustration 67B149B 69203A — FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH (3 parts) 69204A — FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH (3 parts) 69205A — HANDLE SUB-ASSY, REAR DOOR INSIDE, RH (5 parts) 69206C — HANDLE SUB-ASSY, REAR DOOR INSIDE, LH (5 parts) 69227J — COVER, REAR DOOR OUTSIDE HANDLE, RH (2 parts) 69227L — COVER, REAR DOOR OUTSIDE HANDLE, LH (2 parts) 69230 — HANDLE ASSY, REAR DOOR OUTSIDE, RH (24 parts) 69237B — NUT, REAR DOOR HANDLE (2 parts) 69239D — BUSH, REAR DOOR HANDLE (2 parts) 69240 — HANDLE ASSY, REAR DOOR OUTSIDE, LH (24 parts) 69241G — PAD, REAR DOOR OUTSIDE HANDLE, FRONT (2 parts) 69242G — PAD, REAR DOOR OUTSIDE HANDLE, REAR (2 parts) 69283A — PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH (5 parts) 69284D — PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH (5 parts) 69318D — SEAL, DOOR LOCK WIRING HARNESS (2 parts) 69410B — PLATE ASSY, REAR DOOR LOCK STRIKER (2 parts) 69730M — CABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER) (3 parts) 69740E — CABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER) (3 parts) 69770E — CABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB) (3 parts) 69780E — CABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB) (3 parts) 9014850006 — not listed in this catalogue 9014850003 — not listed in this catalogue 9014860083 — not listed in this catalogue 9014880066 — not listed in this catalogue 9018905003 — not listed in this catalogue 9356755020 — not listed in this catalogue 69050A — LOCK ASSY, REAR DOOR W/MOTOR, RH (2 parts) 69060A — LOCK ASSY, REAR DOOR W/MOTOR, LH (2 parts)
67B149B · 22 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
106 parts on this figure
Part number Description Fitment Price
69050A — Lock Assy, Rear Door W/Motor, RH
69050-K0010 Lock Assy, Rear Door W/Motor, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥10,500
69050-K0010 Lock Assy, Rear Door W/Motor, RH
2024-01 → —
MXPB1#,MXPJ1# ¥10,500
69060A — Lock Assy, Rear Door W/Motor, LH
69060-K0010 Lock Assy, Rear Door W/Motor, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥10,500
69060-K0010 Lock Assy, Rear Door W/Motor, LH
2024-01 → —
MXPB1#,MXPJ1# ¥10,500
69203A — Frame Sub-assy, Rear Door Outside Handle, RH
69203-52110 Frame Sub-assy, Rear Door Outside Handle, RH
2020-08 → 2022-02 ended
MXPB1#,MXPJ1# ¥4,640
69203-52111 Frame Sub-assy, Rear Door Outside Handle, RH
2022-03 → 2024-01 ended
MXPB1#,MXPJ1# ¥4,210
69203-52111 Frame Sub-assy, Rear Door Outside Handle, RH
2024-01 → —
MXPB1#,MXPJ1# ¥4,210
69204A — Frame Sub-assy, Rear Door Outside Handle, LH
69204-52120 Frame Sub-assy, Rear Door Outside Handle, LH
2020-08 → 2022-02 ended
MXPB1#,MXPJ1# ¥4,640
69204-52121 Frame Sub-assy, Rear Door Outside Handle, LH
2022-03 → 2024-01 ended
MXPB1#,MXPJ1# ¥4,210
69204-52121 Frame Sub-assy, Rear Door Outside Handle, LH
2024-01 → —
MXPB1#,MXPJ1# ¥4,210
69205A — Handle Sub-assy, Rear Door Inside, RH
69205-K0040-C0 note Handle Sub-assy, Rear Door Inside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,920
69205-K0040-C0 note Handle Sub-assy, Rear Door Inside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,920
69205-K0040-C0 note Handle Sub-assy, Rear Door Inside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥1,920
69205-K0040-C0 note Handle Sub-assy, Rear Door Inside, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥1,920
69205-K0040-C0 note Handle Sub-assy, Rear Door Inside, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥1,920
69206C — Handle Sub-assy, Rear Door Inside, LH
69206-K0040-C0 note Handle Sub-assy, Rear Door Inside, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,920
69206-K0040-C0 note Handle Sub-assy, Rear Door Inside, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥1,920
69206-K0040-C0 note Handle Sub-assy, Rear Door Inside, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,920
69206-K0040-C0 note Handle Sub-assy, Rear Door Inside, LH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥1,920
69206-K0040-C0 note Handle Sub-assy, Rear Door Inside, LH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥1,920
69227J — Cover, Rear Door Outside Handle, RH
69227-47020 Cover, Rear Door Outside Handle, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥450
69227-47020 Cover, Rear Door Outside Handle, RH
2024-01 → —
MXPB1#,MXPJ1# ¥450
69227L — Cover, Rear Door Outside Handle, LH
69227-47020 Cover, Rear Door Outside Handle, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥450
69227-47020 Cover, Rear Door Outside Handle, LH
2024-01 → —
MXPB1#,MXPJ1# ¥450
69230 — Handle Assy, Rear Door Outside, RH
69211-47021-A1 note Handle Assy, Rear Door Outside, RH
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# ¥2,100
69211-47021-A2 note Handle Assy, Rear Door Outside, RH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥2,100
69211-47021-A2 note Handle Assy, Rear Door Outside, RH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥2,100
69211-47021-C2 note Handle Assy, Rear Door Outside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥2,100
69211-47021-C2 note Handle Assy, Rear Door Outside, RH
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥2,100
69211-47021-D1 note Handle Assy, Rear Door Outside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,100
69211-47021-E8 note Handle Assy, Rear Door Outside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥2,100
69211-47021-F1 note Handle Assy, Rear Door Outside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥2,100
69211-47021-J0 note Handle Assy, Rear Door Outside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,100
69211-47021-P0 note Handle Assy, Rear Door Outside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,100
69211-47021-R0 note Handle Assy, Rear Door Outside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥2,100
69211-47021-A2 note Handle Assy, Rear Door Outside, RH
2024-01 → —
MXPB1#,MXPJ1# HBDX,X ¥2,100
69211-47021-A2 note Handle Assy, Rear Door Outside, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,U,Z ¥2,100
69211-47021-C2 note Handle Assy, Rear Door Outside, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥2,100
69211-47021-C2 note Handle Assy, Rear Door Outside, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥2,100
69211-47021-D1 note Handle Assy, Rear Door Outside, RH
2024-01 → —
MXPB1#,MXPJ1# HBDX,X ¥2,100
69211-47021-D1 note Handle Assy, Rear Door Outside, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,U,Z ¥2,100
69211-47021-E8 note Handle Assy, Rear Door Outside, RH
2024-01 → —
MXPB1#,MXPJ1# HBDX,X ¥2,100
69211-47021-E8 note Handle Assy, Rear Door Outside, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDZ,U,Z ¥2,100
69211-47021-P0 note Handle Assy, Rear Door Outside, RH
2024-01 → —
MXPB1#,MXPJ1# ¥2,100
69211-47021-P6 note Handle Assy, Rear Door Outside, RH
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDX,X ¥2,100
69211-47021-P6 note Handle Assy, Rear Door Outside, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDZ,U,Z ¥2,100
69211-47021-R0 note Handle Assy, Rear Door Outside, RH
2024-01 → —
MXPB1#,MXPJ1# HBDX,X ¥2,100
69211-47021-R0 note Handle Assy, Rear Door Outside, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDZ,U,Z ¥2,100
69237B — Nut, Rear Door Handle
69237-62010 Nut, Rear Door Handle
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥160
69237-62010 Nut, Rear Door Handle
2024-01 → —
MXPB1#,MXPJ1# ¥160
69239D — Bush, Rear Door Handle
69239-47010 Bush, Rear Door Handle
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥90
69239-47010 Bush, Rear Door Handle
2024-01 → —
MXPB1#,MXPJ1# ¥90
69240 — Handle Assy, Rear Door Outside, LH
69211-47021-A1 note Handle Assy, Rear Door Outside, LH
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# ¥2,100
69211-47021-A2 note Handle Assy, Rear Door Outside, LH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥2,100
69211-47021-A2 note Handle Assy, Rear Door Outside, LH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥2,100
69211-47021-C2 note Handle Assy, Rear Door Outside, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥2,100
69211-47021-C2 note Handle Assy, Rear Door Outside, LH
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥2,100
69211-47021-D1 note Handle Assy, Rear Door Outside, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,100
69211-47021-E8 note Handle Assy, Rear Door Outside, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥2,100
69211-47021-F1 note Handle Assy, Rear Door Outside, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥2,100
69211-47021-J0 note Handle Assy, Rear Door Outside, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,100
69211-47021-P0 note Handle Assy, Rear Door Outside, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,100
69211-47021-R0 note Handle Assy, Rear Door Outside, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥2,100
69211-47021-A2 note Handle Assy, Rear Door Outside, LH
2024-01 → —
MXPB1#,MXPJ1# HBDX,X ¥2,100
69211-47021-A2 note Handle Assy, Rear Door Outside, LH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,U,Z ¥2,100
69211-47021-C2 note Handle Assy, Rear Door Outside, LH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥2,100
69211-47021-C2 note Handle Assy, Rear Door Outside, LH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥2,100
69211-47021-D1 note Handle Assy, Rear Door Outside, LH
2024-01 → —
MXPB1#,MXPJ1# HBDX,X ¥2,100
69211-47021-D1 note Handle Assy, Rear Door Outside, LH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,U,Z ¥2,100
69211-47021-E8 note Handle Assy, Rear Door Outside, LH
2024-01 → —
MXPB1#,MXPJ1# HBDX,X ¥2,100
69211-47021-E8 note Handle Assy, Rear Door Outside, LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDZ,U,Z ¥2,100
69211-47021-P0 note Handle Assy, Rear Door Outside, LH
2024-01 → —
MXPB1#,MXPJ1# ¥2,100
69211-47021-P6 note Handle Assy, Rear Door Outside, LH
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDX,X ¥2,100
69211-47021-P6 note Handle Assy, Rear Door Outside, LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDZ,U,Z ¥2,100
69211-47021-R0 note Handle Assy, Rear Door Outside, LH
2024-01 → —
MXPB1#,MXPJ1# HBDX,X ¥2,100
69211-47021-R0 note Handle Assy, Rear Door Outside, LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDZ,U,Z ¥2,100
69241G — Pad, Rear Door Outside Handle, Front
69241-47020 Pad, Rear Door Outside Handle, Front
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥400
69241-47020 Pad, Rear Door Outside Handle, Front
2024-01 → —
MXPB1#,MXPJ1# ¥400
69242G — Pad, Rear Door Outside Handle, Rear
69242-47030 Pad, Rear Door Outside Handle, Rear
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥400
69242-47030 Pad, Rear Door Outside Handle, Rear
2024-01 → —
MXPB1#,MXPJ1# ¥400
69283A — Plug, Rear Door Inside Handle Bezel, RH
69283-52010-C1 note Plug, Rear Door Inside Handle Bezel, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥110
69283-52010-C1 note Plug, Rear Door Inside Handle Bezel, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥110
69283-52010-C1 note Plug, Rear Door Inside Handle Bezel, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥110
69283-52010-C1 note Plug, Rear Door Inside Handle Bezel, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥110
69283-52010-C1 note Plug, Rear Door Inside Handle Bezel, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥110
69284D — Plug, Rear Door Inside Handle Bezel, LH
69283-52010-C1 note Plug, Rear Door Inside Handle Bezel, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥110
69283-52010-C1 note Plug, Rear Door Inside Handle Bezel, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥110
69283-52010-C1 note Plug, Rear Door Inside Handle Bezel, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥110
69283-52010-C1 note Plug, Rear Door Inside Handle Bezel, LH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥110
69283-52010-C1 note Plug, Rear Door Inside Handle Bezel, LH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥110
69318D — Seal, Door Lock Wiring Harness
69318-47010 Seal, Door Lock Wiring Harness
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥120
69318-47010 Seal, Door Lock Wiring Harness
2024-01 → —
MXPB1#,MXPJ1# ¥120
69410B — Plate Assy, Rear Door Lock Striker
69410-47010 Plate Assy, Rear Door Lock Striker
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,060
69410-47010 Plate Assy, Rear Door Lock Striker
2024-01 → —
MXPB1#,MXPJ1# ¥1,060
69730M — Cable, Rear Door Lock Remote Control, RH(FOR OPEN LEVER)
69730-52270 Cable, Rear Door Lock Remote Control, RH(FOR OPEN LEVER)
2020-08 → 2020-09 ended
MXPB1#,MXPJ1# ¥1,400
69730-52271 Cable, Rear Door Lock Remote Control, RH(FOR OPEN LEVER)
2020-09 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,050
69730-52271 Cable, Rear Door Lock Remote Control, RH(FOR OPEN LEVER)
2024-01 → —
MXPB1#,MXPJ1# ¥1,050
69740E — Cable, Rear Door Lock Remote Control, LH(FOR OPEN LEVER)
69730-52270 Cable, Rear Door Lock Remote Control, LH(FOR OPEN LEVER)
2020-08 → 2020-09 ended
MXPB1#,MXPJ1# ¥1,400
69730-52271 Cable, Rear Door Lock Remote Control, LH(FOR OPEN LEVER)
2020-09 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,050
69730-52271 Cable, Rear Door Lock Remote Control, LH(FOR OPEN LEVER)
2024-01 → —
MXPB1#,MXPJ1# ¥1,050
69770E — Cable, Rear Door Inside Locking, RH(FOR LOCK / UNLOCK KNOB)
69770-52150 Cable, Rear Door Inside Locking, RH(FOR LOCK / UNLOCK KNOB)
2020-08 → 2020-09 ended
MXPB1#,MXPJ1# ¥1,400
69770-52151 Cable, Rear Door Inside Locking, RH(FOR LOCK / UNLOCK KNOB)
2020-09 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,050
69770-52151 Cable, Rear Door Inside Locking, RH(FOR LOCK / UNLOCK KNOB)
2024-01 → —
MXPB1#,MXPJ1# ¥1,050
69780E — Cable, Rear Door Inside Locking, LH(FOR LOCK / UNLOCK KNOB)
69770-52150 Cable, Rear Door Inside Locking, LH(FOR LOCK / UNLOCK KNOB)
2020-08 → 2020-09 ended
MXPB1#,MXPJ1# ¥1,400
69770-52151 Cable, Rear Door Inside Locking, LH(FOR LOCK / UNLOCK KNOB)
2020-09 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,050
69770-52151 Cable, Rear Door Inside Locking, LH(FOR LOCK / UNLOCK KNOB)
2024-01 → —
MXPB1#,MXPJ1# ¥1,050
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
