Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

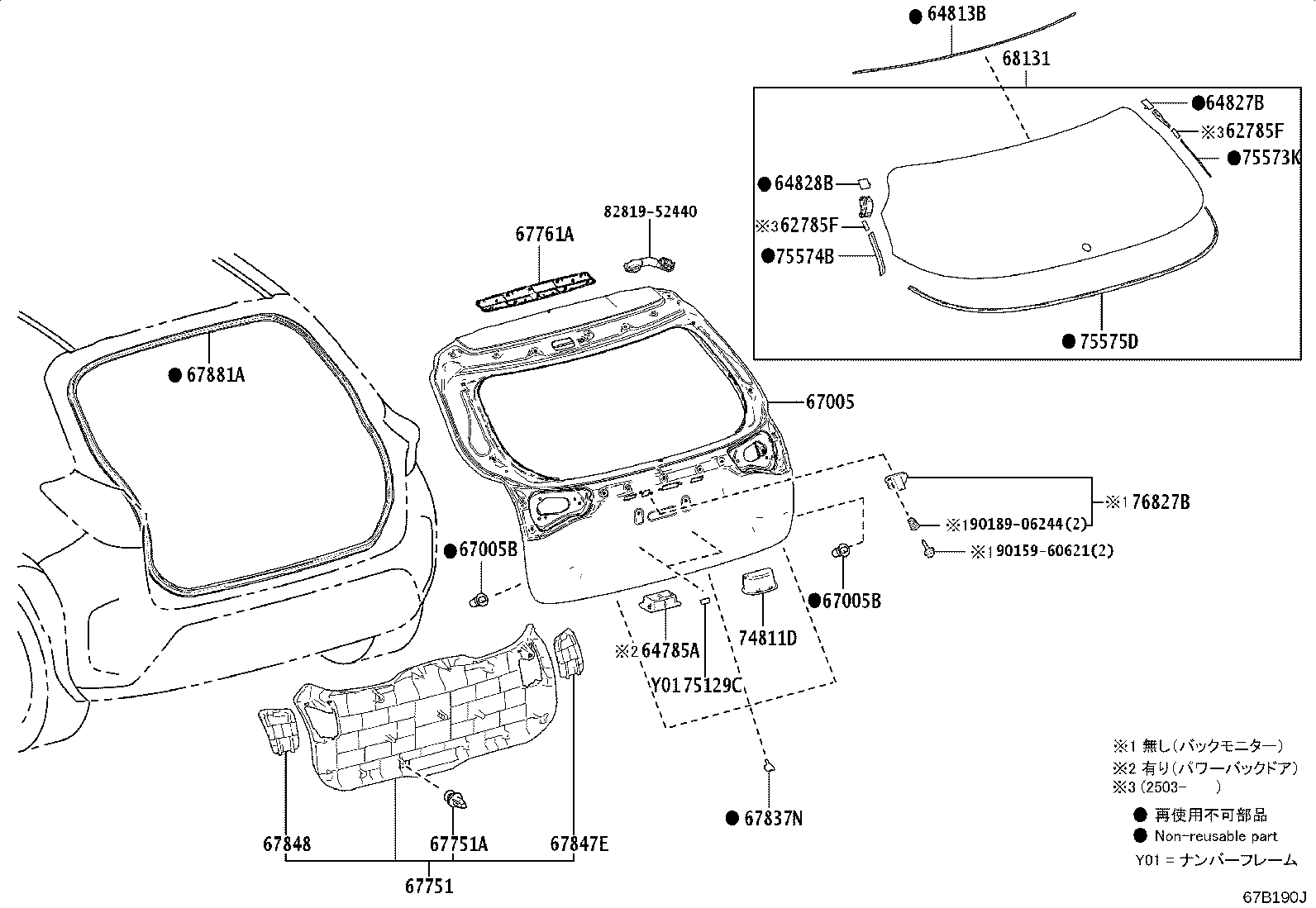

Exploded illustration 67B190J 64813B — DAM, BACK WINDOW GLASS ADHESIVE (2 parts) 64827B — CLIP, BACK WINDOW GLASS, RH (2 parts) 64828B — CLIP, BACK WINDOW GLASS, LH (2 parts) 67005 — PANEL SUB-ASSY, BACK DOOR (11 parts) 67005B — CUSHION(FOR BACK DOOR PANEL) (2 parts) 67005B — CUSHION(FOR BACK DOOR PANEL) (2 parts) 67881A — WEATHERSTRIP, BACK DOOR (2 parts) 67751 — BOARD, BACK DOOR TRIM (8 parts) 67751A — CLIP(FOR BACK DOOR TRIM BOARD) (2 parts) 67761A — COVER, BACK DOOR TRIM (17 parts) 67847E — COVER, BACK DOOR SERVICE HOLE, RH (5 parts) 67848 — COVER, BACK DOOR SERVICE HOLE, LH (5 parts) 68131 — GLASS, BACK DOOR (10 parts) 64785A — BASE, BACK DOOR TRIM (6 parts) 75573K — MOULDING, BACK WINDOW, OUTSIDE RH (2 parts) 75574B — MOULDING, BACK WINDOW, OUTSIDE LH (2 parts) 75575D — MOULDING, BACK WINDOW, LOWER (2 parts) 76827B — RETAINER, BACK DOOR GARNISH, NO.2 (2 parts) 9015960621 — not listed in this catalogue 9018906244 — not listed in this catalogue 67837N — SEAL, BACK DOOR DUST PROOF (2 parts) 75129C — CUSHION, REAR LICENCE PLATE (2 parts) 74811D — HANDLE, DOOR PULL (5 parts) 8281952440 — not listed in this catalogue 62785F — not listed in this catalogue 62785F — not listed in this catalogue
67B190J · 21 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
91 parts on this figure
Part number Description Fitment Price
64785A — Base, Back Door Trim
69290-52010 note Base, Back Door Trim
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥370
69290-52010 note Base, Back Door Trim
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥370
69290-52010 note Base, Back Door Trim
2025-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG ¥370
69290-52010 note Base, Back Door Trim
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,U,Z ¥370
69290-52010 note Base, Back Door Trim
2025-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥370
69290-52010 note Base, Back Door Trim
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG ¥370
64813B — Dam, Back Window Glass Adhesive
64813-K2020 Dam, Back Window Glass Adhesive
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥510
64813-K2020 Dam, Back Window Glass Adhesive
2024-01 → —
MXPB1#,MXPJ1# ¥510
64827B — Clip, Back Window Glass, RH
64827-52130 Clip, Back Window Glass, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥260
64827-52130 Clip, Back Window Glass, RH
2024-01 → —
MXPB1#,MXPJ1# ¥260
64828B — Clip, Back Window Glass, LH
64828-52130 Clip, Back Window Glass, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥260
64828-52130 Clip, Back Window Glass, LH
2024-01 → —
MXPB1#,MXPJ1# ¥260
67005 — Panel Sub-assy, Back Door
67005-52E00 Panel Sub-assy, Back Door
2020-08 → 2022-04 ended
MXPB1#,MXPJ1# ¥47,400
67005-52E01 Panel Sub-assy, Back Door
2022-05 → 2022-12 ended
MXPB1#,MXPJ1# ¥47,400
67005-52E02 Panel Sub-assy, Back Door
2023-01 → 2023-02 ended
MXPB1#,MXPJ1# ¥47,400
67005-52E03 Panel Sub-assy, Back Door
2023-03 → 2024-01 ended
MXPB1#,MXPJ1# ¥43,100
67005-52G10 note Panel Sub-assy, Back Door
2020-08 → 2022-04 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥47,400
67005-52G11 note Panel Sub-assy, Back Door
2022-05 → 2022-12 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥47,400
67005-52G12 note Panel Sub-assy, Back Door
2023-01 → 2023-02 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥47,400
67005-52G13 note Panel Sub-assy, Back Door
2023-03 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥43,100
67005-52E03 Panel Sub-assy, Back Door
2024-01 → —
MXPB1#,MXPJ1# ¥43,100
67005-52G13 note Panel Sub-assy, Back Door
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG ¥43,100
67005-52G13 note Panel Sub-assy, Back Door
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,U,Z ¥43,100
67005B — Cushion(FOR BACK DOOR PANEL)
90541-09142 Cushion(FOR BACK DOOR PANEL)
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥100
90541-09142 Cushion(FOR BACK DOOR PANEL)
2024-01 → —
MXPB1#,MXPJ1# ¥100
67751 — Board, Back Door Trim
67751-52220-C0 note Board, Back Door Trim
2020-08 → 2022-04 ended
MXPB1#,MXPJ1# HBDX,X ¥8,100
67751-52220-C0 note Board, Back Door Trim
2020-08 → 2022-04 ended
MXPB1#,MXPJ1# G,HBDG ¥8,100
67751-52220-C0 note Board, Back Door Trim
2020-08 → 2022-04 ended
MXPB1#,MXPJ1# HBDZ,Z ¥8,100
67751-52221-C0 note Board, Back Door Trim
2022-05 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥7,400
67751-52221-C0 note Board, Back Door Trim
2022-05 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥7,400
67751-52221-C0 note Board, Back Door Trim
2022-05 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥7,400
67751-52221-C0 note Board, Back Door Trim
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥7,400
67751-52221-C0 note Board, Back Door Trim
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥7,400
67751A — Clip(FOR BACK DOOR TRIM BOARD)
90467-10161 Clip(FOR BACK DOOR TRIM BOARD)
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥90
90467-10161 Clip(FOR BACK DOOR TRIM BOARD)
2024-01 → —
MXPB1#,MXPJ1# ¥90
67761A — Cover, Back Door Trim
67761-52040-C0 note Cover, Back Door Trim
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥1,300
67761-52040-C0 note Cover, Back Door Trim
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,300
67761-52040-C0 note Cover, Back Door Trim
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,300
67761-52090-C0 note Cover, Back Door Trim
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥2,200
67761-52090-C0 note Cover, Back Door Trim
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥2,200
67761-52090-C0 note Cover, Back Door Trim
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥2,200
67761-52090-C0 note Cover, Back Door Trim
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥2,200
67761-52090-C0 note Cover, Back Door Trim
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥2,200
67761-52090-C0 note Cover, Back Door Trim
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥2,200
67761-52040-C0 note Cover, Back Door Trim
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥1,300
67761-52040-C0 note Cover, Back Door Trim
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥1,300
67761-52090-C0 note Cover, Back Door Trim
2025-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG ¥2,200
67761-52090-C0 note Cover, Back Door Trim
2025-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥2,200
67761-52090-C0 note Cover, Back Door Trim
2025-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥2,200
67761-52090-C0 note Cover, Back Door Trim
2025-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥2,200
67761-52090-C0 note Cover, Back Door Trim
2025-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG ¥2,200
67761-52090-C0 note Cover, Back Door Trim
2025-01 → —
MXPB10,MXPJ10 GRS ¥2,200
67837N — Seal, Back Door Dust Proof
67837-K0040 Seal, Back Door Dust Proof
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥80
67837-K0040 Seal, Back Door Dust Proof
2024-01 → —
MXPB1#,MXPJ1# ¥80
67847E — Cover, Back Door Service Hole, RH
67847-52030-C0 note Cover, Back Door Service Hole, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,070
67847-52030-C0 note Cover, Back Door Service Hole, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,070
67847-52030-C0 note Cover, Back Door Service Hole, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥1,070
67847-52030-C0 note Cover, Back Door Service Hole, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥1,070
67847-52030-C0 note Cover, Back Door Service Hole, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥1,070
67848 — Cover, Back Door Service Hole, LH
67848-52010-C0 note Cover, Back Door Service Hole, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥1,070
67848-52010-C0 note Cover, Back Door Service Hole, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,070
67848-52010-C0 note Cover, Back Door Service Hole, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,070
67848-52010-C0 note Cover, Back Door Service Hole, LH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥1,070
67848-52010-C0 note Cover, Back Door Service Hole, LH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥1,070
67881A — Weatherstrip, Back Door
67881-52240 Weatherstrip, Back Door
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥7,900
67881-52240 Weatherstrip, Back Door
2024-01 → —
MXPB1#,MXPJ1# ¥7,900
68131 — Glass, Back Door
68105-52850 Glass, Back Door
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# —
68105-52B50 note Glass, Back Door
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# —
68105-52C40 note Glass, Back Door
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# GRS,HBDX,HBDZ,U,X,Z —
68105-52C40 note Glass, Back Door
2024-01 → —
MXPB1#,MXPJ1# G,HBDG —
68105-52C50 note Glass, Back Door
2025-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X —
68105-52C50 note Glass, Back Door
2025-01 → —
MXPB1#,MXPJ1# G,HBDG —
68105-52C50 note Glass, Back Door
2025-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z —
68105-52C50 note Glass, Back Door
2025-01 → 2025-03 ended
MXPB1#,MXPJ1# GRS,HBDX,HBDZ,X,Z —
68105-52C81 Glass, Back Door
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z —
68105-52C81 Glass, Back Door
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X —
74811D — Handle, Door Pull
74811-13010-C2 note Handle, Door Pull
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥590
74811-13010-C2 note Handle, Door Pull
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥590
74811-13010-C2 note Handle, Door Pull
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥590
74811-13010-C2 note Handle, Door Pull
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥590
74811-13010-C2 note Handle, Door Pull
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥590
75129C — Cushion, Rear Licence Plate
75129-30010 Cushion, Rear Licence Plate
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥190
75129-30010 Cushion, Rear Licence Plate
2024-01 → —
MXPB1#,MXPJ1# ¥190
75573K — Moulding, Back Window, Outside RH
75573-52270 Moulding, Back Window, Outside RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥260
75573-52310 Moulding, Back Window, Outside RH
2024-01 → —
MXPB1#,MXPJ1# ¥410
75574B — Moulding, Back Window, Outside LH
75574-52120 Moulding, Back Window, Outside LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥260
75574-52160 Moulding, Back Window, Outside LH
2024-01 → —
MXPB1#,MXPJ1# ¥410
75575D — Moulding, Back Window, Lower
75575-52050 Moulding, Back Window, Lower
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥550
75575-52050 Moulding, Back Window, Lower
2024-01 → —
MXPB1#,MXPJ1# ¥550
76827B — Retainer, Back Door Garnish, NO.2
76827-52070 Retainer, Back Door Garnish, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥550
76827-52070 Retainer, Back Door Garnish, NO.2
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥550
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
