Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

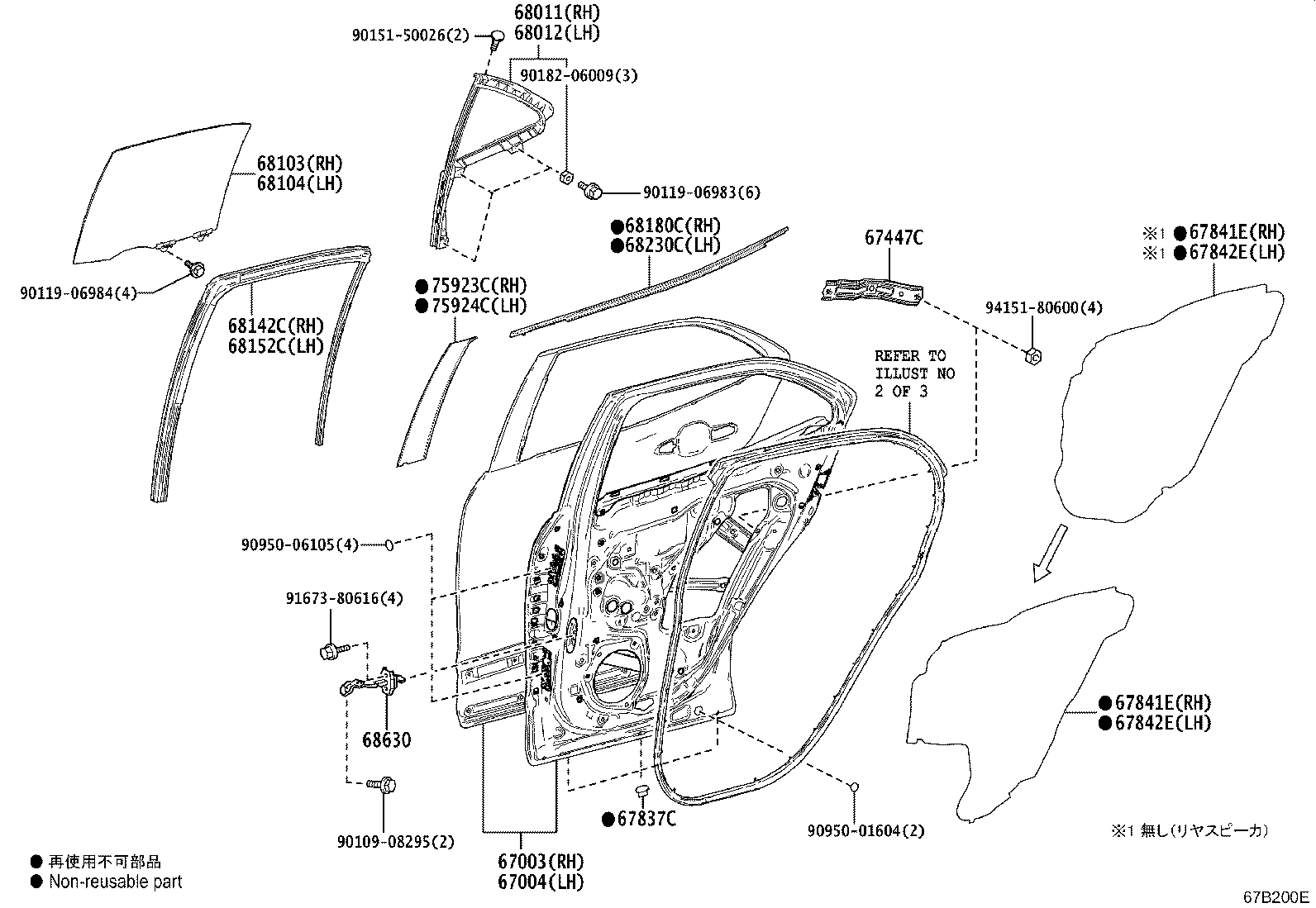

Exploded illustration 67B200E 67003 — PANEL SUB-ASSY, REAR DOOR, RH (4 parts) 67004 — PANEL SUB-ASSY, REAR DOOR, LH (4 parts) 68011 — GLASS SUB-ASSY, REAR DOOR QUARTER WINDOW, RH (2 parts) 68012 — GLASS SUB-ASSY, REAR DOOR QUARTER WINDOW, LH (2 parts) 67837C — SEAL, REAR DOOR DUST PROOF (2 parts) 67841E — COVER, REAR DOOR SERVICE HOLE, RH (9 parts) 67447C — PLATE, REAR DOOR WINDOW GUIDE, LOWER (2 parts) 67842E — COVER, REAR DOOR SERVICE HOLE, LH (9 parts) 67841E — COVER, REAR DOOR SERVICE HOLE, RH (9 parts) 67842E — COVER, REAR DOOR SERVICE HOLE, LH (9 parts) 68103 — GLASS SUB-ASSY, REAR DOOR, RH (2 parts) 68104 — GLASS SUB-ASSY, REAR DOOR, LH (2 parts) 68142C — RUN, REAR DOOR GLASS, RH (2 parts) 68152C — RUN, REAR DOOR GLASS, LH (2 parts) 68180C — WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH (2 parts) 68230C — WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH (2 parts) 75923C — TAPE, BLACK OUT, NO.2 RH (2 parts) 75924C — TAPE, BLACK OUT, NO.2 LH (2 parts) 9011906984 — not listed in this catalogue 9015150026 — not listed in this catalogue 9095001604 — not listed in this catalogue 9415180600 — not listed in this catalogue 68630 — CHECK ASSY, REAR DOOR (3 parts) 9010908295 — not listed in this catalogue 9167380616 — not listed in this catalogue 9011906983 — not listed in this catalogue 9018206009 — not listed in this catalogue 9095006105 — not listed in this catalogue
67B200E · 19 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
53 parts on this figure
Part number Description Fitment Price
67003 — Panel Sub-assy, Rear Door, RH
67003-52500 Panel Sub-assy, Rear Door, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ10 ¥41,500
67003-52510 Panel Sub-assy, Rear Door, RH
2020-08 → 2024-01 ended
MXPJ15 ¥41,500
67003-52500 Panel Sub-assy, Rear Door, RH
2024-01 → —
MXPB1#,MXPJ10 ¥41,500
67003-52510 Panel Sub-assy, Rear Door, RH
2024-01 → —
MXPJ15 ¥41,500
67004 — Panel Sub-assy, Rear Door, LH
67004-52520 Panel Sub-assy, Rear Door, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ10 ¥41,500
67004-52530 Panel Sub-assy, Rear Door, LH
2020-08 → 2024-01 ended
MXPJ15 ¥41,500
67004-52520 Panel Sub-assy, Rear Door, LH
2024-01 → —
MXPB1#,MXPJ10 ¥41,500
67004-52530 Panel Sub-assy, Rear Door, LH
2024-01 → —
MXPJ15 ¥41,500
67447C — Plate, Rear Door Window Guide, Lower
67447-52030 Plate, Rear Door Window Guide, Lower
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥920
67447-52030 Plate, Rear Door Window Guide, Lower
2024-01 → —
MXPB1#,MXPJ1# ¥920
67837C — Seal, Rear Door Dust Proof
67837-47060 Seal, Rear Door Dust Proof
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥80
67837-47060 Seal, Rear Door Dust Proof
2024-01 → —
MXPB1#,MXPJ1# ¥80
67841E — Cover, Rear Door Service Hole, RH
67841-K0010 Cover, Rear Door Service Hole, RH
2020-08 → 2023-04 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥600
67841-K0011 Cover, Rear Door Service Hole, RH
2023-05 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥540
67841-K0020 Cover, Rear Door Service Hole, RH
2020-08 → 2023-04 ended
MXPB1#,MXPJ1# HBDX,X ¥600
67841-K0021 Cover, Rear Door Service Hole, RH
2023-05 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥540
67841-K0011 note Cover, Rear Door Service Hole, RH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥540
67841-K0011 note Cover, Rear Door Service Hole, RH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥540
67841-K0011 note Cover, Rear Door Service Hole, RH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥540
67841-K0011 Cover, Rear Door Service Hole, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,U,Z ¥540
67841-K0021 Cover, Rear Door Service Hole, RH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥540
67842E — Cover, Rear Door Service Hole, LH
67841-K0010 Cover, Rear Door Service Hole, LH
2020-08 → 2023-04 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥600
67841-K0011 Cover, Rear Door Service Hole, LH
2023-05 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥540
67841-K0020 Cover, Rear Door Service Hole, LH
2020-08 → 2023-04 ended
MXPB1#,MXPJ1# HBDX,X ¥600
67841-K0021 Cover, Rear Door Service Hole, LH
2023-05 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥540
67841-K0011 Cover, Rear Door Service Hole, LH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,U,Z ¥540
67841-K0011 note Cover, Rear Door Service Hole, LH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥540
67841-K0011 note Cover, Rear Door Service Hole, LH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥540
67841-K0011 note Cover, Rear Door Service Hole, LH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥540
67841-K0021 Cover, Rear Door Service Hole, LH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥540
68011 — Glass Sub-assy, Rear Door Quarter Window, RH
68011-52020 Glass Sub-assy, Rear Door Quarter Window, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# —
68011-52020 Glass Sub-assy, Rear Door Quarter Window, RH
2024-01 → —
MXPB1#,MXPJ1# —
68012 — Glass Sub-assy, Rear Door Quarter Window, LH
68012-52020 Glass Sub-assy, Rear Door Quarter Window, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# —
68012-52020 Glass Sub-assy, Rear Door Quarter Window, LH
2024-01 → —
MXPB1#,MXPJ1# —
68103 — Glass Sub-assy, Rear Door, RH
68103-52050 Glass Sub-assy, Rear Door, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# —
68103-52050 Glass Sub-assy, Rear Door, RH
2024-01 → —
MXPB1#,MXPJ1# —
68104 — Glass Sub-assy, Rear Door, LH
68104-52090 Glass Sub-assy, Rear Door, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# —
68104-52090 Glass Sub-assy, Rear Door, LH
2024-01 → —
MXPB1#,MXPJ1# —
68142C — Run, Rear Door Glass, RH
68142-K2010 Run, Rear Door Glass, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,930
68142-K2010 Run, Rear Door Glass, RH
2024-01 → —
MXPB1#,MXPJ1# ¥2,930
68152C — Run, Rear Door Glass, LH
68152-K2010 Run, Rear Door Glass, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,930
68152-K2010 Run, Rear Door Glass, LH
2024-01 → —
MXPB1#,MXPJ1# ¥2,930
68180C — Weatherstrip Assy, Rear Door Glass, Outer RH
68180-52210 Weatherstrip Assy, Rear Door Glass, Outer RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,610
68180-52210 Weatherstrip Assy, Rear Door Glass, Outer RH
2024-01 → —
MXPB1#,MXPJ1# ¥1,610
68230C — Weatherstrip Assy, Rear Door Glass, Outer LH
68230-52210 Weatherstrip Assy, Rear Door Glass, Outer LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,610
68230-52210 Weatherstrip Assy, Rear Door Glass, Outer LH
2024-01 → —
MXPB1#,MXPJ1# ¥1,610
68630 — Check Assy, Rear Door
68630-52160 Check Assy, Rear Door
2020-08 → 2021-09 ended
MXPB1#,MXPJ1# ¥2,560
68630-52161 Check Assy, Rear Door
2021-10 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,330
68630-52161 Check Assy, Rear Door
2024-01 → —
MXPB1#,MXPJ1# ¥2,330
75923C — Tape, Black Out, NO.2 RH
75923-52160 Tape, Black Out, NO.2 RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,230
75923-52160 Tape, Black Out, NO.2 RH
2024-01 → —
MXPB1#,MXPJ1# ¥1,230
75924C — Tape, Black Out, NO.2 LH
75924-52150 Tape, Black Out, NO.2 LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,230
75924-52150 Tape, Black Out, NO.2 LH
2024-01 → —
MXPB1#,MXPJ1# ¥1,230
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
