Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

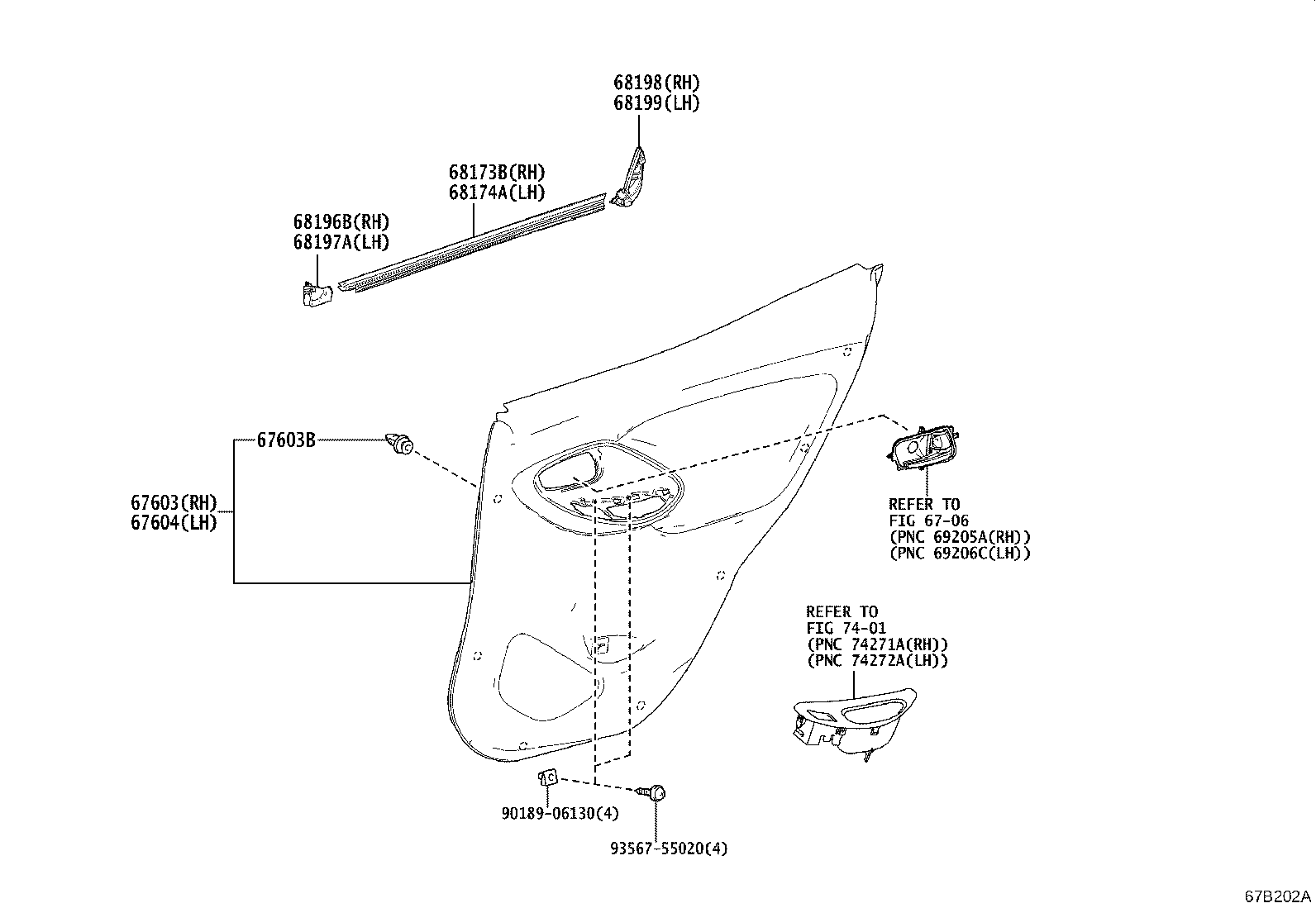

Exploded illustration 67B202A 67603 — BOARD SUB-ASSY, REAR DOOR TRIM, RH (5 parts) 67603B — CLIP(FOR REAR DOOR TRIM BOARD) (2 parts) 67604 — BOARD SUB-ASSY, REAR DOOR TRIM, LH (5 parts) 9018906130 — not listed in this catalogue 9356755020 — not listed in this catalogue 68173B — WEATHERSTRIP, REAR DOOR GLASS, INNER RH (2 parts) 68174A — WEATHERSTRIP, REAR DOOR GLASS, INNER LH (2 parts) 68196B — SEAL, REAR DOOR BELT, FRONT RH (2 parts) 68197A — SEAL, REAR DOOR BELT, FRONT LH (2 parts) 68198 — SEAL, REAR DOOR BELT, REAR RH (2 parts) 68199 — SEAL, REAR DOOR BELT, REAR LH (2 parts) 6706 — not listed in this catalogue 7401 — not listed in this catalogue
67B202A · 9 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
24 parts on this figure
Part number Description Fitment Price
67603 — Board Sub-assy, Rear Door Trim, RH
67630-52V80-C0 note Board Sub-assy, Rear Door Trim, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥11,700
67630-52V80-C0 note Board Sub-assy, Rear Door Trim, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥11,700
67630-52V80-C0 note Board Sub-assy, Rear Door Trim, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥11,700
67630-52V80-C0 note Board Sub-assy, Rear Door Trim, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥11,700
67630-52V80-C0 note Board Sub-assy, Rear Door Trim, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥11,700
67603B — Clip(FOR REAR DOOR TRIM BOARD)
90467-09206 Clip(FOR REAR DOOR TRIM BOARD)
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥80
90467-09206 Clip(FOR REAR DOOR TRIM BOARD)
2024-01 → —
MXPB1#,MXPJ1# ¥80
67604 — Board Sub-assy, Rear Door Trim, LH
67640-52V00-C0 note Board Sub-assy, Rear Door Trim, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥11,700
67640-52V00-C0 note Board Sub-assy, Rear Door Trim, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥11,700
67640-52V00-C0 note Board Sub-assy, Rear Door Trim, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥11,700
67640-52V00-C0 note Board Sub-assy, Rear Door Trim, LH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥11,700
67640-52V00-C0 note Board Sub-assy, Rear Door Trim, LH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥11,700
68173B — Weatherstrip, Rear Door Glass, Inner RH
68173-52210 Weatherstrip, Rear Door Glass, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,260
68173-52210 Weatherstrip, Rear Door Glass, Inner RH
2024-01 → —
MXPB1#,MXPJ1# ¥2,260
68174A — Weatherstrip, Rear Door Glass, Inner LH
68174-52210 Weatherstrip, Rear Door Glass, Inner LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,260
68174-52210 Weatherstrip, Rear Door Glass, Inner LH
2024-01 → —
MXPB1#,MXPJ1# ¥2,260
68196B — Seal, Rear Door Belt, Front RH
68196-52030 Seal, Rear Door Belt, Front RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥610
68196-52030 Seal, Rear Door Belt, Front RH
2024-01 → —
MXPB1#,MXPJ1# ¥610
68197A — Seal, Rear Door Belt, Front LH
68197-52030 Seal, Rear Door Belt, Front LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥610
68197-52030 Seal, Rear Door Belt, Front LH
2024-01 → —
MXPB1#,MXPJ1# ¥610
68198 — Seal, Rear Door Belt, Rear RH
68198-52020 Seal, Rear Door Belt, Rear RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥370
68198-52020 Seal, Rear Door Belt, Rear RH
2024-01 → —
MXPB1#,MXPJ1# ¥370
68199 — Seal, Rear Door Belt, Rear LH
68199-52020 Seal, Rear Door Belt, Rear LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥370
68199-52020 Seal, Rear Door Belt, Rear LH
2024-01 → —
MXPB1#,MXPJ1# ¥370
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
