Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

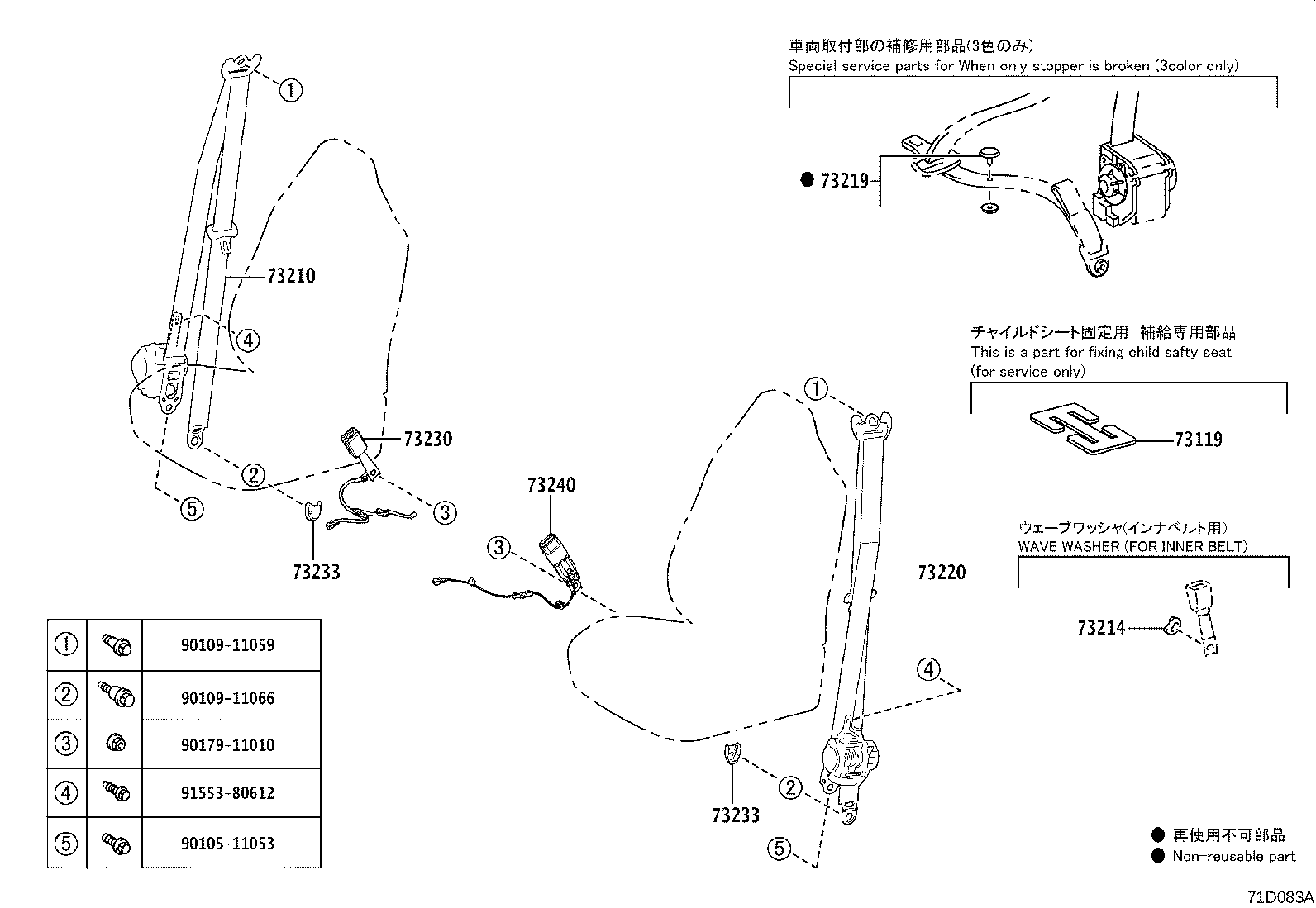

Exploded illustration 71D083A 73219 — STOPPER, TONGUE PLATE (6 parts) 73119 — PLATE, SEAT BELT WEBBING CLIP (2 parts) 73214 — PLATE, FRONT SEAT BELT ANCHOR (8 parts) 73233 — COVER, LAP BELT OUTER ANCHOR (5 parts) 73233 — COVER, LAP BELT OUTER ANCHOR (5 parts) 73210 — BELT ASSY, FRONT SEAT OUTER, RH (5 parts) 73220 — BELT ASSY, FRONT SEAT OUTER, LH (5 parts) 73230 — BELT ASSY, FRONT SEAT INNER, RH (16 parts) 73240 — BELT ASSY, FRONT SEAT INNER, LH (12 parts) 9017911010 — not listed in this catalogue 9010911066 — not listed in this catalogue 9155380612 — not listed in this catalogue 9010511053 — not listed in this catalogue 9010911059 — not listed in this catalogue
71D083A · 9 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
59 parts on this figure
Part number Description Fitment Price
73119 — Plate, Seat Belt Webbing Clip
73119-22010 Plate, Seat Belt Webbing Clip
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,110
73119-22010 Plate, Seat Belt Webbing Clip
2024-01 → —
MXPB1#,MXPJ1# ¥1,110
73210 — Belt Assy, Front Seat Outer, RH
73210-K0020-C0 note Belt Assy, Front Seat Outer, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥23,800
73210-K0020-C0 note Belt Assy, Front Seat Outer, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥23,800
73210-K0020-C0 note Belt Assy, Front Seat Outer, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥23,800
73210-K0020-C0 note Belt Assy, Front Seat Outer, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥23,800
73210-K0020-C0 note Belt Assy, Front Seat Outer, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥23,800
73214 — Plate, Front Seat Belt Anchor
73214-75010 note Plate, Front Seat Belt Anchor
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥170
73214-75010 Plate, Front Seat Belt Anchor
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥170
73214-75010 note Plate, Front Seat Belt Anchor
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥170
73214-75010 Plate, Front Seat Belt Anchor
2024-01 → —
MXPB1#,MXPJ1# ¥170
73214-75010 note Plate, Front Seat Belt Anchor
2024-01 → —
MXPJ1# U ¥170
73214-75010 note Plate, Front Seat Belt Anchor
2024-01 → —
MXPJ1# U ¥170
73214-75010 note Plate, Front Seat Belt Anchor
2024-01 → —
MXPJ1# U ¥170
73214-75010 note Plate, Front Seat Belt Anchor
2024-01 → —
MXPJ1# U ¥170
73219 — Stopper, Tongue Plate
73219-33010 note Stopper, Tongue Plate
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥100
73219-33020 note Stopper, Tongue Plate
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥100
73219-33030 note Stopper, Tongue Plate
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥100
73219-33010 note Stopper, Tongue Plate
2024-01 → —
MXPB1#,MXPJ1# ¥100
73219-33020 note Stopper, Tongue Plate
2024-01 → —
MXPB1#,MXPJ1# ¥100
73219-33030 note Stopper, Tongue Plate
2024-01 → —
MXPB1#,MXPJ1# ¥100
73220 — Belt Assy, Front Seat Outer, LH
73220-K0020-C0 note Belt Assy, Front Seat Outer, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥23,800
73220-K0020-C0 note Belt Assy, Front Seat Outer, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥23,800
73220-K0020-C0 note Belt Assy, Front Seat Outer, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥23,800
73220-K0020-C0 note Belt Assy, Front Seat Outer, LH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥23,800
73220-K0020-C0 note Belt Assy, Front Seat Outer, LH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥23,800
73230 — Belt Assy, Front Seat Inner, RH
73230-52A90-C0 note Belt Assy, Front Seat Inner, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥4,170
73230-52A90-C0 note Belt Assy, Front Seat Inner, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥4,170
73230-K0050-C0 note Belt Assy, Front Seat Inner, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥4,170
73230-K0050-C0 note Belt Assy, Front Seat Inner, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥4,170
73230-K0050-C0 note Belt Assy, Front Seat Inner, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥4,170
73230-K0100-C0 note Belt Assy, Front Seat Inner, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥4,170
73230-K0100-C0 note Belt Assy, Front Seat Inner, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥4,170
73230-52A90-C0 note Belt Assy, Front Seat Inner, RH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥4,170
73230-K0050-C0 note Belt Assy, Front Seat Inner, RH
2024-01 → 2024-04 ended
MXPB1#,MXPJ1# HBDX,X ¥4,170
73230-K0050-C0 note Belt Assy, Front Seat Inner, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥4,170
73230-K0050-C0 note Belt Assy, Front Seat Inner, RH
2024-01 → —
MXPJ1# U ¥4,170
73230-K0050-C0 note Belt Assy, Front Seat Inner, RH
2024-01 → —
MXPJ1# U ¥4,170
73230-K0050-C0 note Belt Assy, Front Seat Inner, RH
2024-01 → —
MXPJ1# U ¥4,170
73230-K0050-C0 note Belt Assy, Front Seat Inner, RH
2024-01 → —
MXPJ1# U ¥4,170
73230-K0100-C0 note Belt Assy, Front Seat Inner, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥4,170
73230-K0100-C0 note Belt Assy, Front Seat Inner, RH
2024-01 → —
MXPJ1# U ¥4,170
73233 — Cover, Lap Belt Outer Anchor
73233-60020-C1 note Cover, Lap Belt Outer Anchor
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥370
73233-60020-C1 note Cover, Lap Belt Outer Anchor
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥370
73233-60020-C1 note Cover, Lap Belt Outer Anchor
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥370
73233-60020-C1 note Cover, Lap Belt Outer Anchor
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥370
73233-60020-C1 note Cover, Lap Belt Outer Anchor
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥370
73240 — Belt Assy, Front Seat Inner, LH
73230-K0080-C0 note Belt Assy, Front Seat Inner, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥3,580
73230-K0080-C0 note Belt Assy, Front Seat Inner, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥3,580
73230-K0080-C0 note Belt Assy, Front Seat Inner, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥3,580
73230-K0080-C0 note Belt Assy, Front Seat Inner, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥3,580
73230-K0080-C0 note Belt Assy, Front Seat Inner, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥3,580
73230-K0080-C0 note Belt Assy, Front Seat Inner, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥3,580
73230-K0080-C0 note Belt Assy, Front Seat Inner, LH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥3,580
73230-K0080-C0 note Belt Assy, Front Seat Inner, LH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥3,580
73230-K0080-C0 note Belt Assy, Front Seat Inner, LH
2024-01 → —
MXPJ1# U ¥3,580
73230-K0080-C0 note Belt Assy, Front Seat Inner, LH
2024-01 → —
MXPJ1# U ¥3,580
73230-K0080-C0 note Belt Assy, Front Seat Inner, LH
2024-01 → —
MXPJ1# U ¥3,580
73230-K0080-C0 note Belt Assy, Front Seat Inner, LH
2024-01 → —
MXPJ1# U ¥3,580
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
