Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

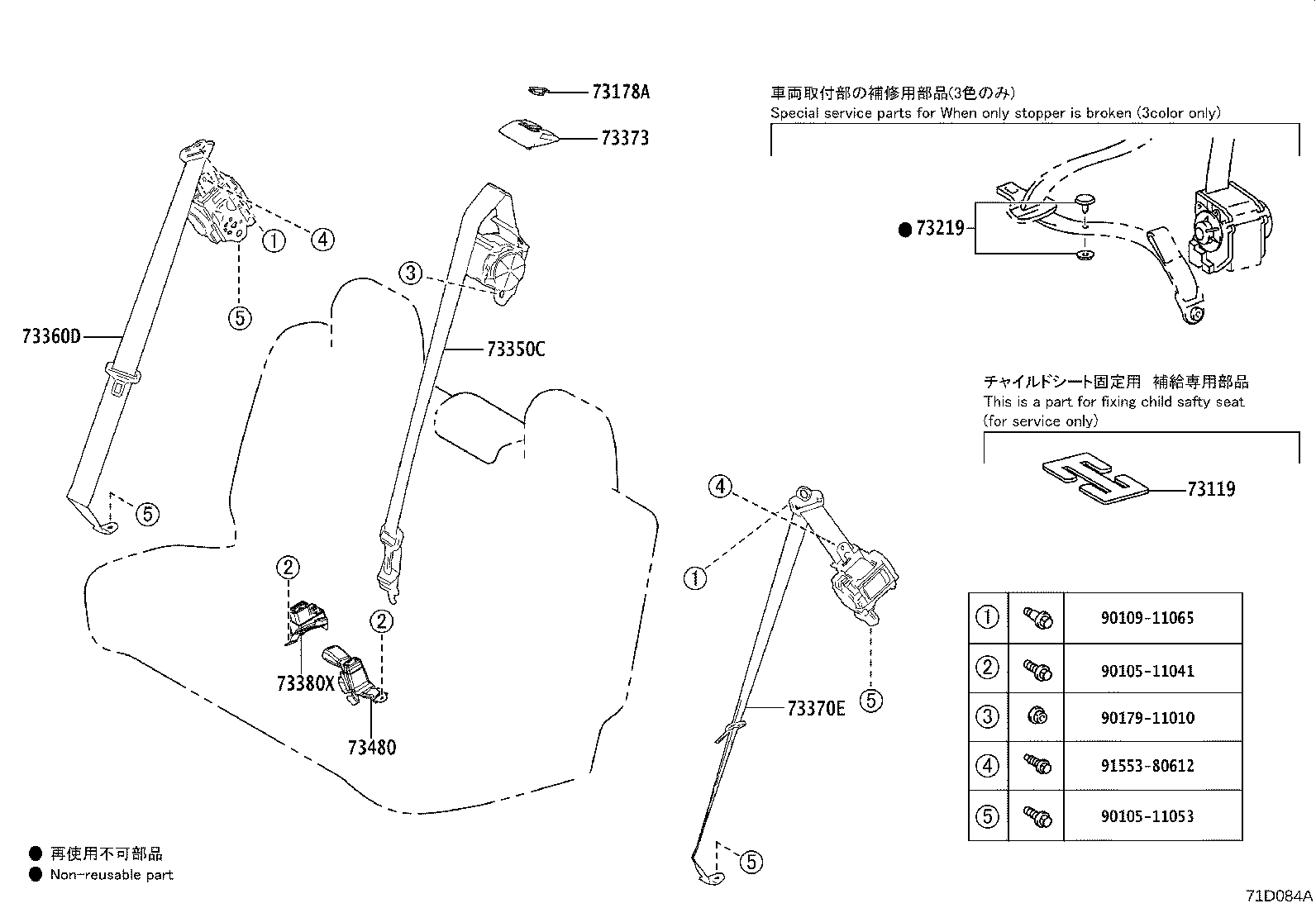

Exploded illustration 71D084A 73219 — STOPPER, TONGUE PLATE (6 parts) 73119 — PLATE, SEAT BELT WEBBING CLIP (2 parts) 73360D — BELT ASSY, REAR SEAT, OUTER RH (12 parts) 73380X — BELT ASSY, REAR SEAT, INNER RH (5 parts) 73480 — BELT ASSY, REAR SEAT INNER W/CENTER, LH (5 parts) 73350C — BELT ASSY, REAR SEAT, OUTER CENTER (9 parts) 73178A — CAP, SEAT BELT ANCHOR COVER (9 parts) 73373 — COVER, REAR SEAT SHOULDER BELT (9 parts) 73370E — BELT ASSY, REAR SEAT, OUTER LH (12 parts) 9017911010 — not listed in this catalogue 9010511041 — not listed in this catalogue 9155380612 — not listed in this catalogue 9010511053 — not listed in this catalogue 9010911065 — not listed in this catalogue
71D084A · 9 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
69 parts on this figure
Part number Description Fitment Price
73119 — Plate, Seat Belt Webbing Clip
73119-22010 Plate, Seat Belt Webbing Clip
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,110
73119-22010 Plate, Seat Belt Webbing Clip
2024-01 → —
MXPB1#,MXPJ1# ¥1,110
73178A — Cap, Seat Belt Anchor Cover
73178-K0020-C0 note Cap, Seat Belt Anchor Cover
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥140
73178-K0020-C0 note Cap, Seat Belt Anchor Cover
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥140
73178-K0020-C0 note Cap, Seat Belt Anchor Cover
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥140
73178-K0020-C0 note Cap, Seat Belt Anchor Cover
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥140
73178-K0020-C0 note Cap, Seat Belt Anchor Cover
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥140
73178-K0020-C0 note Cap, Seat Belt Anchor Cover
2024-01 → —
MXPJ1# U ¥140
73178-K0020-C0 note Cap, Seat Belt Anchor Cover
2024-01 → —
MXPJ1# U ¥140
73178-K0020-C0 note Cap, Seat Belt Anchor Cover
2024-01 → —
MXPJ1# U ¥140
73178-K0020-C0 note Cap, Seat Belt Anchor Cover
2024-01 → —
MXPJ1# U ¥140
73219 — Stopper, Tongue Plate
73219-33010 note Stopper, Tongue Plate
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥100
73219-33020 note Stopper, Tongue Plate
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥100
73219-33030 note Stopper, Tongue Plate
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥100
73219-33010 note Stopper, Tongue Plate
2024-01 → —
MXPB1#,MXPJ1# ¥100
73219-33020 note Stopper, Tongue Plate
2024-01 → —
MXPB1#,MXPJ1# ¥100
73219-33030 note Stopper, Tongue Plate
2024-01 → —
MXPB1#,MXPJ1# ¥100
73350C — Belt Assy, Rear Seat, Outer Center
73350-K0030-C0 note Belt Assy, Rear Seat, Outer Center
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥14,900
73350-K0030-C0 note Belt Assy, Rear Seat, Outer Center
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥14,900
73350-K0030-C0 note Belt Assy, Rear Seat, Outer Center
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥14,900
73350-K0030-C0 note Belt Assy, Rear Seat, Outer Center
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥14,900
73350-K0030-C0 note Belt Assy, Rear Seat, Outer Center
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥14,900
73350-K0030-C0 note Belt Assy, Rear Seat, Outer Center
2024-01 → —
MXPJ1# U ¥14,900
73350-K0030-C0 note Belt Assy, Rear Seat, Outer Center
2024-01 → —
MXPJ1# U ¥14,900
73350-K0030-C0 note Belt Assy, Rear Seat, Outer Center
2024-01 → —
MXPJ1# U ¥14,900
73350-K0030-C0 note Belt Assy, Rear Seat, Outer Center
2024-01 → —
MXPJ1# U ¥14,900
73360D — Belt Assy, Rear Seat, Outer RH
73360-52460-C0 note Belt Assy, Rear Seat, Outer RH
2020-08 → 2022-06 ended
MXPB1#,MXPJ1# HBDZ,Z ¥26,200
73360-52460-C0 note Belt Assy, Rear Seat, Outer RH
2020-08 → 2022-06 ended
MXPB1#,MXPJ1# HBDX,X ¥26,200
73360-52460-C0 note Belt Assy, Rear Seat, Outer RH
2020-08 → 2022-06 ended
MXPB1#,MXPJ1# G,HBDG ¥26,200
73360-52461-C0 note Belt Assy, Rear Seat, Outer RH
2022-07 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥23,800
73360-52461-C0 note Belt Assy, Rear Seat, Outer RH
2022-07 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥23,800
73360-52461-C0 note Belt Assy, Rear Seat, Outer RH
2022-07 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥23,800
73360-52461-C0 note Belt Assy, Rear Seat, Outer RH
2024-01 → —
MXPJ1# U ¥23,800
73360-52461-C0 note Belt Assy, Rear Seat, Outer RH
2024-01 → —
MXPJ1# U ¥23,800
73360-52461-C0 note Belt Assy, Rear Seat, Outer RH
2024-01 → —
MXPJ1# U ¥23,800
73360-52461-C0 note Belt Assy, Rear Seat, Outer RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥23,800
73360-52461-C0 note Belt Assy, Rear Seat, Outer RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥23,800
73360-52461-C0 note Belt Assy, Rear Seat, Outer RH
2024-01 → —
MXPJ1# U ¥23,800
73370E — Belt Assy, Rear Seat, Outer LH
73370-52450-C0 note Belt Assy, Rear Seat, Outer LH
2020-08 → 2022-06 ended
MXPB1#,MXPJ1# HBDZ,Z ¥26,200
73370-52450-C0 note Belt Assy, Rear Seat, Outer LH
2020-08 → 2022-06 ended
MXPB1#,MXPJ1# HBDX,X ¥26,200
73370-52450-C0 note Belt Assy, Rear Seat, Outer LH
2020-08 → 2022-06 ended
MXPB1#,MXPJ1# G,HBDG ¥26,200
73370-52451-C0 note Belt Assy, Rear Seat, Outer LH
2022-07 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥23,800
73370-52451-C0 note Belt Assy, Rear Seat, Outer LH
2022-07 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥23,800
73370-52451-C0 note Belt Assy, Rear Seat, Outer LH
2022-07 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥23,800
73370-52451-C0 note Belt Assy, Rear Seat, Outer LH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥23,800
73370-52451-C0 note Belt Assy, Rear Seat, Outer LH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥23,800
73370-52451-C0 note Belt Assy, Rear Seat, Outer LH
2024-01 → —
MXPJ1# U ¥23,800
73370-52451-C0 note Belt Assy, Rear Seat, Outer LH
2024-01 → —
MXPJ1# U ¥23,800
73370-52451-C0 note Belt Assy, Rear Seat, Outer LH
2024-01 → —
MXPJ1# U ¥23,800
73370-52451-C0 note Belt Assy, Rear Seat, Outer LH
2024-01 → —
MXPJ1# U ¥23,800
73373 — Cover, Rear Seat Shoulder Belt
73373-K0020-C0 note Cover, Rear Seat Shoulder Belt
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥1,510
73373-K0020-C0 note Cover, Rear Seat Shoulder Belt
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,510
73373-K0020-C0 note Cover, Rear Seat Shoulder Belt
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,510
73373-K0020-C0 note Cover, Rear Seat Shoulder Belt
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥1,510
73373-K0020-C0 note Cover, Rear Seat Shoulder Belt
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥1,510
73373-K0020-C0 note Cover, Rear Seat Shoulder Belt
2024-01 → —
MXPJ1# U ¥1,510
73373-K0020-C0 note Cover, Rear Seat Shoulder Belt
2024-01 → —
MXPJ1# U ¥1,510
73373-K0020-C0 note Cover, Rear Seat Shoulder Belt
2024-01 → —
MXPJ1# U ¥1,510
73373-K0020-C0 note Cover, Rear Seat Shoulder Belt
2024-01 → —
MXPJ1# U ¥1,510
73380X — Belt Assy, Rear Seat, Inner RH
73380-K0020-C0 note Belt Assy, Rear Seat, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥5,400
73380-K0020-C0 note Belt Assy, Rear Seat, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥5,400
73380-K0020-C0 note Belt Assy, Rear Seat, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥5,400
73380-K0020-C0 note Belt Assy, Rear Seat, Inner RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥5,400
73380-K0020-C0 note Belt Assy, Rear Seat, Inner RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥5,400
73480 — Belt Assy, Rear Seat Inner W/Center, LH
73480-K0020-C0 note Belt Assy, Rear Seat Inner W/Center, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥5,400
73480-K0020-C0 note Belt Assy, Rear Seat Inner W/Center, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥5,400
73480-K0020-C0 note Belt Assy, Rear Seat Inner W/Center, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥5,400
73480-K0020-C0 note Belt Assy, Rear Seat Inner W/Center, LH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥5,400
73480-K0020-C0 note Belt Assy, Rear Seat Inner W/Center, LH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥5,400
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
