Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

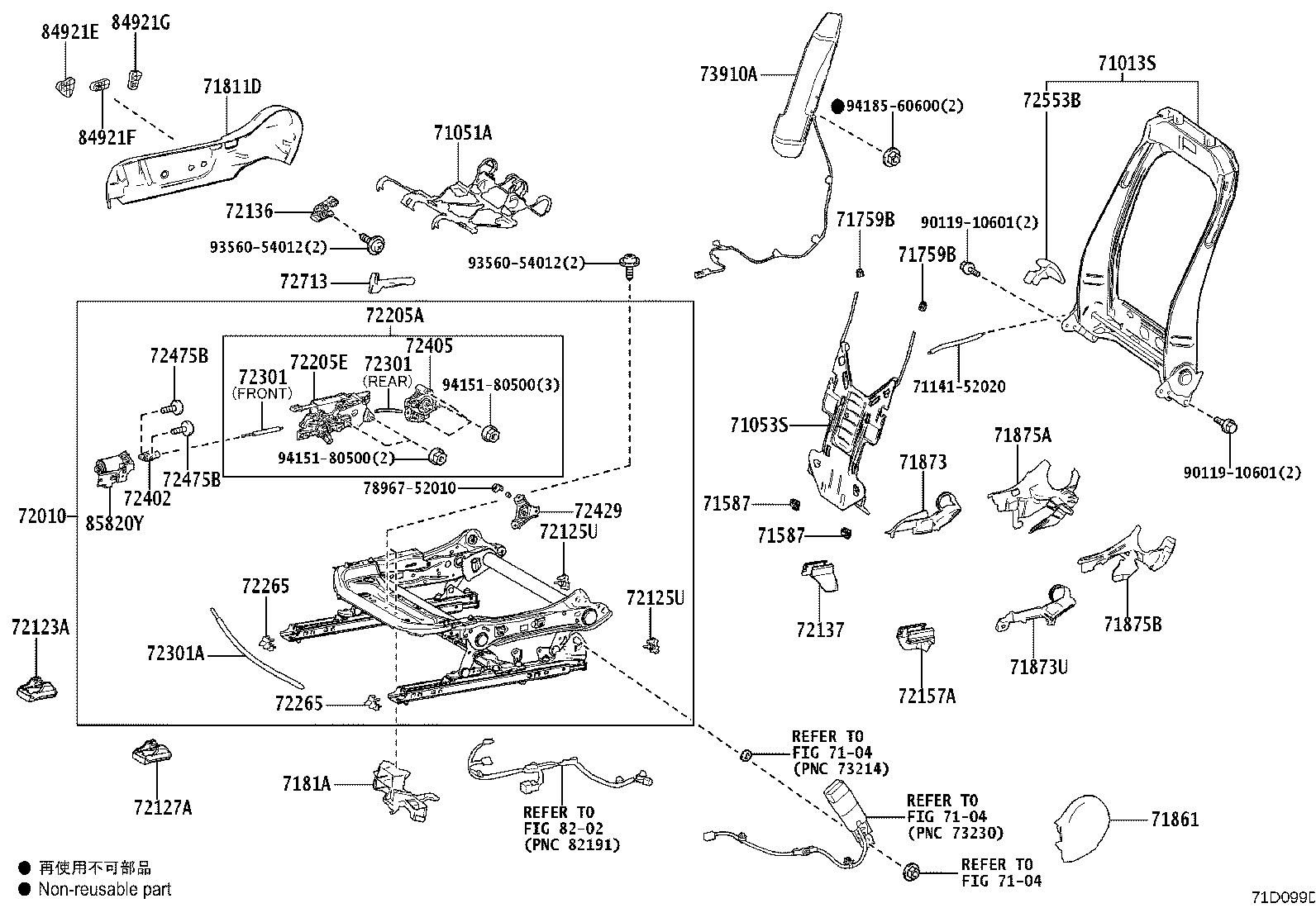

Exploded illustration 71D099D 72137 — COVER, SEAT TRACK, OUTER RH (16 parts) 72157A — COVER, SEAT TRACK BRACKET, INNER RH (16 parts) 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (16 parts) 72127A — COVER, SEAT TRACK BRACKET, INNER FRONT RH (16 parts) 72553B — PROTECTOR, RECLINING COVER, RH (8 parts) 72205A — HOUSING SUB-ASSY, POWER SEAT, NO.1 (5 parts) 72205E — HOUSING SUB-ASSY, POWER SEAT, NO.1 (5 parts) 72405 — HOUSING SUB-ASSY, FRONT SEAT VERTICAL (3 parts) 72301 — WIRE SUB-ASSY, SEAT TRACK EQUALIZING (6 parts) 72301 — WIRE SUB-ASSY, SEAT TRACK EQUALIZING (6 parts) 72402 — HOUSING SUB-ASSY, CABLE SIDE (3 parts) 85820Y — MOTOR ASSY, POWER SEAT (3 parts) 72301A — WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH (3 parts) 72475B — SCREW, FRONT SEAT HORIZONTAL JACK, OUTER (3 parts) 72475B — SCREW, FRONT SEAT HORIZONTAL JACK, OUTER (3 parts) 72429 — PLATE, FRONT SEAT ADJUSTER, RH (3 parts) 71013S — FRAME SUB-ASSY, FRONT SEATBACK, RH (22 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (22 parts) 84921E — KNOB, POWER SEAT SWITCH (8 parts) 84921G — KNOB, POWER SEAT SWITCH (8 parts) 84921F — KNOB, POWER SEAT SWITCH (8 parts) 72136 — SPACER, SEAT TRACK, LOWER NO.1 (8 parts) 72713 — BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH (8 parts) 72265 — COVER, SEAT TRACK UPPER RAIL, RH (17 parts) 72265 — COVER, SEAT TRACK UPPER RAIL, RH (17 parts) 72125U — COVER, SEAT TRACK, UPPER REAR RH (15 parts) 72125U — COVER, SEAT TRACK, UPPER REAR RH (15 parts) 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (7 parts) 71051A — SPRING SUB-ASSY, FRONT SEAT CUSHION, RH (9 parts) 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (10 parts) 71875B — COVER, RECLINING ADJUSTER INSIDE, RH (10 parts) 71873U — SHIELD, FRONT SEAT CUSHION, LOWER RH (16 parts) 8202 — not listed in this catalogue 9011910601 — not listed in this catalogue 9415180500 — not listed in this catalogue 9415180500 — not listed in this catalogue 7896752010 — not listed in this catalogue 9356054012 — not listed in this catalogue 9011910601 — not listed in this catalogue 7114152020 — not listed in this catalogue 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (13 parts) 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 71759B — HOOK, FRONT SEATBACK (9 parts) 73910A — AIRBAG ASSY, FRONT SEAT, RH (9 parts) 71759B — HOOK, FRONT SEATBACK (9 parts) 71053S — SPRING SUB-ASSY, FRONT SEATBACK, RH (7 parts) 71587 — PROTECTOR, FRONT SEATBACK EDGE (9 parts) 71587 — PROTECTOR, FRONT SEATBACK EDGE (9 parts) 9418560600 — not listed in this catalogue 9356054012 — not listed in this catalogue 7181A — HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH (7 parts) 72010 — ADJUSTER ASSY, FRONT SEAT, RH (28 parts)
71D099D · 41 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
356 parts on this figure
Part number Description Fitment Price
71013S — Frame Sub-assy, Front Seatback, RH
71013-52480 Frame Sub-assy, Front Seatback, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥14,800
71013-K0040 Frame Sub-assy, Front Seatback, RH
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# HBDX,X ¥17,800
71013-K0041 Frame Sub-assy, Front Seatback, RH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥16,100
71013-K0070 Frame Sub-assy, Front Seatback, RH
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG ¥16,300
71013-K0070 note Frame Sub-assy, Front Seatback, RH
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# HBDX,X ¥16,300
71013-K0071 Frame Sub-assy, Front Seatback, RH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG ¥14,800
71013-K0071 note Frame Sub-assy, Front Seatback, RH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥14,800
71013-52480 Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥14,800
71013-52480 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥14,800
71013-52480 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥14,800
71013-52480 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥14,800
71013-52480 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥14,800
71013-52480 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥14,800
71013-52480 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥14,800
71013-K0041 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥16,100
71013-K0041 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥16,100
71013-K0041 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥16,100
71013-K0041 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥16,100
71013-K0041 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥16,100
71013-K0041 Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPB1#,MXPJ1# HBDX,U,X ¥16,100
71013-K0071 Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG ¥14,800
71013-K0071 note Frame Sub-assy, Front Seatback, RH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥14,800
71051A — Spring Sub-assy, Front Seat Cushion, RH
71051-47090 Spring Sub-assy, Front Seat Cushion, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥4,110
71051-47090 Spring Sub-assy, Front Seat Cushion, RH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥4,110
71051-K0010 Spring Sub-assy, Front Seat Cushion, RH
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# HBDX,X ¥3,310
71051-47090 note Spring Sub-assy, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥4,110
71051-47090 note Spring Sub-assy, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥4,110
71051-47090 note Spring Sub-assy, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥4,110
71051-47090 note Spring Sub-assy, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥4,110
71051-47090 note Spring Sub-assy, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥4,110
71051-47090 Spring Sub-assy, Front Seat Cushion, RH
2024-01 → —
MXPB1#,MXPJ1# ¥4,110
71053S — Spring Sub-assy, Front Seatback, RH
71053-47050 Spring Sub-assy, Front Seatback, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥5,200
71053-47050 Spring Sub-assy, Front Seatback, RH
2024-01 → —
MXPB1#,MXPJ1# ¥5,200
71053-47050 note Spring Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥5,200
71053-47050 note Spring Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥5,200
71053-47050 note Spring Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥5,200
71053-47050 note Spring Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥5,200
71053-47050 note Spring Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥5,200
71587 — Protector, Front Seatback Edge
71587-47010 note Protector, Front Seatback Edge
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥200
71587-47010 Protector, Front Seatback Edge
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥200
71587-47010 note Protector, Front Seatback Edge
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG ¥200
71587-47010 note Protector, Front Seatback Edge
2024-01 → —
MXPJ1# U ¥200
71587-47010 note Protector, Front Seatback Edge
2024-01 → —
MXPJ1# U ¥200
71587-47010 note Protector, Front Seatback Edge
2024-01 → —
MXPJ1# U ¥200
71587-47010 note Protector, Front Seatback Edge
2024-01 → —
MXPJ1# U ¥200
71587-47010 note Protector, Front Seatback Edge
2024-01 → —
MXPJ1# U ¥200
71587-47010 Protector, Front Seatback Edge
2024-01 → —
MXPB1#,MXPJ1# ¥200
71759B — Hook, Front Seatback
71759-50040 note Hook, Front Seatback
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥130
71759-50040 Hook, Front Seatback
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥130
71759-50040 note Hook, Front Seatback
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG ¥130
71759-50040 note Hook, Front Seatback
2024-01 → —
MXPJ1# U ¥130
71759-50040 note Hook, Front Seatback
2024-01 → —
MXPJ1# U ¥130
71759-50040 note Hook, Front Seatback
2024-01 → —
MXPJ1# U ¥130
71759-50040 note Hook, Front Seatback
2024-01 → —
MXPJ1# U ¥130
71759-50040 Hook, Front Seatback
2024-01 → —
MXPB1#,MXPJ1# ¥130
71759-50040 note Hook, Front Seatback
2024-01 → —
MXPJ1# U ¥130
71811D — Shield, Front Seat Cushion, RH
71811-52410-C0 note Shield, Front Seat Cushion, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥2,700
71811-52420-C0 note Shield, Front Seat Cushion, RH
2020-08 → 2022-04 ended
MXPB1#,MXPJ1# HBDX,X ¥3,360
71811-52420-C0 note Shield, Front Seat Cushion, RH
2020-08 → 2022-04 ended
MXPB1#,MXPJ1# G,HBDG ¥3,360
71811-52500-C0 note Shield, Front Seat Cushion, RH
2022-05 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥3,050
71811-52500-C0 note Shield, Front Seat Cushion, RH
2022-05 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥3,050
71811-K0030-C0 note Shield, Front Seat Cushion, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥2,700
71811-K0050-C0 note Shield, Front Seat Cushion, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥2,460
71811-K0050-C0 note Shield, Front Seat Cushion, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥2,460
71811-52410-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥2,700
71811-52410-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,700
71811-52410-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,700
71811-52410-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,700
71811-52410-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,700
71811-52410-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,700
71811-52410-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,700
71811-52500-C0 note Shield, Front Seat Cushion, RH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥3,050
71811-K0050-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,460
71811-K0050-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,460
71811-K0050-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,460
71811-K0050-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,460
71811-K0050-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥2,460
71811-K0050-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,460
7181A — Holder, Front Seat Cushion Wire Harness, RH
7181A-K0080 Holder, Front Seat Cushion Wire Harness, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,620
7181A-K0080 note Holder, Front Seat Cushion Wire Harness, RH
2024-01 → —
MXPJ1# U ¥1,620
7181A-K0080 note Holder, Front Seat Cushion Wire Harness, RH
2024-01 → —
MXPJ1# U ¥1,620
7181A-K0080 note Holder, Front Seat Cushion Wire Harness, RH
2024-01 → —
MXPJ1# U ¥1,620
7181A-K0080 note Holder, Front Seat Cushion Wire Harness, RH
2024-01 → —
MXPJ1# U ¥1,620
7181A-K0080 note Holder, Front Seat Cushion Wire Harness, RH
2024-01 → —
MXPJ1# U ¥1,620
7181A-K0080 Holder, Front Seat Cushion Wire Harness, RH
2024-01 → —
MXPB1#,MXPJ1# ¥1,620
71861 — Shield, Front Seat Cushion, Inner RH
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,090
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,090
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥1,090
71861-52340-C0 note Shield, Front Seat Cushion, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥1,540
71861-52340-C0 note Shield, Front Seat Cushion, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,540
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2024-01 → —
MXPJ1# U ¥1,090
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥1,090
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2024-01 → —
MXPJ1# U ¥1,090
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2024-01 → —
MXPJ1# U ¥1,090
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2024-01 → —
MXPJ1# U ¥1,090
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥1,090
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2024-01 → —
MXPJ1# U ¥1,090
71861-52340-C0 note Shield, Front Seat Cushion, Inner RH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥1,540
71873 — Shield, Front Seat Cushion, Lower RH
71873-47070 Shield, Front Seat Cushion, Lower RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥740
71873-47070 Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPB1#,MXPJ1# ¥740
71873-47070 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥740
71873-47070 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥740
71873-47070 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥740
71873-47070 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥740
71873-47070 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥740
71873U — Shield, Front Seat Cushion, Lower RH
71873-K0010 Shield, Front Seat Cushion, Lower RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,X ¥920
71873-K0050 Shield, Front Seat Cushion, Lower RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥810
71873-K0050 note Shield, Front Seat Cushion, Lower RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥810
71873-K0010 Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥920
71873-K0010 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥920
71873-K0010 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥920
71873-K0010 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥920
71873-K0010 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥920
71873-K0010 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥920
71873-K0050 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥810
71873-K0050 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥810
71873-K0050 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥810
71873-K0050 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥810
71873-K0050 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥810
71873-K0050 Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥810
71873-K0050 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥810
71875A — Cover, Reclining Adjuster Inside, RH
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,170
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,170
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥1,170
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥1,170
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥1,170
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPJ1# U ¥1,170
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPJ1# U ¥1,170
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPJ1# U ¥1,170
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPJ1# U ¥1,170
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPJ1# U ¥1,170
71875B — Cover, Reclining Adjuster Inside, RH
71875-47070-C1 note Cover, Reclining Adjuster Inside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,090
71875-47070-C1 note Cover, Reclining Adjuster Inside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,090
71875-47070-C1 note Cover, Reclining Adjuster Inside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥1,090
71875-47070-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPJ1# U ¥1,090
71875-47070-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPJ1# U ¥1,090
71875-47070-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPJ1# U ¥1,090
71875-47070-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPJ1# U ¥1,090
71875-47070-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥1,090
71875-47070-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥1,090
71875-47070-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPJ1# U ¥1,090
72010 — Adjuster Assy, Front Seat, RH
72010-52B60 Adjuster Assy, Front Seat, RH
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# HBDZ,Z ¥73,500
72010-52B61 Adjuster Assy, Front Seat, RH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥73,500
72010-52C30 note Adjuster Assy, Front Seat, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥10,200
72010-K0020 note Adjuster Assy, Front Seat, RH
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG ¥27,700
72010-K0021 note Adjuster Assy, Front Seat, RH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥25,100
72010-K0050 Adjuster Assy, Front Seat, RH
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥26,400
72010-K0051 Adjuster Assy, Front Seat, RH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,X ¥23,900
72010-52B61 note Adjuster Assy, Front Seat, RH
2024-01 → 2024-11 ended
MXPJ1# U ¥73,500
72010-52B61 note Adjuster Assy, Front Seat, RH
2024-01 → 2024-11 ended
MXPJ1# U ¥73,500
72010-52B61 note Adjuster Assy, Front Seat, RH
2024-01 → 2024-11 ended
MXPJ1# U ¥73,500
72010-52B61 note Adjuster Assy, Front Seat, RH
2024-01 → 2024-11 ended
MXPJ1# U ¥73,500
72010-52B61 note Adjuster Assy, Front Seat, RH
2024-01 → 2024-11 ended
MXPJ1# U ¥73,500
72010-52B61 note Adjuster Assy, Front Seat, RH
2024-01 → 2024-11 ended
MXPJ1# U ¥73,500
72010-52B61 Adjuster Assy, Front Seat, RH
2024-01 → 2024-11 ended
MXPB1#,MXPJ1# HBDZ,Z ¥73,500
72010-52B62 note Adjuster Assy, Front Seat, RH
2024-12 → —
MXPJ1# U ¥66,800
72010-52B62 note Adjuster Assy, Front Seat, RH
2024-12 → —
MXPJ1# U ¥66,800
72010-52B62 note Adjuster Assy, Front Seat, RH
2024-12 → —
MXPJ1# U ¥66,800
72010-52B62 note Adjuster Assy, Front Seat, RH
2024-12 → —
MXPJ1# U ¥66,800
72010-52B62 note Adjuster Assy, Front Seat, RH
2024-12 → —
MXPJ1# U ¥66,800
72010-52B62 Adjuster Assy, Front Seat, RH
2024-12 → —
MXPB1#,MXPJ1# HBDZ,Z ¥66,800
72010-52B62 note Adjuster Assy, Front Seat, RH
2024-12 → —
MXPJ1# U ¥66,800
72010-52C30 note Adjuster Assy, Front Seat, RH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥10,200
72010-K0051 note Adjuster Assy, Front Seat, RH
2024-01 → —
MXPJ1# U ¥23,900
72010-K0051 note Adjuster Assy, Front Seat, RH
2024-01 → —
MXPJ1# U ¥23,900
72010-K0051 note Adjuster Assy, Front Seat, RH
2024-01 → —
MXPJ1# U ¥23,900
72010-K0051 note Adjuster Assy, Front Seat, RH
2024-01 → —
MXPJ1# U ¥23,900
72010-K0051 note Adjuster Assy, Front Seat, RH
2024-01 → —
MXPJ1# U ¥23,900
72010-K0051 Adjuster Assy, Front Seat, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥23,900
72123A — Cover, Seat Track Bracket, Outer Front RH
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72125U — Cover, Seat Track, Upper Rear RH
72125-47010 Cover, Seat Track, Upper Rear RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,X ¥450
72125-47020 Cover, Seat Track, Upper Rear RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥160
72125-47010 Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥450
72125-47010 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥450
72125-47010 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥450
72125-47010 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥450
72125-47010 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥450
72125-47010 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥450
72125-47020 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥160
72125-47020 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥160
72125-47020 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥160
72125-47020 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥160
72125-47020 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥160
72125-47020 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥160
72125-47020 Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥160
72127A — Cover, Seat Track Bracket, Inner Front RH
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥370
72136 — Spacer, Seat Track, Lower NO.1
72136-52070 Spacer, Seat Track, Lower NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥860
72136-52070 Spacer, Seat Track, Lower NO.1
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥860
72136-52070 note Spacer, Seat Track, Lower NO.1
2024-01 → —
MXPJ1# U ¥860
72136-52070 note Spacer, Seat Track, Lower NO.1
2024-01 → —
MXPJ1# U ¥860
72136-52070 note Spacer, Seat Track, Lower NO.1
2024-01 → —
MXPJ1# U ¥860
72136-52070 note Spacer, Seat Track, Lower NO.1
2024-01 → —
MXPJ1# U ¥860
72136-52070 note Spacer, Seat Track, Lower NO.1
2024-01 → —
MXPJ1# U ¥860
72136-52070 note Spacer, Seat Track, Lower NO.1
2024-01 → —
MXPJ1# U ¥860
72137 — Cover, Seat Track, Outer RH
72137-K0020-C0 note Cover, Seat Track, Outer RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥840
72157A — Cover, Seat Track Bracket, Inner RH
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72205A — Housing Sub-assy, Power Seat, NO.1
72205-52010 Housing Sub-assy, Power Seat, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥14,000
72205-52010 note Housing Sub-assy, Power Seat, NO.1
2024-01 → 2024-11 ended
MXPJ1# U ¥14,000
72205-52010 Housing Sub-assy, Power Seat, NO.1
2024-01 → 2024-11 ended
MXPB1#,MXPJ1# HBDZ,Z ¥14,000
72205-52011 Housing Sub-assy, Power Seat, NO.1
2024-12 → —
MXPB1#,MXPJ1# HBDZ,Z ¥12,700
72205-52011 note Housing Sub-assy, Power Seat, NO.1
2024-12 → —
MXPJ1# U ¥12,700
72205E — Housing Sub-assy, Power Seat, NO.1
72205-52020 Housing Sub-assy, Power Seat, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥11,600
72205-52020 Housing Sub-assy, Power Seat, NO.1
2024-01 → 2024-11 ended
MXPB1#,MXPJ1# HBDZ,Z ¥11,600
72205-52020 note Housing Sub-assy, Power Seat, NO.1
2024-01 → 2024-11 ended
MXPJ1# U ¥11,600
72205-52021 Housing Sub-assy, Power Seat, NO.1
2024-12 → —
MXPB1#,MXPJ1# HBDZ,Z ¥10,500
72205-52021 note Housing Sub-assy, Power Seat, NO.1
2024-12 → —
MXPJ1# U ¥10,500
72265 — Cover, Seat Track Upper Rail, RH
72265-47010 Cover, Seat Track Upper Rail, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥160
72265-47010 Cover, Seat Track Upper Rail, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥160
72265-47020 Cover, Seat Track Upper Rail, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥160
72265-47010 Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥160
72265-47010 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47010 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47010 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47010 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47010 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47010 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPB1# G ¥160
72265-47020 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47020 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47020 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47020 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47020 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47020 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47020 Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥160
72301 — Wire Sub-assy, Seat Track Equalizing
72528-52020 note Wire Sub-assy, Seat Track Equalizing
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥530
72528-52040 note Wire Sub-assy, Seat Track Equalizing
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥180
72528-52020 note Wire Sub-assy, Seat Track Equalizing
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥530
72528-52020 note Wire Sub-assy, Seat Track Equalizing
2024-01 → —
MXPJ1# U ¥530
72528-52040 note Wire Sub-assy, Seat Track Equalizing
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥180
72528-52040 note Wire Sub-assy, Seat Track Equalizing
2024-01 → —
MXPJ1# U ¥180
72301A — Wire Sub-assy, Seat Track Equalizing, RH
72528-52030 Wire Sub-assy, Seat Track Equalizing, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,060
72528-52030 Wire Sub-assy, Seat Track Equalizing, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥1,060
72528-52030 note Wire Sub-assy, Seat Track Equalizing, RH
2024-01 → —
MXPJ1# U ¥1,060
72402 — Housing Sub-assy, Cable Side
72412-52010 Housing Sub-assy, Cable Side
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥460
72412-52010 Housing Sub-assy, Cable Side
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥460
72412-52010 note Housing Sub-assy, Cable Side
2024-01 → —
MXPJ1# U ¥460
72405 — Housing Sub-assy, Front Seat Vertical
72405-52010 Housing Sub-assy, Front Seat Vertical
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥3,360
72405-52010 Housing Sub-assy, Front Seat Vertical
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥3,360
72405-52010 note Housing Sub-assy, Front Seat Vertical
2024-01 → —
MXPJ1# U ¥3,360
72429 — Plate, Front Seat Adjuster, RH
72429-52010 Plate, Front Seat Adjuster, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥340
72429-52010 Plate, Front Seat Adjuster, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥340
72429-52010 note Plate, Front Seat Adjuster, RH
2024-01 → —
MXPJ1# U ¥340
72475B — Screw, Front Seat Horizontal Jack, Outer
72475-52010 Screw, Front Seat Horizontal Jack, Outer
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥60
72475-52010 Screw, Front Seat Horizontal Jack, Outer
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥60
72475-52010 note Screw, Front Seat Horizontal Jack, Outer
2024-01 → —
MXPJ1# U ¥60
72553B — Protector, Reclining Cover, RH
72553-52040-C0 note Protector, Reclining Cover, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥680
72553-52040-C0 note Protector, Reclining Cover, RH
2024-01 → —
MXPJ1# U ¥680
72553-52040-C0 note Protector, Reclining Cover, RH
2024-01 → —
MXPJ1# U ¥680
72553-52040-C0 note Protector, Reclining Cover, RH
2024-01 → —
MXPJ1# U ¥680
72553-52040-C0 note Protector, Reclining Cover, RH
2024-01 → —
MXPJ1# U ¥680
72553-52040-C0 note Protector, Reclining Cover, RH
2024-01 → —
MXPJ1# U ¥680
72553-52040-C0 note Protector, Reclining Cover, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥680
72553-52040-C0 note Protector, Reclining Cover, RH
2024-01 → —
MXPJ1# U ¥680
72713 — Bracket, Seat Adjuster Shield Clamp, RH
72713-52010 Bracket, Seat Adjuster Shield Clamp, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥370
72713-52010 Bracket, Seat Adjuster Shield Clamp, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥370
72713-52010 note Bracket, Seat Adjuster Shield Clamp, RH
2024-01 → —
MXPJ1# U ¥370
72713-52010 note Bracket, Seat Adjuster Shield Clamp, RH
2024-01 → —
MXPJ1# U ¥370
72713-52010 note Bracket, Seat Adjuster Shield Clamp, RH
2024-01 → —
MXPJ1# U ¥370
72713-52010 note Bracket, Seat Adjuster Shield Clamp, RH
2024-01 → —
MXPJ1# U ¥370
72713-52010 note Bracket, Seat Adjuster Shield Clamp, RH
2024-01 → —
MXPJ1# U ¥370
72713-52010 note Bracket, Seat Adjuster Shield Clamp, RH
2024-01 → —
MXPJ1# U ¥370
73910A — Airbag Assy, Front Seat, RH
73910-K0020 Airbag Assy, Front Seat, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥20,000
73910-K0030 note Airbag Assy, Front Seat, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥20,000
73910-K0020 Airbag Assy, Front Seat, RH
2024-01 → —
MXPB1#,MXPJ1# ¥20,000
73910-K0020 note Airbag Assy, Front Seat, RH
2024-01 → —
MXPJ1# U ¥20,000
73910-K0020 note Airbag Assy, Front Seat, RH
2024-01 → —
MXPJ1# U ¥20,000
73910-K0020 note Airbag Assy, Front Seat, RH
2024-01 → —
MXPJ1# U ¥20,000
73910-K0020 note Airbag Assy, Front Seat, RH
2024-01 → —
MXPJ1# U ¥20,000
73910-K0020 note Airbag Assy, Front Seat, RH
2024-01 → —
MXPJ1# U ¥20,000
73910-K0030 note Airbag Assy, Front Seat, RH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥20,000
84921E — Knob, Power Seat Switch
84921-52040-C0 note Knob, Power Seat Switch
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥230
84921-52040-C0 note Knob, Power Seat Switch
2024-01 → —
MXPJ1# U ¥230
84921-52040-C0 note Knob, Power Seat Switch
2024-01 → —
MXPJ1# U ¥230
84921-52040-C0 note Knob, Power Seat Switch
2024-01 → —
MXPJ1# U ¥230
84921-52040-C0 note Knob, Power Seat Switch
2024-01 → —
MXPJ1# U ¥230
84921-52040-C0 note Knob, Power Seat Switch
2024-01 → —
MXPJ1# U ¥230
84921-52040-C0 note Knob, Power Seat Switch
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥230
84921-52040-C0 note Knob, Power Seat Switch
2024-01 → —
MXPJ1# U ¥230
84921F — Knob, Power Seat Switch
84921-52050-C0 note Knob, Power Seat Switch
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥200
84921-52050-C0 note Knob, Power Seat Switch
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥200
84921-52050-C0 note Knob, Power Seat Switch
2024-01 → —
MXPJ1# U ¥200
84921-52050-C0 note Knob, Power Seat Switch
2024-01 → —
MXPJ1# U ¥200
84921-52050-C0 note Knob, Power Seat Switch
2024-01 → —
MXPJ1# U ¥200
84921-52050-C0 note Knob, Power Seat Switch
2024-01 → —
MXPJ1# U ¥200
84921-52050-C0 note Knob, Power Seat Switch
2024-01 → —
MXPJ1# U ¥200
84921-52050-C0 note Knob, Power Seat Switch
2024-01 → —
MXPJ1# U ¥200
84921G — Knob, Power Seat Switch
84921-52060-C0 note Knob, Power Seat Switch
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥200
84921-52060-C0 note Knob, Power Seat Switch
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥200
84921-52060-C0 note Knob, Power Seat Switch
2024-01 → —
MXPJ1# U ¥200
84921-52060-C0 note Knob, Power Seat Switch
2024-01 → —
MXPJ1# U ¥200
84921-52060-C0 note Knob, Power Seat Switch
2024-01 → —
MXPJ1# U ¥200
84921-52060-C0 note Knob, Power Seat Switch
2024-01 → —
MXPJ1# U ¥200
84921-52060-C0 note Knob, Power Seat Switch
2024-01 → —
MXPJ1# U ¥200
84921-52060-C0 note Knob, Power Seat Switch
2024-01 → —
MXPJ1# U ¥200
85820Y — Motor Assy, Power Seat
85820-52010 Motor Assy, Power Seat
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥13,600
85820-52010 Motor Assy, Power Seat
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥13,600
85820-52010 note Motor Assy, Power Seat
2024-01 → —
MXPJ1# U ¥13,600
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
