Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

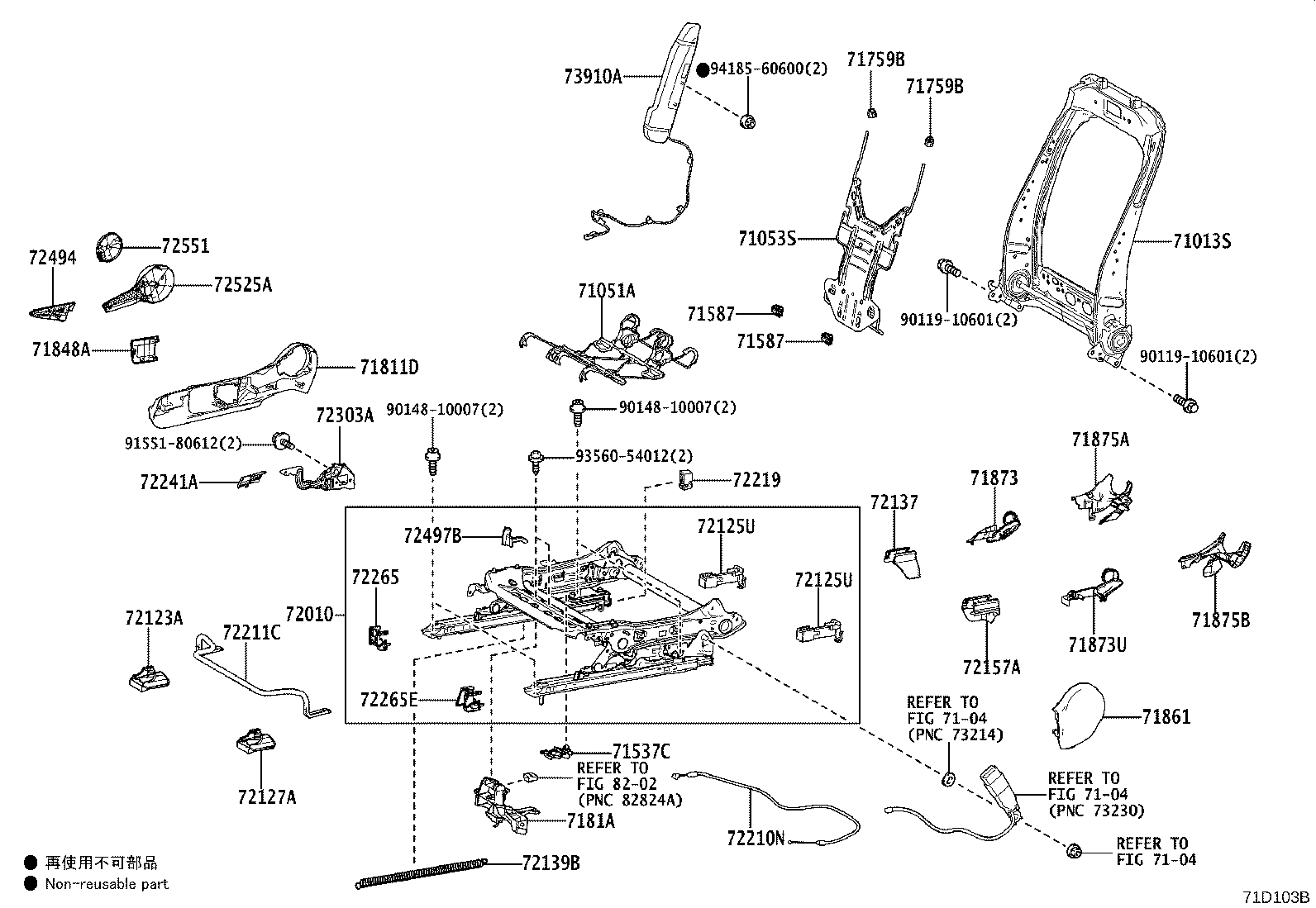

Exploded illustration 71D103B 71811D — SHIELD, FRONT SEAT CUSHION, RH (22 parts) 72303A — LEVER SUB-ASSY, SEAT TRACK LOCK, RH (1 parts) 72494 — HANDLE, VERTICAL ADJUSTING, RH (10 parts) 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (11 parts) 72551 — COVER, RECLINING HINGE, NO.1 (18 parts) 72241A — LEVER, SEAT TRACK LOCK (1 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (13 parts) 71873U — SHIELD, FRONT SEAT CUSHION, LOWER RH (16 parts) 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (7 parts) 72137 — COVER, SEAT TRACK, OUTER RH (16 parts) 72157A — COVER, SEAT TRACK BRACKET, INNER RH (16 parts) 72219 — COVER, ADJUSTER SPRING HOOK (1 parts) 72125U — COVER, SEAT TRACK, UPPER REAR RH (15 parts) 72125U — COVER, SEAT TRACK, UPPER REAR RH (15 parts) 72265E — COVER, SEAT TRACK UPPER RAIL, RH (3 parts) 72265 — COVER, SEAT TRACK UPPER RAIL, RH (17 parts) 72211C — HANDLE, SEAT TRACK ADJUSTING (17 parts) 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (16 parts) 72127A — COVER, SEAT TRACK BRACKET, INNER FRONT RH (16 parts) 72139B — SPRING, SEAT TRACK MEMORY (1 parts) 72497B — COVER, VERTICAL ADJUSTER BRACKET, RH (7 parts) 71051A — SPRING SUB-ASSY, FRONT SEAT CUSHION, RH (9 parts) 72010 — ADJUSTER ASSY, FRONT SEAT, RH (28 parts) 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (10 parts) 71875B — COVER, RECLINING ADJUSTER INSIDE, RH (10 parts) 71013S — FRAME SUB-ASSY, FRONT SEATBACK, RH (22 parts) 71053S — SPRING SUB-ASSY, FRONT SEATBACK, RH (7 parts) 73910A — AIRBAG ASSY, FRONT SEAT, RH (9 parts) 71759B — HOOK, FRONT SEATBACK (9 parts) 71759B — HOOK, FRONT SEATBACK (9 parts) 71587 — PROTECTOR, FRONT SEATBACK EDGE (9 parts) 71587 — PROTECTOR, FRONT SEATBACK EDGE (9 parts) 72210N — CABLE ASSY, SEAT TRACK CONTROL (1 parts) 7181A — HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH (7 parts) 71537C — PROTECTOR, FRONT SEAT CUSHION EDGE, RH (7 parts) 71848A — CAP, SEAT ADJUSTER COVER, RH (10 parts) 9011910601 — not listed in this catalogue 9418560600 — not listed in this catalogue 9011910601 — not listed in this catalogue 9356054012 — not listed in this catalogue 9155180612 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 9014810007 — not listed in this catalogue 9014810007 — not listed in this catalogue 8202 — not listed in this catalogue
71D103B · 36 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
362 parts on this figure
Part number Description Fitment Price
71013S — Frame Sub-assy, Front Seatback, RH
71013-52480 Frame Sub-assy, Front Seatback, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥14,800
71013-K0040 Frame Sub-assy, Front Seatback, RH
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# HBDX,X ¥17,800
71013-K0041 Frame Sub-assy, Front Seatback, RH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥16,100
71013-K0070 Frame Sub-assy, Front Seatback, RH
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG ¥16,300
71013-K0070 note Frame Sub-assy, Front Seatback, RH
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# HBDX,X ¥16,300
71013-K0071 Frame Sub-assy, Front Seatback, RH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG ¥14,800
71013-K0071 note Frame Sub-assy, Front Seatback, RH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥14,800
71013-52480 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥14,800
71013-52480 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥14,800
71013-52480 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥14,800
71013-52480 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥14,800
71013-52480 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥14,800
71013-52480 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥14,800
71013-52480 Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥14,800
71013-K0041 Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPB1#,MXPJ1# HBDX,U,X ¥16,100
71013-K0041 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥16,100
71013-K0041 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥16,100
71013-K0041 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥16,100
71013-K0041 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥16,100
71013-K0041 note Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥16,100
71013-K0071 Frame Sub-assy, Front Seatback, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG ¥14,800
71013-K0071 note Frame Sub-assy, Front Seatback, RH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# HBDX,X ¥14,800
71051A — Spring Sub-assy, Front Seat Cushion, RH
71051-47090 Spring Sub-assy, Front Seat Cushion, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥4,110
71051-47090 Spring Sub-assy, Front Seat Cushion, RH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥4,110
71051-K0010 Spring Sub-assy, Front Seat Cushion, RH
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# HBDX,X ¥3,310
71051-47090 Spring Sub-assy, Front Seat Cushion, RH
2024-01 → —
MXPB1#,MXPJ1# ¥4,110
71051-47090 note Spring Sub-assy, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥4,110
71051-47090 note Spring Sub-assy, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥4,110
71051-47090 note Spring Sub-assy, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥4,110
71051-47090 note Spring Sub-assy, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥4,110
71051-47090 note Spring Sub-assy, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥4,110
71053S — Spring Sub-assy, Front Seatback, RH
71053-47050 Spring Sub-assy, Front Seatback, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥5,200
71053-47050 Spring Sub-assy, Front Seatback, RH
2024-01 → —
MXPB1#,MXPJ1# ¥5,200
71053-47050 note Spring Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥5,200
71053-47050 note Spring Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥5,200
71053-47050 note Spring Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥5,200
71053-47050 note Spring Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥5,200
71053-47050 note Spring Sub-assy, Front Seatback, RH
2024-01 → —
MXPJ1# U ¥5,200
71537C — Protector, Front Seat Cushion Edge, RH
71537-K0020 Protector, Front Seat Cushion Edge, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,X ¥340
71537-K0020 note Protector, Front Seat Cushion Edge, RH
2024-01 → —
MXPJ1# U ¥340
71537-K0020 note Protector, Front Seat Cushion Edge, RH
2024-01 → —
MXPJ1# U ¥340
71537-K0020 note Protector, Front Seat Cushion Edge, RH
2024-01 → —
MXPJ1# U ¥340
71537-K0020 note Protector, Front Seat Cushion Edge, RH
2024-01 → —
MXPJ1# U ¥340
71537-K0020 note Protector, Front Seat Cushion Edge, RH
2024-01 → —
MXPJ1# U ¥340
71537-K0020 Protector, Front Seat Cushion Edge, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥340
71587 — Protector, Front Seatback Edge
71587-47010 note Protector, Front Seatback Edge
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥200
71587-47010 Protector, Front Seatback Edge
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥200
71587-47010 note Protector, Front Seatback Edge
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG ¥200
71587-47010 Protector, Front Seatback Edge
2024-01 → —
MXPB1#,MXPJ1# ¥200
71587-47010 note Protector, Front Seatback Edge
2024-01 → —
MXPJ1# U ¥200
71587-47010 note Protector, Front Seatback Edge
2024-01 → —
MXPJ1# U ¥200
71587-47010 note Protector, Front Seatback Edge
2024-01 → —
MXPJ1# U ¥200
71587-47010 note Protector, Front Seatback Edge
2024-01 → —
MXPJ1# U ¥200
71587-47010 note Protector, Front Seatback Edge
2024-01 → —
MXPJ1# U ¥200
71759B — Hook, Front Seatback
71759-50040 note Hook, Front Seatback
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥130
71759-50040 Hook, Front Seatback
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥130
71759-50040 note Hook, Front Seatback
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG ¥130
71759-50040 Hook, Front Seatback
2024-01 → —
MXPB1#,MXPJ1# ¥130
71759-50040 note Hook, Front Seatback
2024-01 → —
MXPJ1# U ¥130
71759-50040 note Hook, Front Seatback
2024-01 → —
MXPJ1# U ¥130
71759-50040 note Hook, Front Seatback
2024-01 → —
MXPJ1# U ¥130
71759-50040 note Hook, Front Seatback
2024-01 → —
MXPJ1# U ¥130
71759-50040 note Hook, Front Seatback
2024-01 → —
MXPJ1# U ¥130
71811D — Shield, Front Seat Cushion, RH
71811-52410-C0 note Shield, Front Seat Cushion, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥2,700
71811-52420-C0 note Shield, Front Seat Cushion, RH
2020-08 → 2022-04 ended
MXPB1#,MXPJ1# HBDX,X ¥3,360
71811-52420-C0 note Shield, Front Seat Cushion, RH
2020-08 → 2022-04 ended
MXPB1#,MXPJ1# G,HBDG ¥3,360
71811-52500-C0 note Shield, Front Seat Cushion, RH
2022-05 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥3,050
71811-52500-C0 note Shield, Front Seat Cushion, RH
2022-05 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥3,050
71811-K0030-C0 note Shield, Front Seat Cushion, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥2,700
71811-K0050-C0 note Shield, Front Seat Cushion, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥2,460
71811-K0050-C0 note Shield, Front Seat Cushion, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥2,460
71811-52410-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,700
71811-52410-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,700
71811-52410-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,700
71811-52410-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,700
71811-52410-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,700
71811-52410-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,700
71811-52410-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥2,700
71811-52500-C0 note Shield, Front Seat Cushion, RH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥3,050
71811-K0050-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥2,460
71811-K0050-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,460
71811-K0050-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,460
71811-K0050-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,460
71811-K0050-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,460
71811-K0050-C0 note Shield, Front Seat Cushion, RH
2024-01 → —
MXPJ1# U ¥2,460
7181A — Holder, Front Seat Cushion Wire Harness, RH
7181A-K0080 Holder, Front Seat Cushion Wire Harness, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,620
7181A-K0080 note Holder, Front Seat Cushion Wire Harness, RH
2024-01 → —
MXPJ1# U ¥1,620
7181A-K0080 note Holder, Front Seat Cushion Wire Harness, RH
2024-01 → —
MXPJ1# U ¥1,620
7181A-K0080 note Holder, Front Seat Cushion Wire Harness, RH
2024-01 → —
MXPJ1# U ¥1,620
7181A-K0080 note Holder, Front Seat Cushion Wire Harness, RH
2024-01 → —
MXPJ1# U ¥1,620
7181A-K0080 note Holder, Front Seat Cushion Wire Harness, RH
2024-01 → —
MXPJ1# U ¥1,620
7181A-K0080 Holder, Front Seat Cushion Wire Harness, RH
2024-01 → —
MXPB1#,MXPJ1# ¥1,620
71848A — Cap, Seat Adjuster Cover, RH
71848-10020-C0 note Cap, Seat Adjuster Cover, RH
2021-03 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥370
71848-10020-C0 note Cap, Seat Adjuster Cover, RH
2021-03 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥370
71848-47040-C1 note Cap, Seat Adjuster Cover, RH
2020-08 → 2021-03 ended
MXPB1#,MXPJ1# HBDX,X ¥410
71848-47040-C1 note Cap, Seat Adjuster Cover, RH
2020-08 → 2021-03 ended
MXPB1#,MXPJ1# G,HBDG ¥410
71848-10020-C0 note Cap, Seat Adjuster Cover, RH
2024-01 → —
MXPJ1# U ¥370
71848-10020-C0 note Cap, Seat Adjuster Cover, RH
2024-01 → —
MXPJ1# U ¥370
71848-10020-C0 note Cap, Seat Adjuster Cover, RH
2024-01 → —
MXPJ1# U ¥370
71848-10020-C0 note Cap, Seat Adjuster Cover, RH
2024-01 → —
MXPJ1# U ¥370
71848-10020-C0 note Cap, Seat Adjuster Cover, RH
2024-01 → —
MXPJ1# U ¥370
71848-10020-C0 note Cap, Seat Adjuster Cover, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥370
71861 — Shield, Front Seat Cushion, Inner RH
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,090
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,090
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥1,090
71861-52340-C0 note Shield, Front Seat Cushion, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥1,540
71861-52340-C0 note Shield, Front Seat Cushion, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,540
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2024-01 → —
MXPJ1# U ¥1,090
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2024-01 → —
MXPJ1# U ¥1,090
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2024-01 → —
MXPJ1# U ¥1,090
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2024-01 → —
MXPJ1# U ¥1,090
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2024-01 → —
MXPJ1# U ¥1,090
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥1,090
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥1,090
71861-52340-C0 note Shield, Front Seat Cushion, Inner RH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥1,540
71873 — Shield, Front Seat Cushion, Lower RH
71873-47070 Shield, Front Seat Cushion, Lower RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥740
71873-47070 Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPB1#,MXPJ1# ¥740
71873-47070 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥740
71873-47070 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥740
71873-47070 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥740
71873-47070 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥740
71873-47070 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥740
71873U — Shield, Front Seat Cushion, Lower RH
71873-K0010 Shield, Front Seat Cushion, Lower RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,X ¥920
71873-K0050 Shield, Front Seat Cushion, Lower RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥810
71873-K0050 note Shield, Front Seat Cushion, Lower RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥810
71873-K0010 Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥920
71873-K0010 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥920
71873-K0010 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥920
71873-K0010 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥920
71873-K0010 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥920
71873-K0010 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥920
71873-K0050 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥810
71873-K0050 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥810
71873-K0050 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥810
71873-K0050 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥810
71873-K0050 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥810
71873-K0050 note Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPJ1# U ¥810
71873-K0050 Shield, Front Seat Cushion, Lower RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥810
71875A — Cover, Reclining Adjuster Inside, RH
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,170
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,170
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥1,170
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPJ1# U ¥1,170
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPJ1# U ¥1,170
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPJ1# U ¥1,170
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPJ1# U ¥1,170
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPJ1# U ¥1,170
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥1,170
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥1,170
71875B — Cover, Reclining Adjuster Inside, RH
71875-47070-C1 note Cover, Reclining Adjuster Inside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,090
71875-47070-C1 note Cover, Reclining Adjuster Inside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,090
71875-47070-C1 note Cover, Reclining Adjuster Inside, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥1,090
71875-47070-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPJ1# U ¥1,090
71875-47070-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPJ1# U ¥1,090
71875-47070-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPJ1# U ¥1,090
71875-47070-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPJ1# U ¥1,090
71875-47070-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥1,090
71875-47070-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥1,090
71875-47070-C1 note Cover, Reclining Adjuster Inside, RH
2024-01 → —
MXPJ1# U ¥1,090
72010 — Adjuster Assy, Front Seat, RH
72010-52B60 Adjuster Assy, Front Seat, RH
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# HBDZ,Z ¥73,500
72010-52B61 Adjuster Assy, Front Seat, RH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥73,500
72010-52C30 note Adjuster Assy, Front Seat, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥10,200
72010-K0020 note Adjuster Assy, Front Seat, RH
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG ¥27,700
72010-K0021 note Adjuster Assy, Front Seat, RH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥25,100
72010-K0050 Adjuster Assy, Front Seat, RH
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥26,400
72010-K0051 Adjuster Assy, Front Seat, RH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,X ¥23,900
72010-52B61 note Adjuster Assy, Front Seat, RH
2024-01 → 2024-11 ended
MXPJ1# U ¥73,500
72010-52B61 note Adjuster Assy, Front Seat, RH
2024-01 → 2024-11 ended
MXPJ1# U ¥73,500
72010-52B61 note Adjuster Assy, Front Seat, RH
2024-01 → 2024-11 ended
MXPJ1# U ¥73,500
72010-52B61 note Adjuster Assy, Front Seat, RH
2024-01 → 2024-11 ended
MXPJ1# U ¥73,500
72010-52B61 note Adjuster Assy, Front Seat, RH
2024-01 → 2024-11 ended
MXPJ1# U ¥73,500
72010-52B61 note Adjuster Assy, Front Seat, RH
2024-01 → 2024-11 ended
MXPJ1# U ¥73,500
72010-52B61 Adjuster Assy, Front Seat, RH
2024-01 → 2024-11 ended
MXPB1#,MXPJ1# HBDZ,Z ¥73,500
72010-52B62 note Adjuster Assy, Front Seat, RH
2024-12 → —
MXPJ1# U ¥66,800
72010-52B62 note Adjuster Assy, Front Seat, RH
2024-12 → —
MXPJ1# U ¥66,800
72010-52B62 note Adjuster Assy, Front Seat, RH
2024-12 → —
MXPJ1# U ¥66,800
72010-52B62 note Adjuster Assy, Front Seat, RH
2024-12 → —
MXPJ1# U ¥66,800
72010-52B62 note Adjuster Assy, Front Seat, RH
2024-12 → —
MXPJ1# U ¥66,800
72010-52B62 note Adjuster Assy, Front Seat, RH
2024-12 → —
MXPJ1# U ¥66,800
72010-52B62 Adjuster Assy, Front Seat, RH
2024-12 → —
MXPB1#,MXPJ1# HBDZ,Z ¥66,800
72010-52C30 note Adjuster Assy, Front Seat, RH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥10,200
72010-K0051 note Adjuster Assy, Front Seat, RH
2024-01 → —
MXPJ1# U ¥23,900
72010-K0051 note Adjuster Assy, Front Seat, RH
2024-01 → —
MXPJ1# U ¥23,900
72010-K0051 Adjuster Assy, Front Seat, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥23,900
72010-K0051 note Adjuster Assy, Front Seat, RH
2024-01 → —
MXPJ1# U ¥23,900
72010-K0051 note Adjuster Assy, Front Seat, RH
2024-01 → —
MXPJ1# U ¥23,900
72010-K0051 note Adjuster Assy, Front Seat, RH
2024-01 → —
MXPJ1# U ¥23,900
72123A — Cover, Seat Track Bracket, Outer Front RH
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥370
72125U — Cover, Seat Track, Upper Rear RH
72125-47010 Cover, Seat Track, Upper Rear RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,X ¥450
72125-47020 Cover, Seat Track, Upper Rear RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥160
72125-47010 Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥450
72125-47010 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥450
72125-47010 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥450
72125-47010 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥450
72125-47010 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥450
72125-47010 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥450
72125-47020 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥160
72125-47020 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥160
72125-47020 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥160
72125-47020 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥160
72125-47020 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥160
72125-47020 note Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPJ1# U ¥160
72125-47020 Cover, Seat Track, Upper Rear RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥160
72127A — Cover, Seat Track Bracket, Inner Front RH
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-01 → —
MXPJ1# U ¥370
72137 — Cover, Seat Track, Outer RH
72137-K0020-C0 note Cover, Seat Track, Outer RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPJ1# U ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥840
72137-K0020-C0 note Cover, Seat Track, Outer RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥840
72139B — Spring, Seat Track Memory
72139-K0010 note Spring, Seat Track Memory
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥240
72157A — Cover, Seat Track Bracket, Inner RH
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥680
72157-K0020-C0 note Cover, Seat Track Bracket, Inner RH
2024-01 → —
MXPJ1# U ¥680
72210N — Cable Assy, Seat Track Control
72210-K0010 note Cable Assy, Seat Track Control
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,250
72211C — Handle, Seat Track Adjusting
72211-47050 note Handle, Seat Track Adjusting
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥990
72211-47050 Handle, Seat Track Adjusting
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,X ¥990
72211-47050 Handle, Seat Track Adjusting
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥990
72211-47050 note Handle, Seat Track Adjusting
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥990
72211-47050 note Handle, Seat Track Adjusting
2024-01 → —
MXPJ1# U ¥990
72211-47050 note Handle, Seat Track Adjusting
2024-01 → —
MXPJ1# U ¥990
72211-47050 note Handle, Seat Track Adjusting
2024-01 → —
MXPJ1# U ¥990
72211-47050 note Handle, Seat Track Adjusting
2024-01 → —
MXPJ1# U ¥990
72211-47050 note Handle, Seat Track Adjusting
2024-01 → —
MXPJ1# U ¥990
72211-47050 Handle, Seat Track Adjusting
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥990
72211-47050 note Handle, Seat Track Adjusting
2024-01 → —
MXPJ1# U ¥990
72211-47050 note Handle, Seat Track Adjusting
2024-01 → —
MXPJ1# U ¥990
72211-47050 note Handle, Seat Track Adjusting
2024-01 → —
MXPJ1# U ¥990
72211-47050 note Handle, Seat Track Adjusting
2024-01 → —
MXPJ1# U ¥990
72211-47050 note Handle, Seat Track Adjusting
2024-01 → —
MXPJ1# U ¥990
72211-47050 Handle, Seat Track Adjusting
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥990
72211-47050 note Handle, Seat Track Adjusting
2024-01 → —
MXPJ1# U ¥990
72219 — Cover, Adjuster Spring Hook
72219-52010 note Cover, Adjuster Spring Hook
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥510
72241A — Lever, Seat Track Lock
72241-K0010-C0 note Lever, Seat Track Lock
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥710
72265 — Cover, Seat Track Upper Rail, RH
72265-47010 Cover, Seat Track Upper Rail, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥160
72265-47010 Cover, Seat Track Upper Rail, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥160
72265-47020 Cover, Seat Track Upper Rail, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥160
72265-47010 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPB1# G ¥160
72265-47010 Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥160
72265-47010 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47010 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47010 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47010 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47010 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47020 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47020 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47020 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47020 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47020 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47020 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPJ1# U ¥160
72265-47020 Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥160
72265E — Cover, Seat Track Upper Rail, RH
72265-47010 Cover, Seat Track Upper Rail, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥160
72265-52120 note Cover, Seat Track Upper Rail, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥300
72265-47010 note Cover, Seat Track Upper Rail, RH
2024-01 → —
MXPB1# G ¥160
72303A — Lever Sub-assy, Seat Track Lock, RH
72303-K0010 note Lever Sub-assy, Seat Track Lock, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥990
72494 — Handle, Vertical Adjusting, RH
72494-10020-C0 note Handle, Vertical Adjusting, RH
2020-08 → 2021-03 ended
MXPB1#,MXPJ1# HBDX,X ¥650
72494-10020-C0 note Handle, Vertical Adjusting, RH
2020-08 → 2021-03 ended
MXPB1#,MXPJ1# G,HBDG ¥650
72494-10021-C0 note Handle, Vertical Adjusting, RH
2021-03 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥590
72494-10021-C0 note Handle, Vertical Adjusting, RH
2021-03 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥590
72494-10021-C0 note Handle, Vertical Adjusting, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥590
72494-10021-C0 note Handle, Vertical Adjusting, RH
2024-01 → —
MXPJ1# U ¥590
72494-10021-C0 note Handle, Vertical Adjusting, RH
2024-01 → —
MXPJ1# U ¥590
72494-10021-C0 note Handle, Vertical Adjusting, RH
2024-01 → —
MXPJ1# U ¥590
72494-10021-C0 note Handle, Vertical Adjusting, RH
2024-01 → —
MXPJ1# U ¥590
72494-10021-C0 note Handle, Vertical Adjusting, RH
2024-01 → —
MXPJ1# U ¥590
72497B — Cover, Vertical Adjuster Bracket, RH
72498-47010 Cover, Vertical Adjuster Bracket, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,X ¥90
72498-47010 note Cover, Vertical Adjuster Bracket, RH
2024-01 → —
MXPJ1# U ¥90
72498-47010 note Cover, Vertical Adjuster Bracket, RH
2024-01 → —
MXPJ1# U ¥90
72498-47010 note Cover, Vertical Adjuster Bracket, RH
2024-01 → —
MXPJ1# U ¥90
72498-47010 note Cover, Vertical Adjuster Bracket, RH
2024-01 → —
MXPJ1# U ¥90
72498-47010 Cover, Vertical Adjuster Bracket, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥90
72498-47010 note Cover, Vertical Adjuster Bracket, RH
2024-01 → —
MXPJ1# U ¥90
72525A — Handle, Reclining Adjuster Release, RH
72525-10070-C0 note Handle, Reclining Adjuster Release, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,250
72525-10070-C0 note Handle, Reclining Adjuster Release, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥1,250
72525-52090-C0 note Handle, Reclining Adjuster Release, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥1,300
72525-52090-C0 note Handle, Reclining Adjuster Release, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥1,300
72525-10070-C0 note Handle, Reclining Adjuster Release, RH
2024-01 → —
MXPJ1# U ¥1,250
72525-10070-C0 note Handle, Reclining Adjuster Release, RH
2024-01 → —
MXPJ1# U ¥1,250
72525-10070-C0 note Handle, Reclining Adjuster Release, RH
2024-01 → —
MXPJ1# U ¥1,250
72525-10070-C0 note Handle, Reclining Adjuster Release, RH
2024-01 → —
MXPJ1# U ¥1,250
72525-10070-C0 note Handle, Reclining Adjuster Release, RH
2024-01 → —
MXPJ1# U ¥1,250
72525-10070-C0 note Handle, Reclining Adjuster Release, RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥1,250
72525-52090-C0 note Handle, Reclining Adjuster Release, RH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥1,300
72551 — Cover, Reclining Hinge, NO.1
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥590
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥590
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥590
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDX,X ¥590
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2024-01 → —
MXPJ1# U ¥590
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2024-01 → —
MXPJ1# U ¥590
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2024-01 → —
MXPJ1# U ¥590
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2024-01 → —
MXPJ1# U ¥590
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2024-01 → —
MXPJ1# U ¥590
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2024-01 → —
MXPJ1# U ¥590
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X ¥590
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2024-01 → —
MXPJ1# U ¥590
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2024-01 → —
MXPJ1# U ¥590
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2024-01 → —
MXPJ1# U ¥590
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2024-01 → —
MXPJ1# U ¥590
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2024-01 → —
MXPJ1# U ¥590
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥590
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG ¥590
73910A — Airbag Assy, Front Seat, RH
73910-K0020 Airbag Assy, Front Seat, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥20,000
73910-K0030 note Airbag Assy, Front Seat, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥20,000
73910-K0020 Airbag Assy, Front Seat, RH
2024-01 → —
MXPB1#,MXPJ1# ¥20,000
73910-K0020 note Airbag Assy, Front Seat, RH
2024-01 → —
MXPJ1# U ¥20,000
73910-K0020 note Airbag Assy, Front Seat, RH
2024-01 → —
MXPJ1# U ¥20,000
73910-K0020 note Airbag Assy, Front Seat, RH
2024-01 → —
MXPJ1# U ¥20,000
73910-K0020 note Airbag Assy, Front Seat, RH
2024-01 → —
MXPJ1# U ¥20,000
73910-K0020 note Airbag Assy, Front Seat, RH
2024-01 → —
MXPJ1# U ¥20,000
73910-K0030 note Airbag Assy, Front Seat, RH
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥20,000
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
