Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

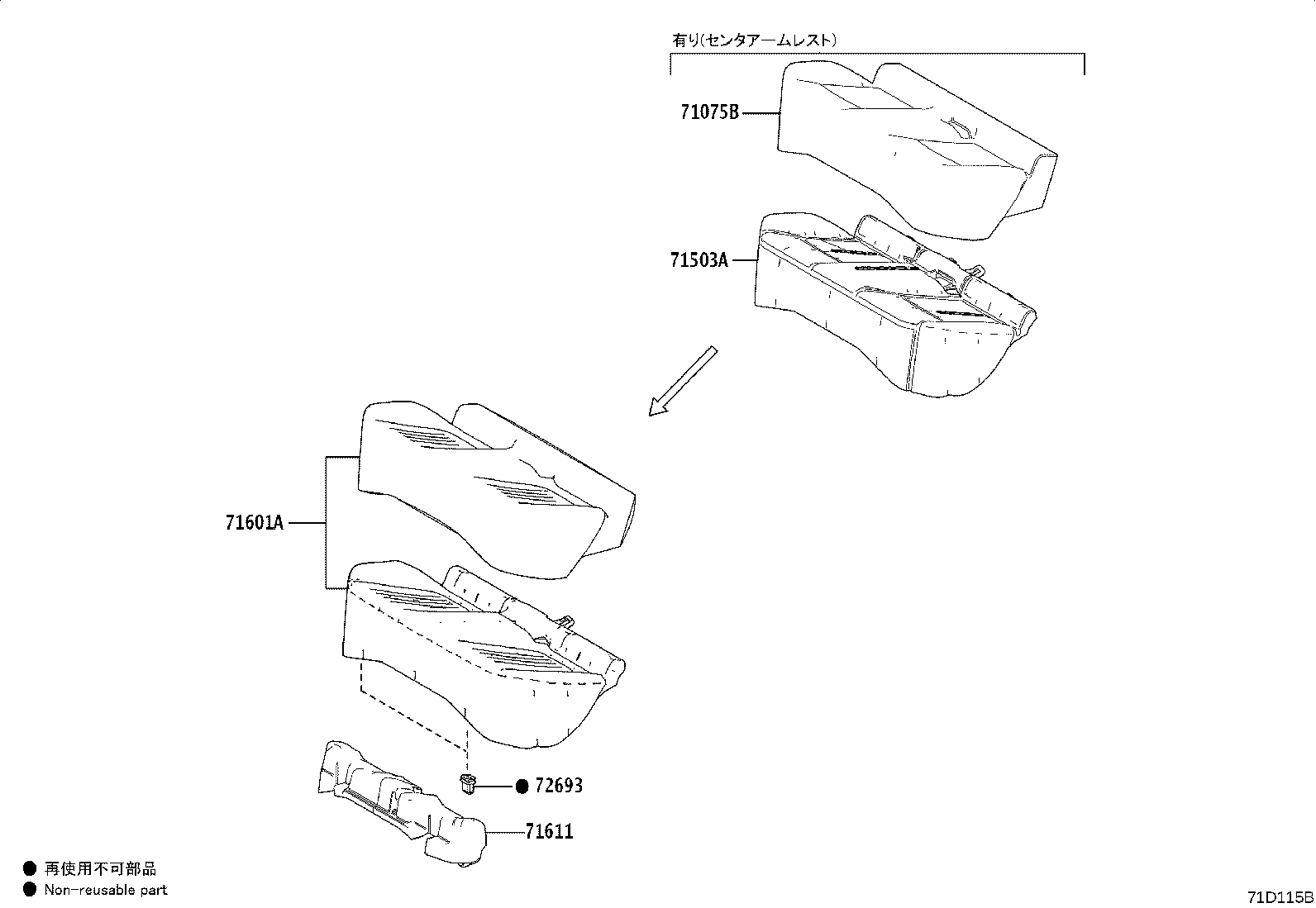

79 parts on this figure

Part number	Description	Fitment	Price
71075B — Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075-52T20-C8 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2022-08 → 2024-01 ended	MXPB1# G	¥28,900
71075-52T20-C9 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2020-08 → 2024-01 ended	MXPB1# G	¥28,900
71075-52T40-B5 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2020-08 → 2024-01 ended	MXPB1# Z	¥33,200
71075-52T40-C4 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2020-08 → 2024-01 ended	MXPB1# Z	¥33,200
71075-52T40-C5 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2022-08 → 2024-01 ended	MXPB1# Z	¥33,200
71075-52T60-C8 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2022-08 → 2024-01 ended	MXPJ1# HBDG	¥28,900
71075-52T60-C9 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2020-08 → 2024-01 ended	MXPJ1# HBDG	¥28,900
71075-52T80-B4 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2020-08 → 2024-01 ended	MXPJ1# HBDZ	¥33,200
71075-52T80-C4 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2020-08 → 2024-01 ended	MXPJ1# HBDZ	¥33,200
71075-52T80-C5 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2022-08 → 2024-01 ended	MXPJ1# HBDZ	¥33,200
71075-52U50-C1 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2022-08 → 2023-03 ended	MXPB10 GRS	¥39,800
71075-52U50-C5 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2023-03 → 2024-01 ended	MXPB10 GRS	¥36,100
71075-52W80-C1 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2022-08 → 2023-03 ended	MXPJ10 GRS	¥39,800
71075-52W80-C5 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2023-03 → 2024-01 ended	MXPJ10 GRS	¥36,100
71075-52T20-21 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2024-01 → —	MXPB1# G	¥26,200
71075-52T60-21 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2024-01 → —	MXPJ1# HBDG	¥26,200
71075-52U50-C5 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2024-01 → —	MXPB10 GRS	¥36,100
71075-52W80-C5 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2024-01 → —	MXPJ10 GRS	¥36,100
71075-5C460-C0 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2024-01 → —	MXPB1# Z	¥30,200
71075-5C460-C1 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2024-01 → —	MXPB1# Z	¥30,200
71075-5C480-C0 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2024-01 → —	MXPB1# Z	¥40,100
71075-5C510-C0 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2024-01 → —	MXPJ1# U	¥30,200
71075-5C510-C0 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2024-01 → —	MXPJ1# U	¥30,200
71075-5C510-C0 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2024-01 → —	MXPJ1# U	¥30,200
71075-5C510-C0 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2024-01 → —	MXPJ1# U	¥30,200
71075-5C510-C0 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2024-01 → —	MXPJ1# U	¥30,200
71075-5C510-C0 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2024-01 → —	MXPJ1# U	¥30,200
71075-5C510-C0 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2024-01 → —	MXPJ1# HBDZ	¥30,200
71075-5C510-C1 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2024-01 → —	MXPJ1# HBDZ	¥30,200
71075-5C530-C0 note	Cover, Rear Seat Cushion (FOR BENCH TYPE) 2024-01 → —	MXPJ1# HBDZ	¥40,100
71503A — Pad Sub-assy, Rear Seat Cushion
71503-52590	Pad Sub-assy, Rear Seat Cushion 2020-08 → 2024-01 ended	MXPB1# G,GRS,Z	¥20,000
71503-52630	Pad Sub-assy, Rear Seat Cushion 2020-08 → 2024-01 ended	MXPJ1# GRS,HBDG,HBDZ	¥17,100
71503-52590	Pad Sub-assy, Rear Seat Cushion 2024-01 → —	MXPB1# G,GRS,Z	¥20,000
71503-52630 note	Pad Sub-assy, Rear Seat Cushion 2024-01 → —	MXPJ1# U	¥17,100
71503-52630 note	Pad Sub-assy, Rear Seat Cushion 2024-01 → —	MXPJ1# U	¥17,100
71503-52630 note	Pad Sub-assy, Rear Seat Cushion 2024-01 → —	MXPJ1# U	¥17,100
71503-52630 note	Pad Sub-assy, Rear Seat Cushion 2024-01 → —	MXPJ1# U	¥17,100
71503-52630 note	Pad Sub-assy, Rear Seat Cushion 2024-01 → —	MXPJ1# U	¥17,100
71503-52630	Pad Sub-assy, Rear Seat Cushion 2024-01 → —	MXPJ1# GRS,HBDG,HBDZ	¥17,100
71503-52630 note	Pad Sub-assy, Rear Seat Cushion 2024-01 → —	MXPJ1# U	¥17,100
71601A — Pad Sub-assy, Rear Seat Cushion W/Cover
71601-52R80-C5 note	Pad Sub-assy, Rear Seat Cushion W/Cover 2020-08 → 2024-01 ended	MXPB1# X	¥43,700
71601-52R90-C5 note	Pad Sub-assy, Rear Seat Cushion W/Cover 2020-08 → 2024-01 ended	MXPJ1# HBDX	¥41,800
71601-52R80-C5 note	Pad Sub-assy, Rear Seat Cushion W/Cover 2024-01 → —	MXPB1# X	¥43,700
71601-52R90-C5 note	Pad Sub-assy, Rear Seat Cushion W/Cover 2024-01 → —	MXPJ1# HBDX,U	¥41,800
71601-52R90-C5 note	Pad Sub-assy, Rear Seat Cushion W/Cover 2024-01 → —	MXPJ1# U	¥41,800
71601-52R90-C5 note	Pad Sub-assy, Rear Seat Cushion W/Cover 2024-01 → —	MXPJ1# U	¥41,800
71601-52R90-C5 note	Pad Sub-assy, Rear Seat Cushion W/Cover 2024-01 → —	MXPJ1# U	¥41,800
71601-52R90-C5 note	Pad Sub-assy, Rear Seat Cushion W/Cover 2024-01 → —	MXPJ1# U	¥41,800
71601-52R90-C5 note	Pad Sub-assy, Rear Seat Cushion W/Cover 2024-01 → —	MXPJ1# U	¥41,800
71611 — Pad, Rear Seat Cushion
71611-K0020	Pad, Rear Seat Cushion 2020-08 → 2024-01 ended	MXPB1#	¥4,490
71611-K0020	Pad, Rear Seat Cushion 2024-01 → —	MXPB1#	¥4,490
72693 — Hook, Rear Seat Cushion Lock
72693-12080	Hook, Rear Seat Cushion Lock 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080 note	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPJ1# U	¥220
72693-12080	Hook, Rear Seat Cushion Lock 2024-01 → —	MXPB1#,MXPJ1#	¥220

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
