Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

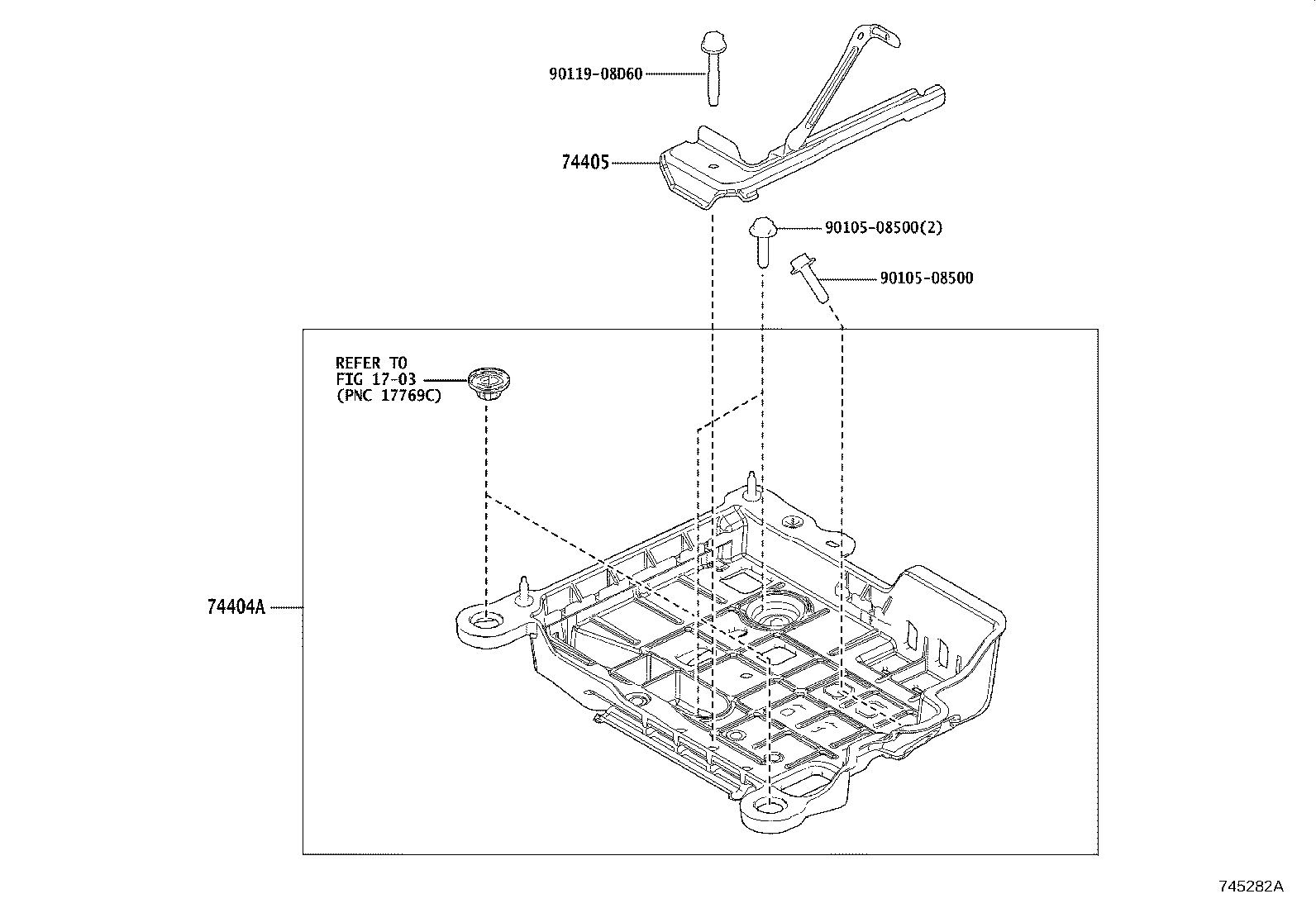

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74404A — Clamp Sub-assy, Battery | ||||
| 74404-52200 |
Clamp Sub-assy, Battery
2020-08 → 2024-01
ended
|
MXPB1# | ¥5,900 | |
| 74404-52200 |
Clamp Sub-assy, Battery
2024-01 → —
|
MXPB1# | ¥5,900 | |
| 74405 — Clamp Sub-assy, Battery, NO.2 | ||||
| 74405-K2010 |
Clamp Sub-assy, Battery, NO.2
2020-08 → 2024-01
ended
|
MXPB1# | ¥1,480 | |
| 74405-K2010 |
Clamp Sub-assy, Battery, NO.2
2024-01 → —
|
MXPB1# | ¥1,480 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
